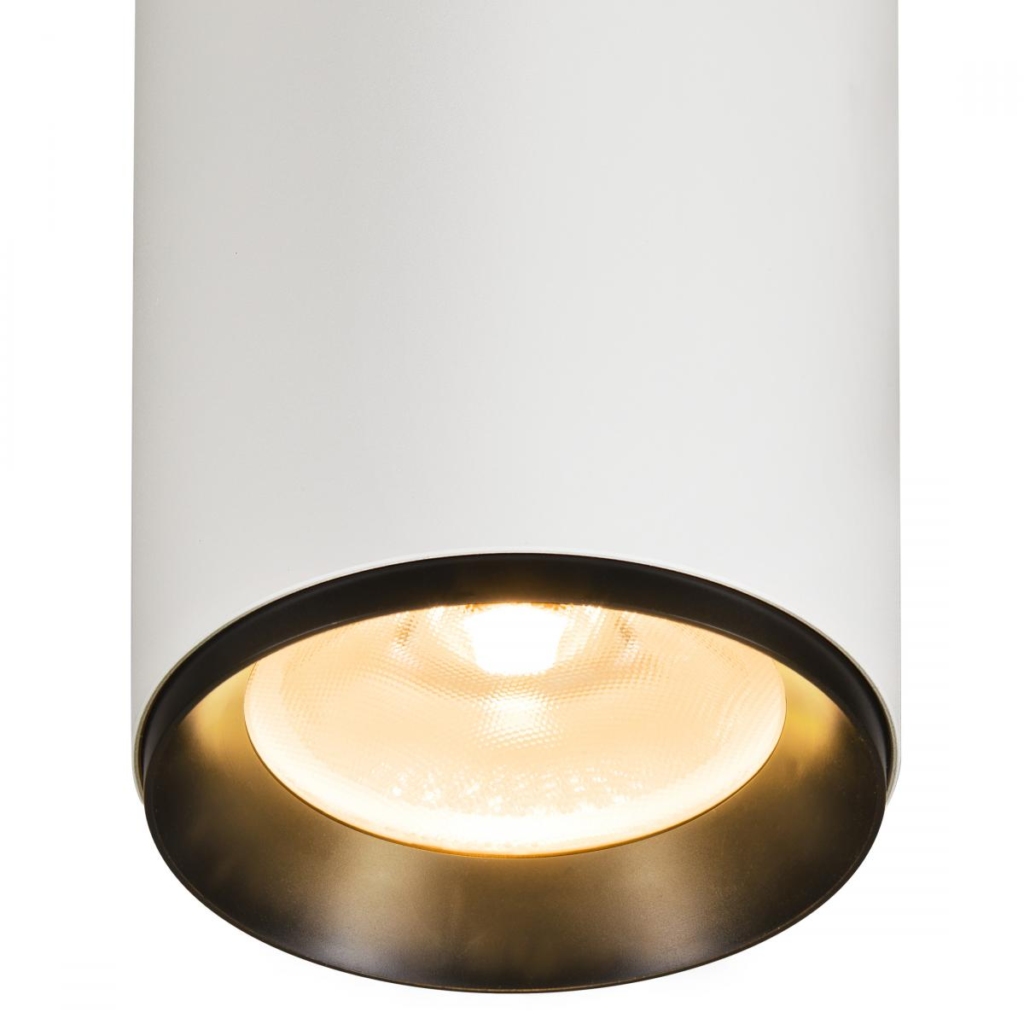

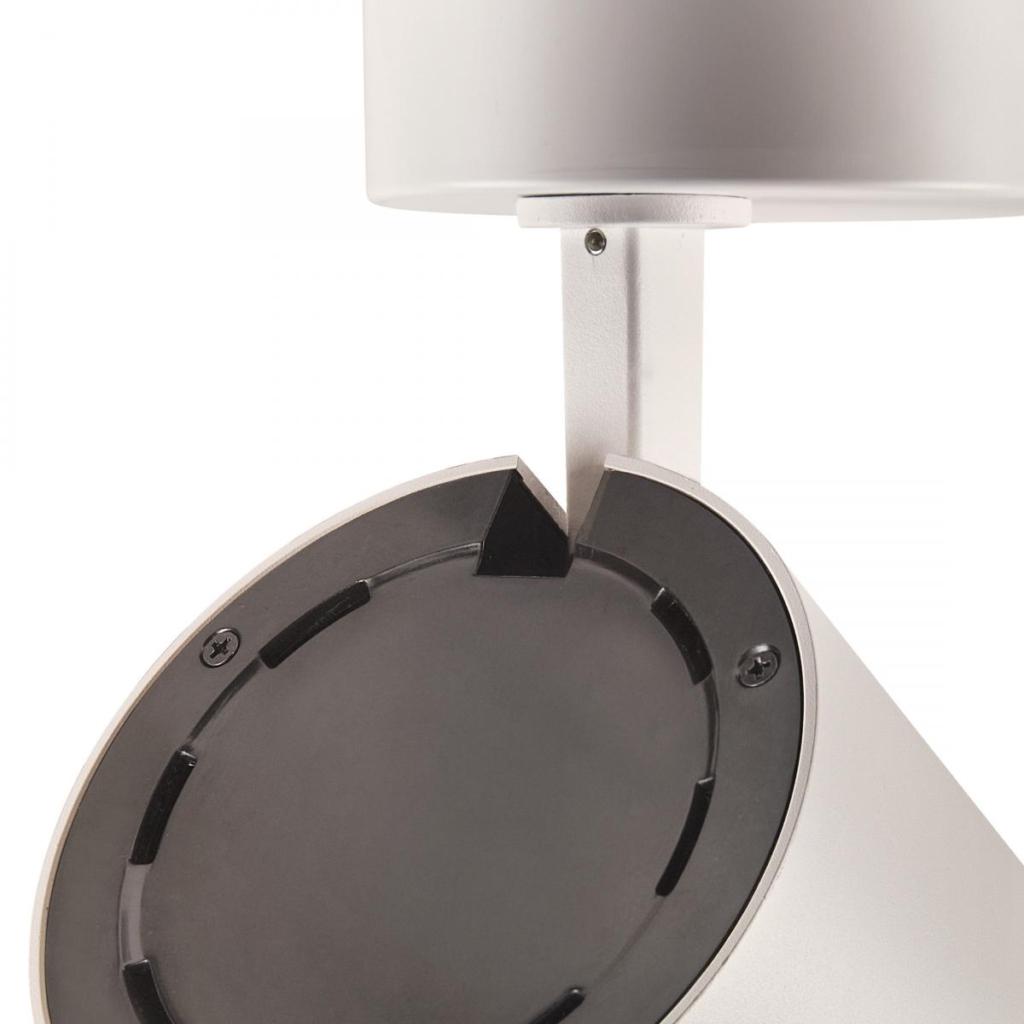

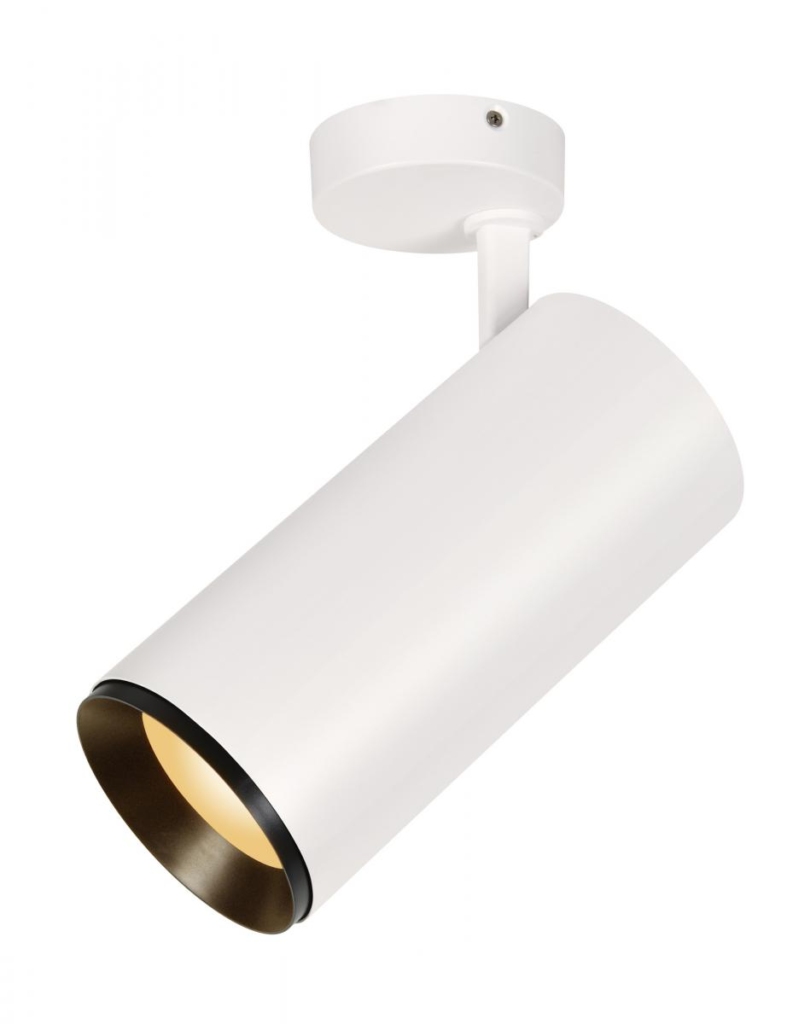

The NUMINOS® XL SPOT is a surface-mounted ceiling luminaire with a cylindrical design, particularly suitable for indoor use. It delivers a luminous flux of 3150 lumens at a power consumption of 28 watts and features a warm white colour temperature of 2700 K. The luminaire offers a beam angle of 60° and is equipped with phase-cut dimming, allowing stepless brightness adjustment. The housing is made of aluminium and plastic, and the luminaire is available in matt white or matt black. With a diameter of 12 cm, a height of 20 cm, and a length of 25.8 cm, it is compactly sized. The IP20 protection rating makes it suitable for use in dry indoor areas. The luminaire is designed for a long service life of up to 50,000 hours.

Tehnilised andmed

Half beam angle	60 °
Colour	white
Colour temperature	2700 Kelvin
Luminous Flux	3150 lm
electrical power	28 W
CRI	90
Net weight	1.676 kg

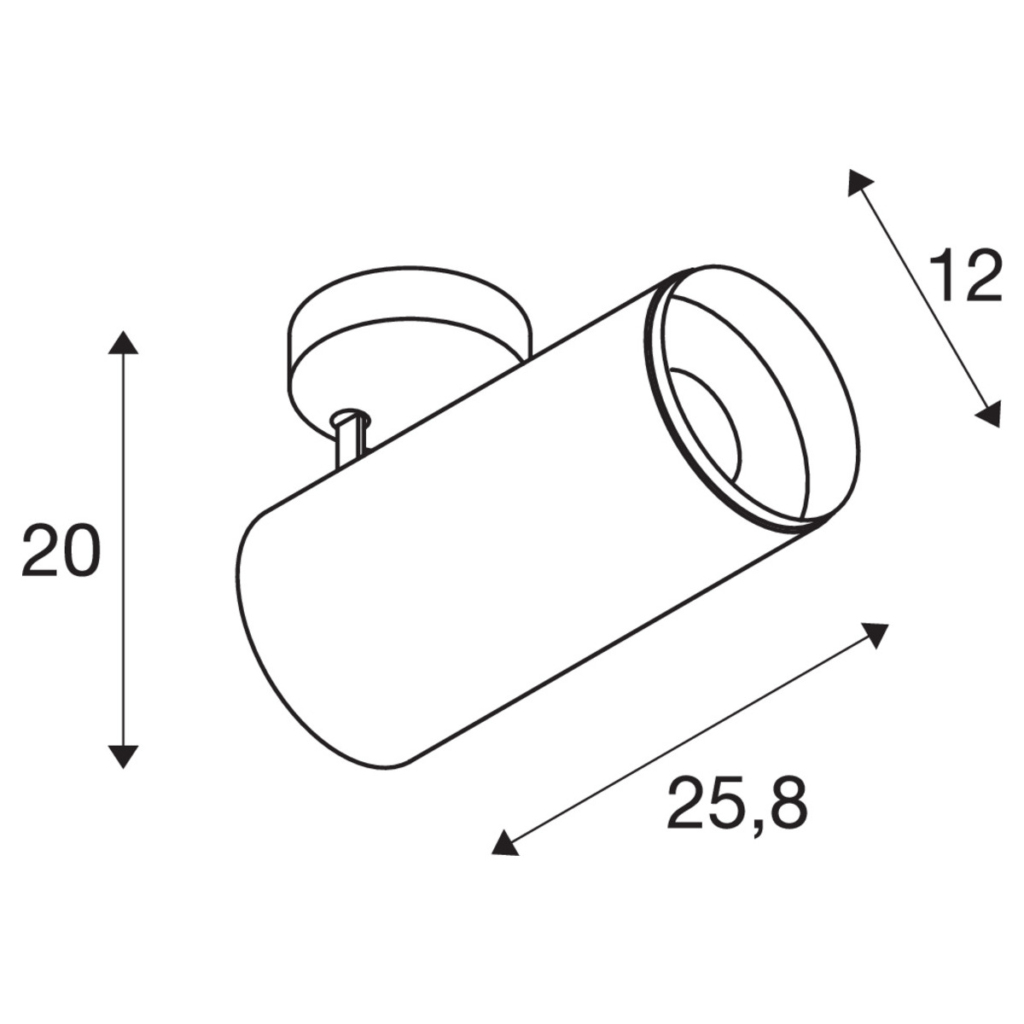

Diameter	12 cm
Height	20 cm
Length	25.8 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	700 mA
Dimming options	Trailing edge
Shape	cylindrical
Horizontal rotation range	350 °
Variant Dimm options	Trailing edge
Different light outlets	1
Number of through-wires	54
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Berker 2873 Result	With restrictions
Material	Aluminium
UGR ≤	22
Product name	NUMINOS® XL
CCT Switch	No
DALI capable	No
Dimmable	Yes
Assembly	Surface
Risk group	1
Busch-Jäger 6523U Result	Compatible
Eltako EUD 61 NPN-UC Result	Compatible
Jung 224 LED UDD Result	Compatible
Legrand PRO21 LED Dimmer 775659 Result	Compatible
LK Fuga LED Dimmer 180 Touch Result	Compatible
Merten MEG5134-0000 Result	Compatible
Niko 310-0190X Result	Compatible
SLV 470807 Result	Compatible
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	3-Phase-System, Ceiling lights, Indoor, LED, Surface mounted
Sildid	Ceiling light, Dimmable, Indoor lighting, LED power track spotlight, Power-track spotlight, Shop lighting, Spotlight
