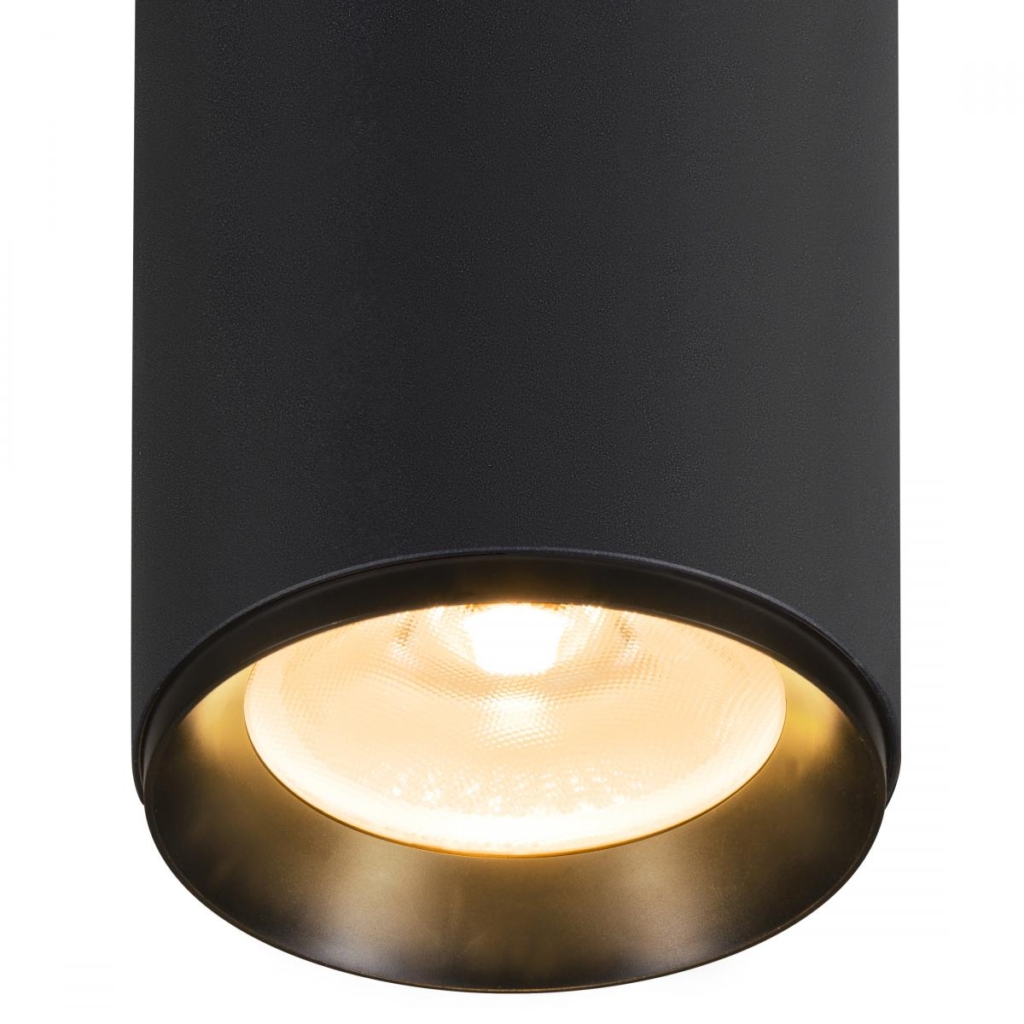

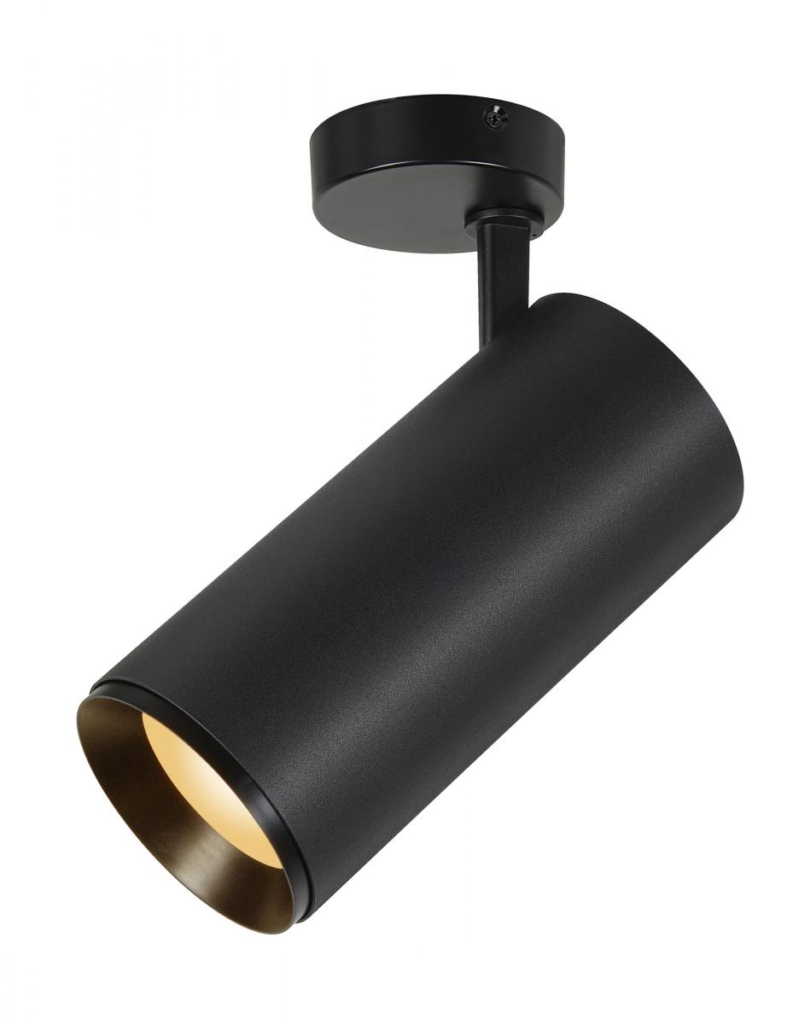

The NUMINOS® XL SPOT is a ceiling surface-mounted luminaire with a cylindrical shape, suitable for indoor use. It features PHASE-cut dimming and has a colour temperature of 2700 K with a beam angle of 60°. The luminaire produces a luminous flux of 3150 lumens at a power consumption of 28 watts. The housing is made of aluminium and polycarbonate, finished in matte black, and measures 25.8 cm in length, 12 cm in diameter, and 20 cm in height. The IP20 rating protects the luminaire against solid foreign objects larger than 12.5 mm in diameter. This luminaire is suitable for applications requiring precise and dimmable lighting.

Tehnilised andmed

Half beam angle	60 °
Colour	black
Colour temperature	2700 Kelvin
Luminous Flux	3150 lm
electrical power	28 W
CRI	90
Net weight	1.676 kg

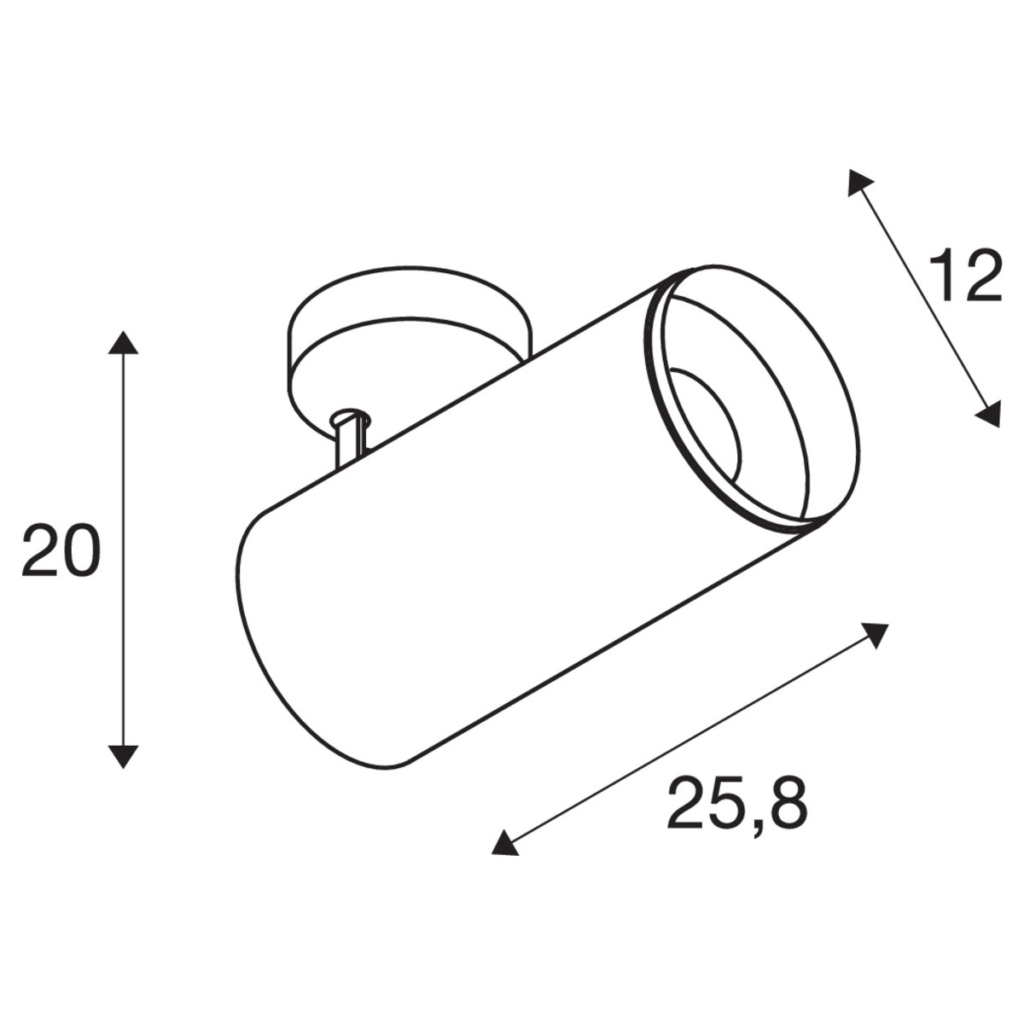

Diameter	12 cm
Height	20 cm
Length	25.8 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	700 mA
Dimming options	Trailing edge
Shape	cylindrical

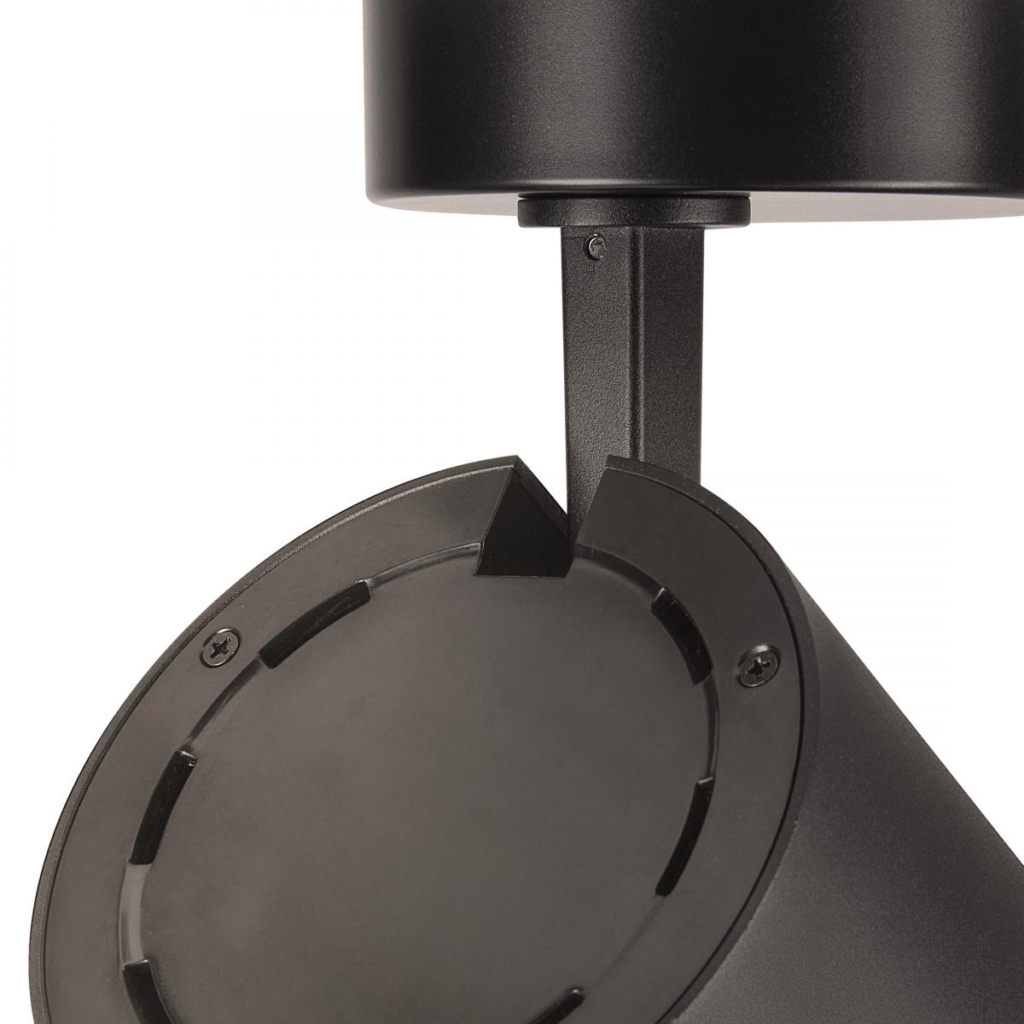

Horizontal rotation range	350 °
Variant Dimm options	Trailing edge
Different light outlets	1
Number of through-wires	54
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Berker 2873 Result	With restrictions
Material	Aluminium
UGR ≤	22
Product name	NUMINOS® XL
CCT Switch	No
DALI capable	No
Dimmable	Yes
Assembly	Surface
Risk group	1
Busch-Jäger 6523U Result	Compatible
Eltako EUD 61 NPN-UC Result	Compatible
Jung 224 LED UDD Result	Compatible
Legrand PRO21 LED Dimmer 775659 Result	Compatible
LK Fuga LED Dimmer 180 Touch Result	Compatible
Merten MEG5134-0000 Result	Compatible
Niko 310-0190X Result	Compatible
SLV 470807 Result	Compatible
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	3-Phase-System, Ceiling lights, Indoor, LED, Surface mounted
Sildid	Ceiling light, Dimmable, Indoor lighting, LED power track spotlight, Power-track spotlight, Shop lighting, Spotlight
