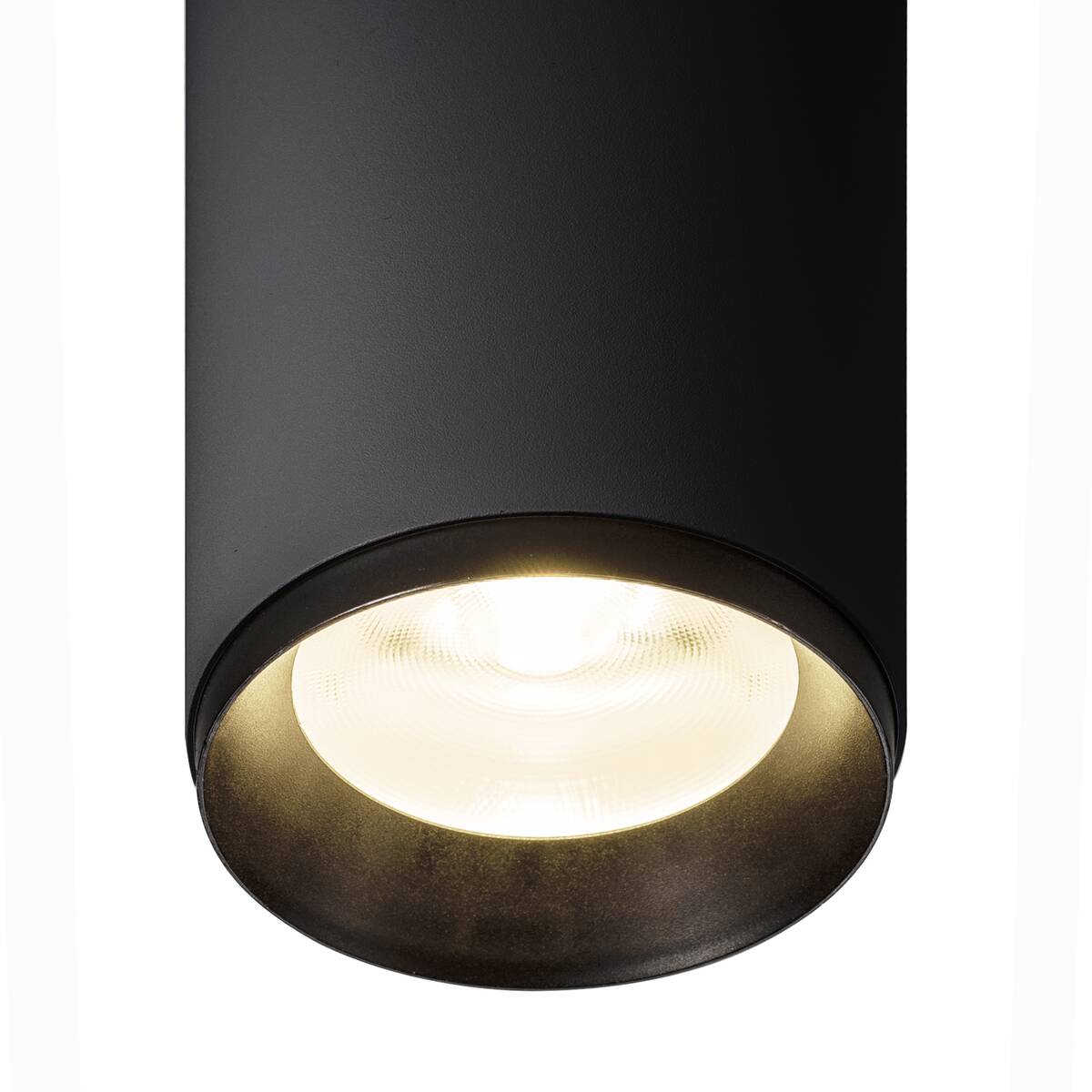

The NUMINOS® L SPOT surface-mounted ceiling luminaire is designed for installation on indoor ceilings and is suitable for targeted accent lighting. It features a cylindrical shape with a matte black aluminium housing and a polycarbonate element. The luminaire provides a light output of 2600 lumens at 20 watts and a colour temperature of 4000 K. The beam angle is 24°, allowing precise light control. Dimming is carried out via phase-cut control (Trailing Edge). With a diameter of 10 cm, a length of 21.3 cm, and a height of 18 cm, the luminaire is compactly sized. The IP20 protection rating indicates suitability for dry indoor areas. The declared service life is 50,000 hours.

Tehnilised andmed

Half beam angle	24 °
Colour	black
Colour temperature	4000 Kelvin
Luminous Flux	2600 lm
electrical power	20 W
CRI	90
Net weight	1.129 kg
Diameter	10 cm
Height	18 cm
Length	21.3 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	500 mA
Dimming options	Trailing edge
Shape	cylindrical
Horizontal rotation range	350 °
Variant Dimm options	Trailing edge
Different light outlets	1
Number of through-wires	78
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Berker 2873 Result	With restrictions
Material	Aluminium
UGR ≤	16
LED can be changed	Control gear replaceable by a professional
Product name	NUMINOS® L
CCT Switch	No
DALI capable	No
Dimmable	Yes
Assembly	Surface
Risk group	1
Busch-Jäger 6523U Result	Compatible
Eltako EUD 61 NPN-UC Result	Compatible
Jung 224 LED UDD Result	Compatible
Legrand PRO21 LED Dimmer 775659 Result	Compatible
LK Fuga LED Dimmer 180 Touch Result	Compatible
Merten MEG5134-0000 Result	Compatible
Niko 310-0190X Result	Compatible
SLV 470807 Result	Compatible
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	Ceiling lights, Indoor, LED, Surface mounted
Sildid	Ceiling spot, LED ceiling light, TRIAC
