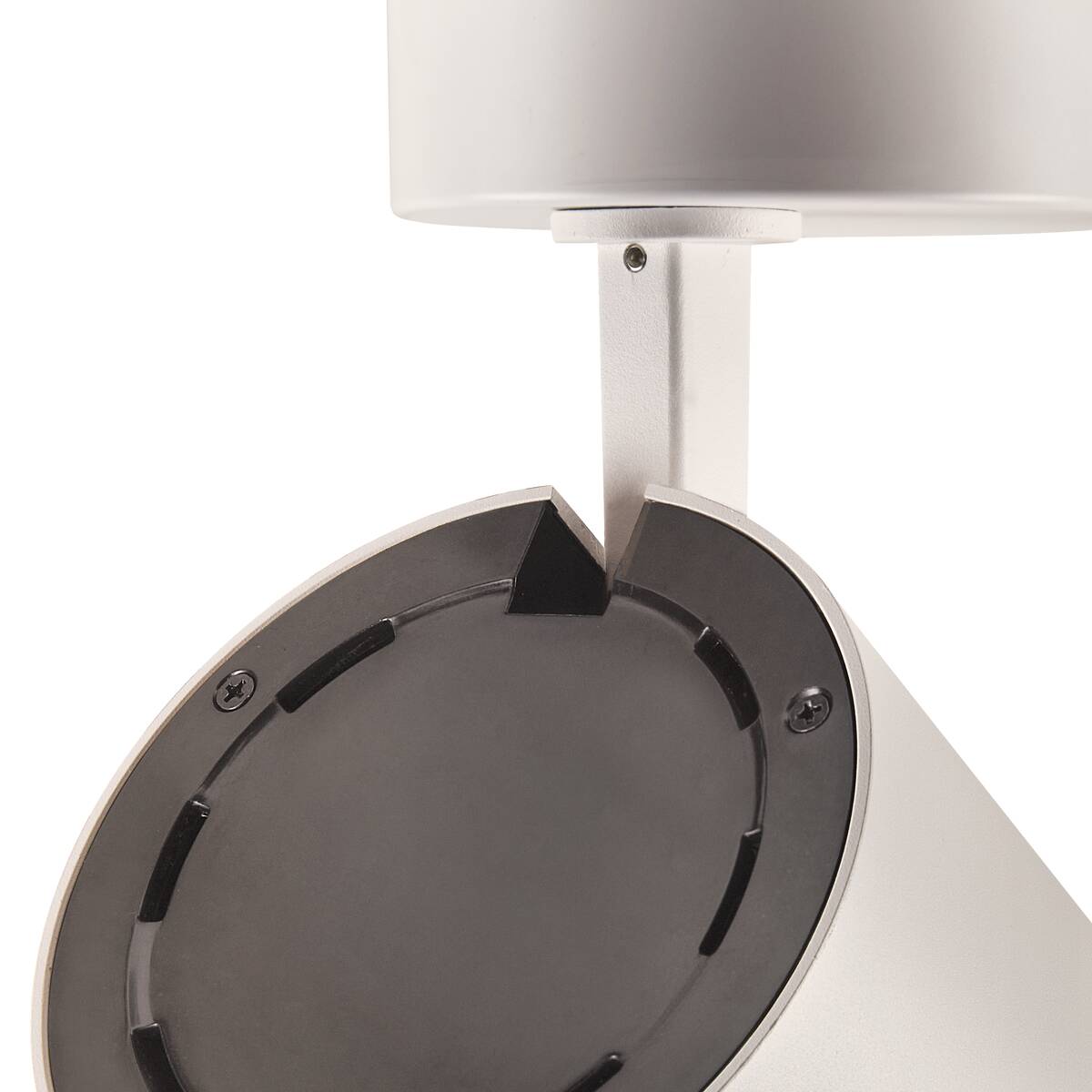

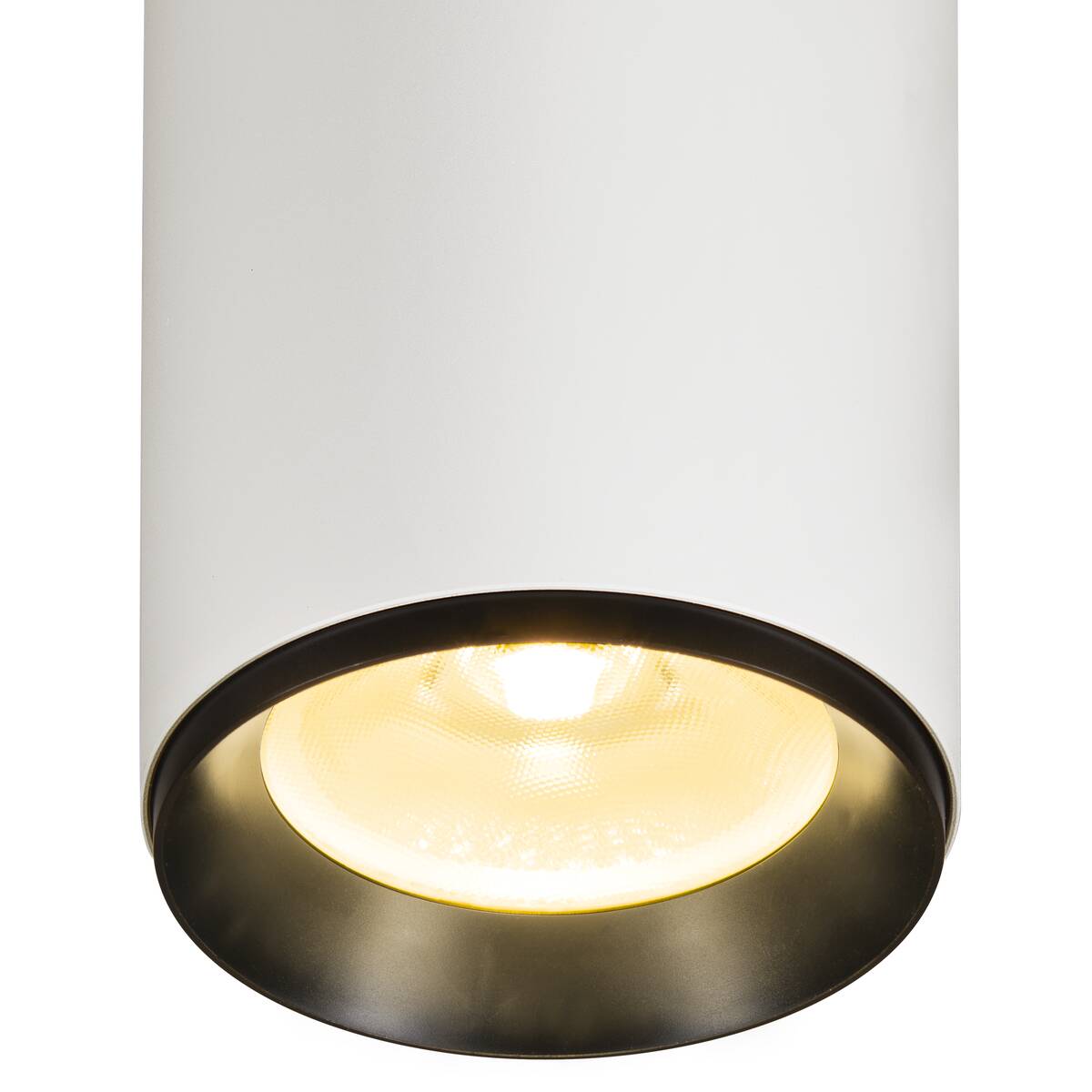

The NUMINOS® XL SPOT is a surface-mounted ceiling luminaire designed for indoor use. It features a cylindrical shape and comes with a matte white or matte black housing made of aluminium and polycarbonate. The luminaire delivers a light output of 3150 lumens at a colour temperature of 3000 K and a beam angle of 60°. Control is via DALI 2 and touch dimming technology. With a power consumption of 27 watts and a lifespan of 50,000 hours, it is suitable for a wide range of lighting applications. The IP20 protection rating ensures use in protected indoor areas. The luminaire has a diameter of 12 cm, a length of 25.8 cm, and a height of 20 cm.

Tehnilised andmed

Half beam angle	60 °
Colour	white/white
Variant Color 2	white
Colour temperature	3000 Kelvin
Luminous Flux	3150 lm
electrical power	27 W
CRI	90
Net weight	1.59 kg
Diameter	12 cm
Height	20 cm
Length	25.8 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	700 mA
Dimming options	DALI and Touch
Shape	cylindrical
Horizontal rotation range	350 °
Variant Dimm options	DALI and Touch
Different light outlets	1
Number of through-wires	58
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Material	Aluminium
UGR ≤	22
Product name	NUMINOS® XL
CCT Switch	No
DALI capable	Yes
Dimmable	Yes
Assembly	Surface
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
