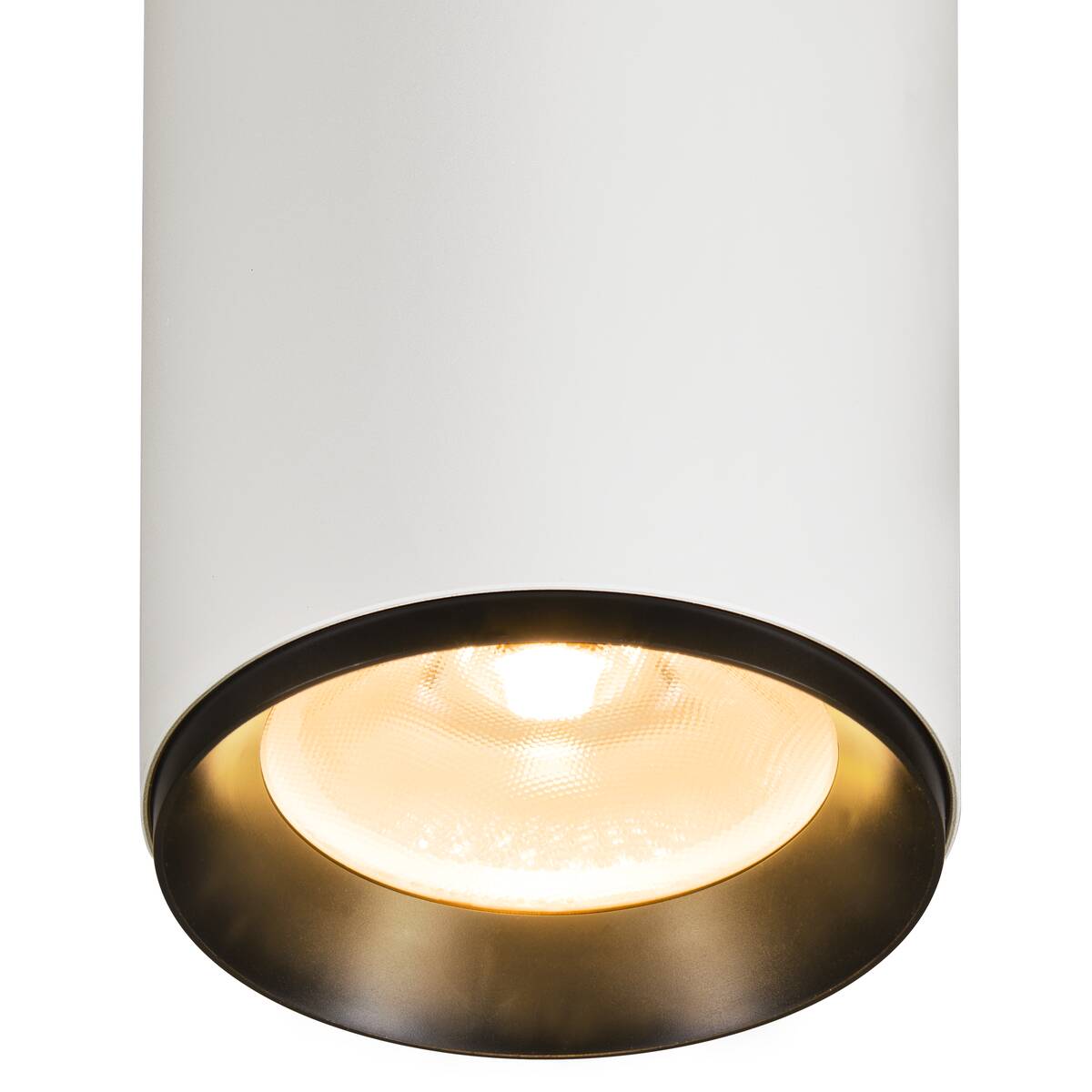

The NUMINOS® XL SPOT is a surface-mounted ceiling luminaire suitable for indoor use. It features a cylindrical shape and is available in matte white or matte black. The luminaire operates at a colour temperature of 2700 K and delivers a luminous flux of 3150 lumens with a power consumption of 27 watts. The beam angle is 60°, allowing for targeted illumination. The housing is made of aluminium and polycarbonate, ensuring a robust construction. The luminaire is equipped with DALI 2 and touch dimming functions, providing flexible light control. With dimensions of 25.8 cm length, 12 cm diameter, and 20 cm height, along with a round canopy, it is suitable for various ceiling mounting options. The protection rating is IP20, making it suitable for use in dry indoor environments.

Tehnilised andmed

Half beam angle	60 °
Colour	white/white
Variant Color 2	white
Colour temperature	2700 Kelvin
Luminous Flux	3150 lm
electrical power	27 W
CRI	90
Net weight	1.59 kg
Diameter	12 cm
Height	20 cm
Length	25.8 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	700 mA
Dimming options	DALI and Touch
Shape	cylindrical
Horizontal rotation range	350 °
Variant Dimm options	DALI and Touch
Different light outlets	1
Number of through-wires	58
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Material	Aluminium
UGR ≤	22
Product name	NUMINOS® XL
CCT Switch	No
DALI capable	Yes
Dimmable	Yes
Assembly	Surface
Risk group	1
