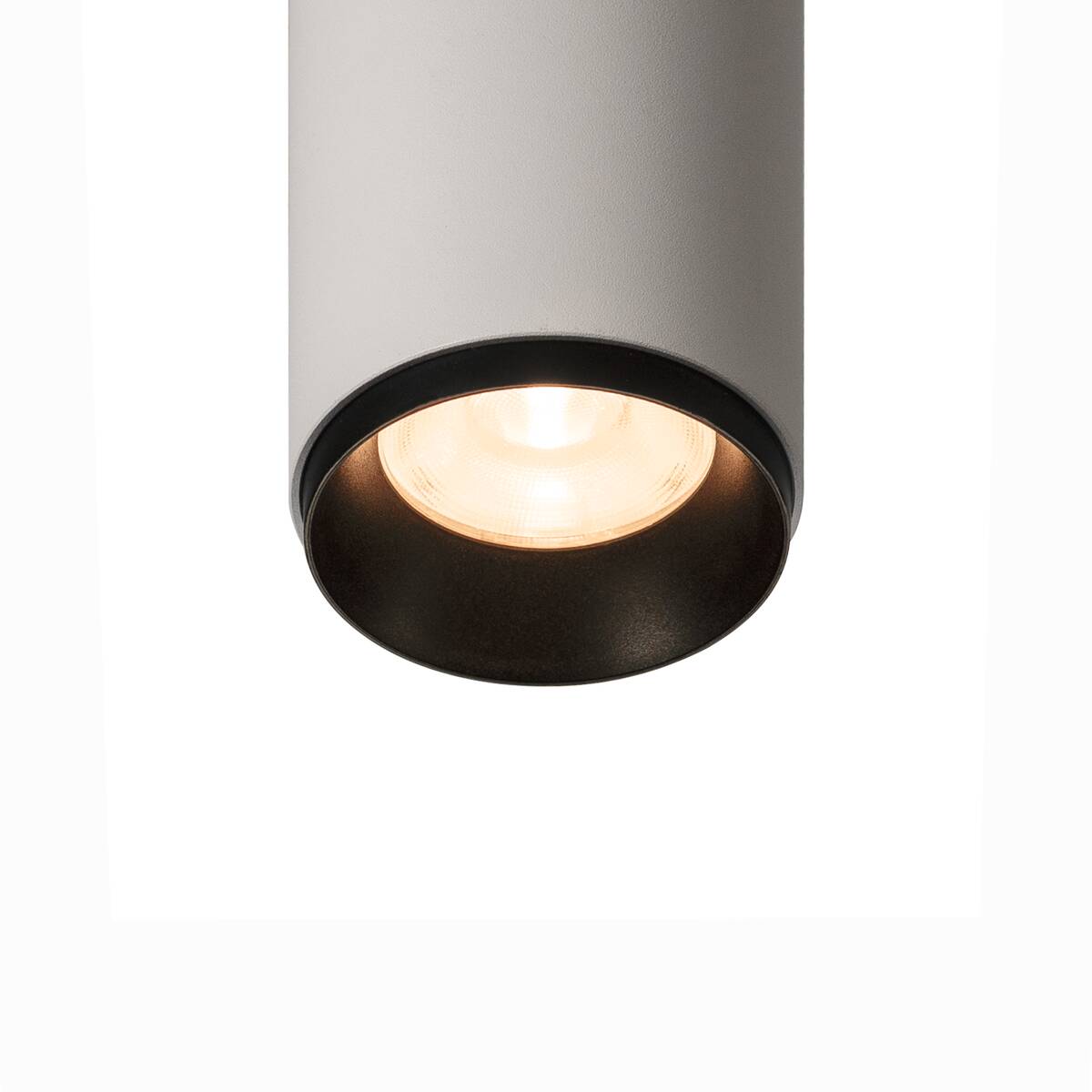

The NUMINOS® S CW is a cylindrical surface-mounted ceiling luminaire suitable for indoor use. It provides a luminous flux of 950 lumens at a colour temperature of 2700 Kelvin with a beam angle of 24 degrees. With a power consumption of 7.8 watts, it is designed for efficient lighting. The housing is made of aluminium and polycarbonate, and the luminaire is available in matt white and matt black. Installation is carried out directly on the ceiling. The luminaire features an IP20 protection rating and is equipped with DALI 2 and touch dimming technology, allowing for flexible light control. The product dimensions are 16.2 cm in length, 6.5 cm in diameter, and 14.5 cm in height. The declared service life is 50,000 hours.

Tehnilised andmed

Half beam angle	24 °
Colour	white
Colour temperature	2700 Kelvin
Luminous Flux	950 lm
electrical power	7,8 W
CRI	90
Net weight	0.615 kg
Diameter	6.5 cm
Height	14.5 cm
Length	16.2 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	200 mA
Dimming options	DALI and Touch
Shape	cylindrical
Horizontal rotation range	350 °
Variant Dimm options	DALI and Touch
Different light outlets	1
Number of through-wires	166
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Material	Aluminium
UGR ≤	16
LED can be changed	Control gear replaceable by a professional
Product name	NUMINOS® S
CCT Switch	No
DALI capable	Yes
Dimmable	Yes
Assembly	Surface
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	Ceiling lights, Indoor, LED, Surface mounted
Sildid	Ceiling spot, DALI, LED ceiling light
