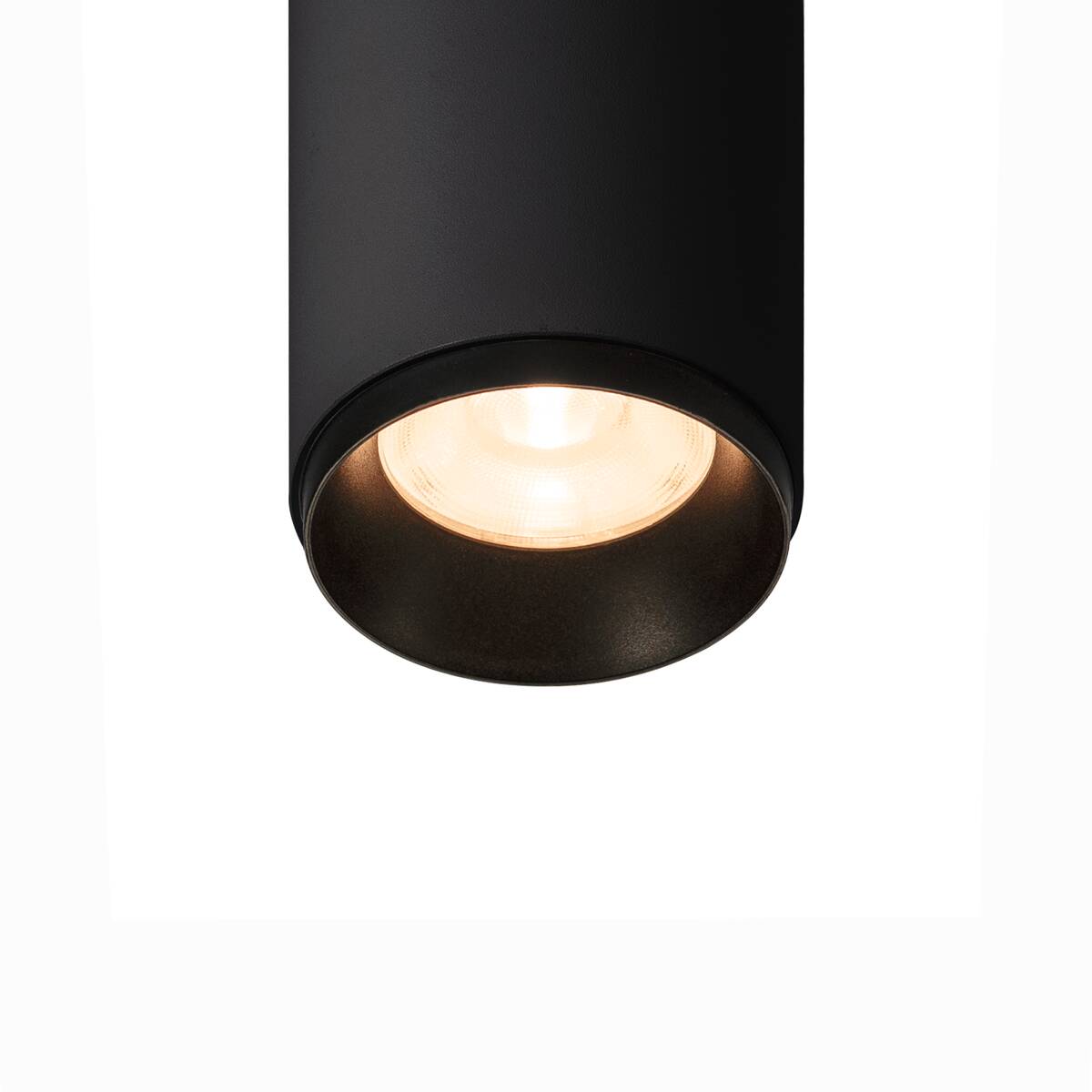

The NUMINOS® S surface-mounted ceiling luminaire is designed for indoor use and is particularly suitable for general lighting in residential and work areas. It features a cylindrical shape and is finished in matte black. With a luminous flux of 950 lumens at a colour temperature of 2700 K, it produces warm white light. The beam angle is 24°, allowing for targeted light distribution. The housing is made of aluminium and polycarbonate, ensuring a robust construction. The luminaire is equipped with DALI 2 and touch dimming functions, enabling flexible light control. With an IP20 protection rating, it is suitable for use in dry indoor environments. Its compact design, with a diameter of 6.5 cm, a length of 16.2 cm, and a height of 14.5 cm, facilitates mounting on ceiling surfaces.

Tehnilised andmed

Half beam angle	24 °
Colour	black
Colour temperature	2700 Kelvin
Luminous Flux	950 lm
electrical power	7,8 W
CRI	90
Net weight	0.615 kg
Diameter	6.5 cm
Height	14.5 cm
Length	16.2 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	200 mA
Dimming options	DALI and Touch
Shape	cylindrical
Horizontal rotation range	350 °
Variant Dimm options	DALI and Touch
Different light outlets	1
Number of through-wires	166
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Material	Aluminium
UGR ≤	16
LED can be changed	Control gear replaceable by a professional
Product name	NUMINOS® S
CCT Switch	No
DALI capable	Yes
Dimmable	Yes
Assembly	Surface
Risk group	1
