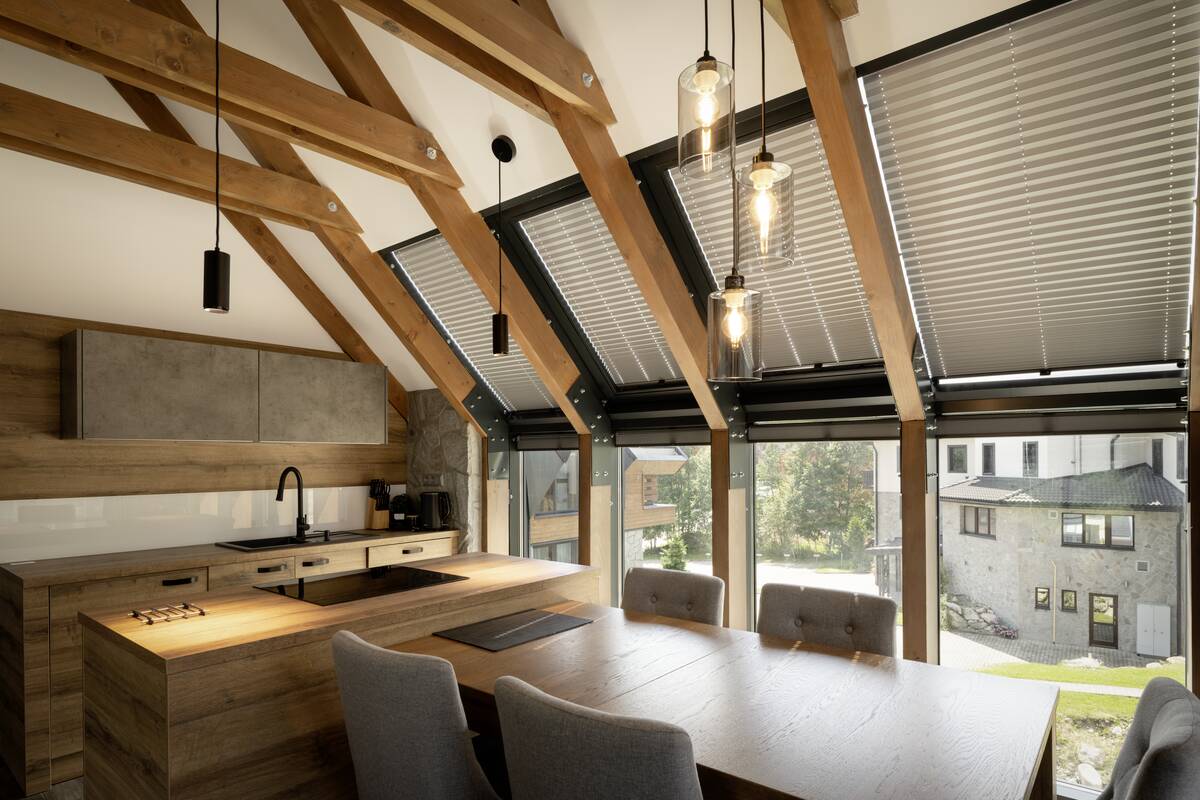

The NUMINOS® S PD PHASE is a pendant luminaire suitable for indoor lighting. It features a cylindrical shape with a diameter of 6.5 cm and a height of 16.2 cm. The luminaire is equipped with an 8-watt LED, delivering a luminous flux of 950 lumens at a colour temperature of 2700 K and a beam angle of 36°. The pendant length is 250 cm, allowing for flexible installation options. The housing is made of aluminium and polycarbonate, and the luminaire comes with a round canopy. Dimming is achieved via phase-cut (trailing edge). The IP20 rating permits use in protected indoor areas. This luminaire is designed for professional use by wholesalers, planners, and installers.

Tehnilised andmed

Half beam angle	36 °
Colour	black
Colour temperature	2700 Kelvin
Luminous Flux	950 lm
electrical power	8 W
CRI	90
Net weight	0.82 kg
Diameter	6.5 cm
Height	16.2 cm
Pendant length	250 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	200 mA
Dimming options	Trailing edge
Shape	cylindrical
Variant Dimm options	Trailing edge
Different light outlets	1
Number of through-wires	128
Seperate beams	Yes
Ambient temperature	-20 °C
Berker 2873 Result	With restrictions
Material	Aluminium
UGR ≤	16
LED can be changed	Control gear replaceable by a professional
Product name	NUMINOS® S
CCT Switch	No
DALI capable	No
Dimmable	Yes
Assembly	Surface
Risk group	1
Busch-Jäger 6523U Result	Compatible
Eltako EUD 61 NPN-UC Result	Compatible
Jung 224 LED UDD Result	Compatible
Legrand PRO21 LED Dimmer 775659 Result	Compatible
LK Fuga LED Dimmer 180 Touch Result	Compatible
Merten MEG5134-0000 Result	Compatible
Niko 310-0190X Result	Compatible
SLV 470807 Result	Compatible
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	Indoor, LED, Pendant lights
Sildid	Dimmable pendant light, TRIAC
