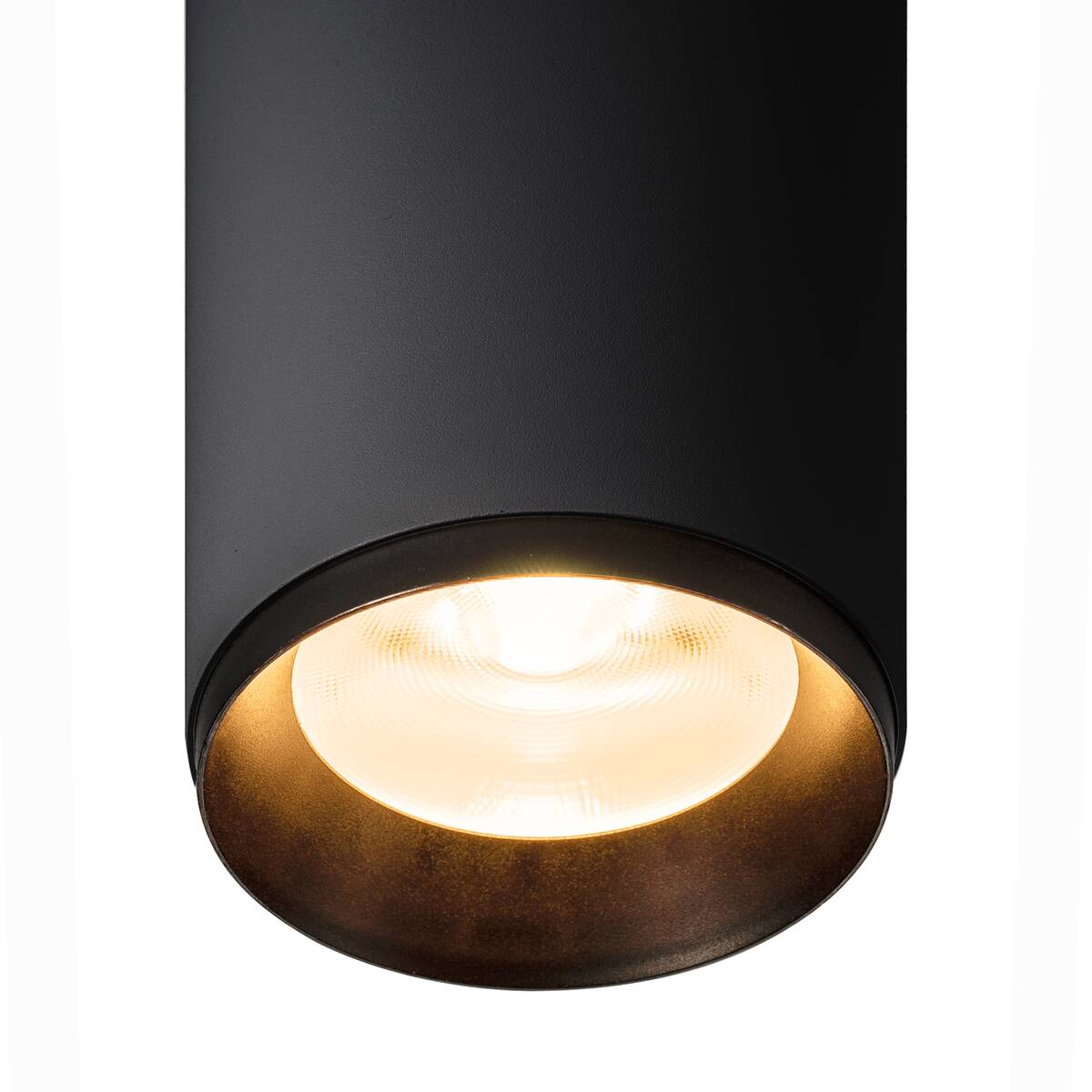

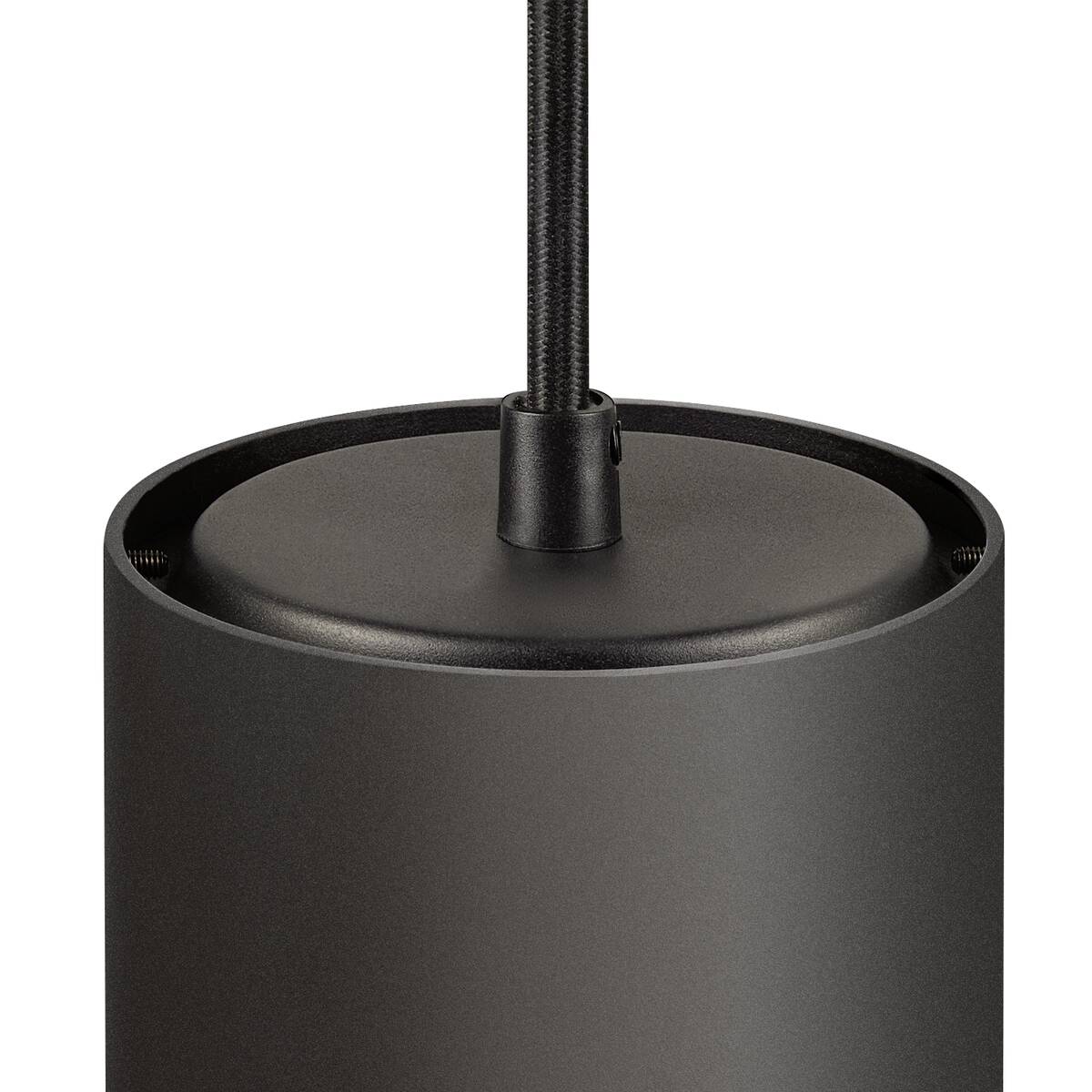

The NUMINOS® L PD PHASE is a cylindrical pendant luminaire suitable for indoor use. It features a suspension length of 250 cm and a diameter of 10 cm. The luminaire is equipped with an LED light source delivering a luminous flux of 2300 lumens at 20 watts and a warm white colour temperature of 2700 K. The beam angle is 36 degrees, providing targeted light distribution. The housing is made of aluminium and polycarbonate, and the canopy is round in design. The luminaire is equipped with PHASE-cut dimming, allowing easy adjustment of light intensity. With an IP20 protection rating, it is suitable for protected indoor areas. The declared LED lifespan is 50,000 hours.

Tehnilised andmed

Half beam angle	36 °
Colour	black
Colour temperature	2700 Kelvin
Luminous Flux	2300 lm
electrical power	20 W
CRI	90
Net weight	1.278 kg
Diameter	10 cm
Height	21.3 cm
Pendant length	250 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	500 mA
Dimming options	Trailing edge
Shape	cylindrical
Variant Dimm options	Trailing edge
Different light outlets	1
Number of through-wires	78
Seperate beams	Yes
Ambient temperature	-20 °C
Berker 2873 Result	With restrictions
Material	Aluminium
UGR ≤	16
LED can be changed	Control gear replaceable by a professional
Product name	NUMINOS® L
CCT Switch	No
DALI capable	No
Dimmable	Yes
Assembly	Surface
Risk group	1
Busch-Jäger 6523U Result	Compatible
Eltako EUD 61 NPN-UC Result	Compatible
Jung 224 LED UDD Result	Compatible
Legrand PRO21 LED Dimmer 775659 Result	Compatible
LK Fuga LED Dimmer 180 Touch Result	Compatible
Merten MEG5134-0000 Result	Compatible
Niko 310-0190X Result	Compatible
SLV 470807 Result	Compatible
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	Indoor, LED, Pendant lights
Sildid	Dimmable pendant light, TRIAC
