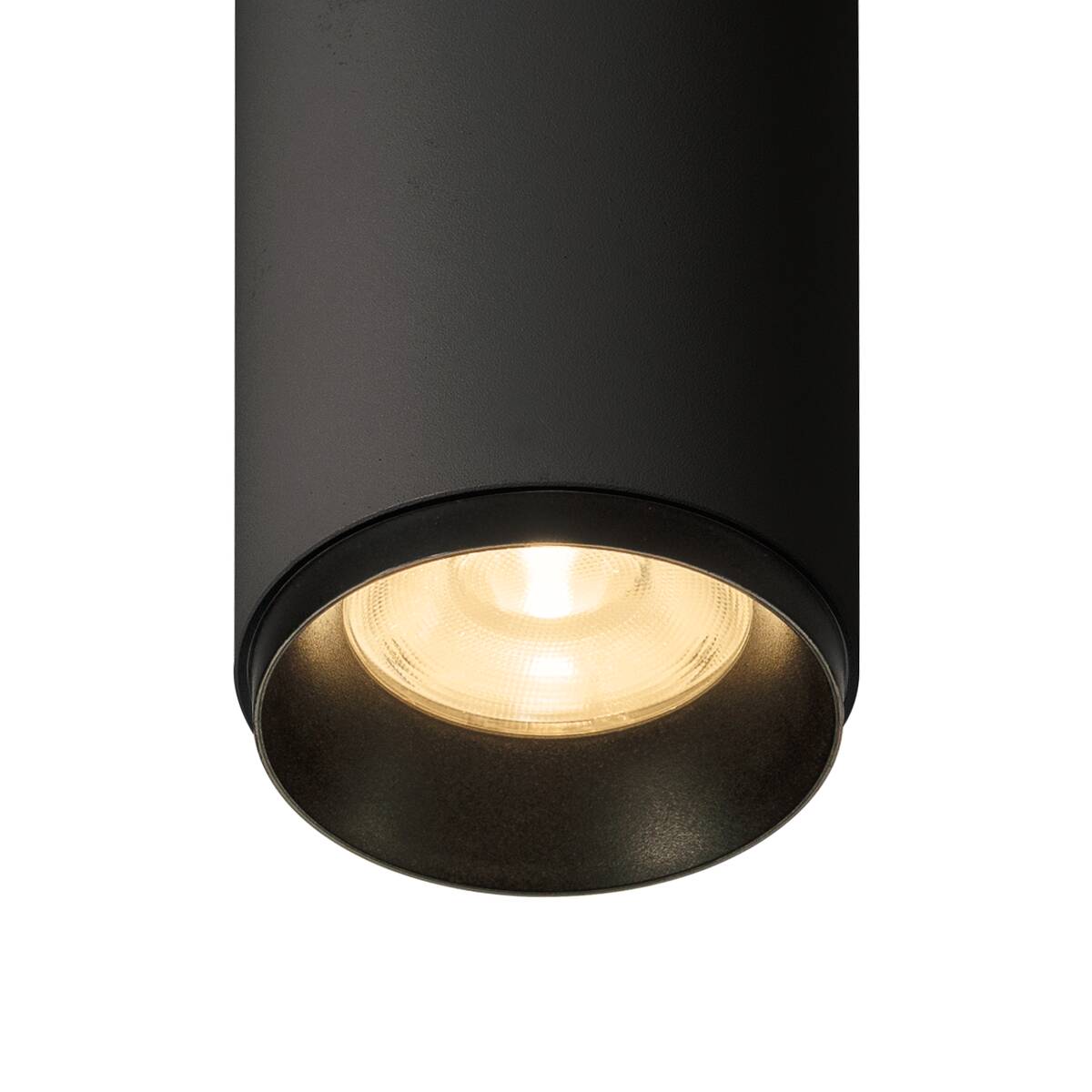

The NUMINOS® M PD DALI is a pendant luminaire particularly suitable for indoor use, for example in offices or reception areas. It features a cylindrical shape with a diameter of 8.5 cm and a height of 18.5 cm. The luminaire is suspended from a 250 cm long pendant and is available in a matte black finish. With a luminous flux of 1750 lumens at 13 watts and a colour temperature of 2700 K, it provides a pleasant, warm white light. The beam angle is 24°. The housing is made of aluminium and polycarbonate, and the luminaire is equipped with a round canopy. Control is via DALI 2 and touch dimming. The protection rating is IP20, making the luminaire suitable for use in dry indoor environments.

Tehnilised andmed

Half beam angle	24 °
Colour	black
Colour temperature	2700 Kelvin
Luminous Flux	1750 lm
electrical power	13 W
CRI	90
Net weight	1.15 kg
Diameter	8.5 cm
Height	18.5 cm
Pendant length	250 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	350 mA
Dimming options	DALI and Touch
Shape	cylindrical
Variant Dimm options	DALI and Touch
Different light outlets	1
Number of through-wires	94
Seperate beams	Yes
Ambient temperature	-20 °C
Material	Aluminium
UGR ≤	16
LED can be changed	Control gear replaceable by a professional
Product name	NUMINOS® M
CCT Switch	No
DALI capable	Yes
Dimmable	Yes
Assembly	Surface
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	Indoor, LED, Pendant lights
Sildid	DALI, Dimmable pendant light
