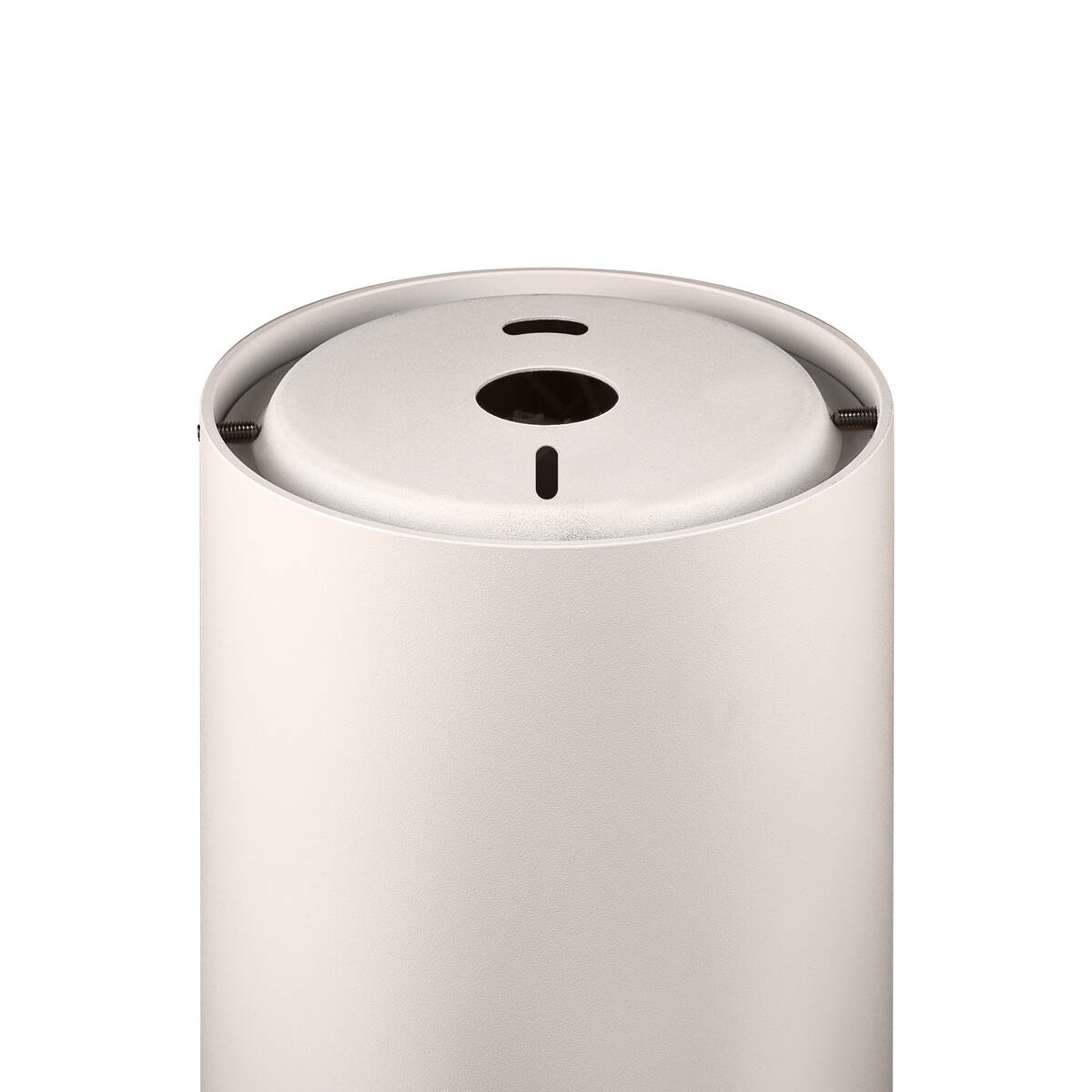

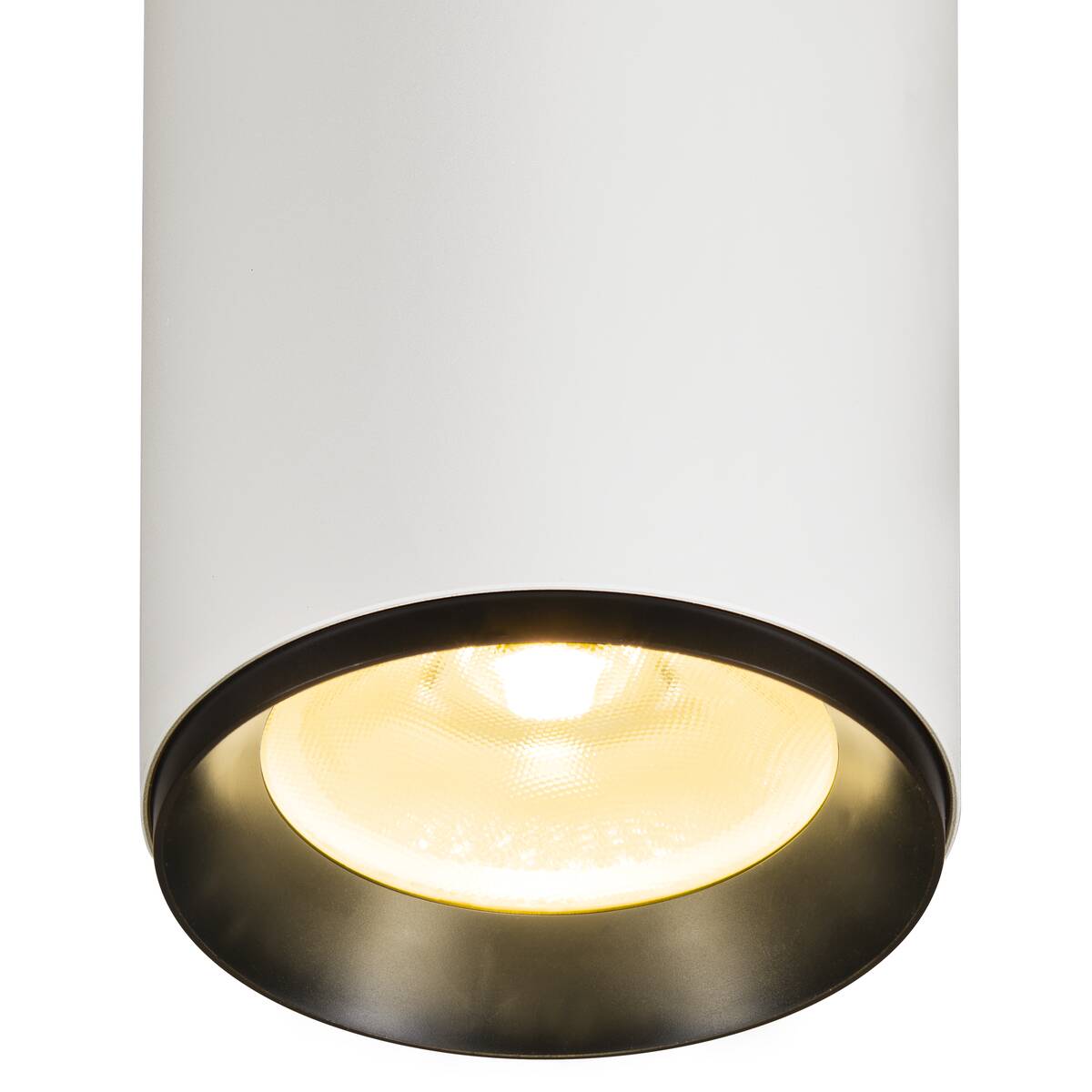

The NUMINOS® XL CL is a cylindrical surface-mounted ceiling luminaire suitable for indoor use. It features a colour temperature of 3000 K and a luminous flux of 3150 lumens with a power consumption of 27 watts. The luminaire is equipped with DALI 2 and touch dimming functions, allowing flexible light control. The housing is made of aluminium and is available in matt white or matt black. With a diameter of 12 cm and a height of 25.8 cm, the luminaire is compactly designed. The IP20 protection rating makes it suitable for dust-protected indoor areas. The NUMINOS® XL CL provides a light distribution with a beam angle of 60 degrees and a declared lifetime of 50,000 hours.

Tehnilised andmed

Half beam angle	60 °
Colour	white
Colour temperature	3000 Kelvin
Luminous Flux	3150 lm
electrical power	27 W
CRI	90
Net weight	1.513 kg
Diameter	12 cm
Height	25.8 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	700 mA
Dimming options	DALI and Touch
Shape	cylindrical
Variant Dimm options	DALI and Touch
Different light outlets	1
Number of through-wires	58
Seperate beams	Yes
Ambient temperature	-20 °C
Material	Aluminium
UGR ≤	22
Product name	NUMINOS® XL
CCT Switch	No
DALI capable	Yes
Dimmable	Yes
Assembly	Surface
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	Ceiling lights, Indoor, LED, Surface mounted
Sildid	Ceiling light, DALI, Downlight, Downlight recessed, Indoor lighting, LED spot, LED-Downlight, Recessed ceiling light, Recessed downlight, Spot
