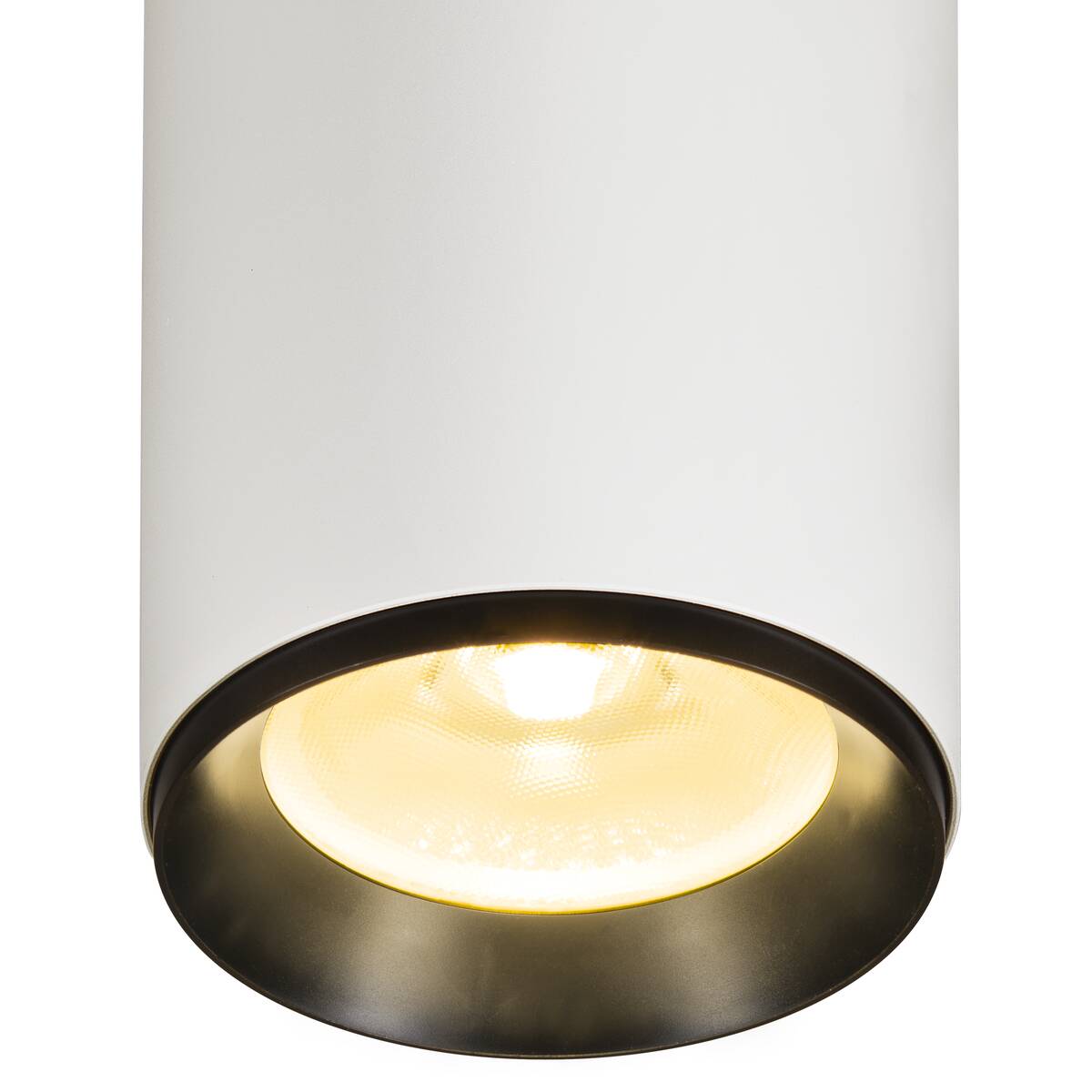

The NUMINOS® XL 3Ph. DALI 3~ Spot is a cylindrically shaped spotlight designed for ceiling track system mounting. It is particularly suitable for use in commercial and public indoor spaces where targeted lighting is required. With a luminous flux of 3150 lumens at 27 watts and a colour temperature of 3000 Kelvin, the spotlight produces warm white light with a beam angle of 60°. The housing is made of aluminium and is available in matt white or matt black. The luminaire features a DALI-2 dimming function as well as touch dimming capability. The protection rating is IP20, allowing use in dry indoor environments. The compact design, with a length of 20.8 cm and a diameter of 12 cm, facilitates integration into a variety of lighting concepts.

Tehnilised andmed

Half beam angle	60 °
Colour	white
Colour temperature	3000 Kelvin
Luminous Flux	3150 lm
electrical power	27 W
CRI	90
Net weight	1.549 kg
Diameter	12 cm
Height	20 cm
Length	20.8 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	700 mA
Dimming options	DALI and Touch
Shape	cylindrical
Horizontal rotation range	350 °
Variant Dimm options	DALI and Touch
Different light outlets	1
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Material	Aluminium
UGR ≤	22
Product name	NUMINOS® XL
CCT Switch	No
DALI capable	Yes
Dimmable	Yes
Assembly	Track
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	High voltage track systems, Indoor, LED, Other light source, Track systems
Sildid	Ceiling light, DALI, Downlight, Downlight recessed, Indoor lighting, LED spot, LED-Downlight, Recessed ceiling light, Recessed downlight, Spot
