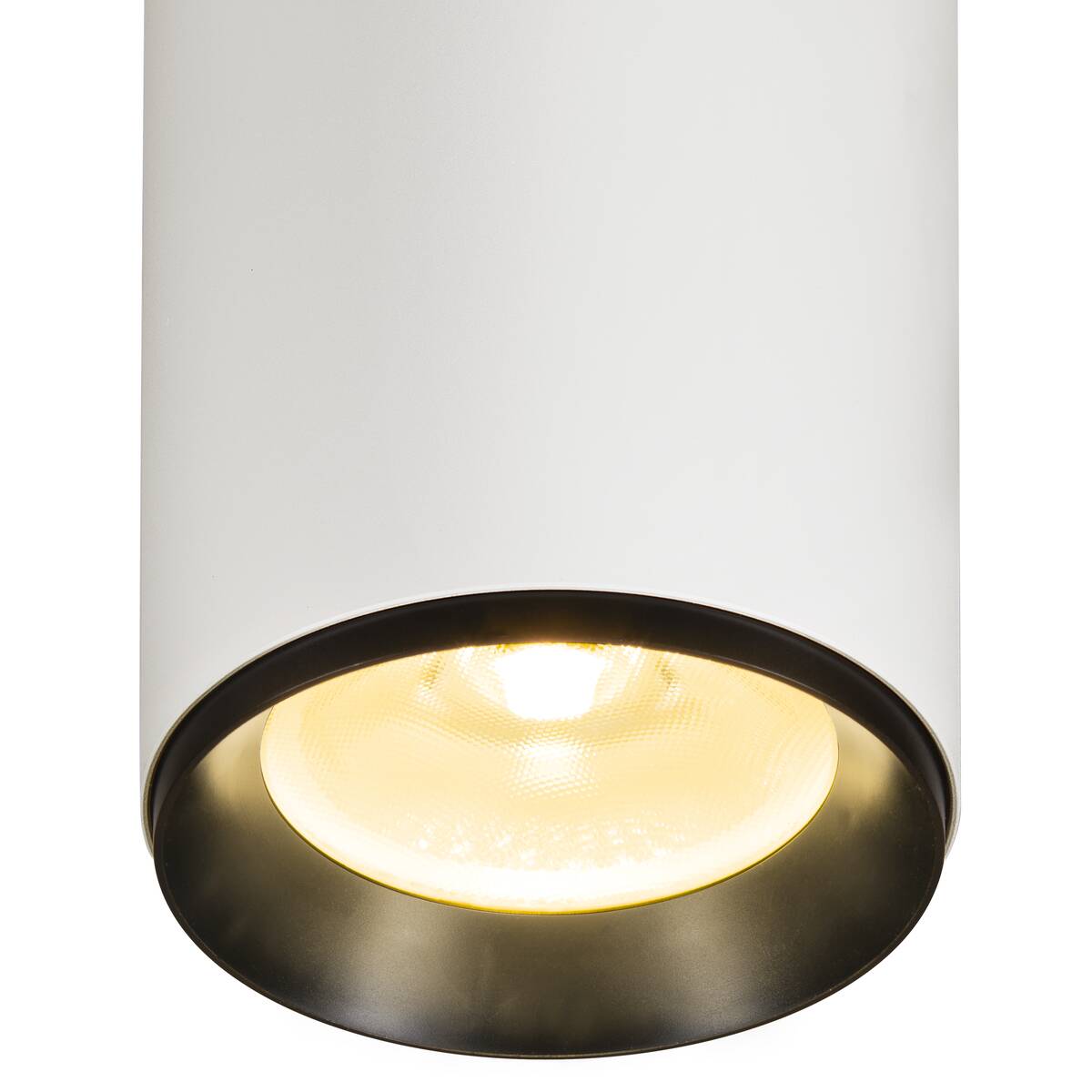

The NUMINOS® XL 3Ph. DALI 3~ Spot is a cylindrically shaped spotlight designed for ceiling track system mounting. It is suitable for use in professional indoor environments where precise and directed lighting is required. With a luminous flux of 3550 lumens at a colour temperature of 3000 K, it produces warm white light with a beam angle of 24 degrees. The housing is made of aluminium and is available in matt white or matt black. The luminaire features DALI 2 and touch dimming functions for flexible light control. The IP20 protection rating makes the spot suitable for use in dust-protected indoor areas. With a product length of 20.8 cm and a diameter of 12 cm, the spot offers a compact design for versatile lighting applications.

Tehnilised andmed

Half beam angle	24 °
Colour	white
Colour temperature	3000 Kelvin
Luminous Flux	3550 lm
electrical power	27 W
CRI	90
Net weight	1.549 kg
Diameter	12 cm
Height	20 cm
Length	20.8 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	700 mA
Dimming options	DALI and Touch
Shape	cylindrical
Horizontal rotation range	350 °
Variant Dimm options	DALI and Touch
Different light outlets	1
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
UGR ≤	16
Product name	NUMINOS® XL
CCT Switch	No
DALI capable	Yes
Dimmable	Yes
Assembly	Track
Risk group	1
