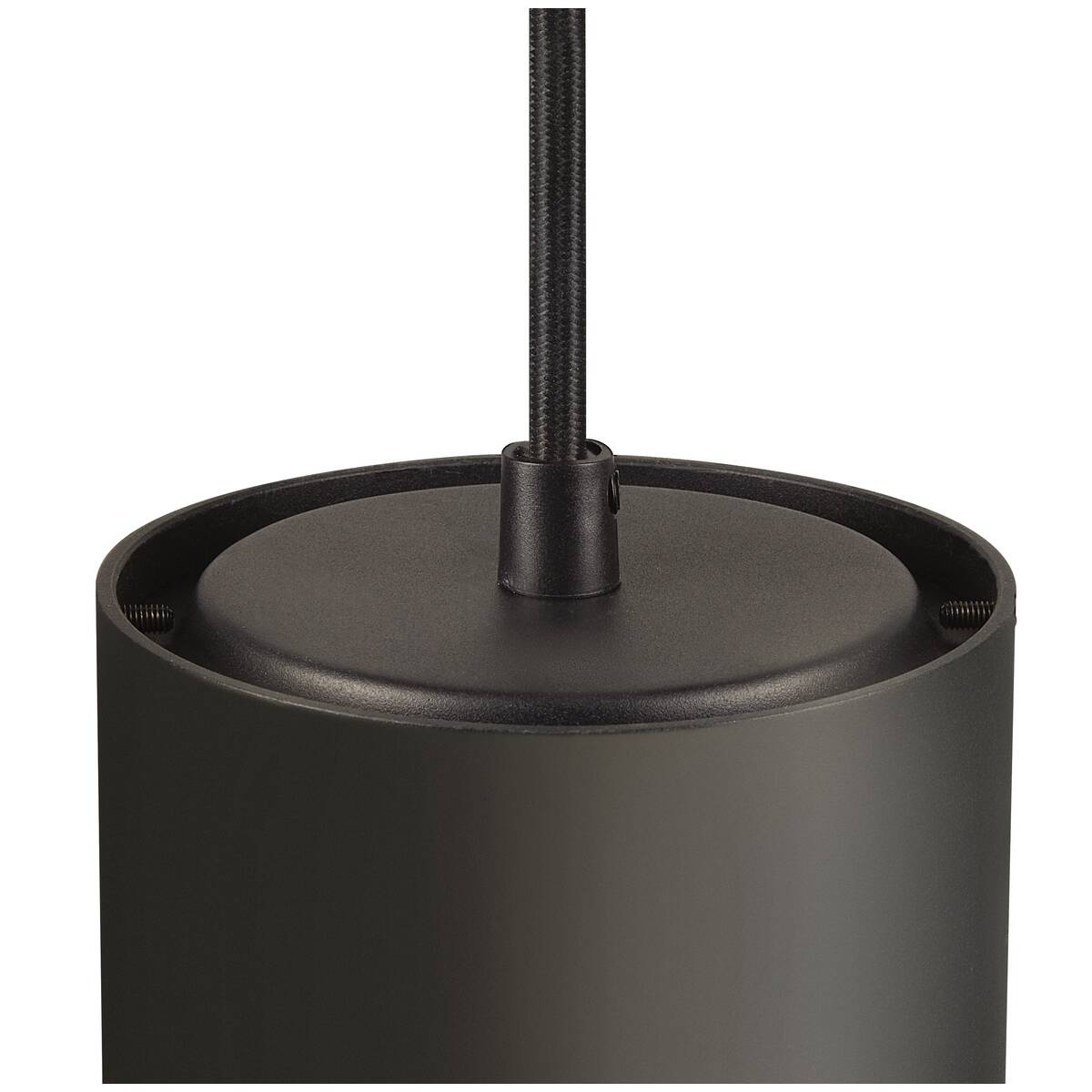

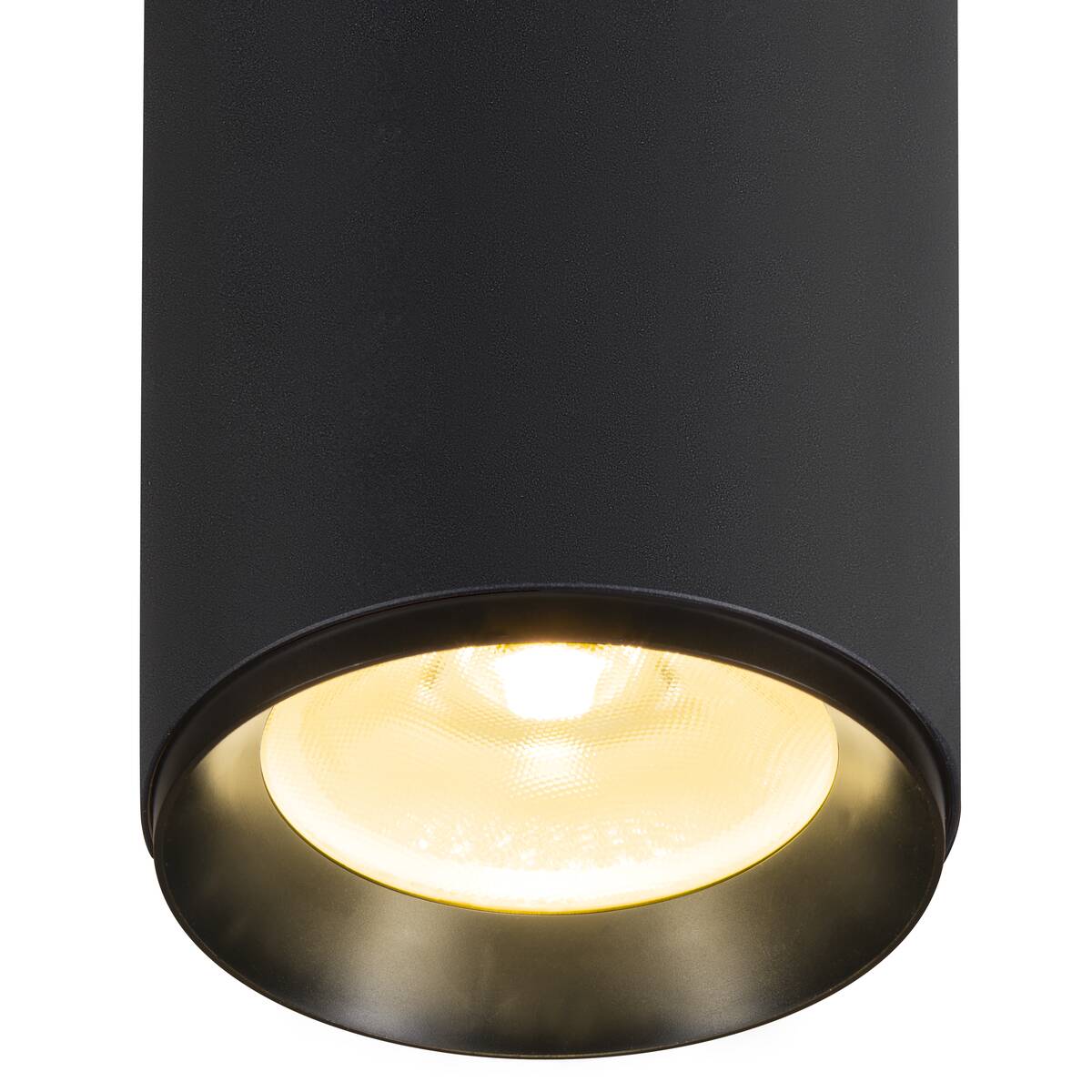

The NUMINOS® XL PD is a pendant luminaire suitable for indoor use, for example in offices or reception areas. It features a cylindrical shape with a diameter of 12 cm and a suspension length of 250 cm. The luminaire is equipped with LED technology, providing a luminous flux of 3150 lumens at a colour temperature of 3000 K and a beam angle of 60°. Dimming is possible via DALI 2 or touch control. The housing is made of aluminium and polycarbonate, and the canopy is round in shape. The IP20 rating protects the luminaire against contact and solid foreign objects. With a lifespan of 50,000 hours, the luminaire is designed for long-lasting use.

Tehnilised andmed

Half beam angle	60 °
Colour	black/black
Variant Color 2	black
Colour temperature	3000 Kelvin
Luminous Flux	3150 lm
electrical power	27 W
CRI	90
Net weight	1.952 kg
Diameter	12 cm
Height	25.8 cm
Pendant length	250 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	700 mA
Dimming options	DALI and Touch
Shape	cylindrical
Variant Dimm options	DALI and Touch
Different light outlets	1
Number of through-wires	58
Seperate beams	Yes
Ambient temperature	-20 °C
Material	Aluminium
UGR ≤	22
Product name	NUMINOS® XL
CCT Switch	No
DALI capable	Yes
Dimmable	Yes
Assembly	Surface
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	Indoor, LED, Pendant lights
Sildid	Ceiling light, DALI, Downlight, Downlight recessed, Indoor lighting, LED spot, LED-Downlight, Recessed ceiling light, Recessed downlight, Spot
