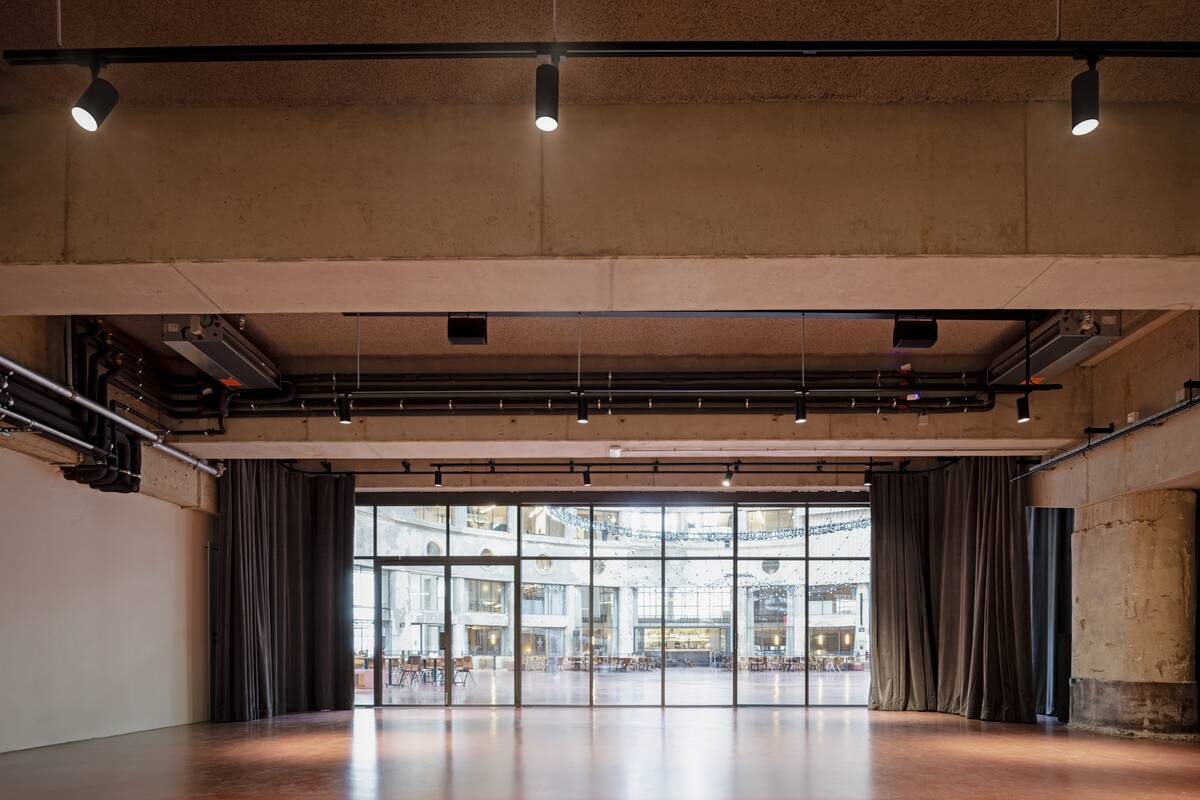

The NUMINOS® XL 3Ph. DALI 3~ Spot is a cylindrical spotlight designed for mounting on ceiling track systems. It is particularly suitable for use in commercial and public indoor spaces where flexible and targeted lighting is required. With a luminous flux of 3150 lumens at 27 watts and a colour temperature of 3000 K, the spotlight provides warm white light with a beam angle of 60°. The housing is made of aluminium and finished in matt black. The luminaire features an IP20 rating and is equipped with DALI 2 and touch dimming functions, allowing precise light control. Its compact dimensions of approximately 21 cm in length and 12 cm in diameter facilitate integration into various lighting systems.

Tehnilised andmed

Half beam angle	60 °
Colour	black
Colour temperature	3000 Kelvin
Luminous Flux	3150 lm
electrical power	27 W
CRI	90
Net weight	1.549 kg
Diameter	12 cm
Height	20 cm
Length	20.8 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	700 mA
Dimming options	DALI and Touch
Shape	cylindrical
Horizontal rotation range	350 °
Variant Dimm options	DALI and Touch
Different light outlets	1
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Material	Aluminium
UGR ≤	22
Product name	NUMINOS® XL
CCT Switch	No
DALI capable	Yes
Dimmable	Yes
Assembly	Track
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	High voltage track systems, Indoor, LED, Other light source, Track systems
Sildid	Ceiling light, DALI, Downlight, Downlight recessed, Indoor lighting, LED spot, LED-Downlight, Recessed ceiling light, Recessed downlight, Spot
