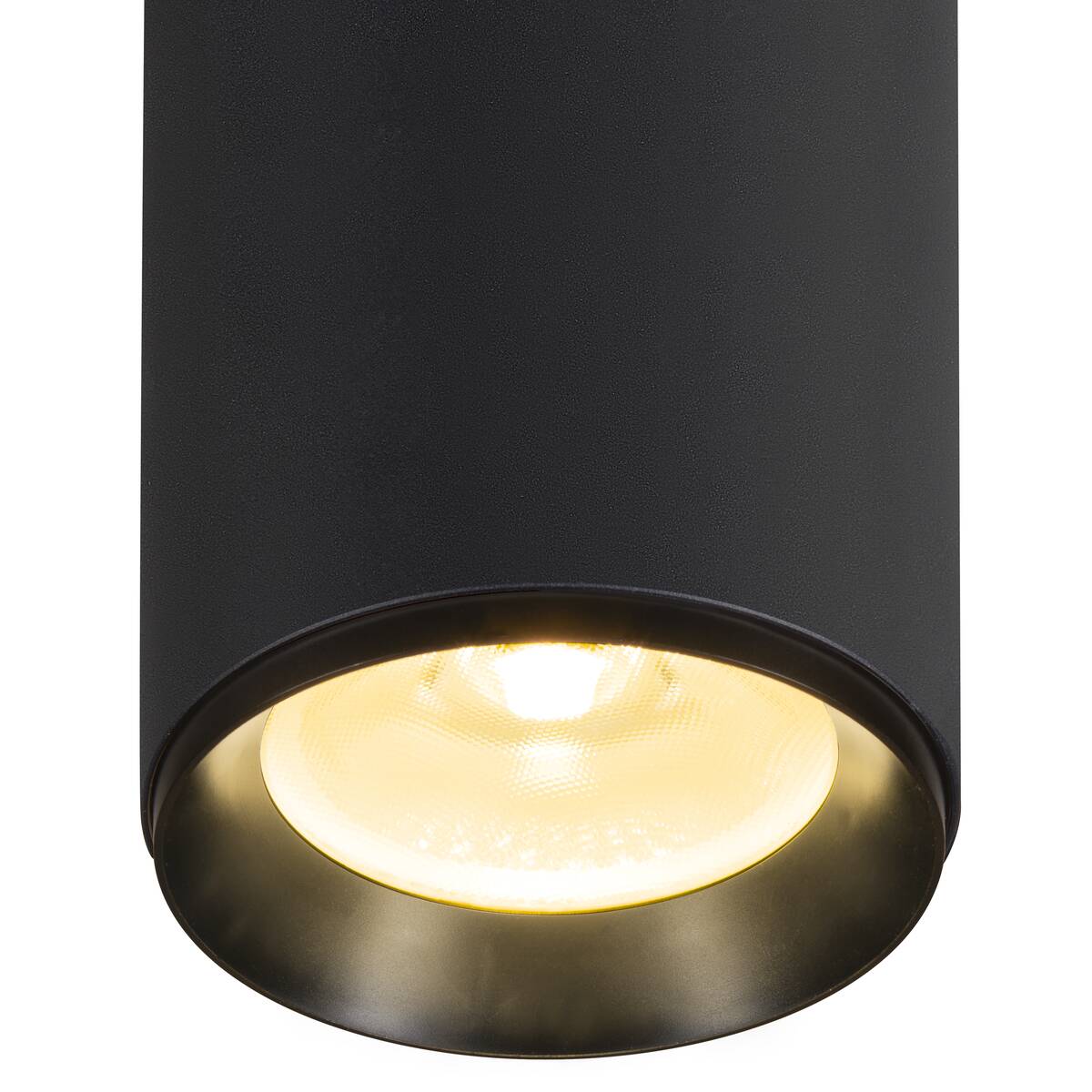

The NUMINOS® XL 3-phase DALI spotlight features a cylindrical luminaire body designed for mounting on ceiling track systems. With a luminous flux of 3550 lumens at 27 watts and a colour temperature of 3000 K, this luminaire is suitable for targeted lighting tasks in indoor environments. The 36° beam angle allows for precise light control. The housing is made of aluminium and finished in matte black. The luminaire includes DALI-2 and touch dimming functions, enabling flexible light control. With an IP20 rating, it is suitable for use in dust-protected indoor areas. Measuring 20.8 cm in length and 12 cm in diameter, the spotlight offers a compact design with a discreet, functional appearance.

Tehnilised andmed

Half beam angle	36 °
Colour	black
Colour temperature	3000 Kelvin
Luminous Flux	3550 lm
electrical power	27 W
CRI	90
Net weight	1.549 kg
Diameter	12 cm
Height	20 cm
Length	20.8 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	700 mA
Dimming options	DALI and Touch
Shape	cylindrical
Horizontal rotation range	350 °
Variant Dimm options	DALI and Touch
Different light outlets	1
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Material	Aluminium
UGR ≤	16
Product name	NUMINOS® XL
CCT Switch	No
DALI capable	Yes
Dimmable	Yes
Assembly	Track
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	High voltage track systems, Indoor, LED, Other light source, Track systems
Sildid	Ceiling light, DALI, Downlight, Downlight recessed, Indoor lighting, LED spot, LED-Downlight, Recessed ceiling light, Recessed downlight, Spot
