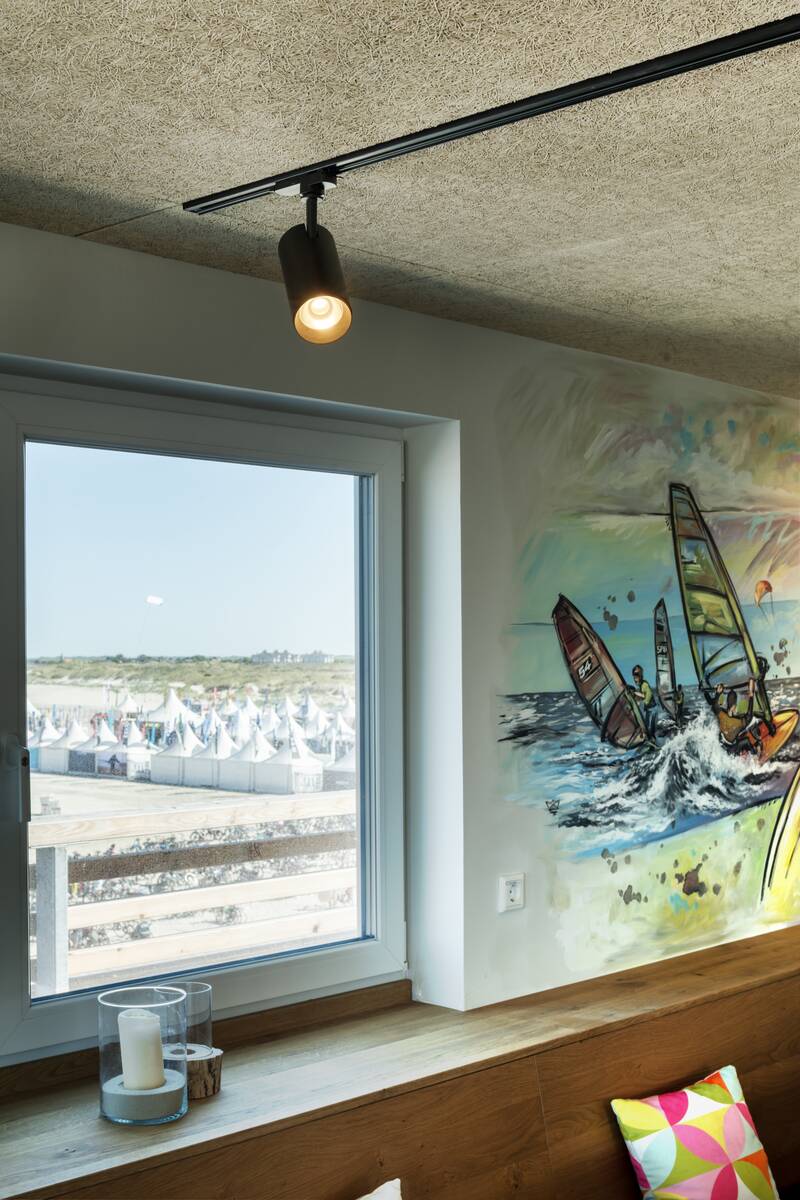

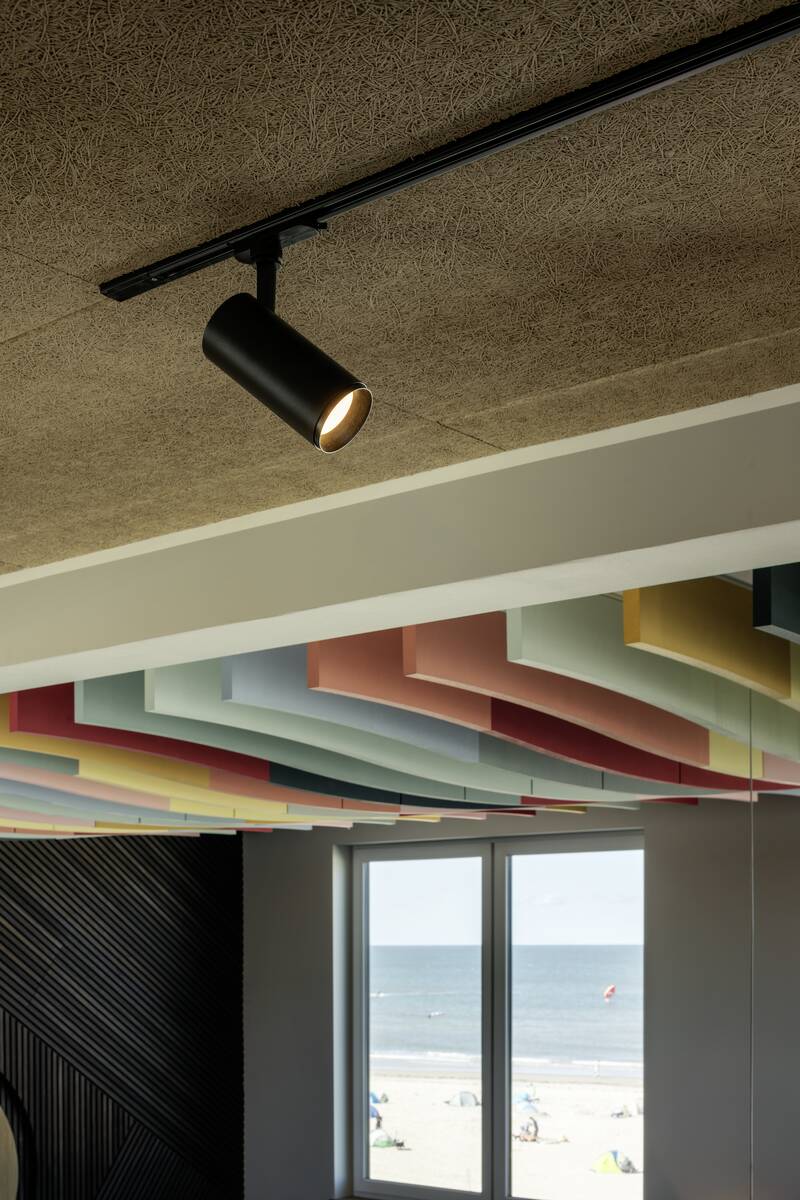

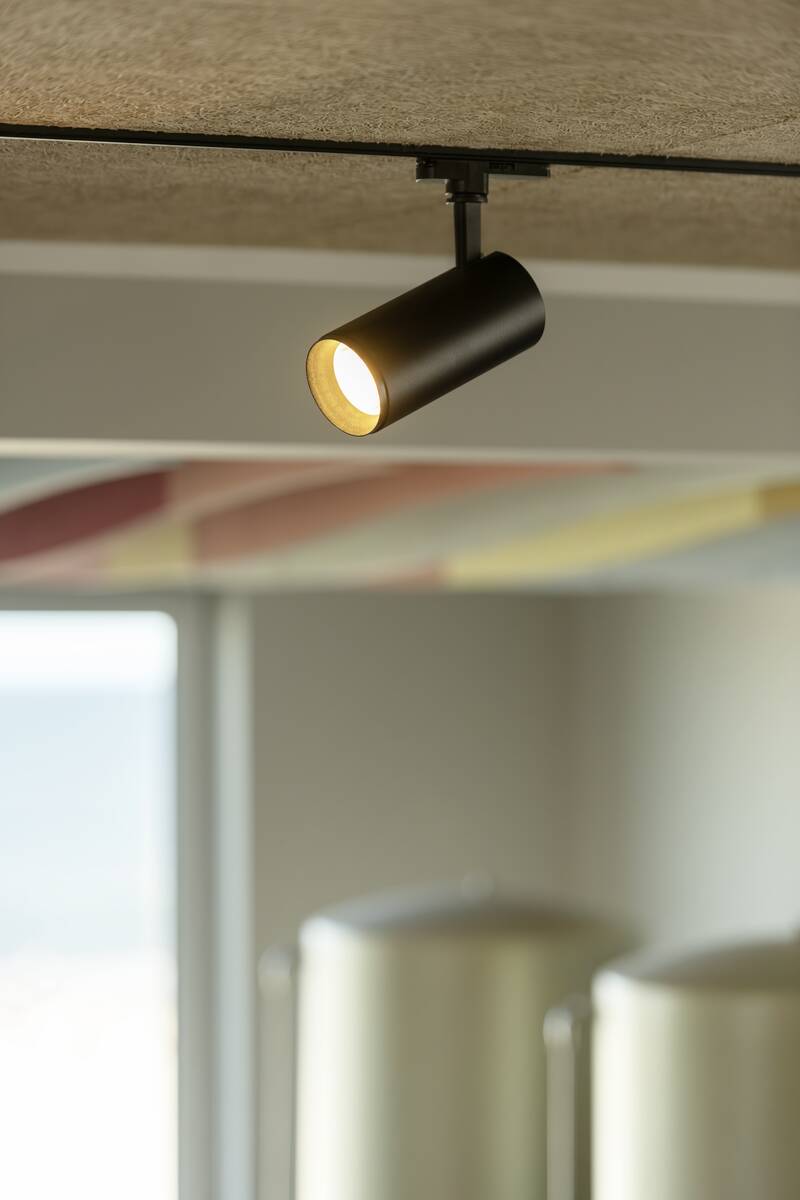

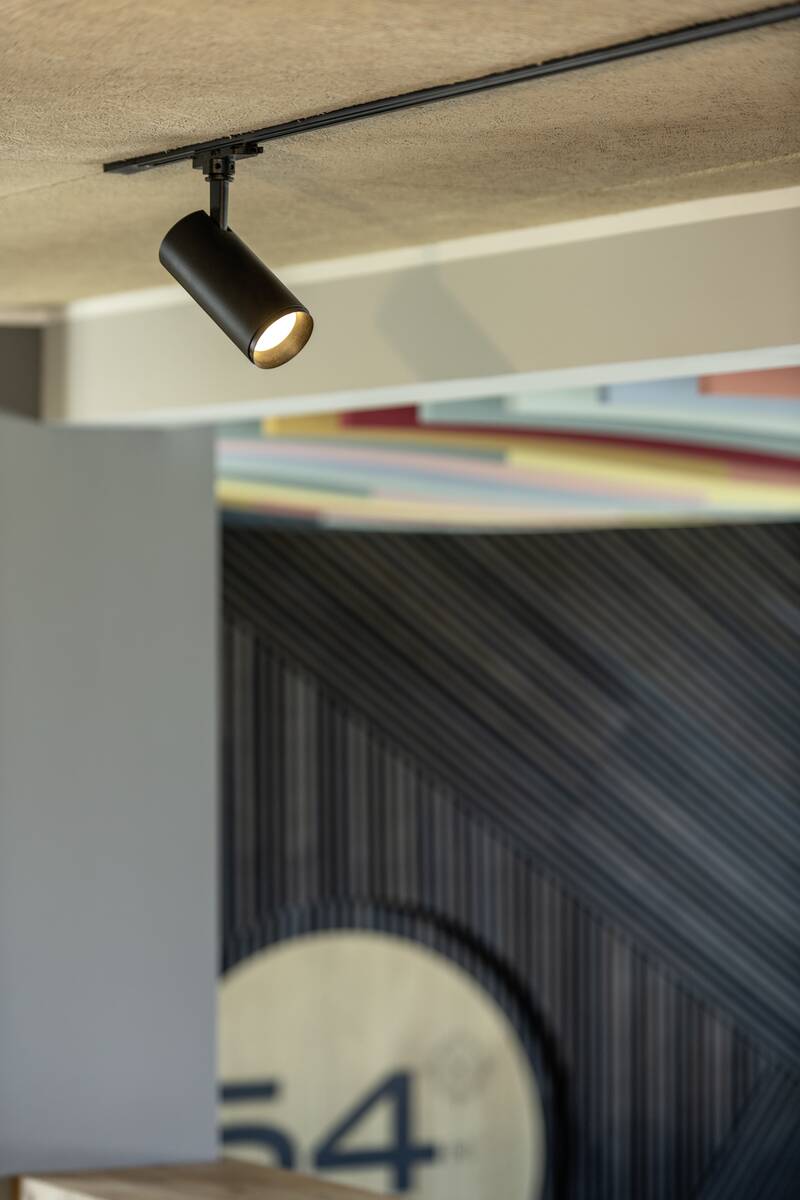

The NUMINOS® XL 3Ph. DALI 3~ Spot is a cylindrical spotlight designed for mounting on ceiling track systems. It is particularly suitable for indoor use where directional lighting is required. With a luminous flux of 3550 lumens at a colour temperature of 2700 K, the light source provides a warm light colour. The light distribution is achieved with a beam angle of 36°, allowing precise light control. The housing is made of aluminium and finished in matte black. The luminaire features DALI 2 and touch dimming functions, enabling flexible light control. The IP20 protection rating safeguards against contact and foreign objects, but not against moisture. With a lifespan of 50,000 hours, the luminaire is designed for long-term use. The dimensions are approximately 20.8 cm in length, 12 cm in diameter, and 20 cm in height.

Tehnilised andmed

Half beam angle	36 °
Colour	black
Colour temperature	2700 Kelvin
Luminous Flux	3550 lm
electrical power	27 W
CRI	90
Net weight	1.549 kg
Diameter	12 cm
Height	20 cm
Length	20.8 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	700 mA
Dimming options	DALI and Touch
Shape	cylindrical
Horizontal rotation range	350 °
Variant Dimm options	DALI and Touch
Different light outlets	1
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Material	Aluminium
UGR ≤	16
Product name	NUMINOS® XL
CCT Switch	No
DALI capable	Yes
Dimmable	Yes
Assembly	Track
Risk group	1
