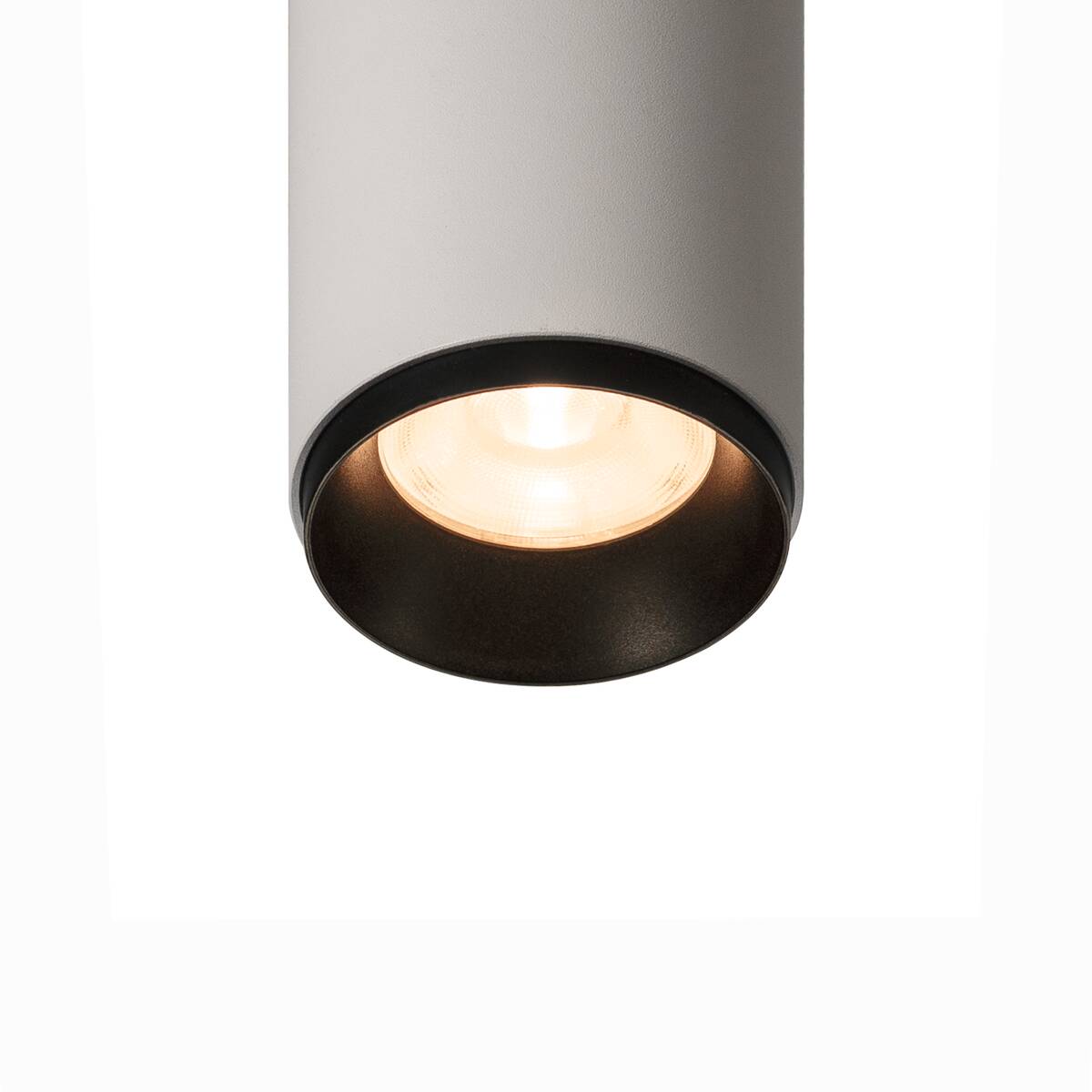

The NUMINOS® S CL, PHASE is a cylindrical surface-mounted ceiling luminaire, primarily suitable for indoor use. It offers a light output of 950 lumens at a colour temperature of 2700 Kelvin and a beam angle of 36 degrees. The luminaire is equipped with phase-cut dimming, allowing flexible light control. The housing is made of aluminium and is available in matt white or matt black. With a diameter of 6.5 cm and a height of 16.2 cm, the luminaire can be discreetly integrated into various room concepts. The IP20 protection rating indicates that the luminaire is designed for dry indoor areas. The declared lifetime is 50,000 hours.

Tehnilised andmed

Half beam angle	36 °
Colour	white
Colour temperature	2700 Kelvin
Luminous Flux	950 lm
electrical power	8 W
CRI	90
Net weight	0.43 kg
Diameter	6.5 cm
Height	16.2 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	200 mA
Dimming options	Trailing edge
Shape	cylindrical
Variant Dimm options	Trailing edge
Different light outlets	1
Number of through-wires	128
Seperate beams	Yes
Ambient temperature	-20 °C
Berker 2873 Result	With restrictions
Material	Aluminium
UGR ≤	16
LED can be changed	Control gear replaceable by a professional
Product name	NUMINOS® S
CCT Switch	No
DALI capable	No
Dimmable	Yes
Assembly	Surface
Risk group	1
Busch-Jäger 6523U Result	Compatible
Eltako EUD 61 NPN-UC Result	Compatible
Jung 224 LED UDD Result	Compatible
Legrand PRO21 LED Dimmer 775659 Result	Compatible
LK Fuga LED Dimmer 180 Touch Result	Compatible
Merten MEG5134-0000 Result	Compatible
Niko 310-0190X Result	Compatible
SLV 470807 Result	Compatible
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	Ceiling lights, Indoor, LED, Surface mounted
Sildid	LED ceiling light, TRIAC
