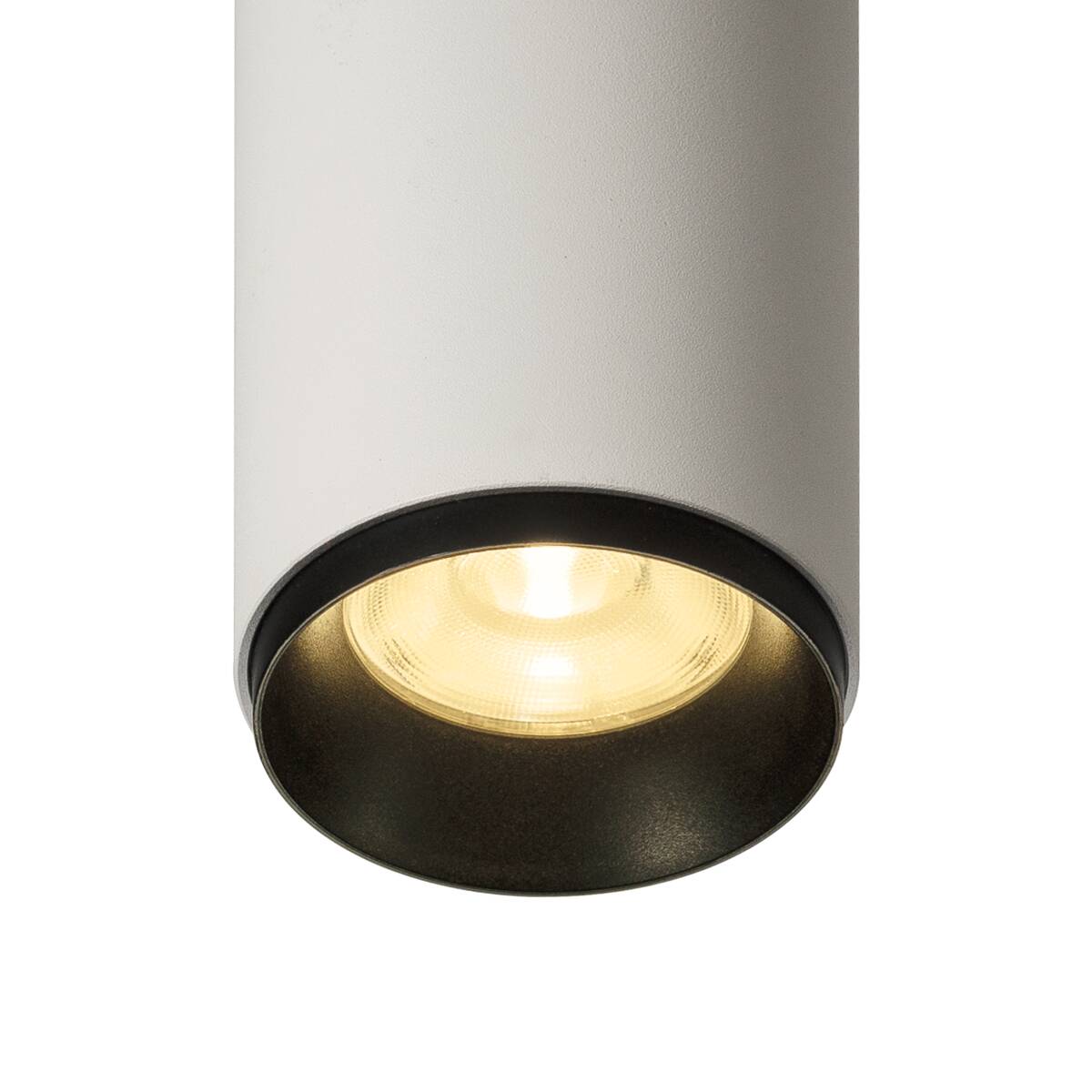

The NUMINOS® M CL is a cylindrical surface-mounted ceiling luminaire designed for indoor use. It delivers a luminous flux of 1800 lumens with a colour temperature of 3000 K and a beam angle of 24°. The luminaire features DALI 2 and touch dimming functions, allowing for flexible light control. Its housing is made of aluminium and is available in matt white or matt black. With a diameter of 8.5 cm and a height of 18.5 cm, it offers a compact design. The IP20 protection rating makes it suitable for dry indoor areas. The NUMINOS® M CL is designed for a service life of 50,000 hours and is aimed at specialist retailers, planners, and installers who require a technically advanced and dimmable ceiling luminaire.

Tehnilised andmed

Half beam angle	24 °
Colour	white
Colour temperature	3000 Kelvin
Luminous Flux	1800 lm
electrical power	13 W
CRI	90
Net weight	0.726 kg
Diameter	8.5 cm
Height	18.5 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	350 mA
Dimming options	DALI and Touch
Shape	cylindrical
Variant Dimm options	DALI and Touch
Different light outlets	1
Number of through-wires	94
Seperate beams	Yes
Ambient temperature	-20 °C
Material	Aluminium
UGR ≤	16
LED can be changed	Control gear replaceable by a professional
Product name	NUMINOS® M
CCT Switch	No
DALI capable	Yes
Dimmable	Yes
Assembly	Surface
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	Ceiling lights, Indoor, LED, Surface mounted
Sildid	DALI, LED ceiling light
