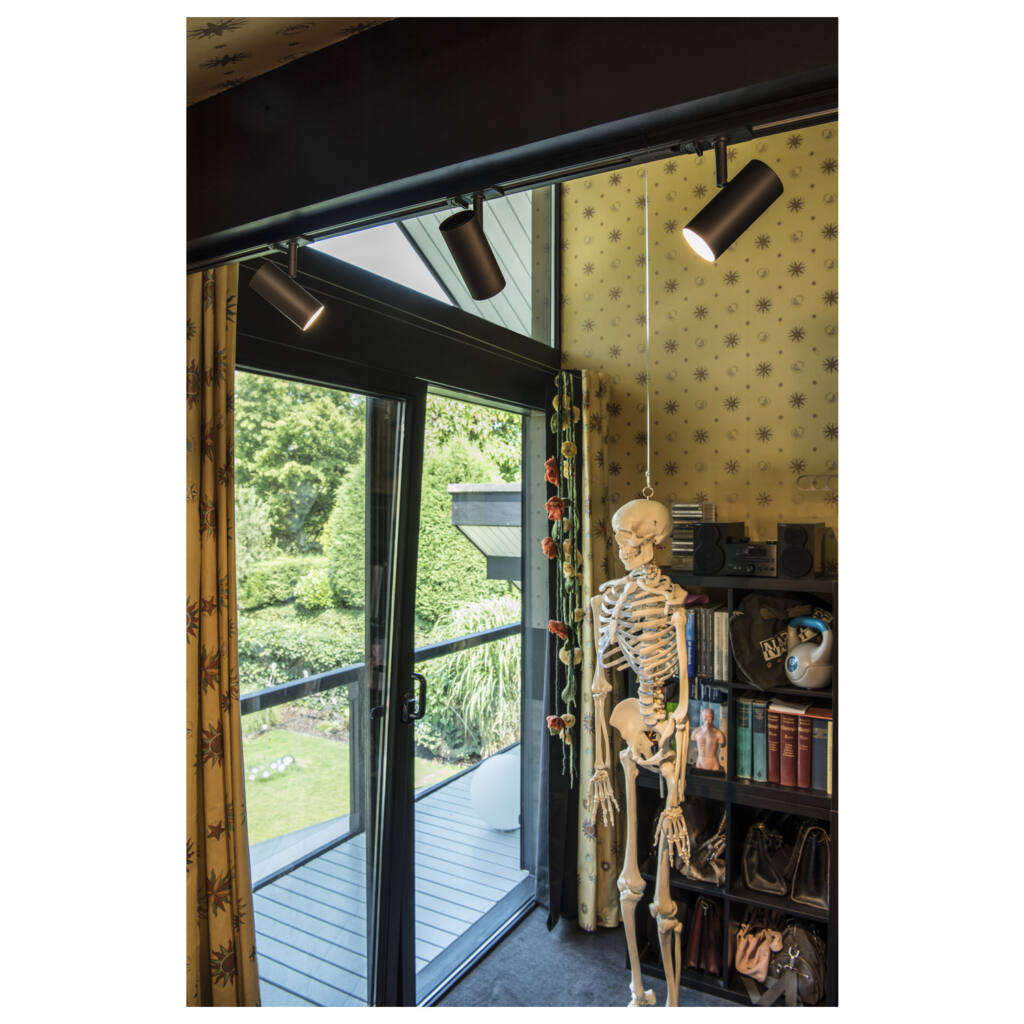

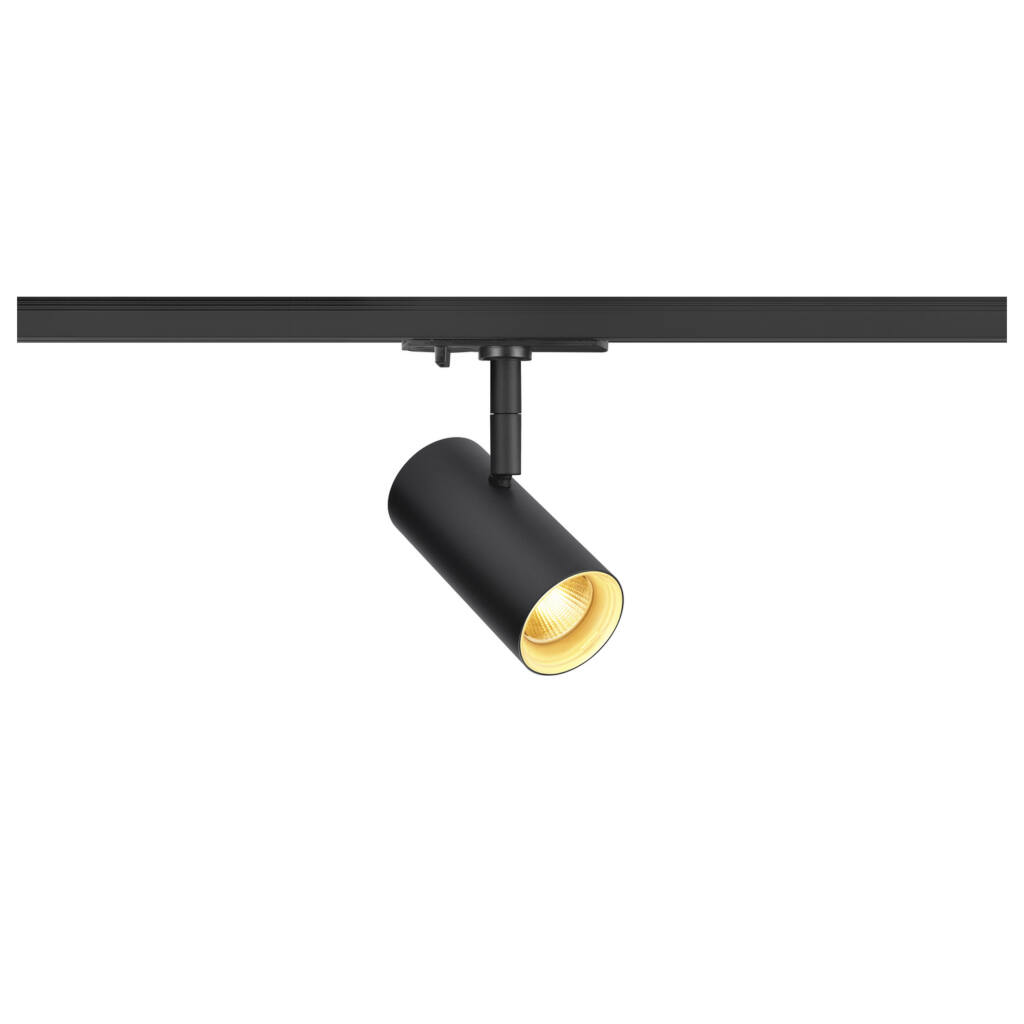

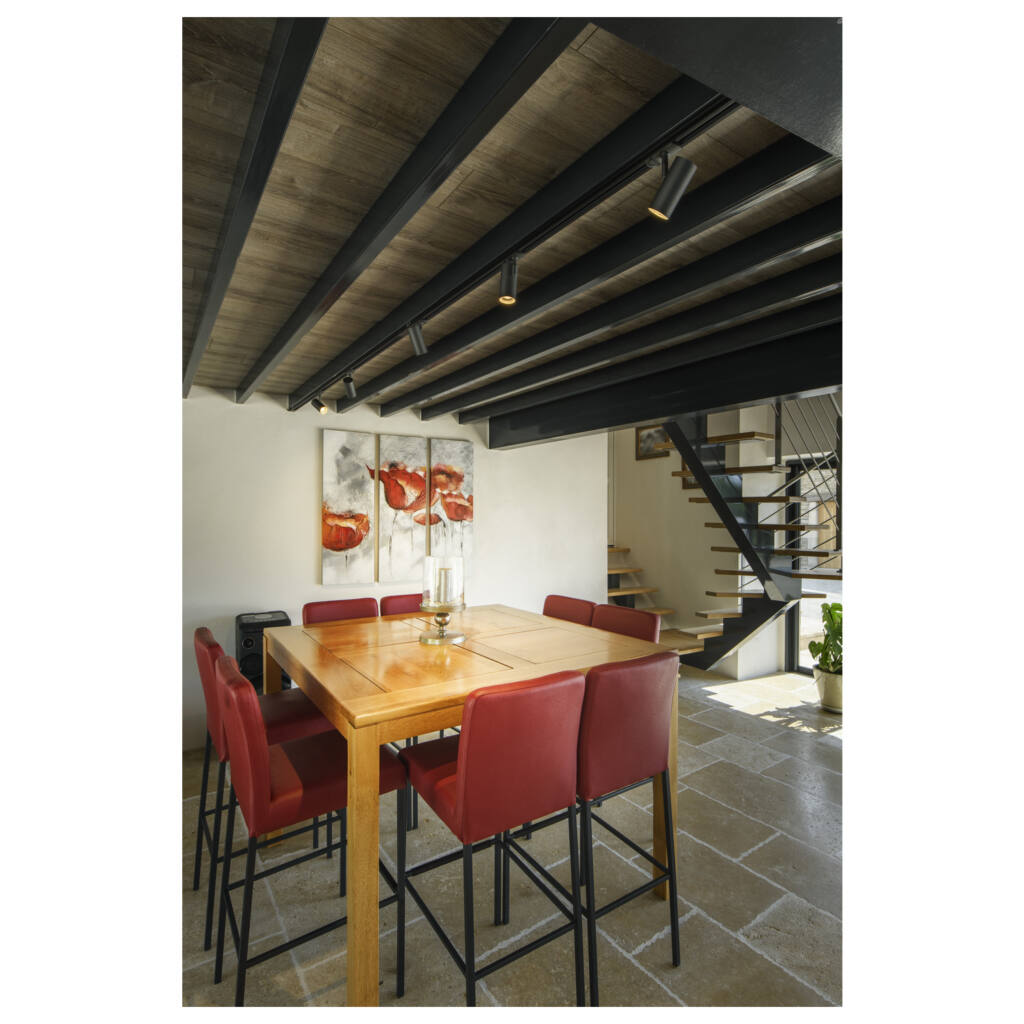

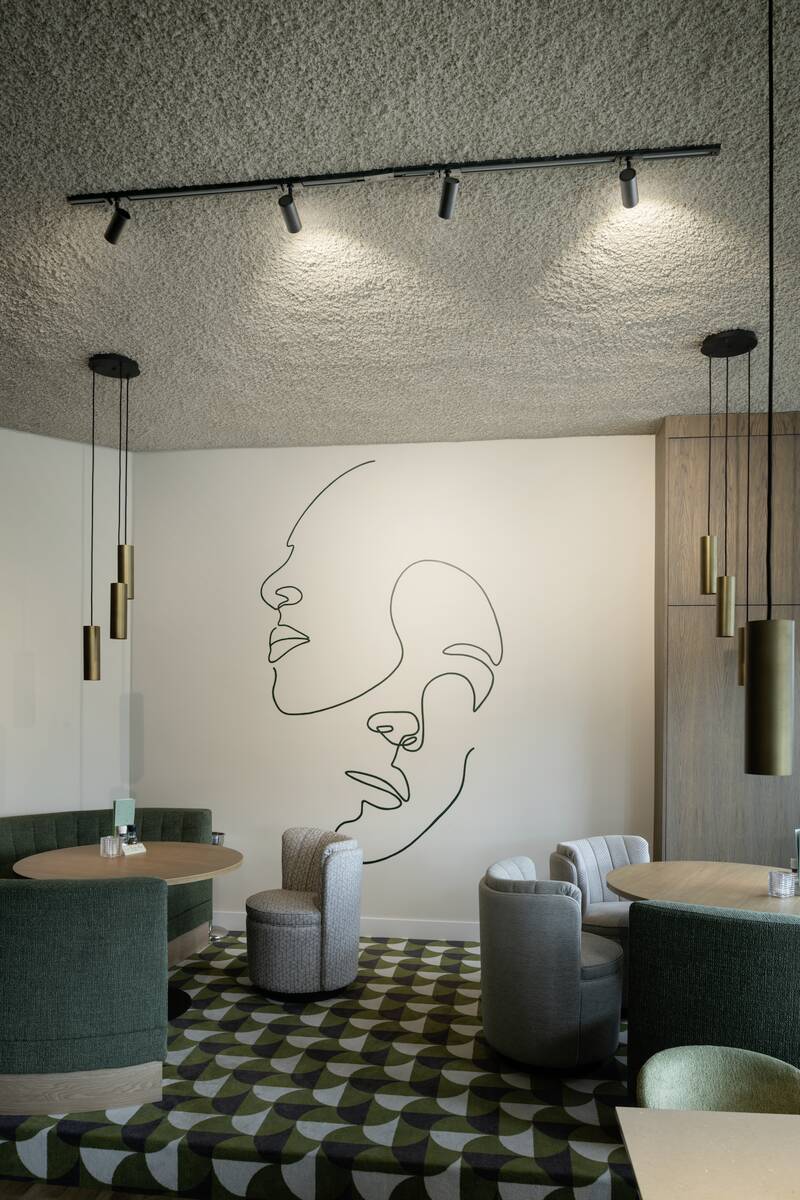

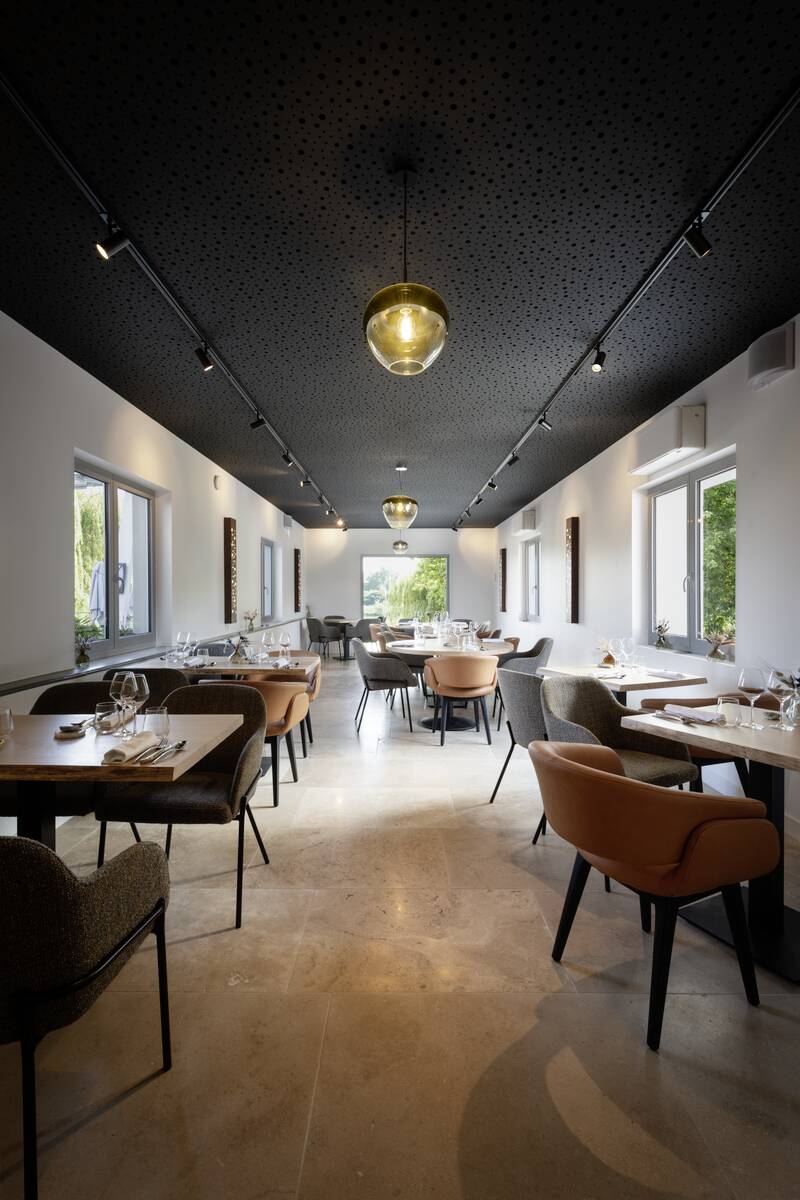

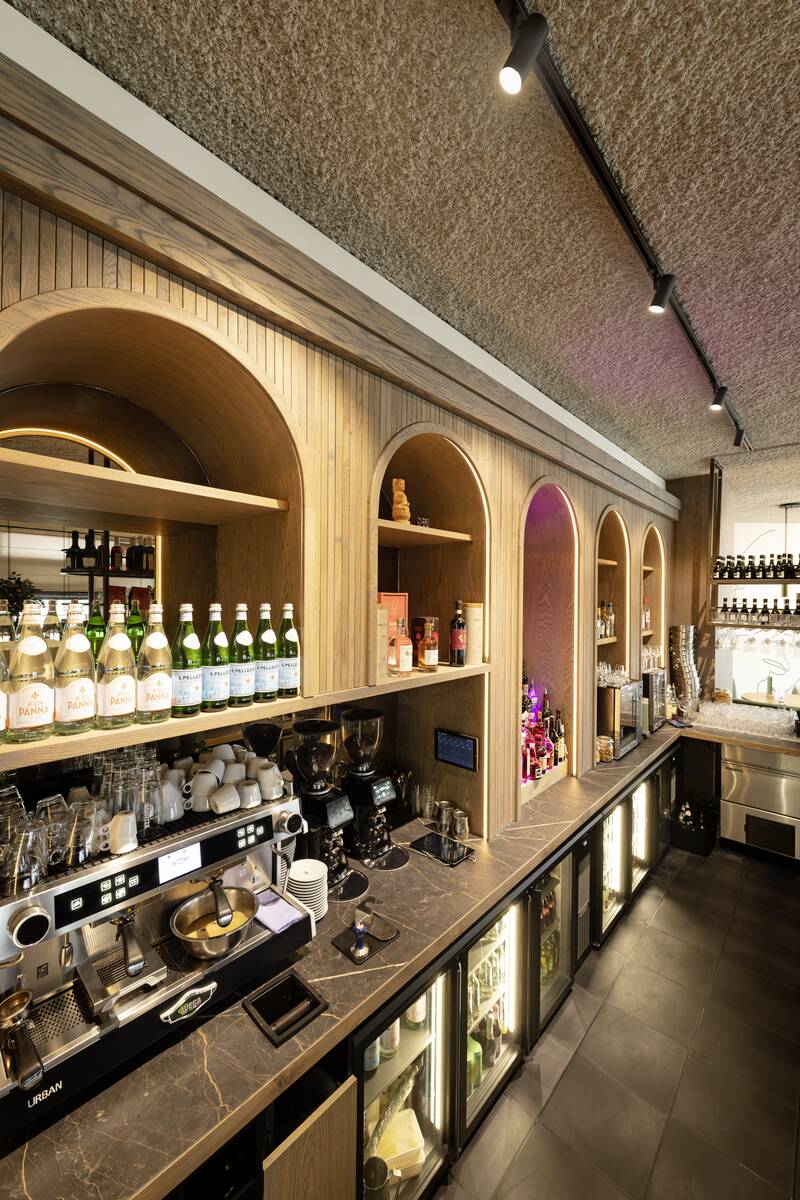

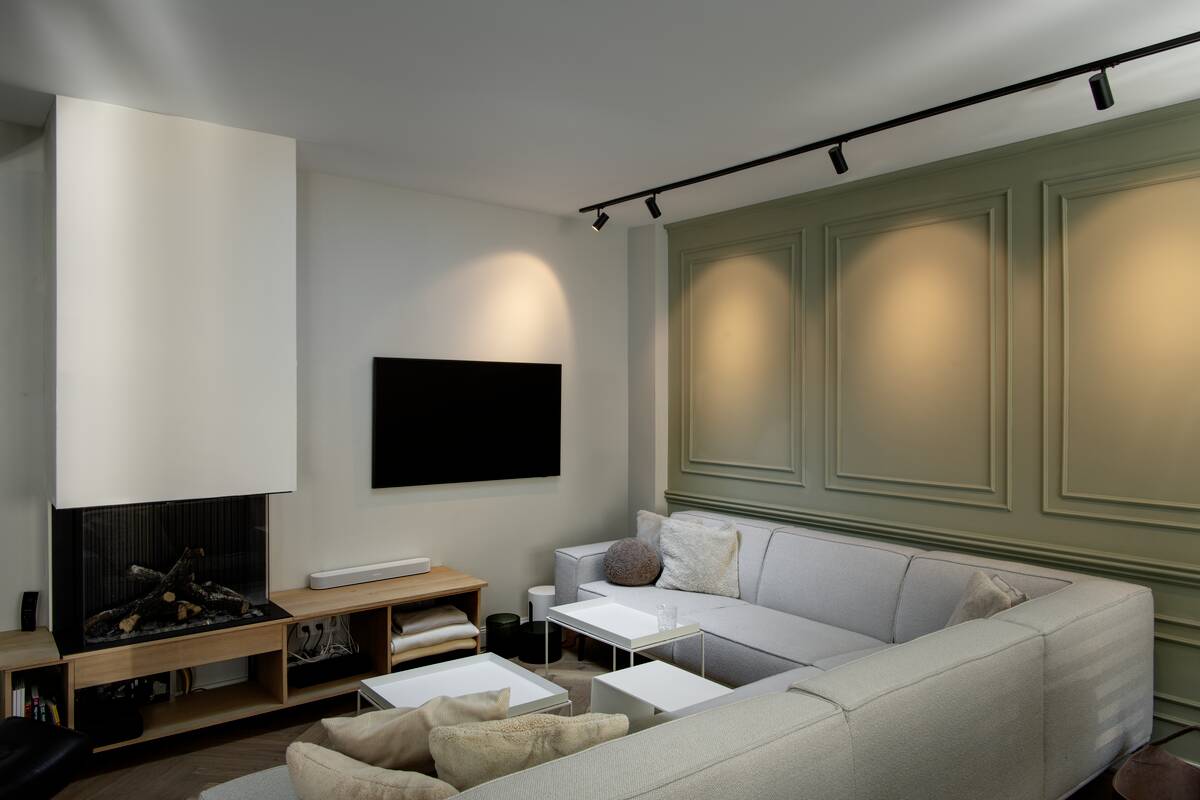

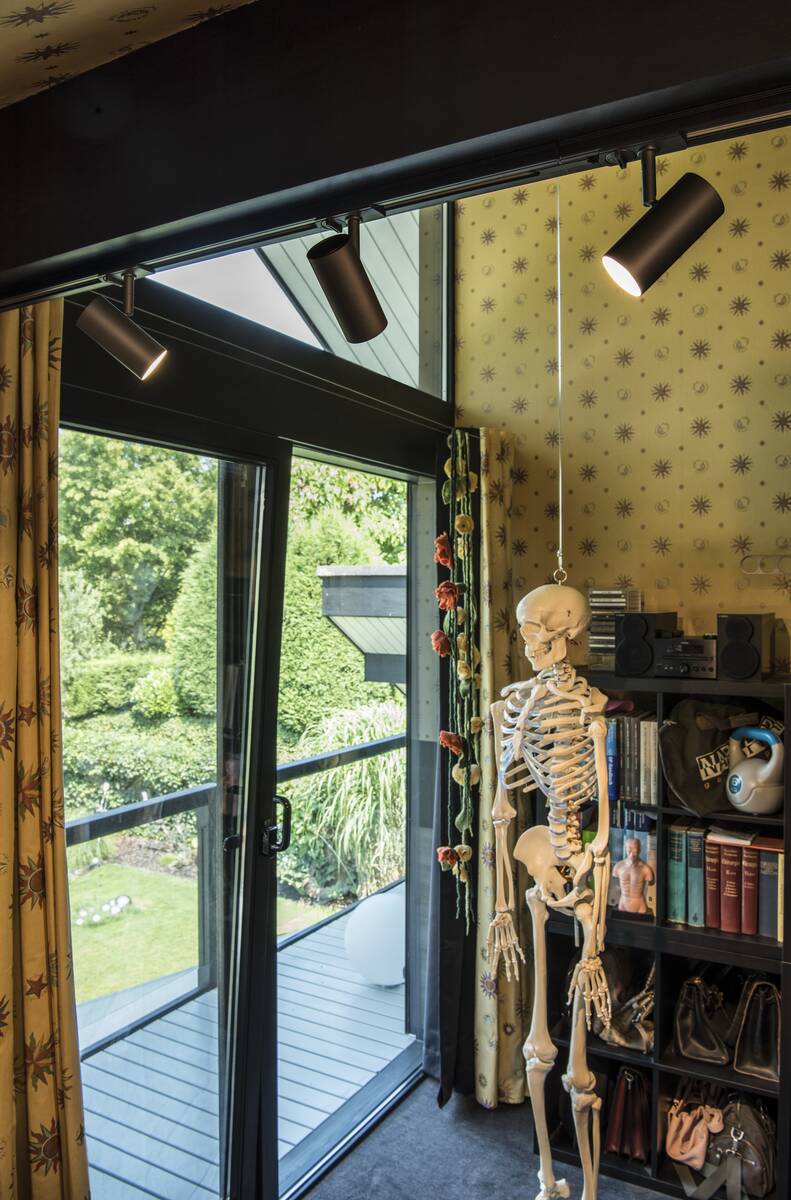

The rotating and pivoting NOBLO® SPOT shines across the board: quickly and easily mounted on the single-phase high-voltage track system, the new generation impresses with an improved colour reproduction index CRI >90, a lumen output of up to 126 lm/W and an increased service life of up to 50,000 hours. Added to this is the high-quality light that creates a particularly cosy atmosphere in living areas, hotels and restaurants. Ideal for modern lighting concepts, made of high-quality aluminium, quickly installed and available in colour temperatures of 2700 K and 3000 K. It’s clear: with the new NOBLO® SPOTS, you are opting for a unique lighting experience.

Tehnilised andmed

Half beam angle	32 °
Colour	black/black
Variant Color 2	black
Colour temperature	2700 Kelvin
Luminous Flux	740 lm
electrical power	6 W
Net weight	0.244 kg

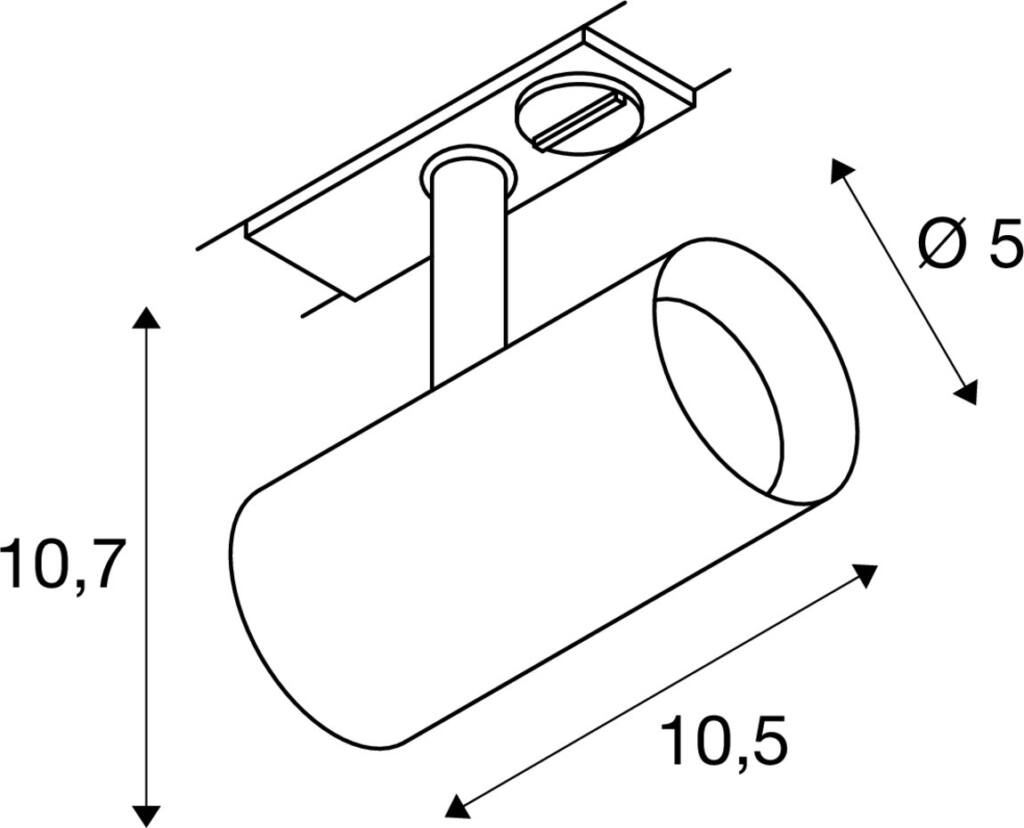

Diameter	5 cm
Height	10.7 cm
Length	10.5 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	150 mA
Rotating or tilting	rotary bar and tiltable
Horizontal rotation range	355 °
Variant Dimm options	Trailing edge
Vertical tilting range	90 °
Ambient temperature	-20 °C
Material	Aluminium
Product name	NOBLO® SPOT
CCT Switch	No
Dimmable	Yes
Risk group	1
Berker 2873 Result	Compatible
Busch-Jäger 6523U Result	Compatible
Eltako EUD 61 NPN-UC Result	Compatible
Legrand PRO21 LED Dimmer 775659 Result	Compatible
LK Fuga LED Dimmer 180 Touch Result	Compatible
Merten MEG5134-0000 Result	Compatible
Niko 310-0190X Result	Compatible
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	3-Phase-System, High voltage track systems, Indoor, Track systems
