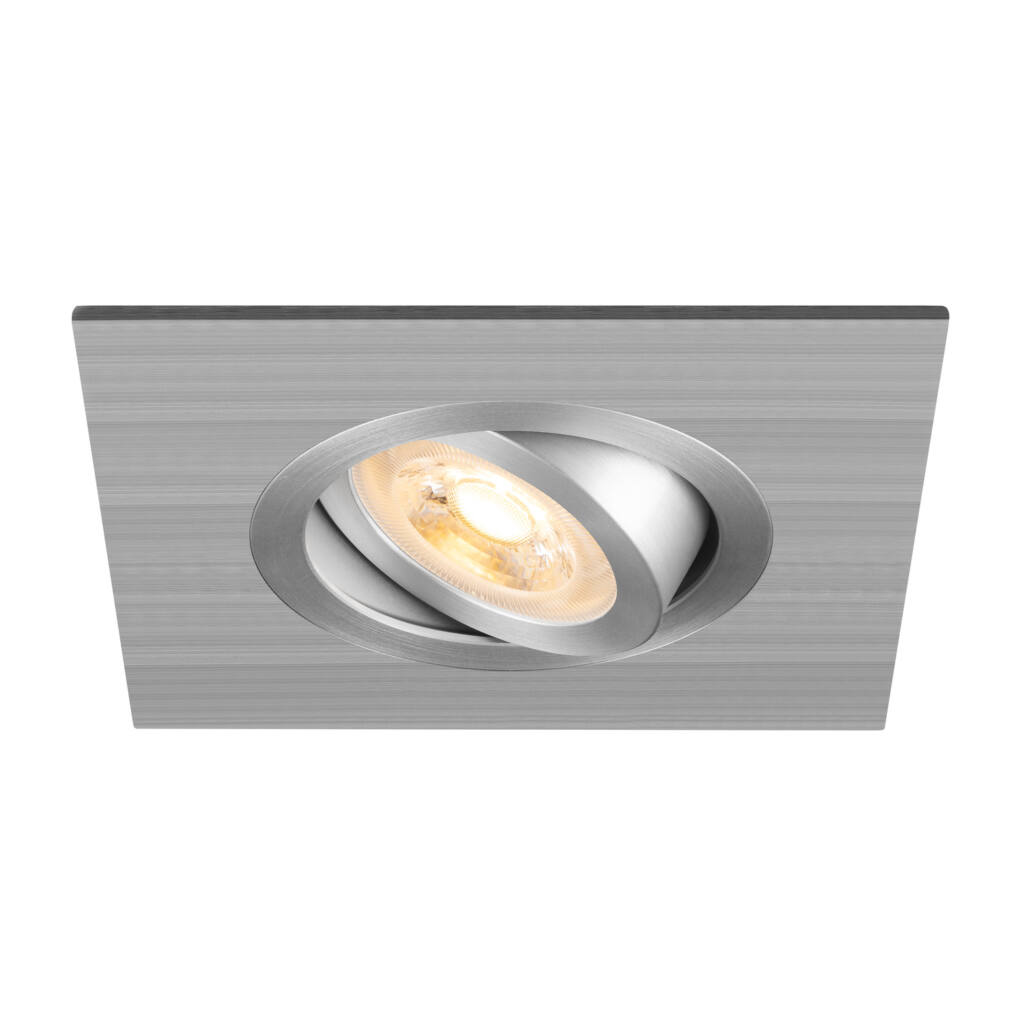

The NEW TRIA® 75 XL is a square recessed ceiling luminaire suitable for installation in ceilings of residential and commercial spaces. It is designed for GU10 lamps with a maximum power of 10 watts. The housing is made of aluminium and measures 11 x 11 cm with a height of 2.6 cm. The luminaire has an IP20 rating and an impact resistance class of IK02, making it suitable for indoor use with moderate mechanical stress requirements. The ROUND shape of the cut-out allows for easy installation in standard ceiling openings.

Tehnilised andmed

Colour	aluminum
electrical power	10 W
Net weight	0.167 kg
Installation depth	6.5 cm
Shape of cut-out	round
Height	2.6 cm
Length	11 cm
Width	11 cm
IP Code	IP20
Primary nominal voltage	220-240V ~ 50/60Hz
Rotating or tilting	tiltable
Vertical tilting range	30 °
Ambient temperature	25 °C
Shock resistance category	IK02
Shock resistance	0.2 joule
Material	Aluminium
Product name	NEW TRIA® 75 XL
Wattage	10 W
Number of sockets	1
Socket	GU10
Tilt range	30 °
Tehnilised failid	Manual Datasheet CE declaration REACh
Kategooriad	Ceiling lights, Indoor, Other light source, Recessed
