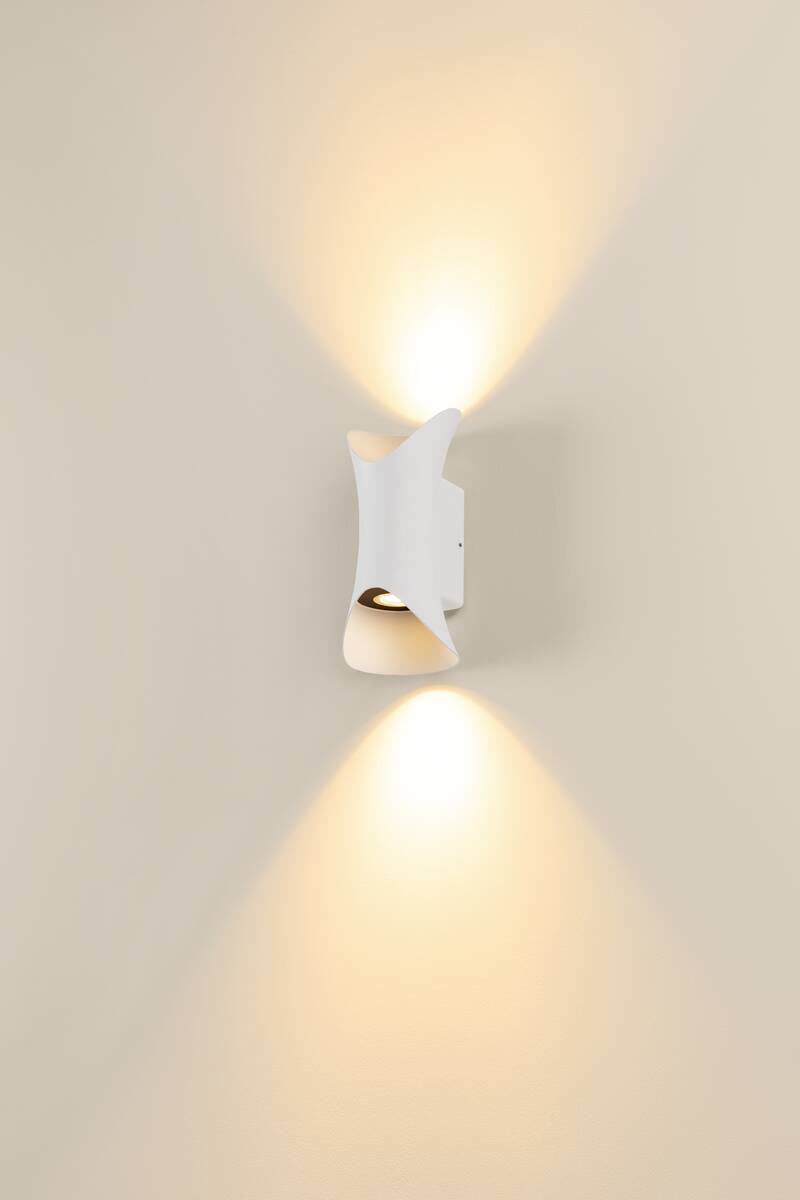

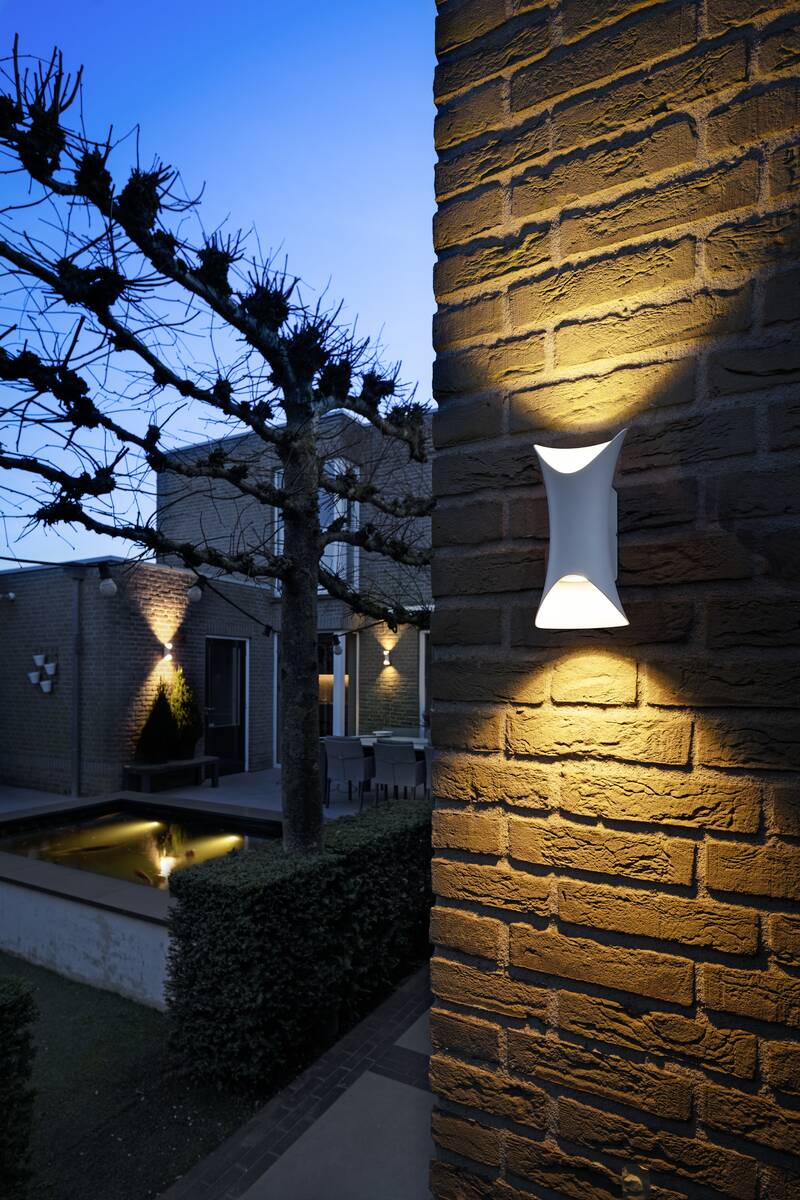

The MODELA wall light is a surface-mounted luminaire that emits light upwards and downwards, suitable for use in indoor and protected outdoor areas. It features a colour temperature of 2700 K and a luminous flux of 800 lumens. Dimming is achieved via phase-cut (Trailing Edge), allowing easy adjustment of brightness. The housing is made of aluminium and measures 20.2 cm in height, 9.7 cm in width, and 9 cm in depth. The luminaire is rated IP65 for protection against dust and water ingress and has an impact resistance of IK07. With a lifespan of 50,000 hours, it is designed for long-lasting use.

Tehnilised andmed

Half beam angle	60 °
Colour	white
Colour temperature	2700 Kelvin
Luminous Flux	800 lm
electrical power	7,5 W
CRI	80
Net weight	0.56 kg
Height	20.2 cm
Width	9.7 cm
Beam angle	60 °
IP Code	IP65
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	95 mA
Light outlet version	Up
Glass temperature (light emission)	58 °C
Variant Dimm options	Trailing edge
Different light outlets	2
Number of through-wires	65
Seperate beams	Yes
Ambient temperature	-20 °C
Shock resistance category	IK07
Shock resistance	0.2 joule
Material	Aluminium
Product name	MODELA
CCT Switch	No
Dimmable	Yes
Risk group	1
Berker 2873 Result	Compatible
Busch-Jäger 6523U Result	Compatible
Eltako EUD 61 NPN-UC Result	Compatible
Legrand PRO21 LED Dimmer 775659 Result	Compatible
LK Fuga LED Dimmer 180 Touch Result	Compatible
Niko 310-0190X Result	Compatible
Tehnilised failid	Datasheet CE declaration Removal instructions Assembly drawings REACh
Kategooriad	LED, Outdoor, Surface mounted , Wall lights
