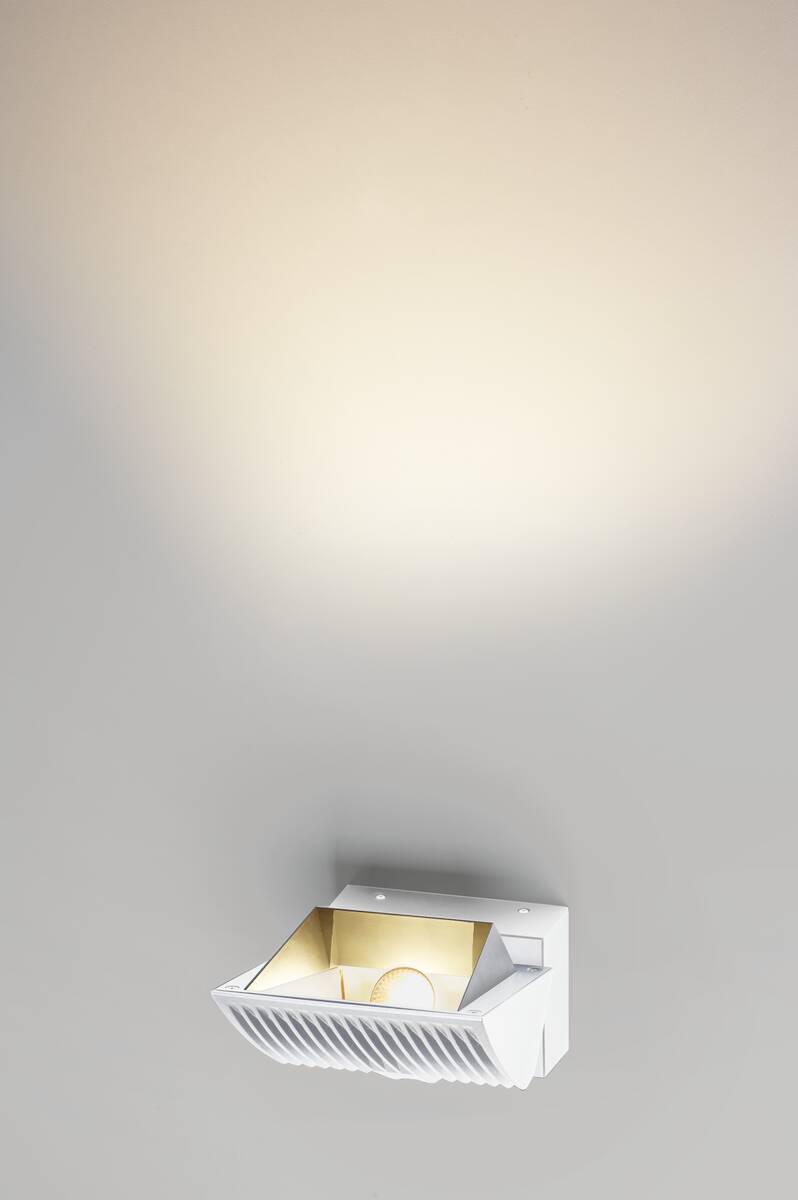

The MERADO FLOOD is a classic wall washer combined with modern LED technology. The luminaire, made of aluminium and glass, is connected directly to 230V mains voltage via the built-in driver. The MERADO FLOOD is available in a white housing colour, as well as in warm white and neutral white versions. In addition to the version for wall mounting, versions with a 3-phase power rail system adapter are also available. This luminaire contains built-in LED lamps.

Tehnilised andmed

Colour	white
Colour temperature	3000 Kelvin
Luminous Flux	3000 lm
electrical power	40 W
CRI	80
Net weight	1.351 kg
Height	10 cm
Width	17.5 cm
IP Code	IP20
Service life	40000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	1000 mA
Rotating or tilting	rotary bar and tiltable
Horizontal rotation range	360 °
Variant Dimm options	Trailing edge
Number of through-wires	200
Vertical tilting range	90 °
Berker 2873 Result	With restrictions
Material	Aluminium
LED can be changed	Exchange of lightsource only by professional
Product name	MERADO FLOOD
CCT Switch	No
DALI capable	No
Dimmable	Yes
Busch-Jäger 6523U Result	Compatible
Eltako EUD 61 NPN-UC Result	Compatible
Legrand PRO21 LED Dimmer 775659 Result	Compatible
LK Fuga LED Dimmer 180 Touch Result	Compatible
Niko 310-0190X Result	Compatible
Tehnilised failid	Manual Datasheet CE declaration Removal instructions Assembly drawings REACh
Kategooriad	Indoor, LED, Surface mounted , Wall lights
