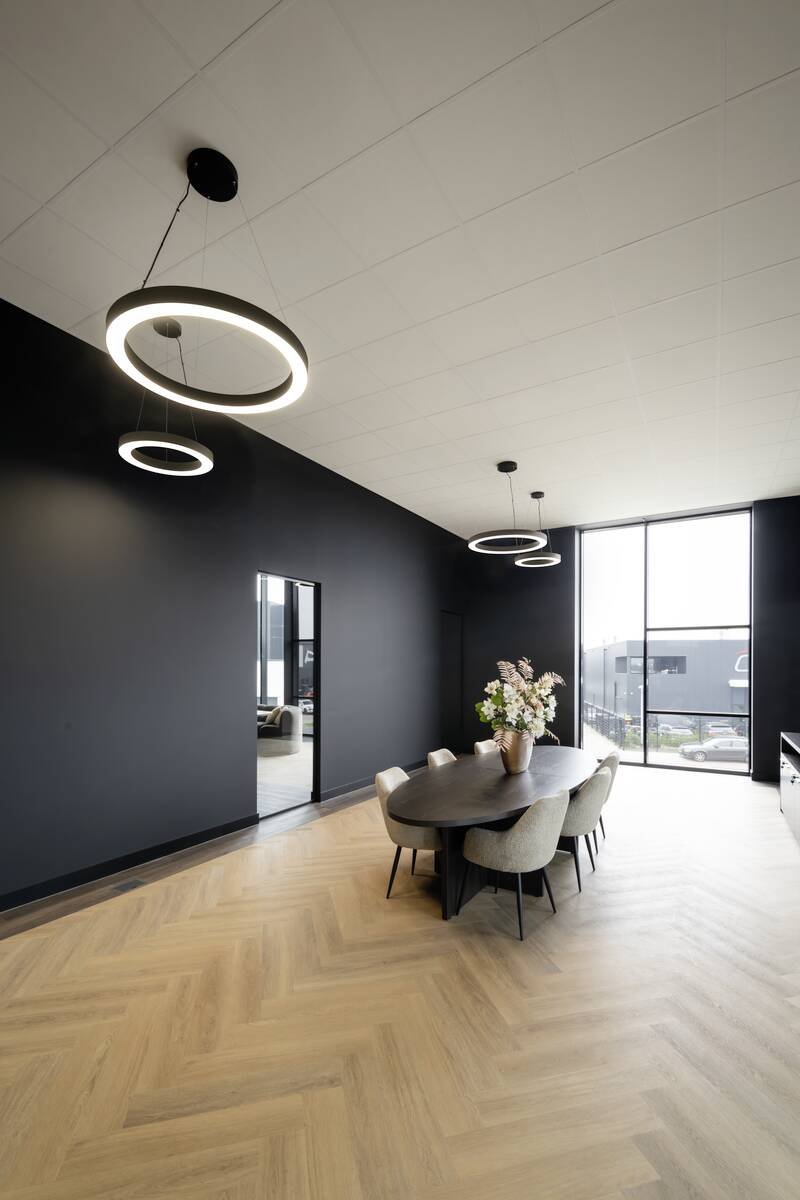

The MEDO® RING 90 is a pendant luminaire with a diameter of 90 cm and a suspension length of 300 cm, suitable for indoor use. It offers a light colour temperature of 3000 or 4000 Kelvin and a beam angle of 110°. The luminaire is equipped with DALI-2 and touch dimming functions, allowing flexible light control. The housing is made of aluminium and steel, ensuring a stable construction. The luminaire has a height of 7 cm and is rated with an IP20 protection class. The round canopy shape and modern design make it suitable for representative rooms and spaces with high demands on lighting design and user comfort.

Tehnilised andmed

Half beam angle	110 °
Colour	black
Colour temperature	4000 Kelvin
Luminous Flux	5300 lm
electrical power	42 W
CRI	90
Net weight	5.88 kg
Diameter	90 cm
Height	7 cm
Pendant length	300 cm
IP Code	IP20
Service life	50000 h
Luminous flux	5000 / 5300 lm
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	1200 mA
Light outlet version	Down
Shape	Round
Glass temperature (light emission)	32 °C
Variant Dimm options	DALI and Touch
Number of through-wires	22
Ambient temperature	-25 °C
Material	Aluminium
UGR ≤	25
Product name	MEDO® RING 90
CCT Switch	Yes
Dimmable	Yes
Assembly	Surface
Tehnilised failid	Manual Datasheet CE declaration Assembly drawings REACh
Kategooriad	Indoor, Pendant lights
