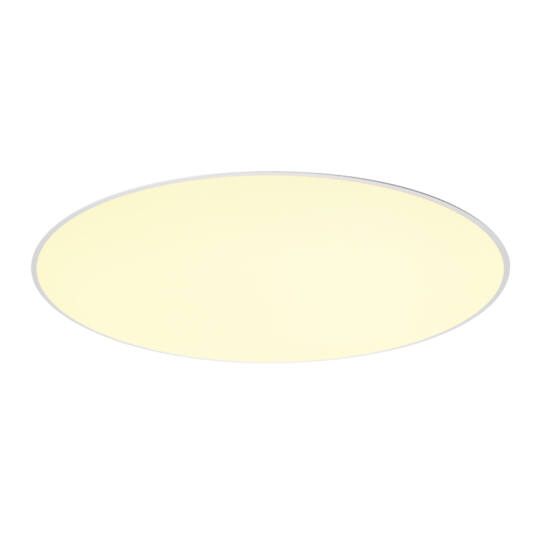

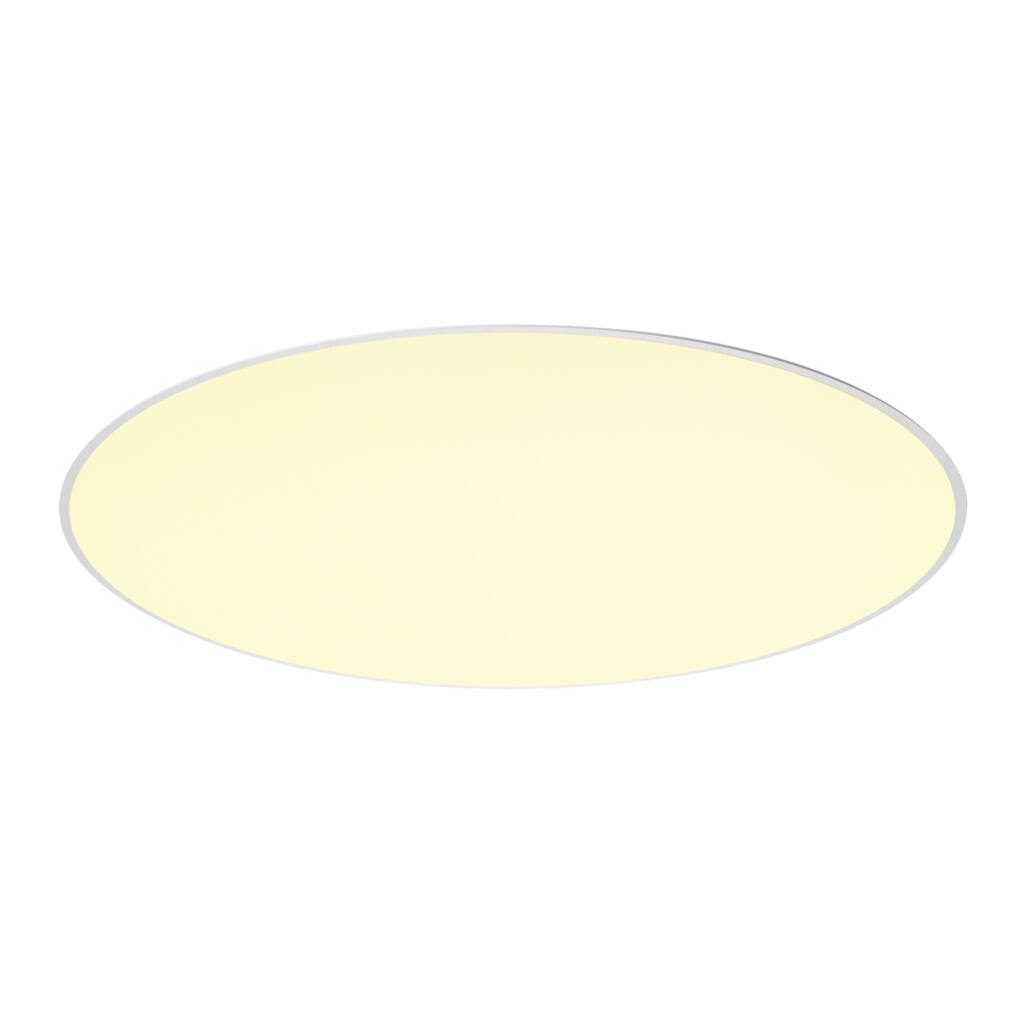

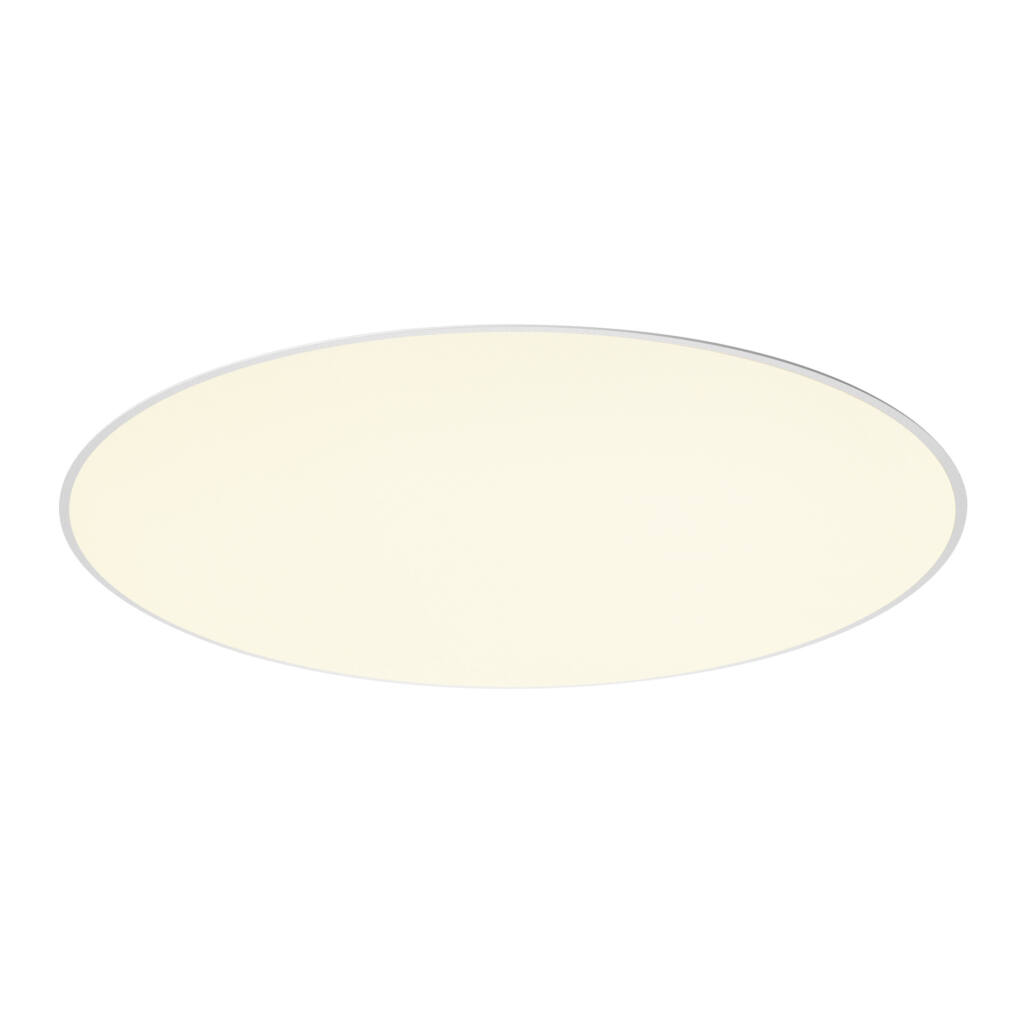

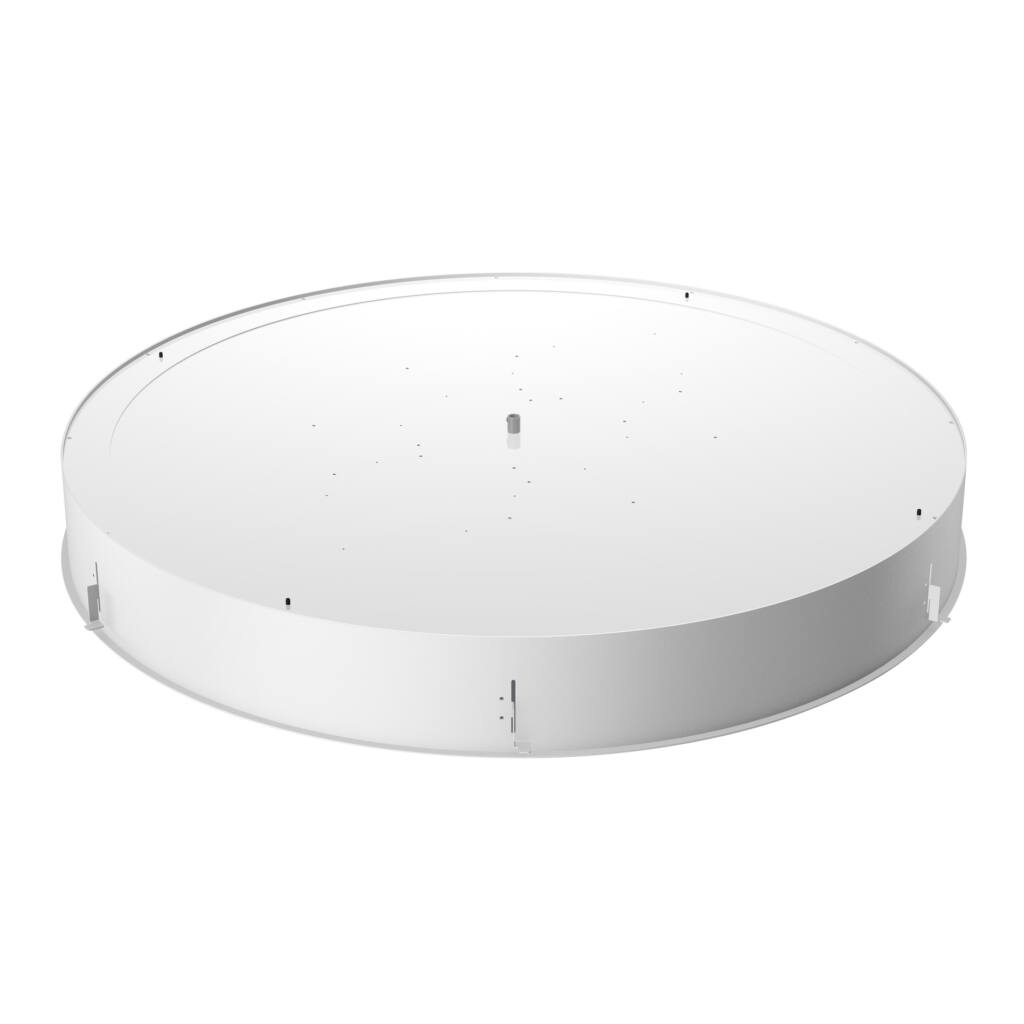

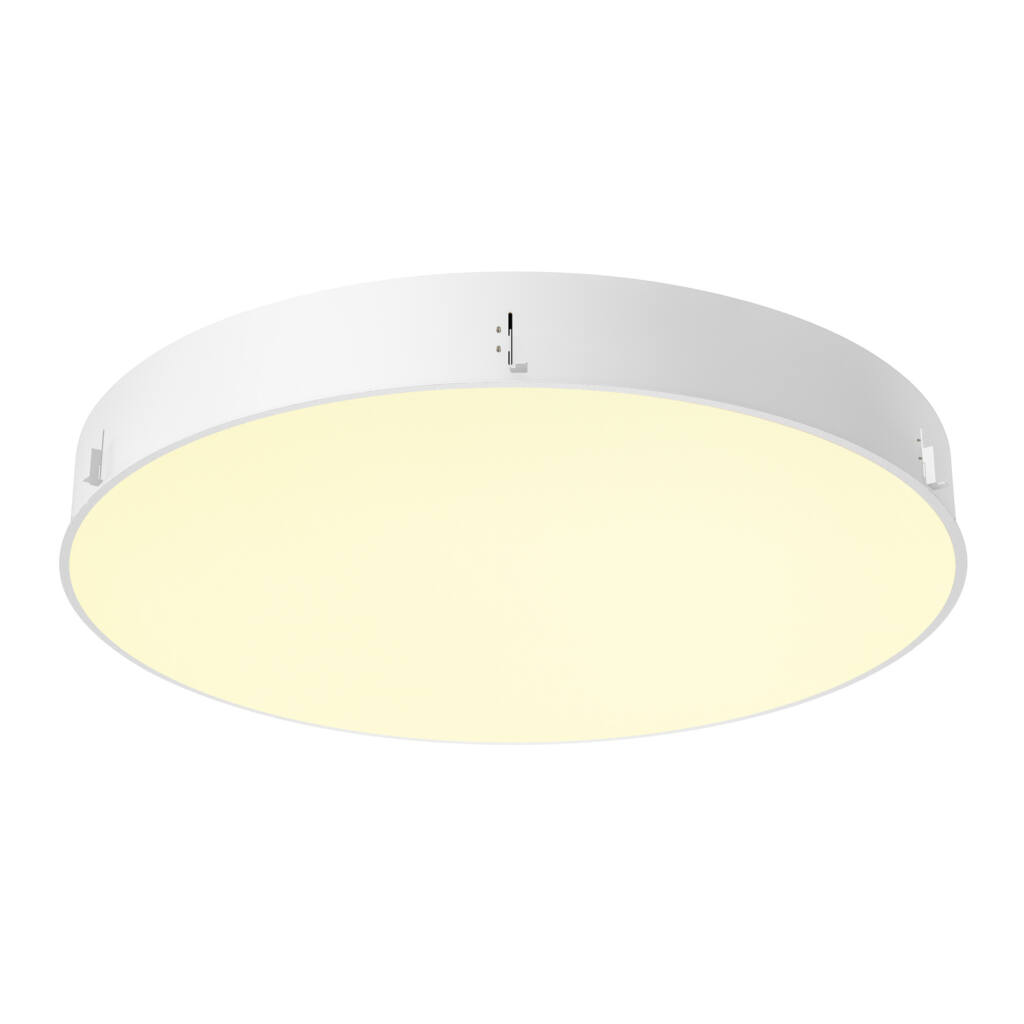

The MEDO® 90 is a round recessed ceiling luminaire designed for indoor use. It offers a luminous flux of 9,200 to 9,500 lumens with a colour temperature of 3,000 or 4,000 Kelvin and a beam angle of 80°. The housing is white and features a frame that allows for easy installation. The luminaire has a diameter of 92 cm and a height of 12.5 cm. With an IP20 protection rating, it is suitable for dry environments. The LED lifespan is specified at 50,000 hours, ensuring long operating times. The MEDO® 90 is especially suitable for use in offices, public buildings, and other indoor areas where powerful and durable lighting is required.

Tehnilised andmed

Half beam angle	80 °
Colour	white
Colour temperature	4000 Kelvin
Luminous Flux	9500 lm
electrical power	66 W
CRI	90
Net weight	10.222 kg

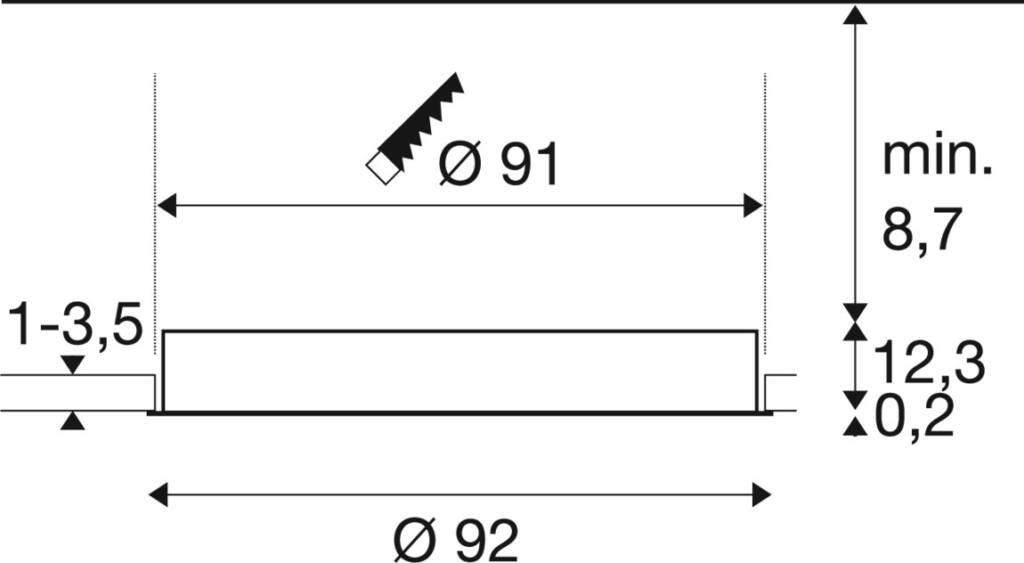

Installation depth	21 cm
Shape of cut-out	round
Diameter	92 cm
Height	12.5 cm
IP Code	IP20
Service life	50000 h
Luminous flux	9200 / 9500 lm
Secondary power / secondary voltage	1000 mA
Light outlet version	Down
Shape	round
Ambient temperature	-20 °C
Material	Aluminium
UGR ≤	19
Product name	MEDO® 90
CCT Switch	Yes
Assembly	Recessed
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration Removal instructions Assembly drawings REACh
Kategooriad	Ceiling lights, Indoor, Recessed
