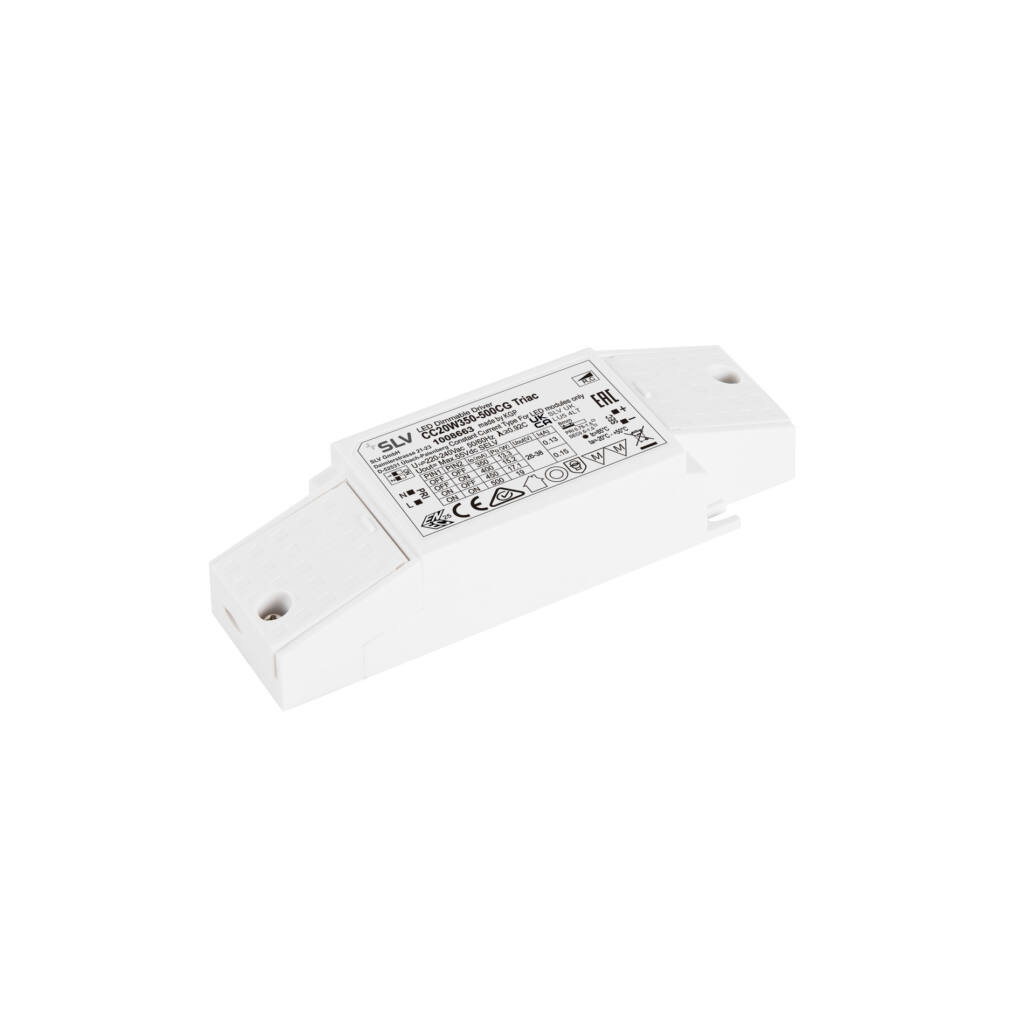

Phase-dimmable constant current driver, 20 W, with adjustable current via DIP: 350 mA/400 mA/450 mA/500 mA, with strain relief

Tehnilised andmed

Colour	white
electrical power	25 W
Net weight	0.105 kg

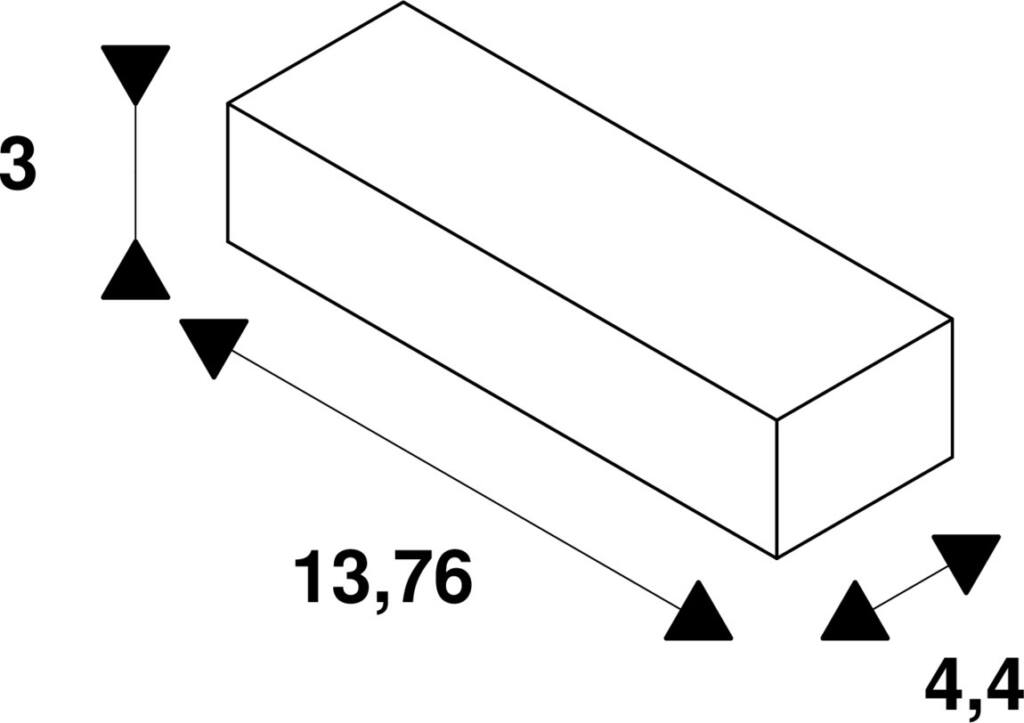

Height	3 cm
Length	13.76 cm
Width	4.4 cm
IP Code	IP20
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	350-500mA
Dimming options	TRAILING_EDGE
Shape	rectangular
Variant Dimm options	Trailing edge
TC point (°C)	85 °C
Ambient temperature	-25 °C
Material	Plastic PC
Product name	LED TREIBER
Dimmable	Yes
Efficiency	84 %
Independent converter	Yes
Output current	350 500 mA
Output voltage	26 38
Rated capacity	20 W
Protection category	II
Output Wattage	9,1 W
Output Wattage to	19 W
Tehnilised failid	Manual Datasheet CE declaration REACh
Kategooriad	Electrical component, Indoor
