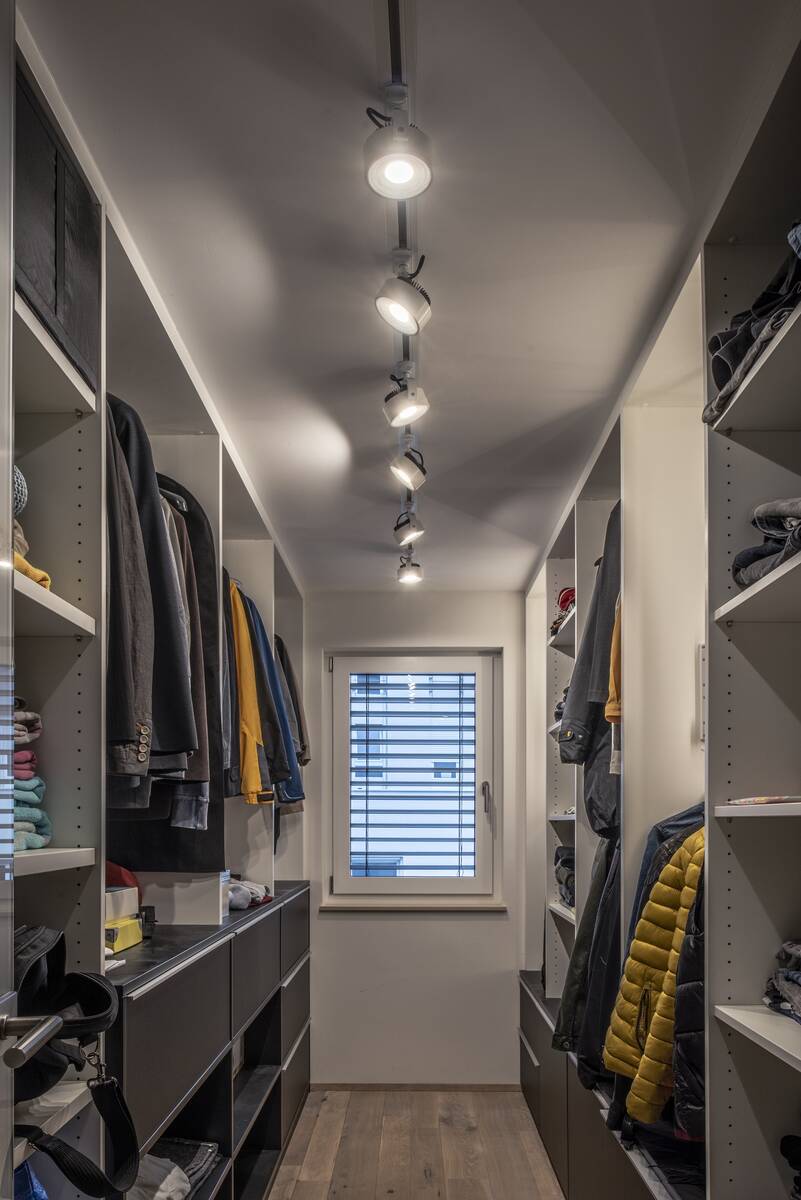

The KALU TRACK is a spotlight for high-voltage track systems with a single-phase connection, suitable for indoor use. The light source operates at a colour temperature of 3000 K and produces a luminous flux of 970 lumens. The housing is made of aluminium and measures 12 cm in length, 10.5 cm in diameter, and 15 cm in height. The spotlight features phase-cut and phase-angle dimming, allowing for flexible light control. The IP20 protection rating indicates protection against solid foreign objects larger than 12.5 mm, but no protection against water ingress. The KALU TRACK is designed for mounting on single-phase high-voltage track systems and is supplied with a matching 1-phase adapter. The declared service life is 25,000 hours.

Tehnilised andmed

Half beam angle	95 °
Colour	white
Colour temperature	3000 Kelvin
Luminous Flux	970 lm
electrical power	13 W
CRI	80
Net weight	0.455 kg
Diameter	10.5 cm
Height	15 cm
Length	12 cm
IP Code	IP20
Service life	25000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Rotating or tilting	rotary bar and tiltable
Light outlet version	Down
Horizontal rotation range	350 °
Variant Dimm options	leading edge and trailing edge dimmable
Different light outlets	1
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Material	Aluminium
LED can be changed	Exchange of lightsource only by professional
Product name	KALU TRACK
CCT Switch	No
DALI capable	No
Dimmable	Yes
Energy label
Busch-Jäger 6523U Result	Compatible
Legrand PRO21 LED Dimmer 775659 Result	Compatible
LK Fuga LED Dimmer 180 Touch Result	Compatible
Niko 310-0190X Result	Compatible
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	1-Phase-System, High voltage track systems, Indoor, LED, Track systems
Sildid	LED-Spotlight, Spotlight
