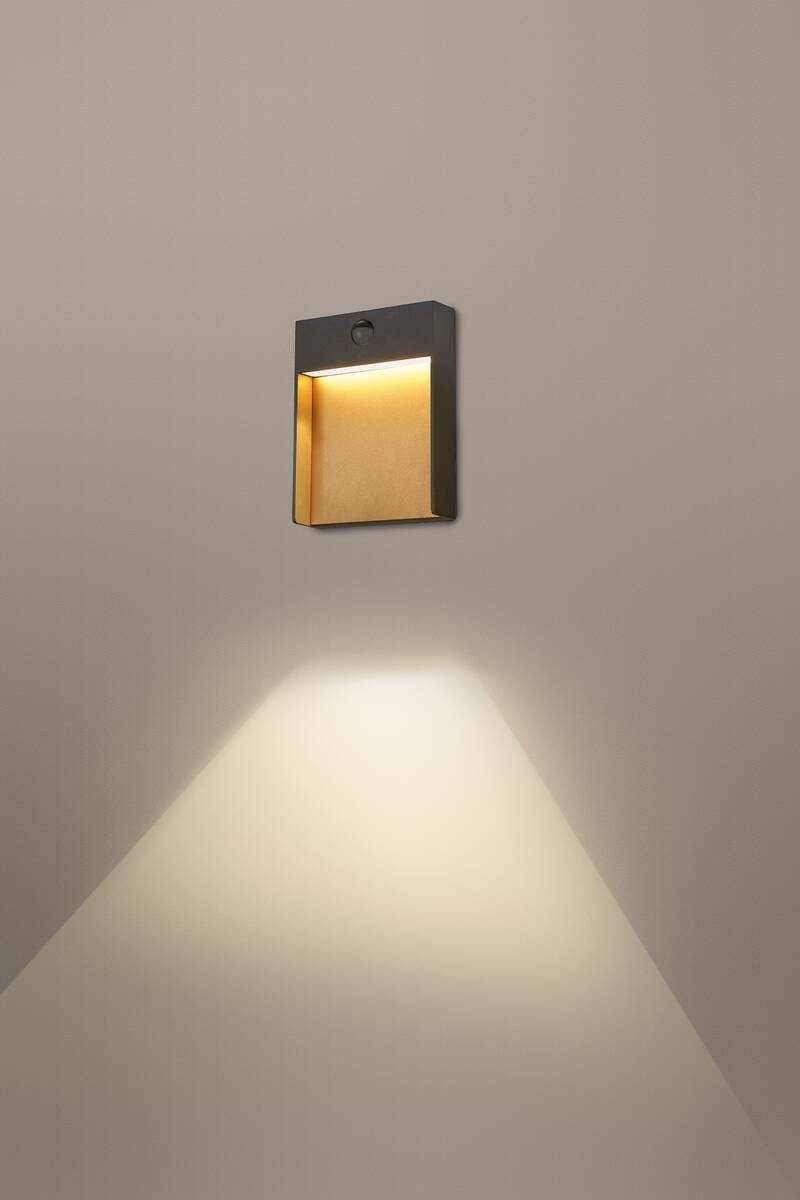

The FLATT SENSOR is an outdoor LED wall-mounted luminaire suitable for installation on exterior walls. It features a PIR motion sensor with an adjustable detection range of 6 to 9 metres, depending on the mounting height. The sensor can be adjusted for brightness levels between 15 and 2000 lux as well as for switching times from 5 seconds up to 10 minutes. The luminaire has a colour temperature of 3000 K and a luminous flux of approximately 500 to 530 lumens. The housing is made of aluminium and measures 23 cm in height, 18 cm in width, and 8 cm in depth. The IP54 rating ensures protection against dust and splashing water, while the impact resistance is rated IK03. Designed for wall mounting, the luminaire offers a long service life of up to 50,000 hours.

Tehnilised andmed

Colour	anthracite/anthracite
Variant Color 2	anthracite
Colour temperature	4000 Kelvin
Luminous Flux	530 lm
electrical power	13 W
CRI	80
Net weight	2.008 kg
Height	23 cm
Width	18 cm
IP Code	IP54
Service life	50000 h
Luminous flux	500 / 530 lm
Primary nominal voltage	100-240V ~ 50/60Hz
Secondary power / secondary voltage	300 mA
Ambient temperature	-25 °C
Shock resistance category	IK03
Shock resistance	0.35 joule
Material	Aluminium
LED can be changed	LED lightbulb not replaceable
Product name	FLATT SENSOR
CCT Switch	Yes
DALI capable	No
Tehnilised failid	Manual Datasheet CE declaration Removal instructions Assembly drawings REACh
Kategooriad	LED, Outdoor, Surface mounted , Wall lights
Sildid	Motion Sensor luminaire
