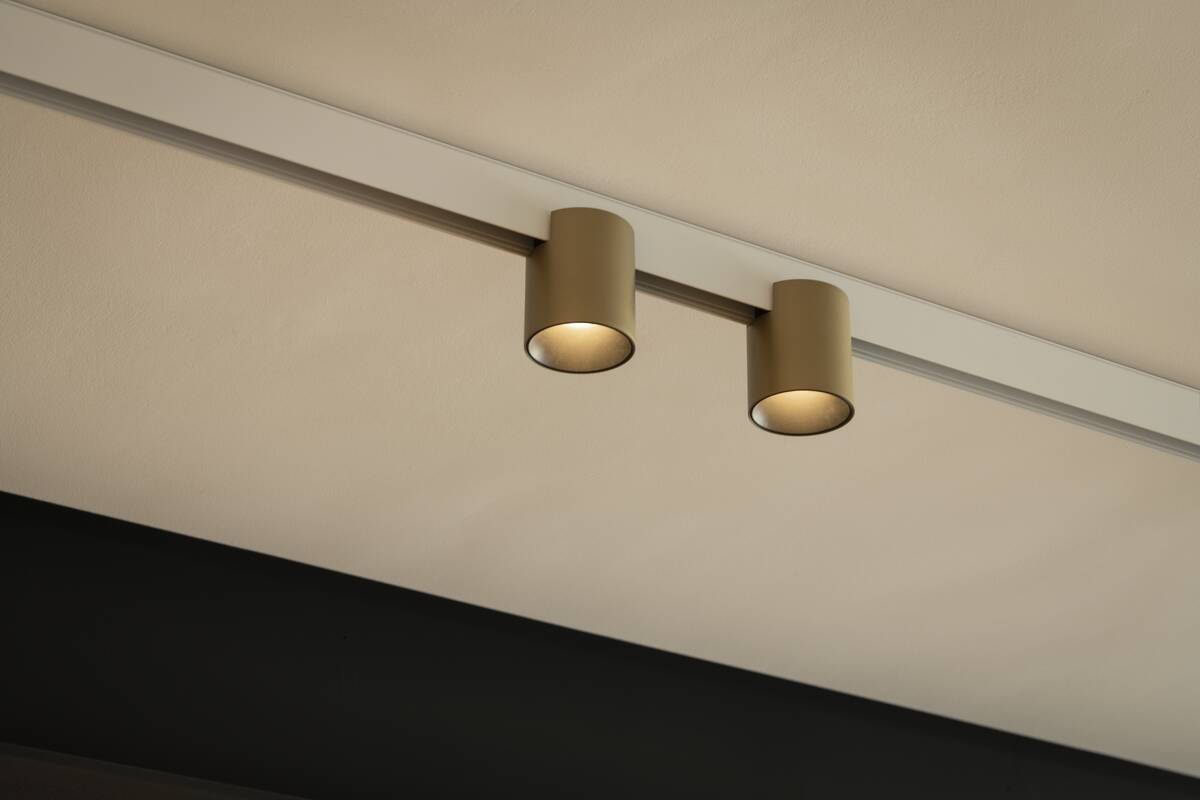

The FIX-IT! 48V Spot is a ROUND luminaire designed for mounting on a ceiling track system, intended for indoor use. With a luminous flux of 850 lumens and a colour temperature of 3000 Kelvin, the spot provides warm white illumination with a beam angle of 36 degrees. The luminaire features a DALI-2 dimming function, allowing flexible light control. The housing is made of aluminium and polycarbonate, ensuring a robust construction. With a diameter of 7 cm and a height of 8.2 cm, the spot is compactly designed. The IP20 rating makes it suitable for dry indoor areas. The luminaire is only compatible with the deeper 48V surface-mounted track system and is supplied standard with a black insert.

Tehnilised andmed

Half beam angle	36 °
Colour	gold/black
Variant Color 2	black
Colour temperature	3000 Kelvin
Luminous Flux	850 lm
electrical power	6,6 W
CRI	90
Net weight	0.22 kg
Diameter	7 cm
Height	8.2 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	48V DC
Secondary power / secondary voltage	175 mA
Shape	round
Variant Dimm options	DALI
Different light outlets	1
Seperate beams	Yes
Ambient temperature	-20 °C
Material	Aluminium
UGR ≤	16
Product name	FIX-IT!
CCT Switch	No
Dimmable	Yes
Assembly	Track
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	Ceiling lights, Indoor, Low voltage track, Track systems
