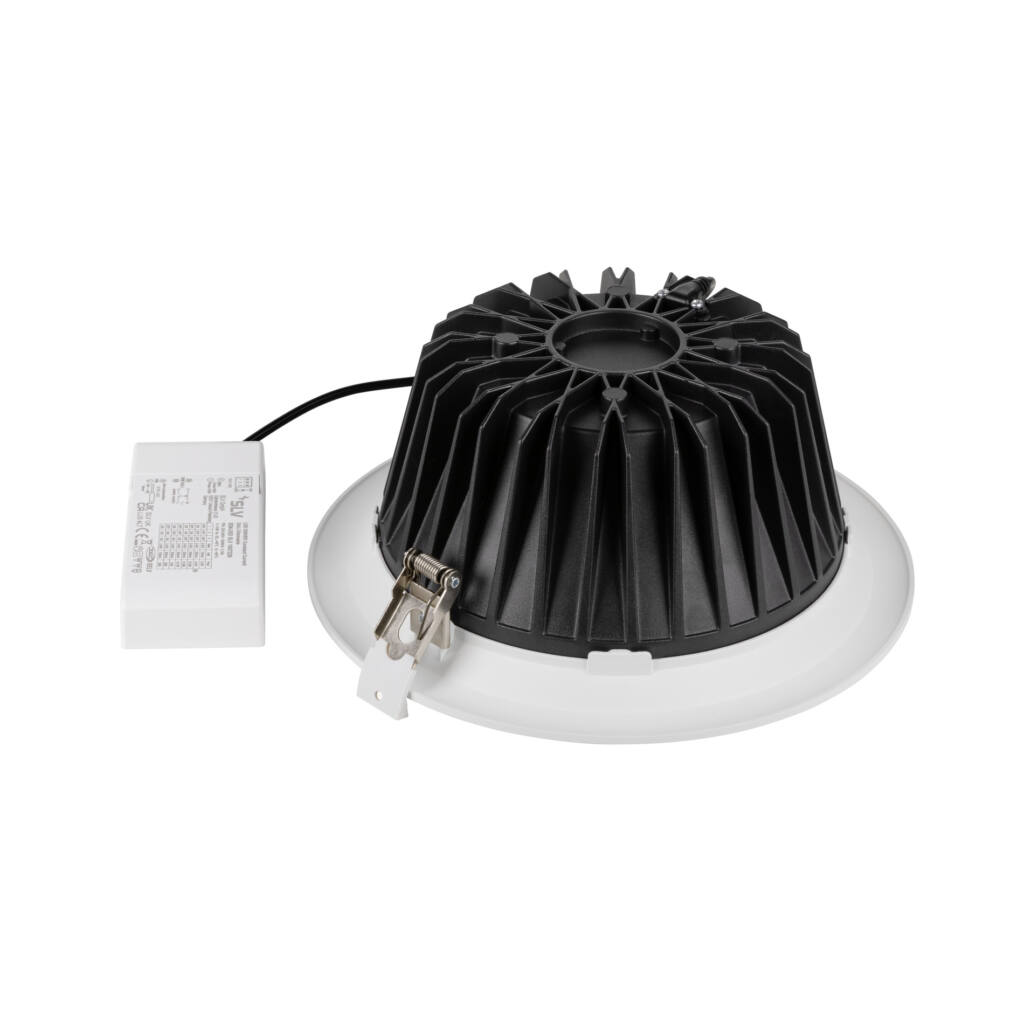

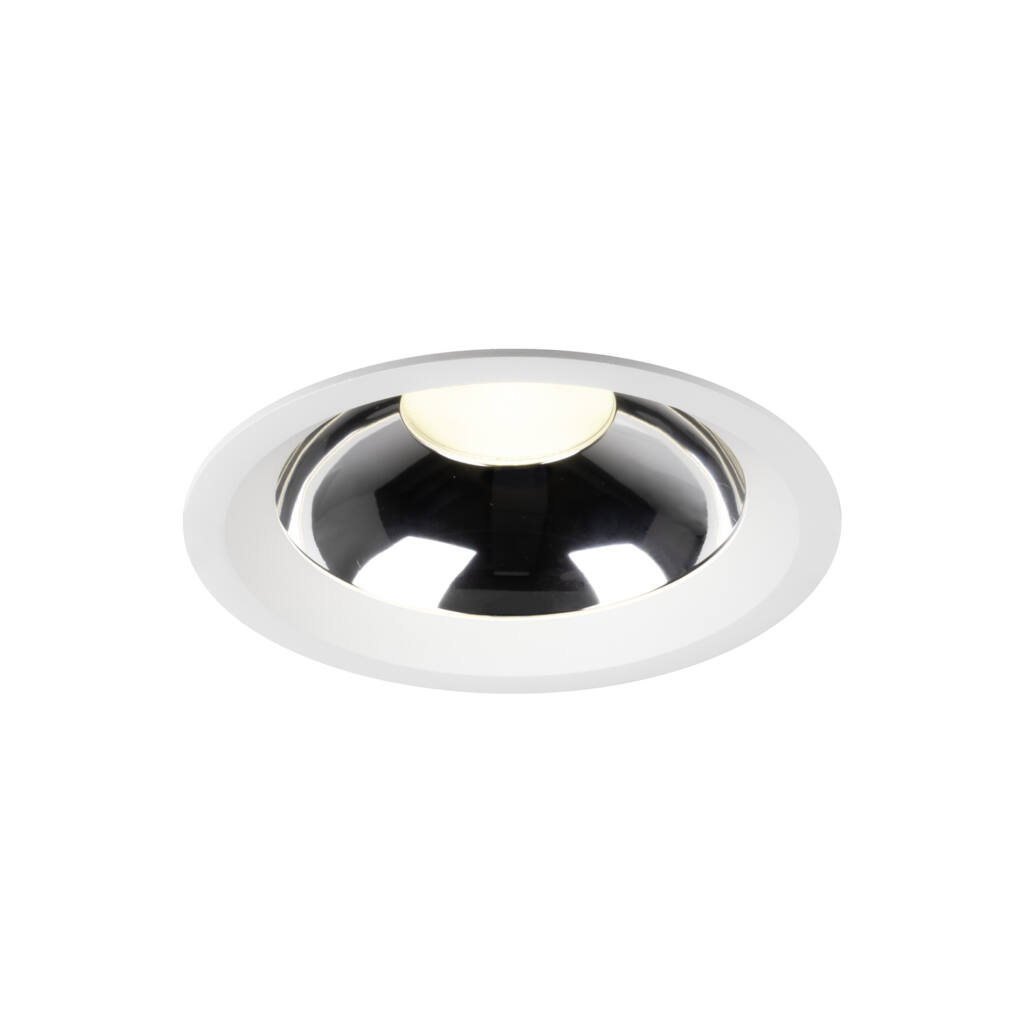

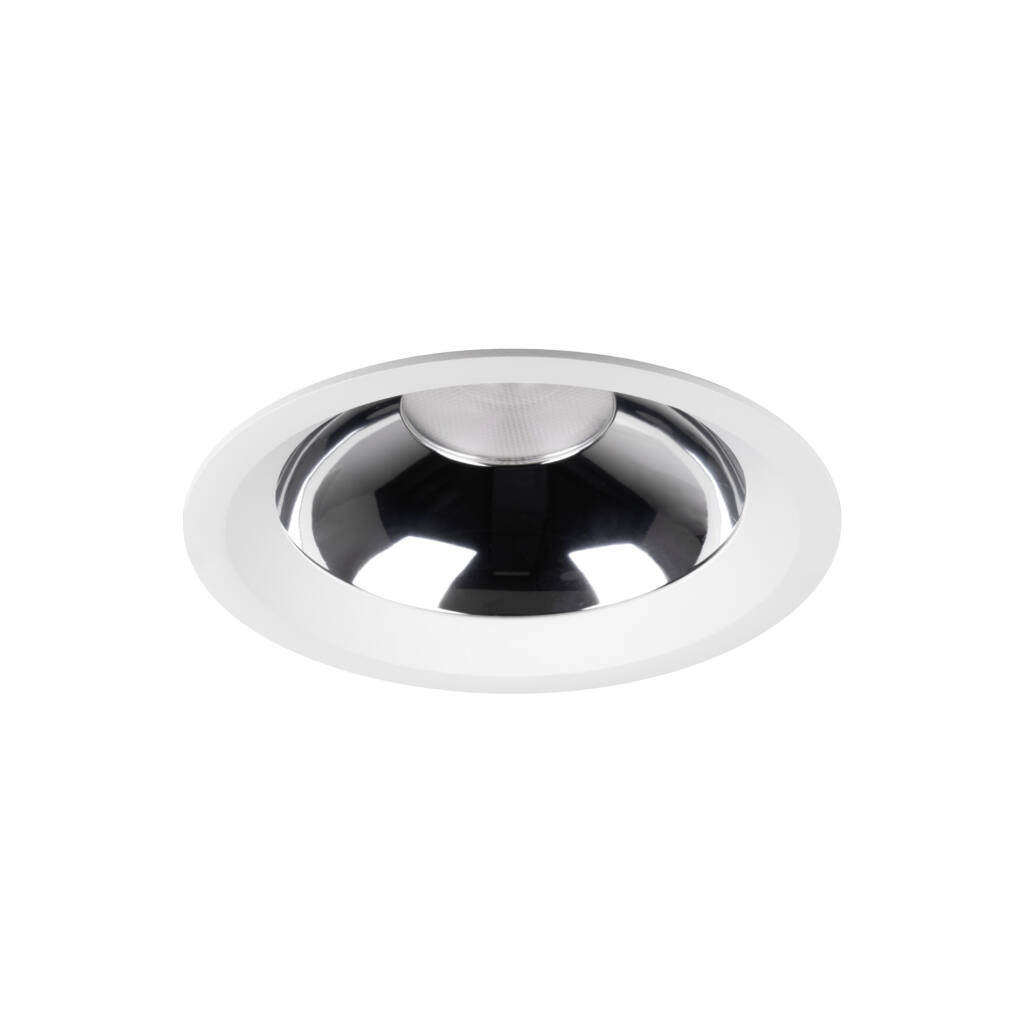

The recessed ceiling light DOWNLIGHT C is designed for installation in ceilings and is suitable for indoor areas requiring a protection rating of IP54. It features a round design with a diameter of 22.6 cm and a height of 9.6 cm. The housing is made of aluminium and offers impact resistance of IK class 02. The luminaire is equipped with LED technology, providing a light output of 3100 lumens at a power consumption of 24 watts. Dimming is carried out via the DALI 2 protocol, allowing flexible control. The luminaire is designed for a long service life of up to 70,000 hours.

Tehnilised andmed

Half beam angle	55 °
Colour	white
Colour temperature	4000 Kelvin
Luminous Flux	3100 lm
electrical power	24 W
CRI	90
Net weight	0.82 kg

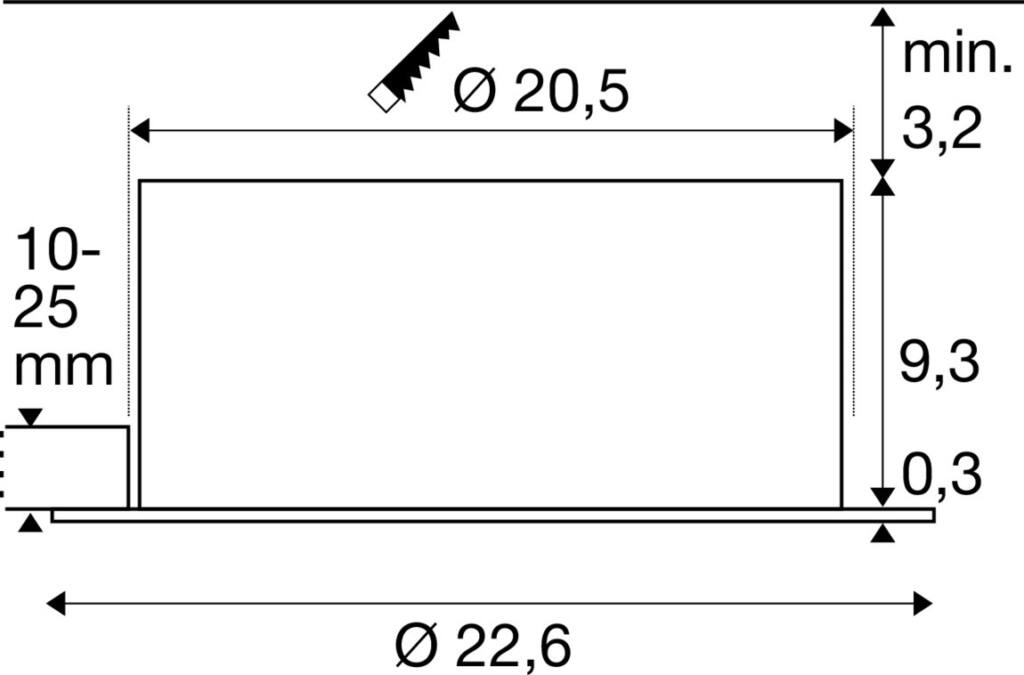

Installation depth	10 cm
Shape of cut-out	round
Diameter	22.6 cm
Height	9.6 cm
IP Code	IP54
Service life	70000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	600 mA
Light outlet version	Down
Shape	round
Variant Dimm options	DALI
Number of through-wires	18
Ambient temperature	-20 °C
Shock resistance category	IK02
Shock resistance	0.2 joule
Material	Aluminium
UGR ≤	22
Product name	DOWNLIGHT C 200 DALI
CCT Switch	No
Dimmable	Yes
Assembly	Recessed
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	Ceiling lights, Indoor, Recessed
