The ceiling recessed downlight DOWNLIGHT C is designed for installation in ceilings and is suitable for indoor use where splash water protection is required (IP54 rating). With a luminous flux of 2850 lumens and a power consumption of 24 watts, it provides efficient lighting. The luminaire features a round design with a diameter of 22.6 cm and a height of 9.6 cm. The housing is made of aluminium and has an impact resistance rating of IK02. The light source is dimmable via the DALI-2 system, allowing flexible control of the illumination level.

Tehnilised andmed

Half beam angle	55 °
Colour	white
Colour temperature	3000 Kelvin
Luminous Flux	2850 lm
electrical power	24 W
CRI	90
Net weight	0.83 kg

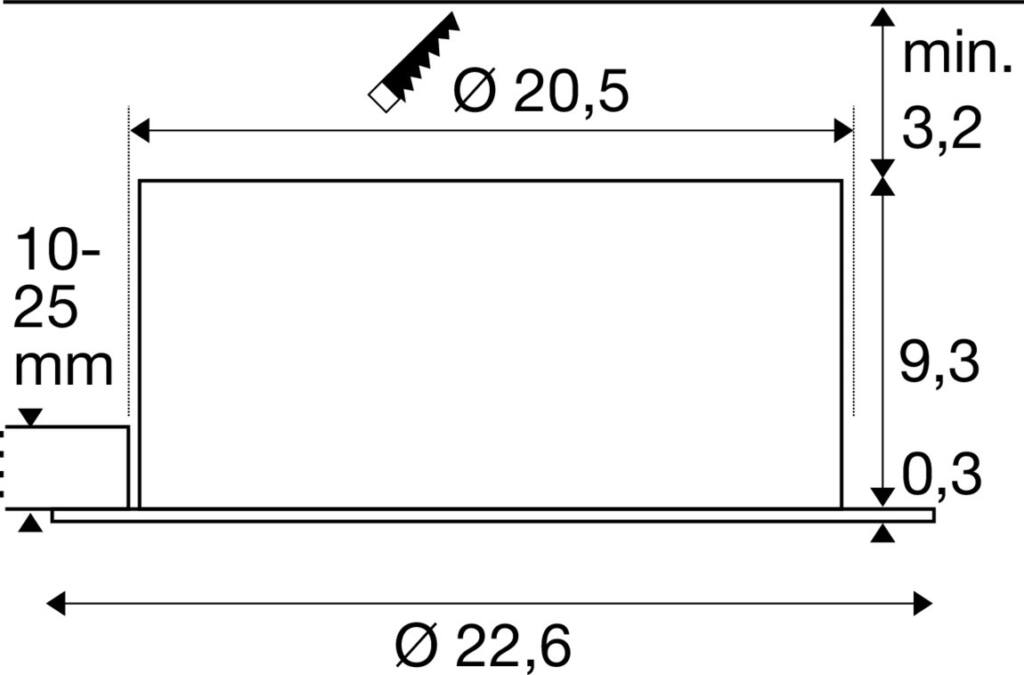

Installation depth	10 cm
Shape of cut-out	round
Diameter	22.6 cm
Height	9.6 cm
IP Code	IP54
Service life	70000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	600 mA
Light outlet version	Down
Shape	round
Variant Dimm options	DALI
Number of through-wires	18
Ambient temperature	-20 °C
Shock resistance category	IK02
Shock resistance	0.2 joule
Material	Aluminium
UGR ≤	22
Product name	DOWNLIGHT C 200 DALI
CCT Switch	No
Dimmable	Yes
Assembly	Recessed
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	Ceiling lights, Indoor, Recessed
