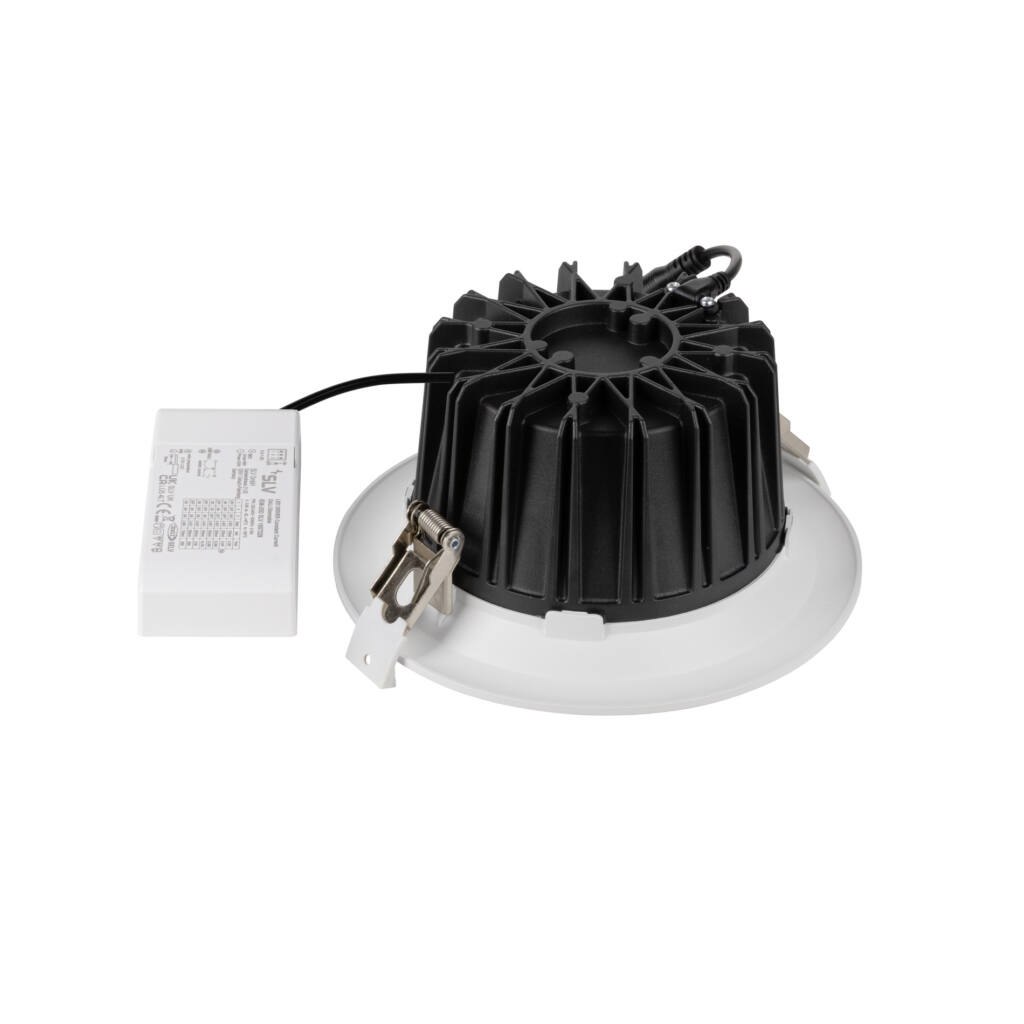

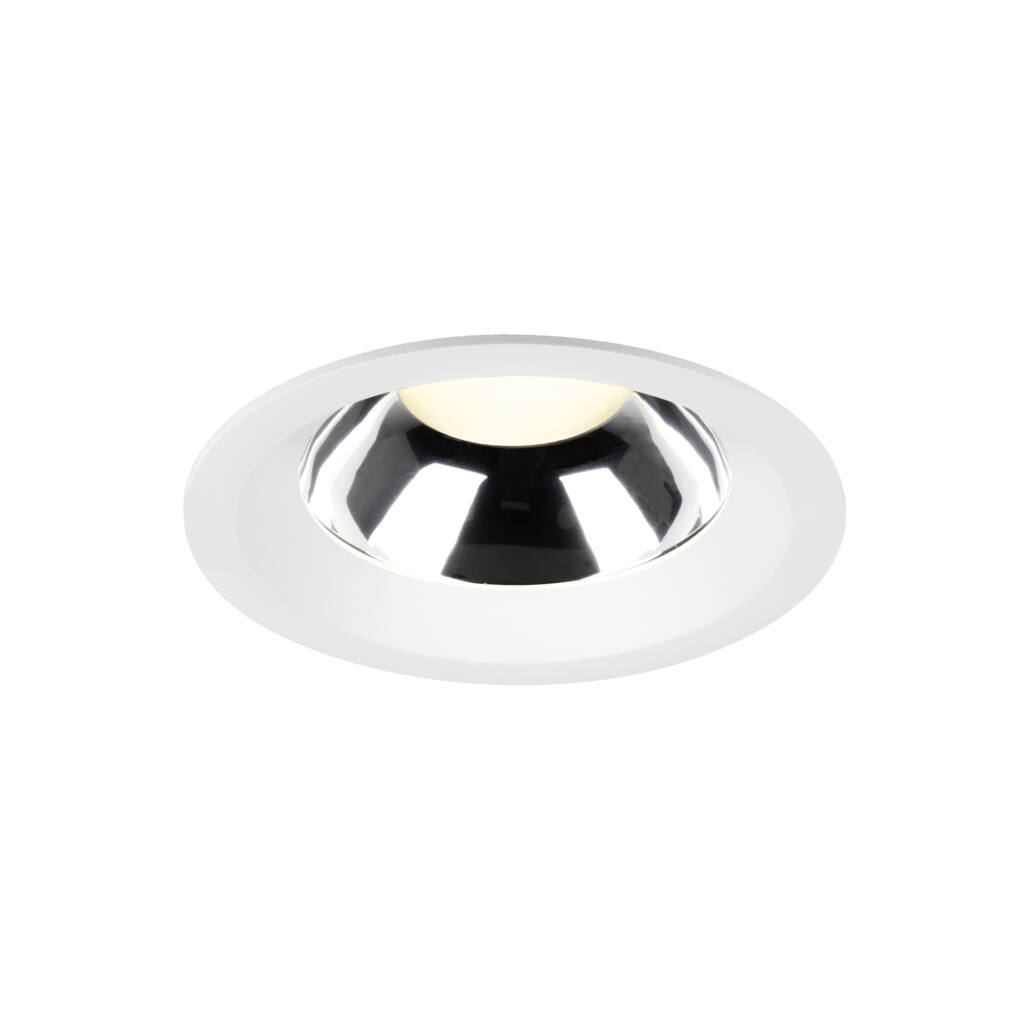

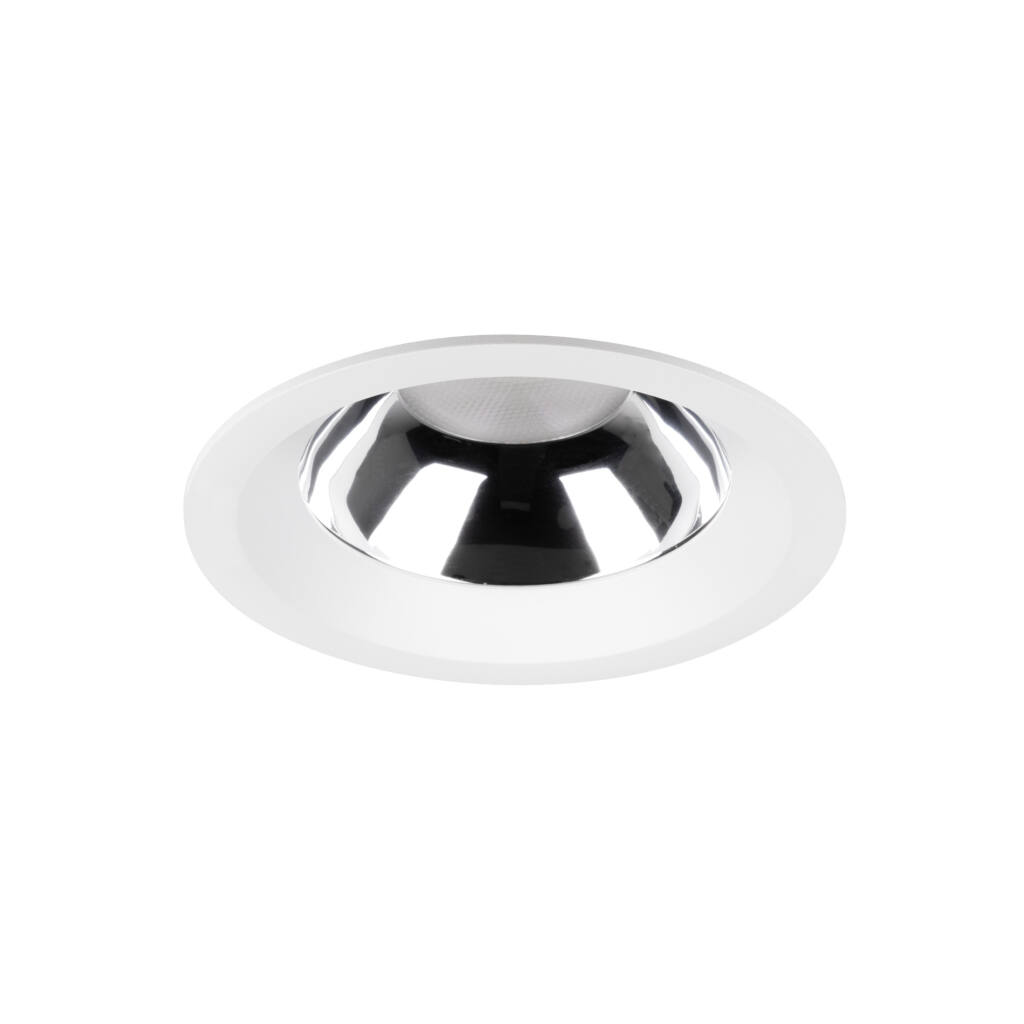

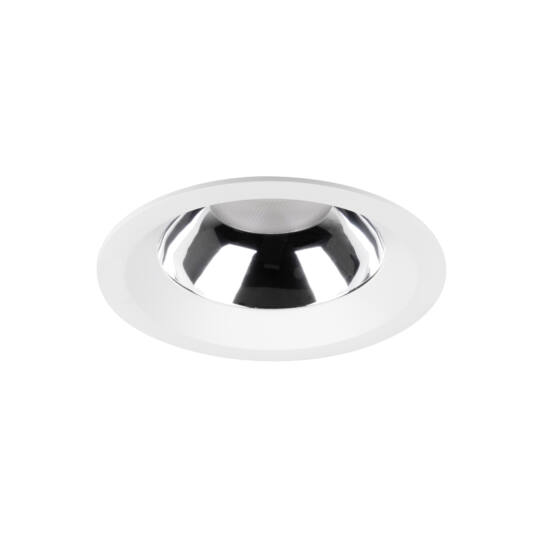

The recessed ceiling light DOWNLIGHT C is designed for installation in ceilings and is suitable for indoor use where protection against dust and splashing water is required (IP54). With a diameter of 17.6 cm and a height of 8.6 cm, it features a ROUND aluminium design. The luminaire delivers a light output of 2400 lumens at a power consumption of 20 watts and is equipped with a DALI 2 dimming function, allowing flexible light control. The impact resistance corresponds to the IK02 class, providing basic protection against mechanical impacts. This luminaire is suitable for applications requiring a reliable, dimmable light source with a robust protection standard.

Tehnilised andmed

Half beam angle	55 °
Colour	white
Colour temperature	4000 Kelvin
Luminous Flux	2400 lm
electrical power	20 W
CRI	90
Net weight	0.64 kg
Installation depth	9 cm
Shape of cut-out	round

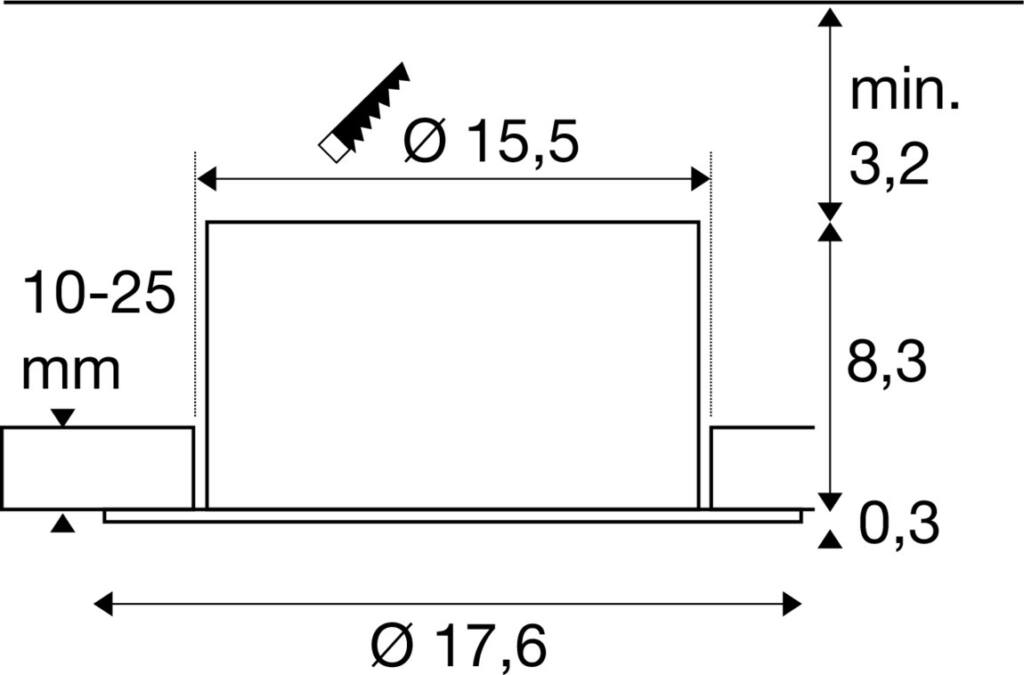

Diameter	17.6 cm
Height	8.6 cm
IP Code	IP54
Service life	70000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	500 mA
Light outlet version	Down
Shape	round
Variant Dimm options	DALI
Number of through-wires	18
Ambient temperature	-20 °C
Shock resistance category	IK02
Shock resistance	0.2 joule
Material	Aluminium
UGR ≤	22
Product name	DOWNLIGHT C 150 DALI
CCT Switch	No
Dimmable	Yes
Assembly	Recessed
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	Ceiling lights, Indoor, Recessed
