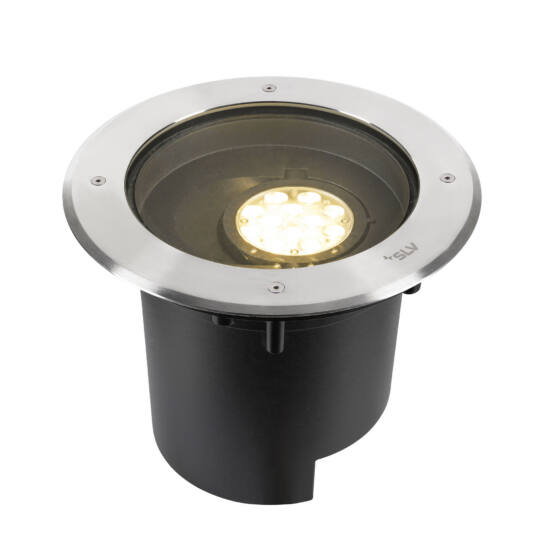

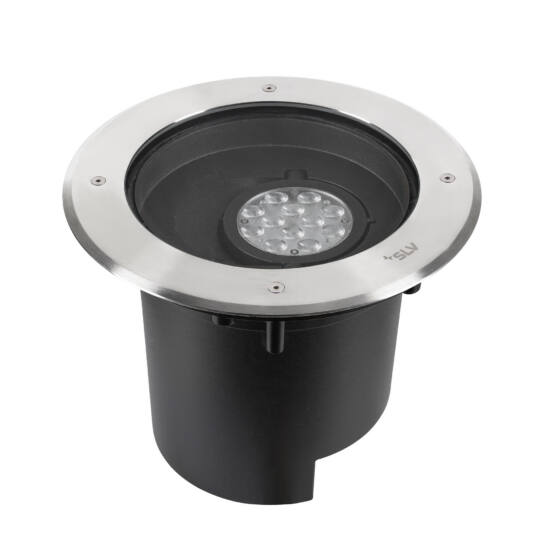

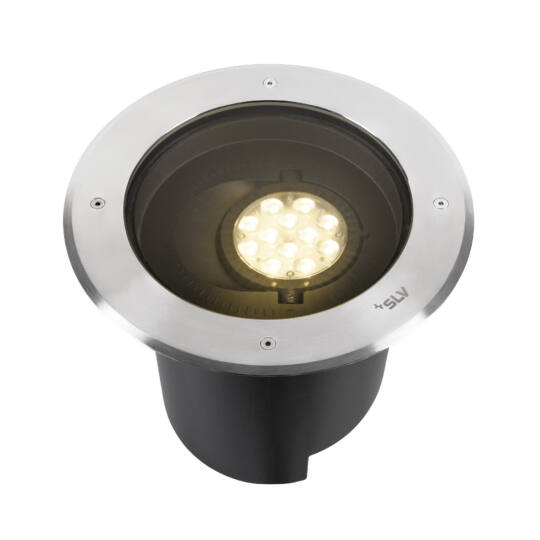

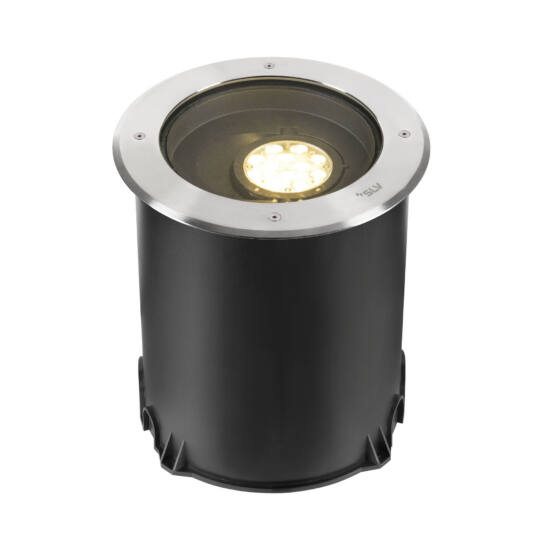

The DASAR® XL recessed floor luminaire is designed for both outdoor and indoor use and features an asymmetrical light distribution with a beam angle of 70°/40°. It has a colour temperature of 3000 K and delivers a luminous flux of 2600 lumens. The housing is made of stainless steel 316 and aluminium, combined with a glass cover. The luminaire has a ROUND design with a diameter of 27 cm and an installation depth of 21 cm. It is intended for floor recessing and offers protection ratings of IP65 and IP67 as well as high impact resistance according to IK10. Control is via DALI 2 and touch technology. A mounting pot is included in the scope of delivery; the cover is available separately. The declared service life is 50,000 hours.

Tehnilised andmed

Half beam angle	70 °
Colour	edelstahl / schwarz
Variant Color 2	black
Colour temperature	3000 Kelvin
Luminous Flux	2600 lm
electrical power	27 W
CRI	80
Net weight	5.4 kg

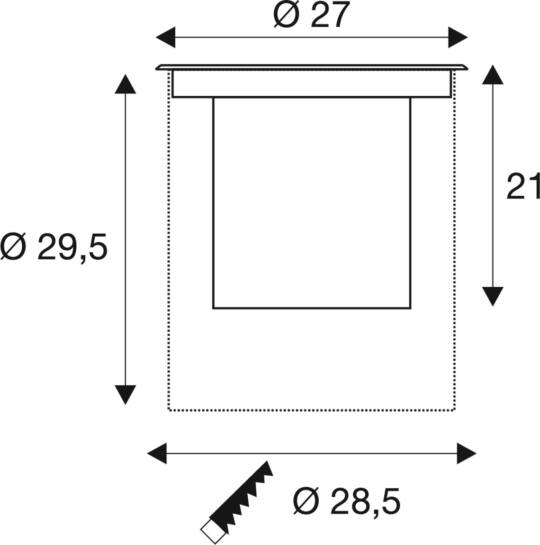

Installation depth	29.5 cm
Installation diameter	28.5 cm
Shape of cut-out	round
Depth	21 cm
Diameter	27 cm
IP Code	IP65/IP67
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	700 mA
Light outlet version	Asymmetrical
Connection cable length	105 cm
Dimming options	DALI_TOUCH
Shape	Round
Glass temperature (light emission)	60 °C
Variant Dimm options	DALI and Touch

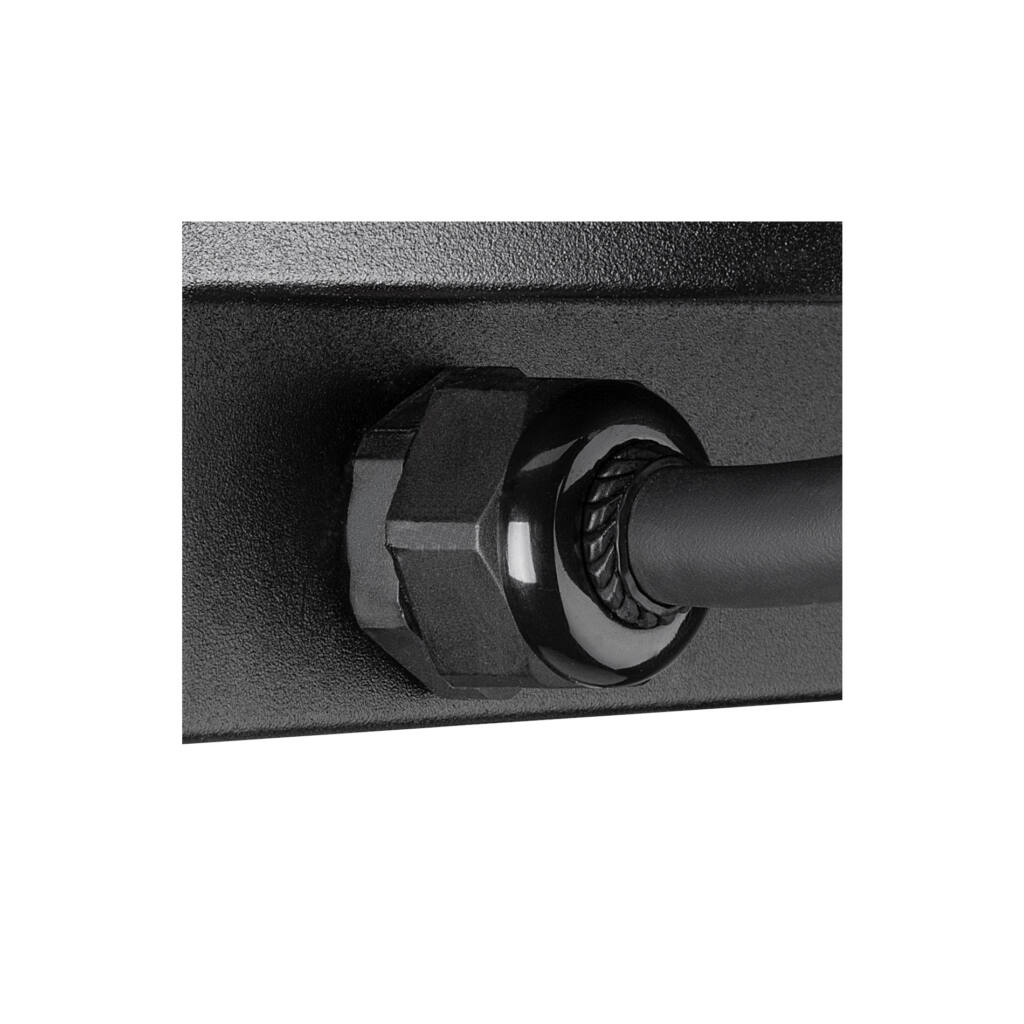

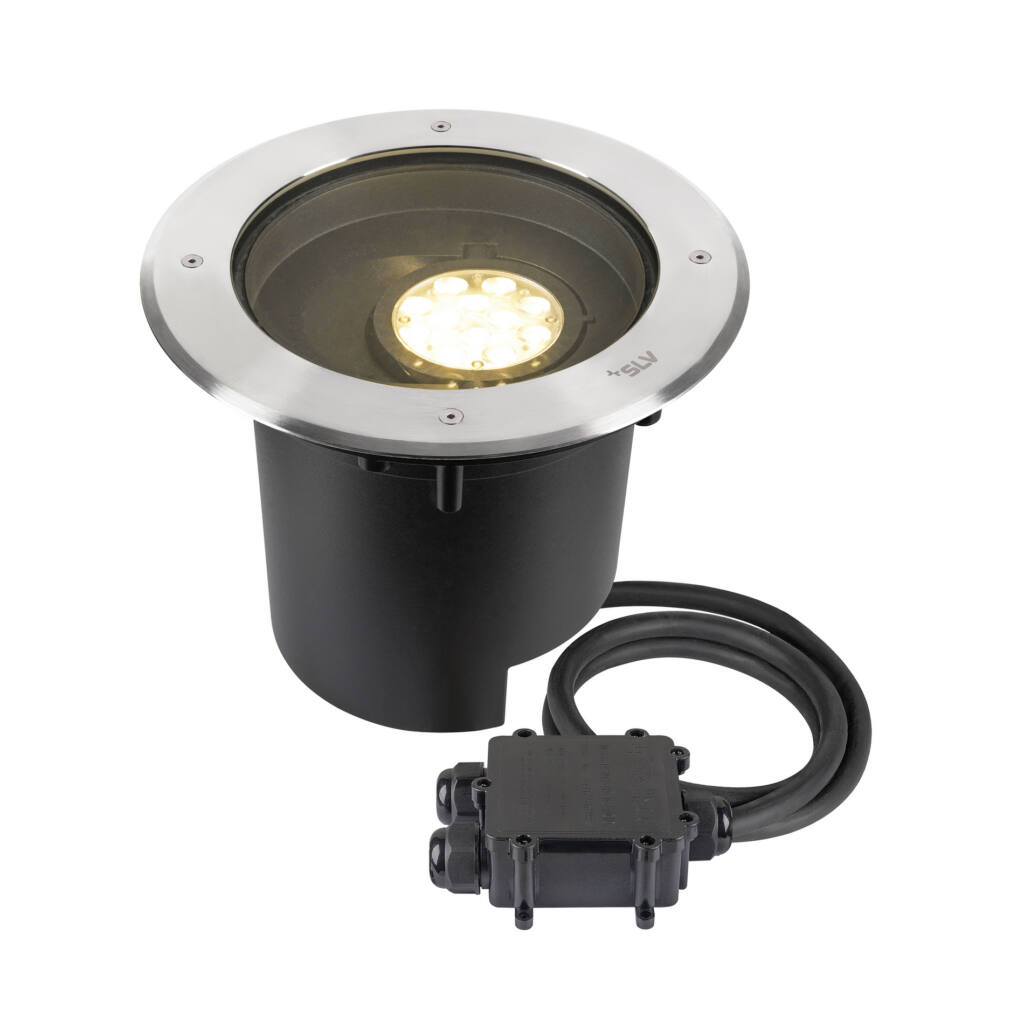

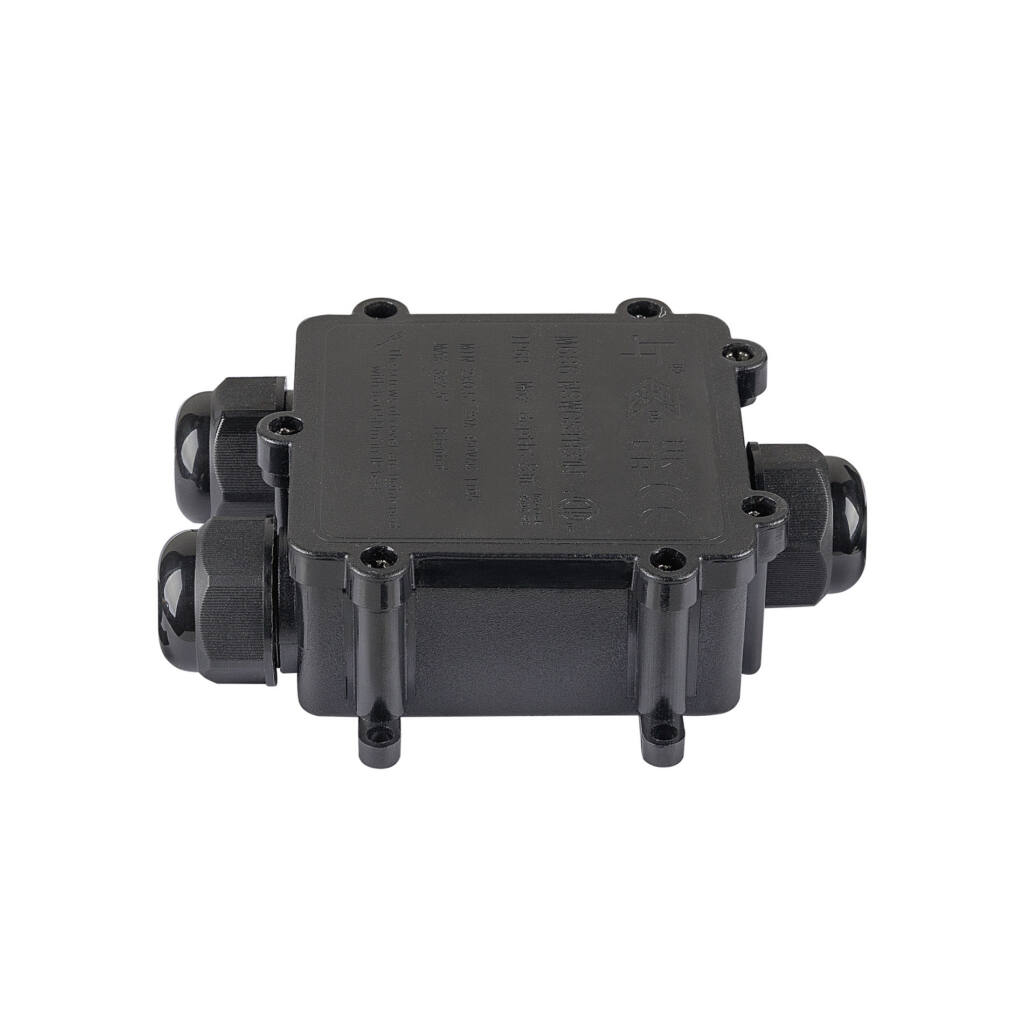

Plug type light	IP Connection Box
Number of through-wires	30
Mechanical loading	2 t

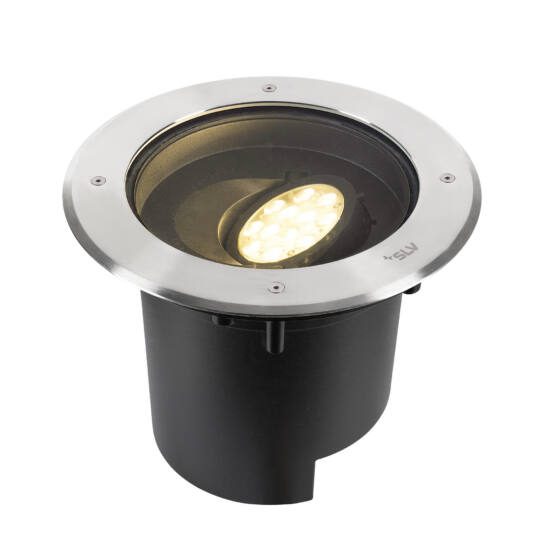

Vertical tilting range	30 °
Ambient temperature	-20 °C
Shock resistance category	IK10
Shock resistance	20 joule
Material	Stainless steel 316/glass
Product name	DASAR® XL,
CCT Switch	No
Dimmable	Yes
Assembly	Recessed
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	Outdoor, Recessed
