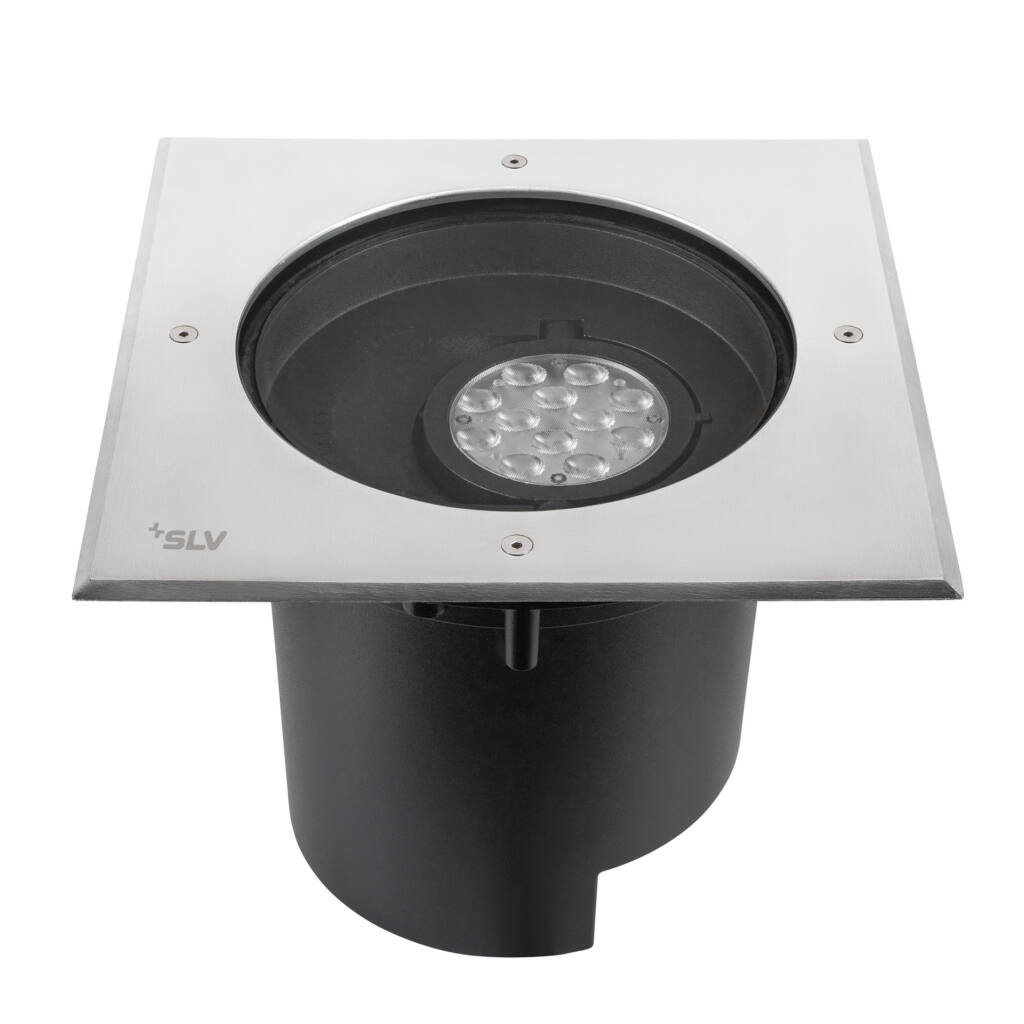

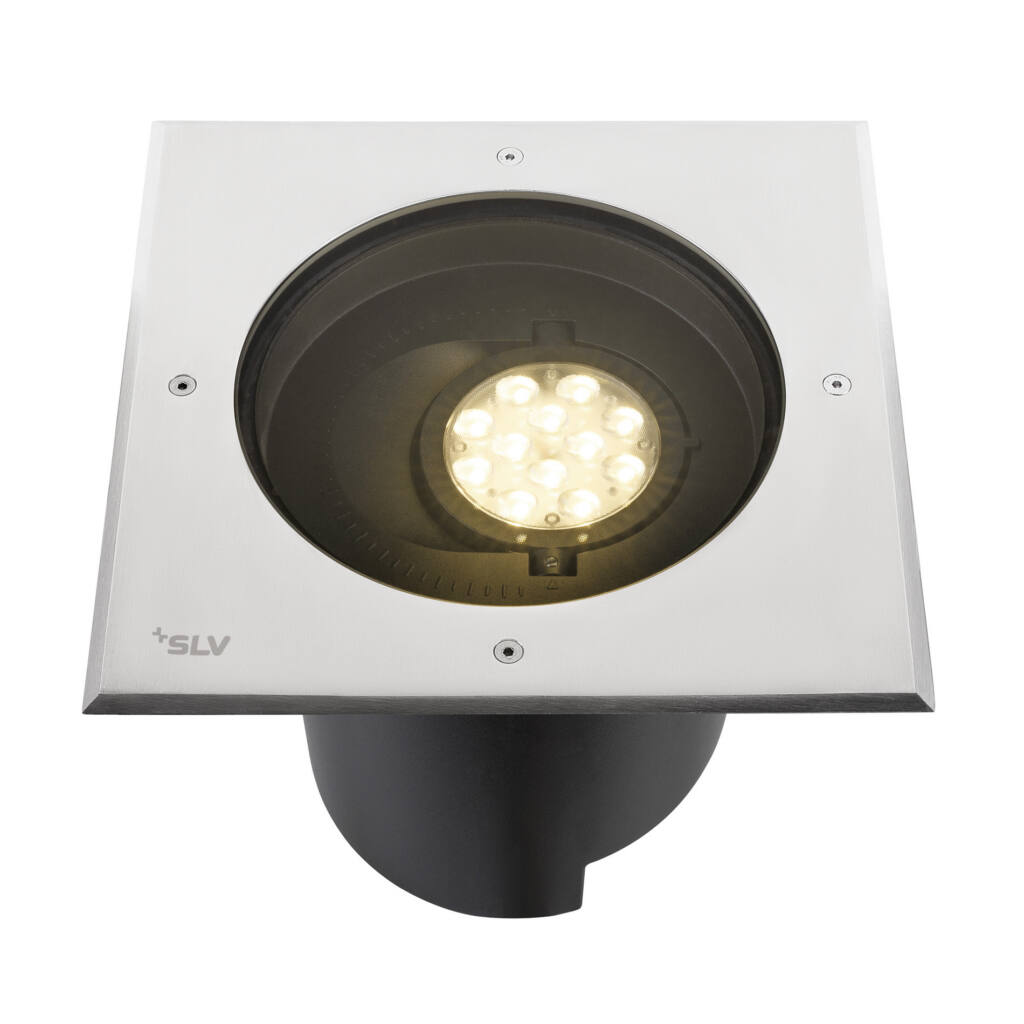

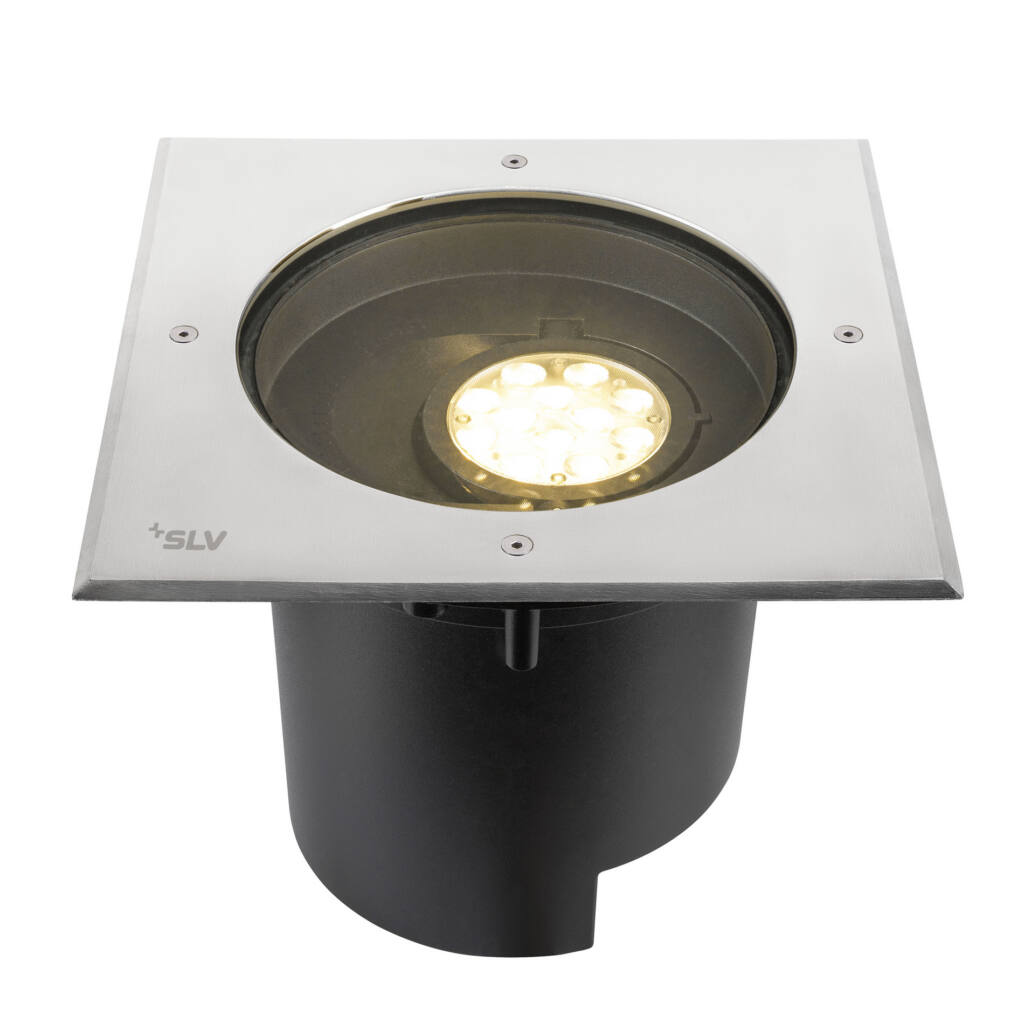

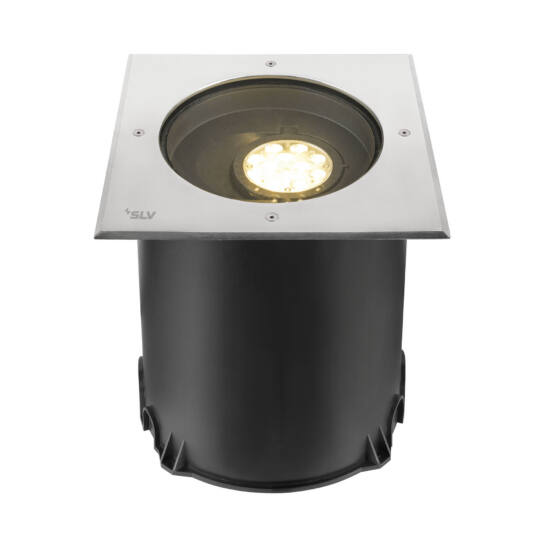

The DASAR® XL recessed floor luminaire is designed for outdoor and indoor use where asymmetric illumination is required. It features a colour temperature of 3000 K and a beam angle of 70°/40°, enabling targeted light distribution. The housing is made of stainless steel 316 and aluminium with a glass cover, providing a high protection rating of IP65/IP67 and impact resistance class IK10. The luminaire has a square design and measures 27 x 27 x 21 cm. Installation is carried out using a mounting pot, which is included in the scope of delivery; the cover is available separately. The luminaire offers a luminous flux of 2600 lumens and a rated lifetime of 50,000 hours. Control options include DALI 2 and touch dimming.

Tehnilised andmed

Half beam angle	70 °
Colour	edelstahl / schwarz
Variant Color 2	black
Colour temperature	3000 Kelvin
Luminous Flux	2600 lm
electrical power	27 W
CRI	80
Net weight	5.8 kg

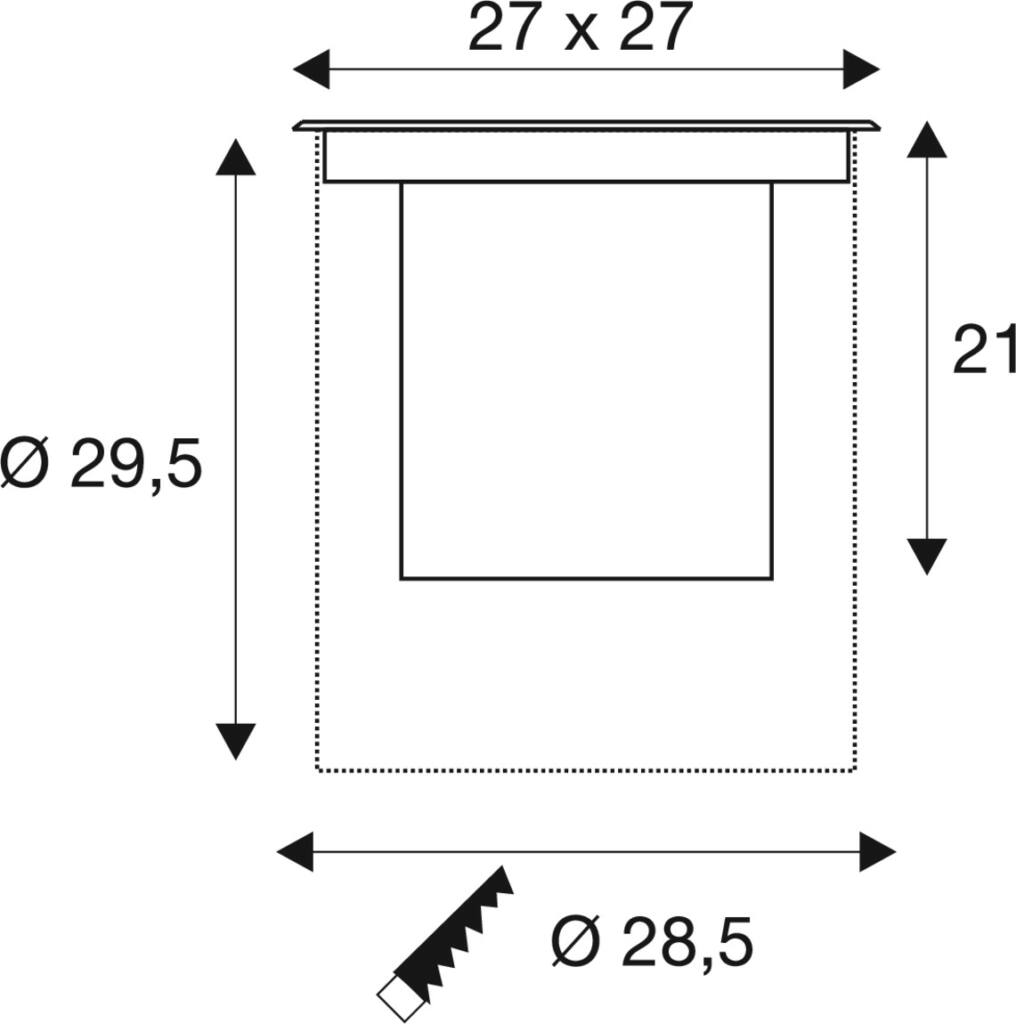

Installation depth	29.5 cm
Installation diameter	28.5 cm
Shape of cut-out	round
Depth	21 cm
Length	27 cm
Width	27 cm
IP Code	IP65/IP67
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	700 mA
Light outlet version	Asymmetrical
Connection cable length	105 cm
Dimming options	DALI_TOUCH
Shape	Square
Glass temperature (light emission)	60 °C
Variant Dimm options	DALI and Touch

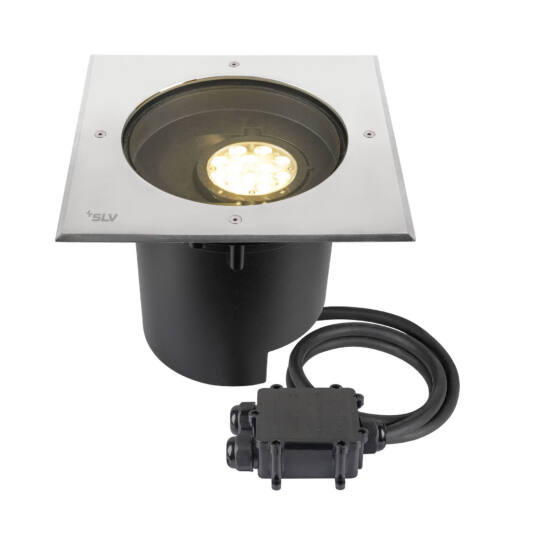

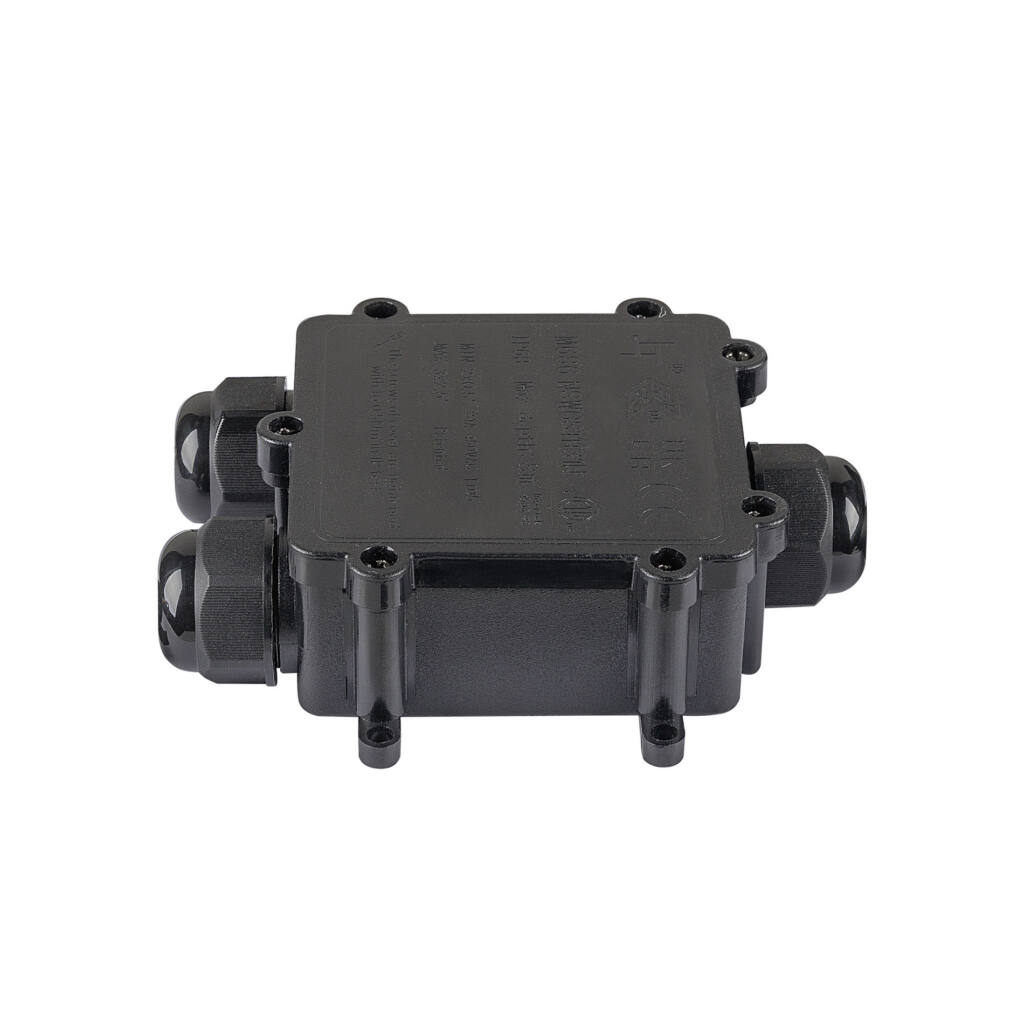

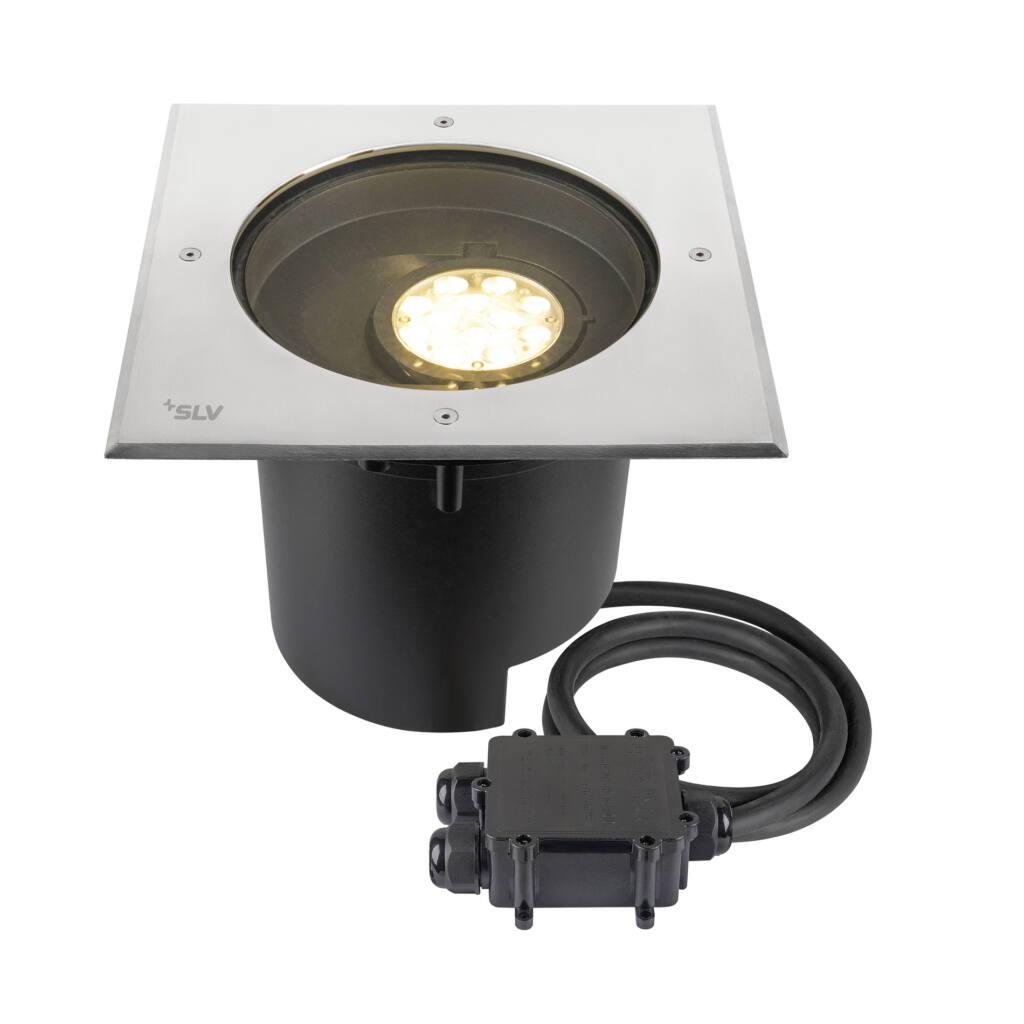

Plug type light	IP Connection Box
Number of through-wires	30
Mechanical loading	2 t

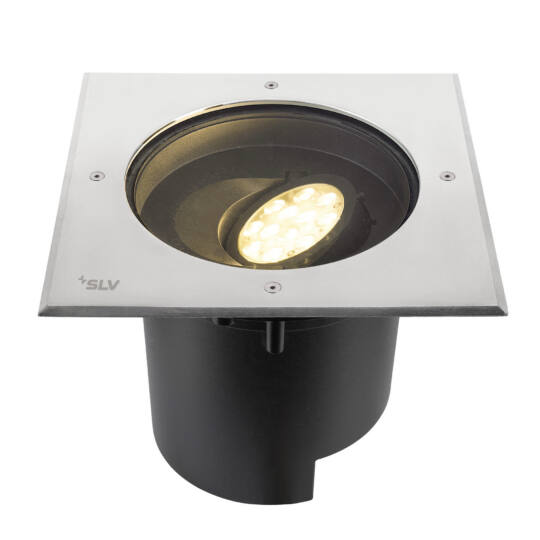

Vertical tilting range	30 °
Ambient temperature	-20 °C
Shock resistance category	IK10
Shock resistance	20 joule
Material	Stainless steel 316/glass
Product name	DASAR® XL,
CCT Switch	No
Dimmable	Yes
Assembly	Recessed
Risk group	1
