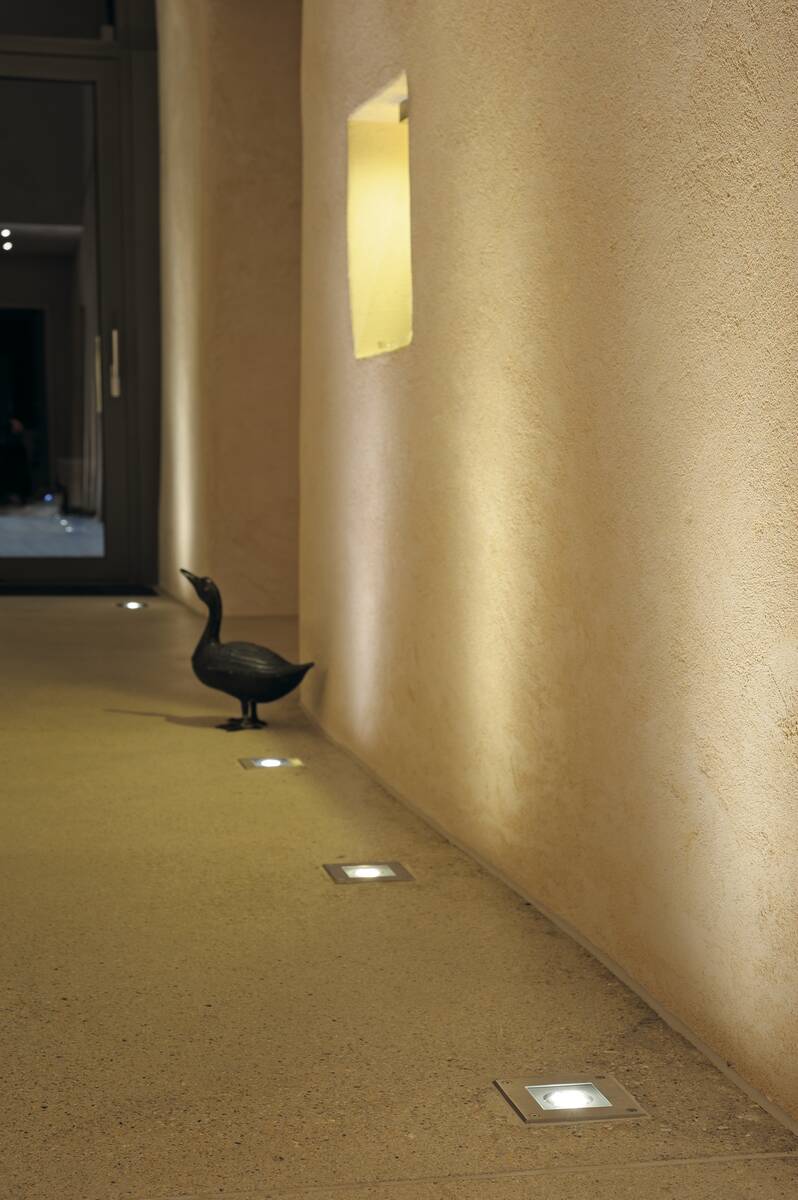

The DASAR® 115 recessed floor luminaire is designed for outdoor use and is suitable for fixed installation in the ground. It features a square housing made of stainless steel 316 and aluminium with a glass cover. The luminaire is designed for lamps with a maximum power of 35 watts and uses a QPAR51 socket. With protection classes IP65/IP67, it is protected against the ingress of dust and water and has a high impact resistance of class IK10. The installation sleeve is included in the scope of delivery, facilitating mounting. The compact design with an edge length of approximately 13 cm allows for discreet integration into outdoor areas such as paths, squares, or entrance areas.

Tehnilised andmed

Colour	edelstahl / schwarz
Variant Color 2	black
electrical power	6 W
Net weight	1.204 kg
Installation depth	13.5 cm
Shape of cut-out	square
Installation length	12.5 cm
Installation width	12.5 cm
Depth	13.8 cm
Length	13 cm
Width	13 cm
IP Code	IP65/IP67
Primary nominal voltage	220-240V ~ 50/60Hz
Glass temperature (light emission)	72 °C
Horizontal rotation range	90 °
Vertical tilting range	30 °
Ambient temperature	-20 °C
Shock resistance category	IK10
Shock resistance	20 joule
Material	Stainless steel 316
Product name	DASAR® 115
DALI capable	No
Wattage	6 W
Assembly	Recessed
Number of sockets	1
Socket	GU10
Tilt range	30 °
Tehnilised failid	Manual Datasheet CE declaration REACh
Kategooriad	Display lights, Other light source, Outdoor
Sildid	Recessed floor luminaire, Stainless steel recessed floor luminaire
