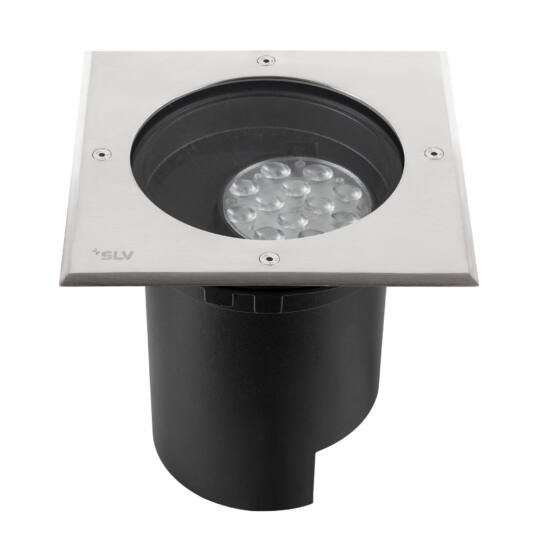

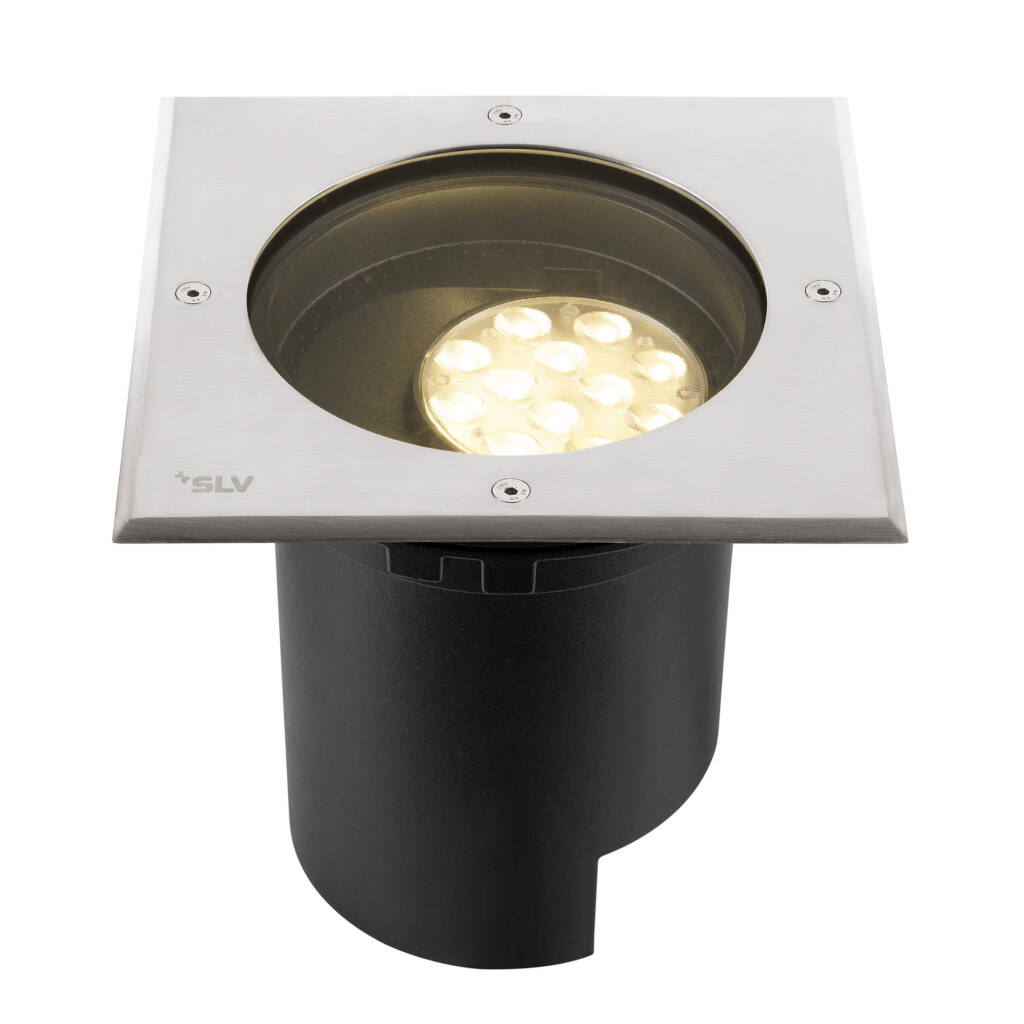

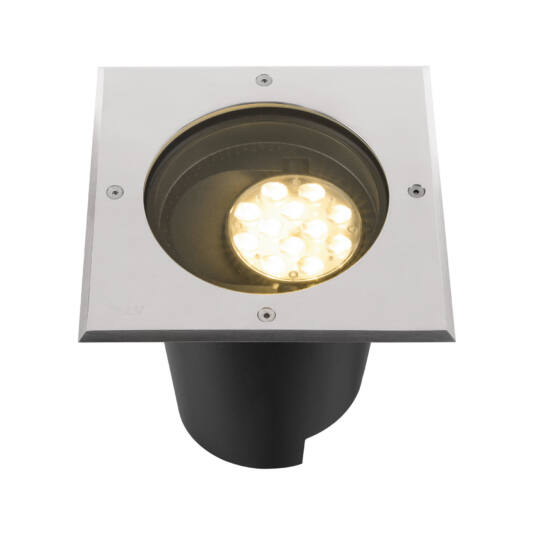

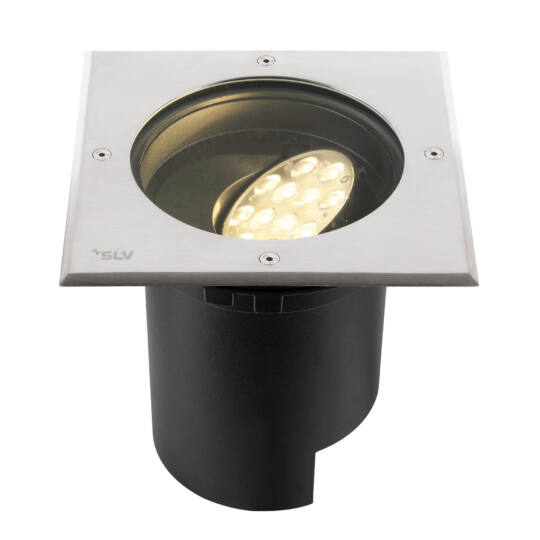

The DASAR® L recessed floor light is designed for outdoor use and is particularly suitable for installation in pathways, squares, or entrance areas. It features an asymmetrical light distribution with a colour temperature of 3000 K and a beam angle of 70°/40°, enabling targeted illumination. The housing is made of stainless steel 316 and aluminium, complemented by a glass cover that can be ordered separately. With dimensions of 20 x 20 x 18.9 cm, the luminaire has a square shape and is installed as a recessed floor light. The IP65/IP67 protection rating ensures reliable protection against dust and water ingress, while the impact resistance corresponds to IK10 class. The luminaire provides a luminous flux of 1800 lumens and a declared service life of 50,000 hours. Control options include DALI 2 and touch dimming. A mounting pot is included in the scope of delivery.

Tehnilised andmed

Half beam angle	70 °
Colour	edelstahl / schwarz
Variant Color 2	black
Colour temperature	3000 Kelvin
Luminous Flux	1800 lm
electrical power	19 W
CRI	80
Net weight	3.6 kg

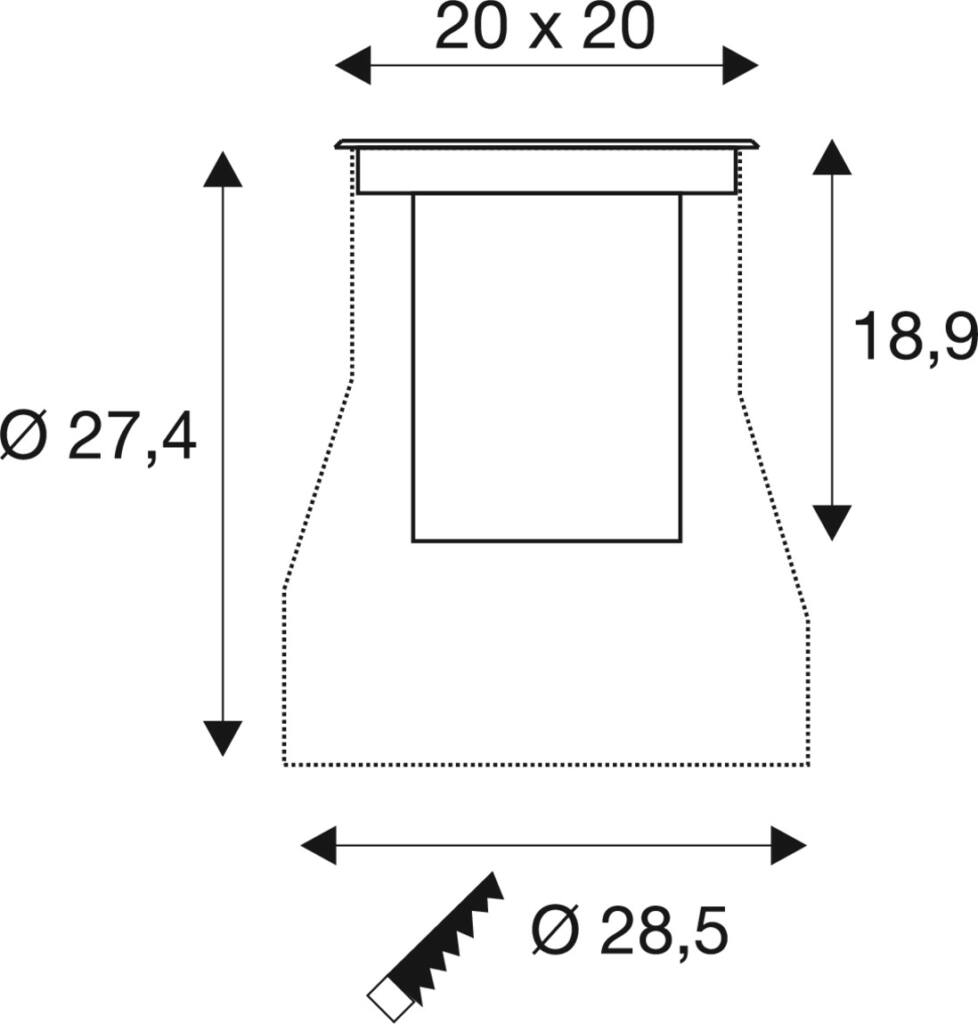

Installation depth	27.4 cm
Installation diameter	28.5 cm
Shape of cut-out	round
Depth	18.9 cm
Length	20 cm
Width	20 cm
IP Code	IP65/IP67
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	500 mA
Light outlet version	Asymmetrical
Connection cable length	105 cm
Dimming options	DALI_TOUCH
Shape	Square
Glass temperature (light emission)	60 °C
Variant Dimm options	DALI and Touch

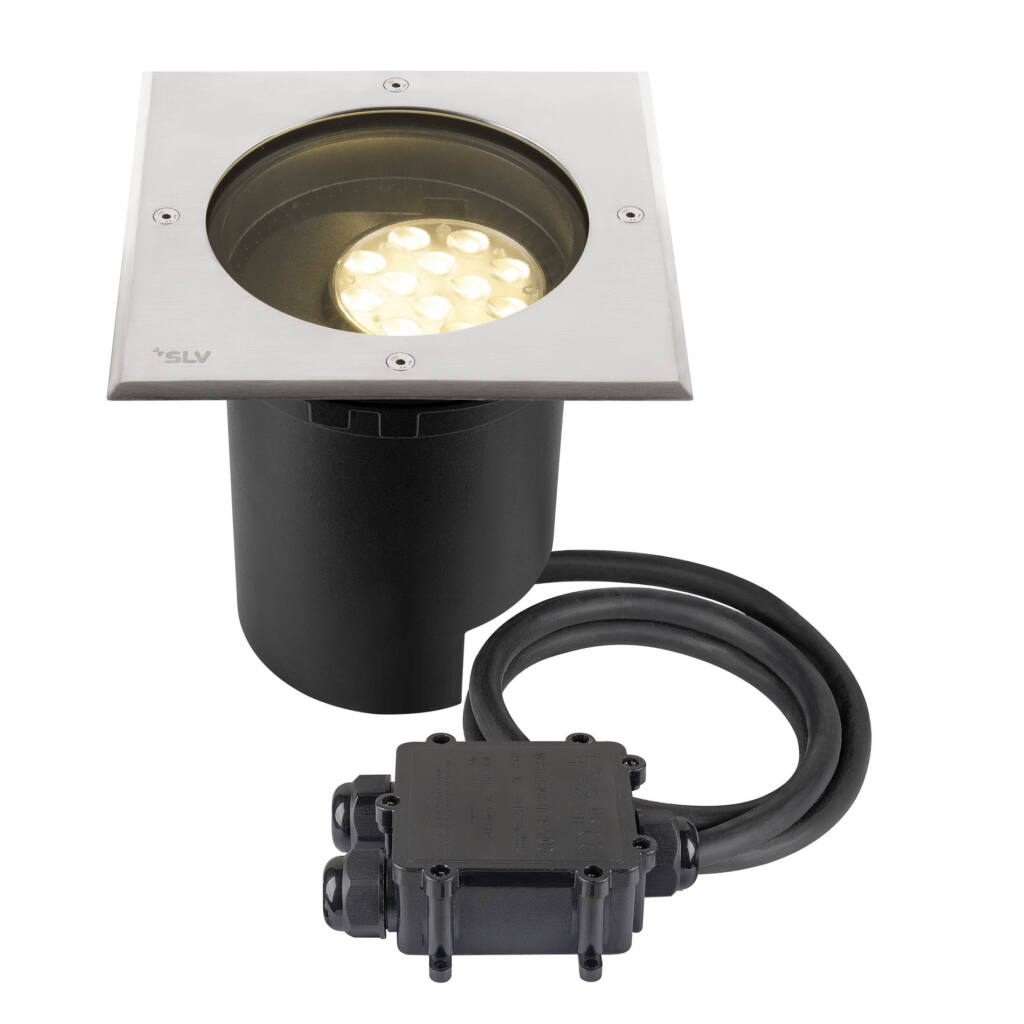

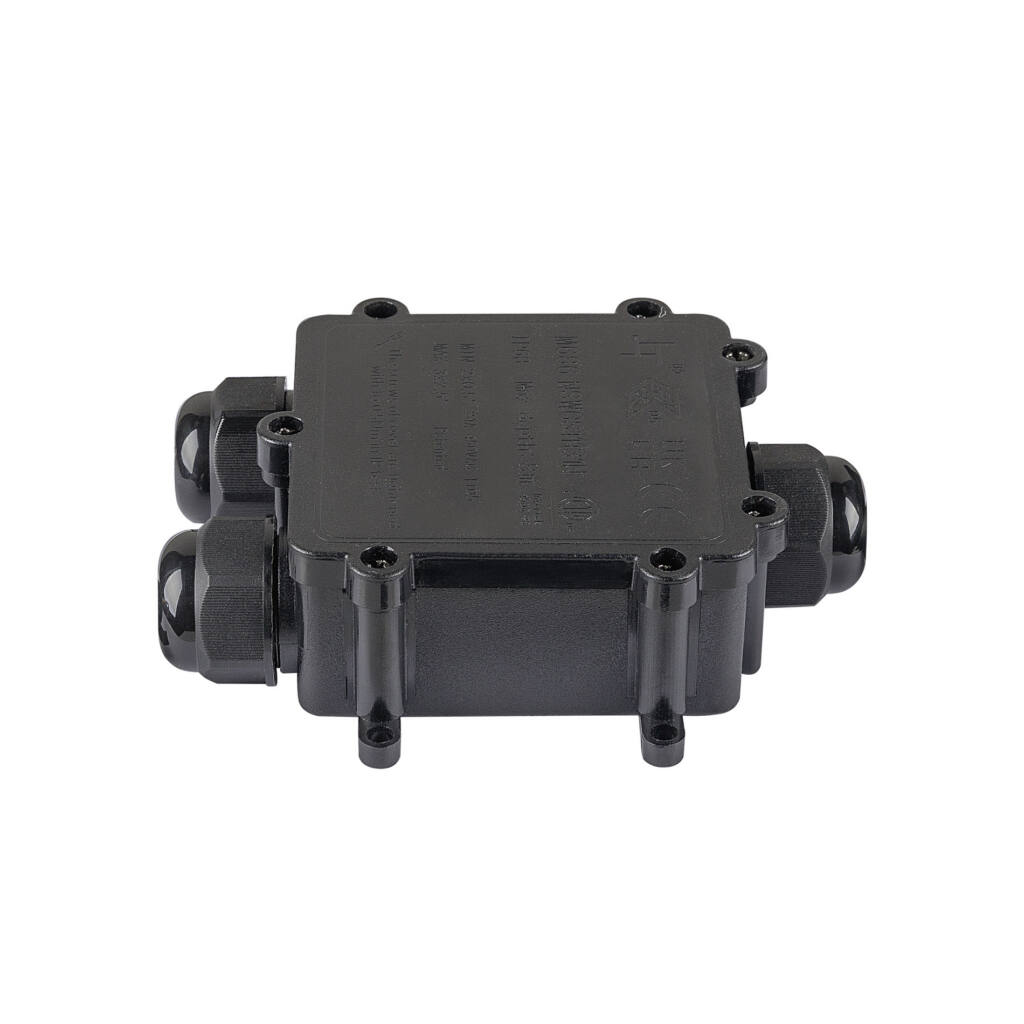

Plug type light	IP Connection Box
Number of through-wires	45
Mechanical loading	2 t
Vertical tilting range	30 °
Ambient temperature	-20 °C
Shock resistance category	IK10
Shock resistance	20 joule
Material	Stainless steel 316/glass
Product name	DASAR® L
CCT Switch	No
Dimmable	Yes
Assembly	Recessed
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	Outdoor, Recessed
