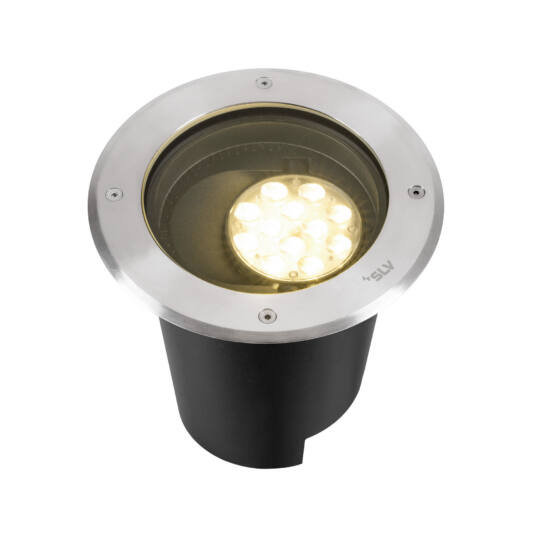

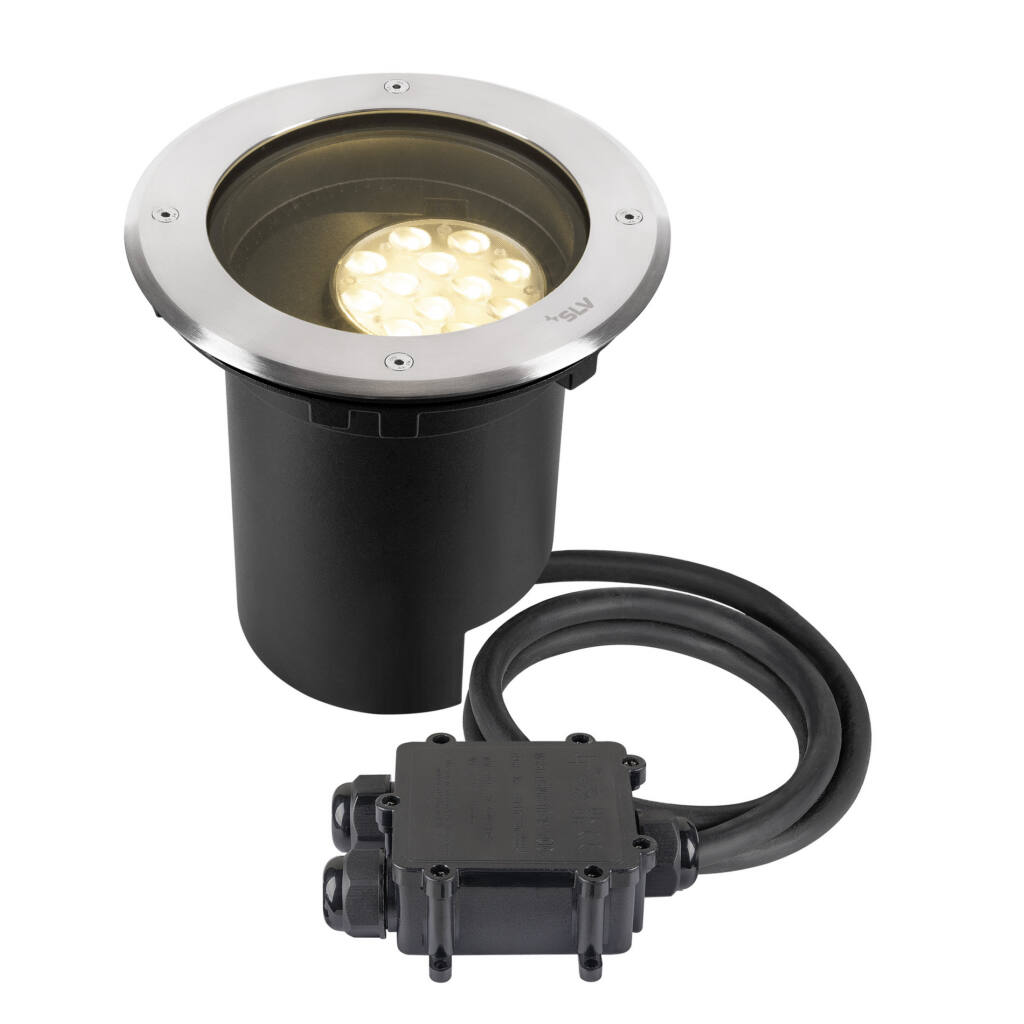

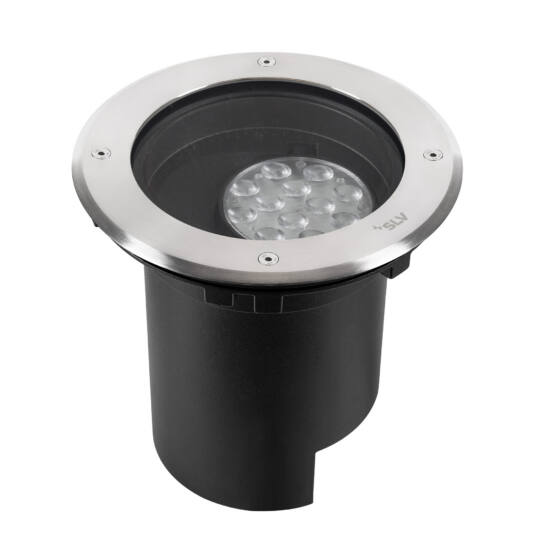

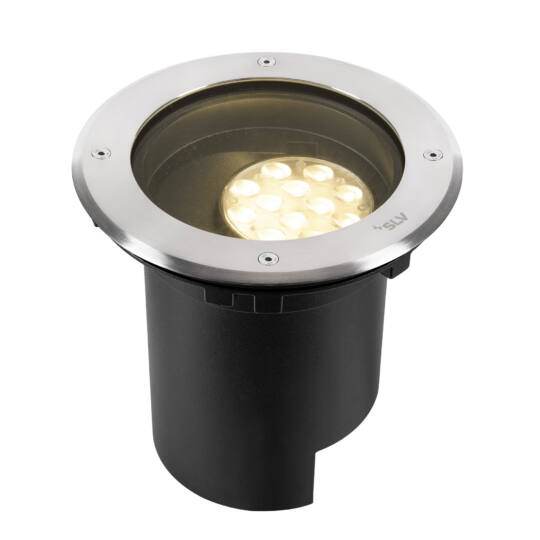

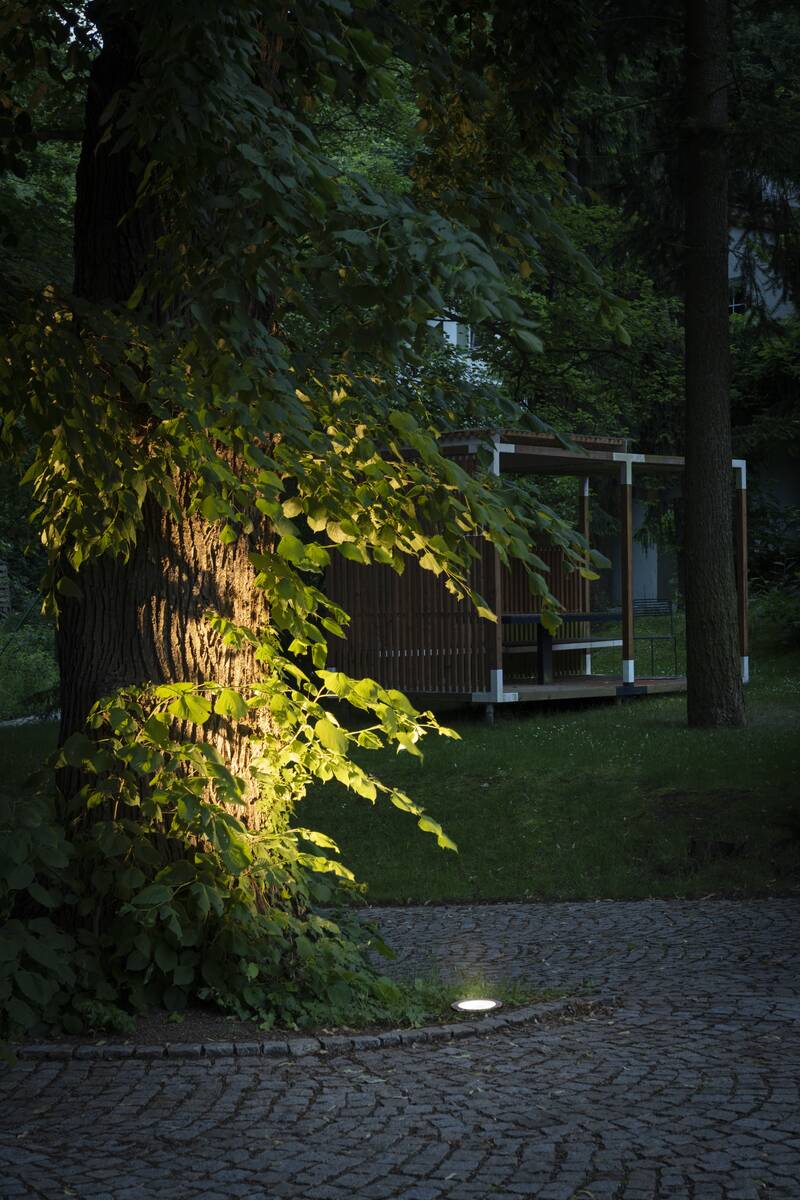

The DASAR® L recessed floor luminaire is a round, asymmetrical fixture with a colour temperature of 3000 K and a beam angle of 70°/40°. It is designed for installation in floor surfaces and is suitable for outdoor use with high protection requirements, featuring an IP65/IP67 rating and IK10 impact resistance. The housing is made of stainless steel 316 and aluminium, with a glass cover. With a luminous flux of 1800 lumens and a lifespan of 50,000 hours, the luminaire provides reliable illumination. Control is via DALI 2 and touch technology. A mounting pot is included in the scope of delivery; the cover is available separately. The luminaire has a diameter of 20 cm and a depth of 18.9 cm.

Tehnilised andmed

Half beam angle	70 °
Colour	edelstahl / schwarz
Variant Color 2	black
Colour temperature	3000 Kelvin
Luminous Flux	1800 lm
electrical power	19 W
CRI	80
Net weight	3.3 kg

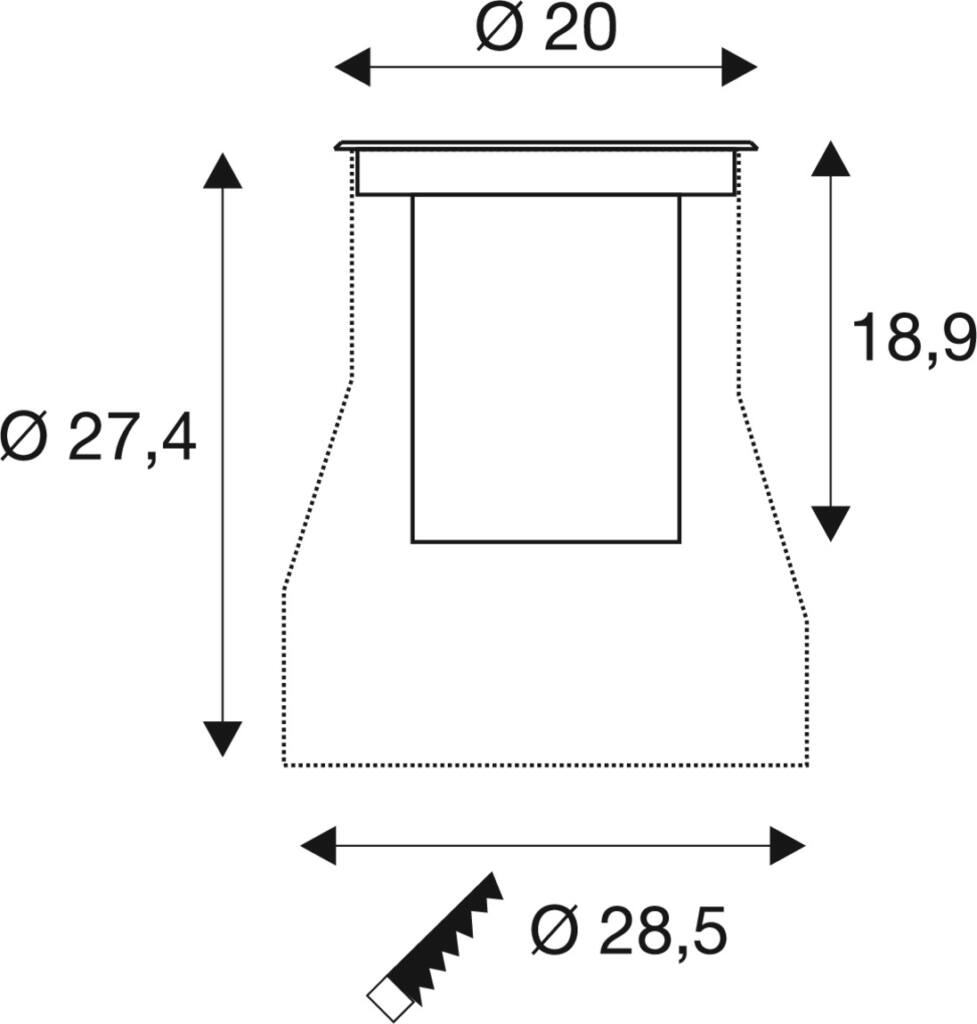

Installation depth	27.4 cm
Installation diameter	28.5 cm
Shape of cut-out	round
Depth	18.9 cm
Diameter	20 cm
IP Code	IP65/IP67
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	500 mA
Light outlet version	Asymmetrical

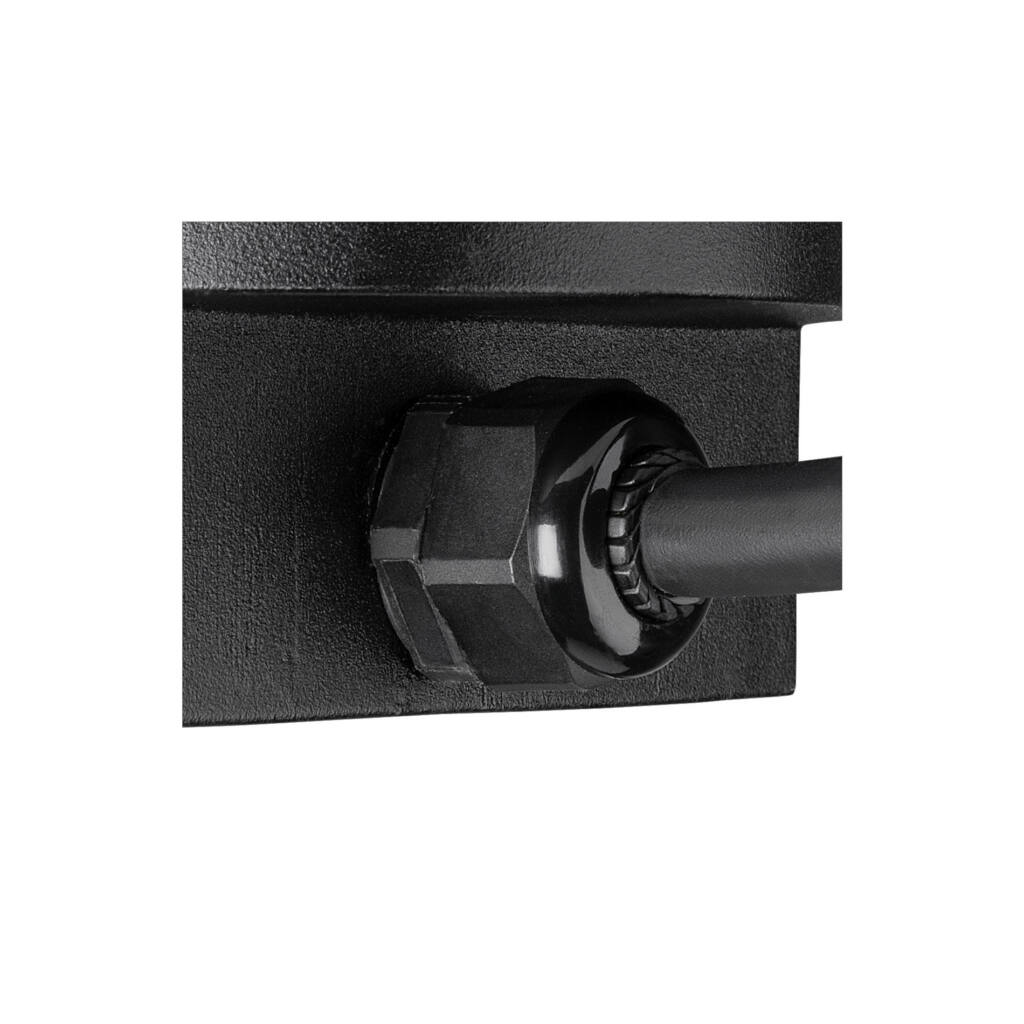

Connection cable length	105 cm
Dimming options	DALI_TOUCH
Shape	Round
Glass temperature (light emission)	60 °C
Variant Dimm options	DALI and Touch

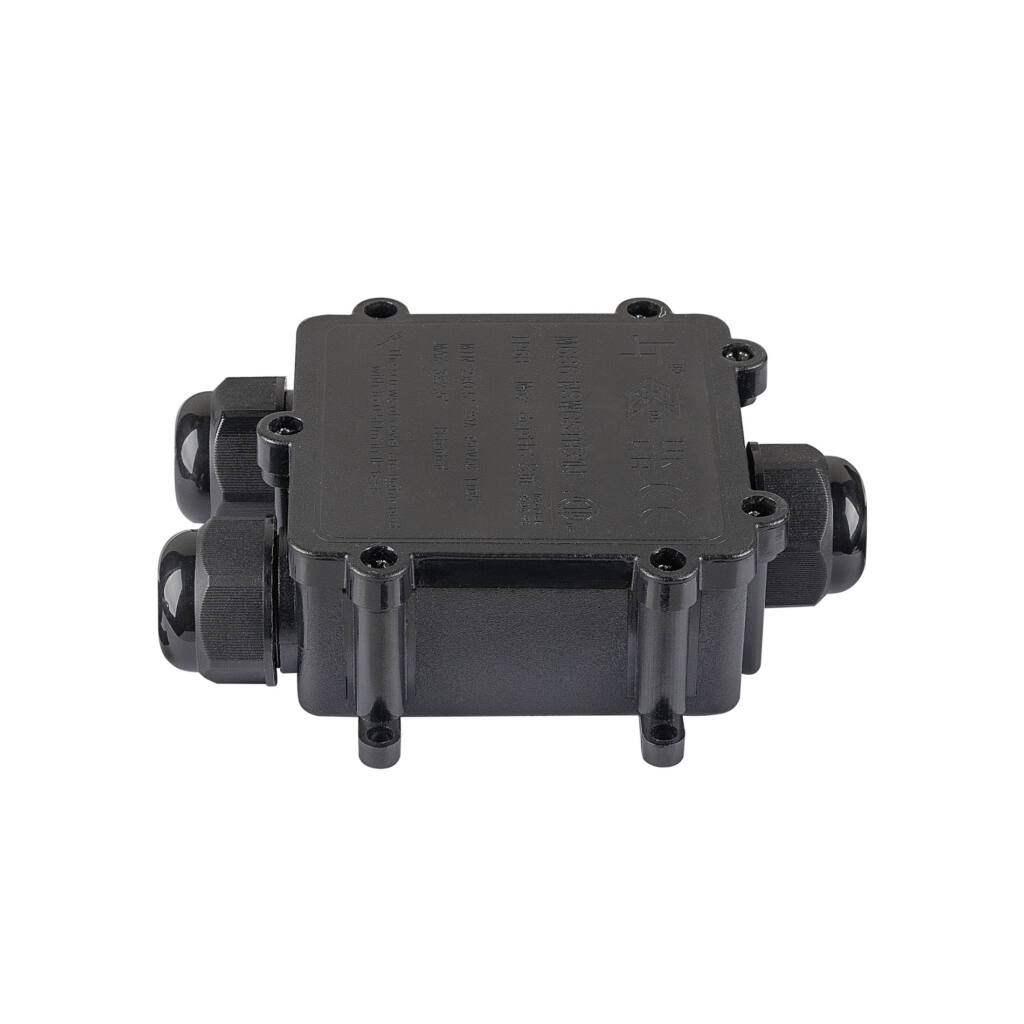

Plug type light	IP Connection Box
Number of through-wires	45
Mechanical loading	2 t

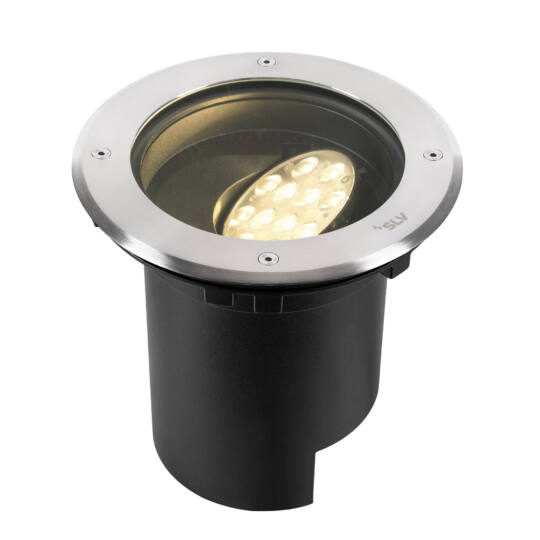

Vertical tilting range	30 °
Ambient temperature	-20 °C
Shock resistance category	IK10
Shock resistance	20 joule
Material	Stainless steel 316/glass
Product name	DASAR® L
CCT Switch	No
Dimmable	Yes
Assembly	Recessed
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	Outdoor, Recessed
