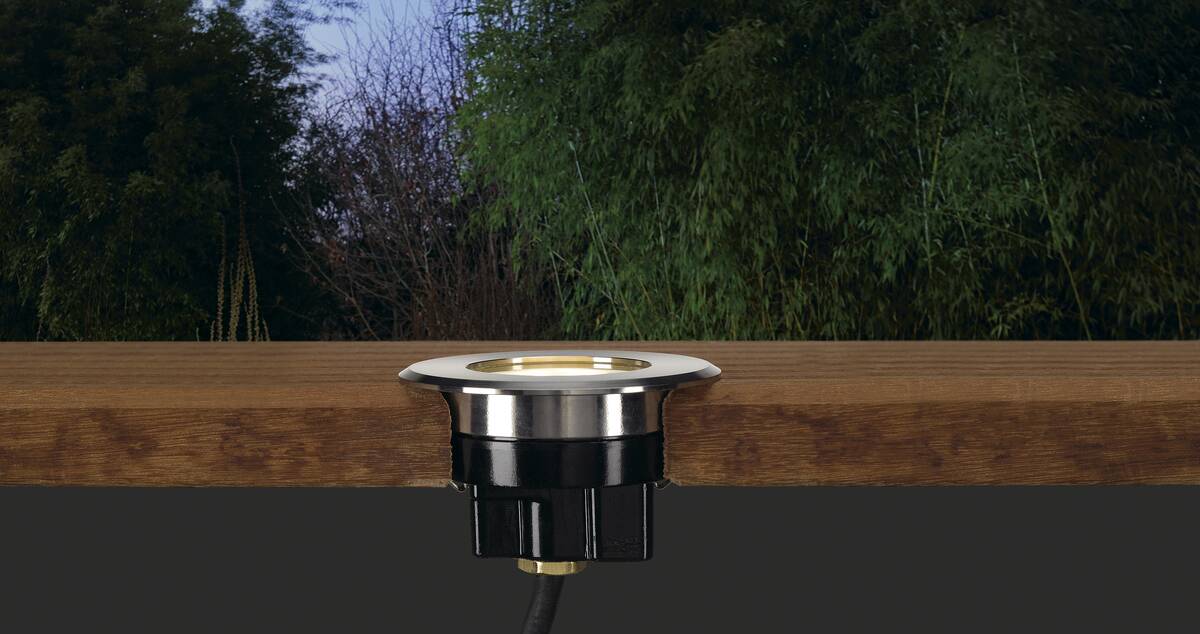

The DASAR® FLAT 80 is a ROUND recessed floor luminaire, particularly suitable for outdoor use. It features a light colour of 3000 K and a power consumption of 3.5 W with a luminous flux of 140 lumens. The housing is made of brushed stainless steel 304 and is fitted with a glass cover. The luminaire comes with a mounting pot and can also be installed in wood. With a diameter of 8 cm and a height of 6 cm, it offers a compact design. The IP65/IP67 protection rating ensures high resistance to dust and water, while the impact resistance corresponds to IK08 class. The declared lifespan is 30,000 hours.

Tehnilised andmed

Colour	stainless steel
Colour temperature	3000 Kelvin
Luminous Flux	140 lm
electrical power	3,5 W
CRI	80
Net weight	0.412 kg
Installation depth	5.7 cm
Shape of cut-out	round
Diameter	8 cm
Height	6 cm
IP Code	IP65/IP67
Service life	30000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Light outlet version	Up
Connection cable length	150 cm
Glass temperature (light emission)	56 °C
Plug type light	open cable end
Ambient temperature	-20 °C
Shock resistance category	IK08
Shock resistance	5 joule
Material	Stainless Steel 304
LED can be changed	Exchange of lightsource only by professional
Product name	DASAR® FLAT 80
CCT Switch	No
DALI capable	No
Risk group	0
Tehnilised failid	Manual CE declaration Removal instructions REACh
Kategooriad	Display lights, LED, Outdoor
Sildid	Recessed floor luminaire, Stainless steel recessed floor luminaire
