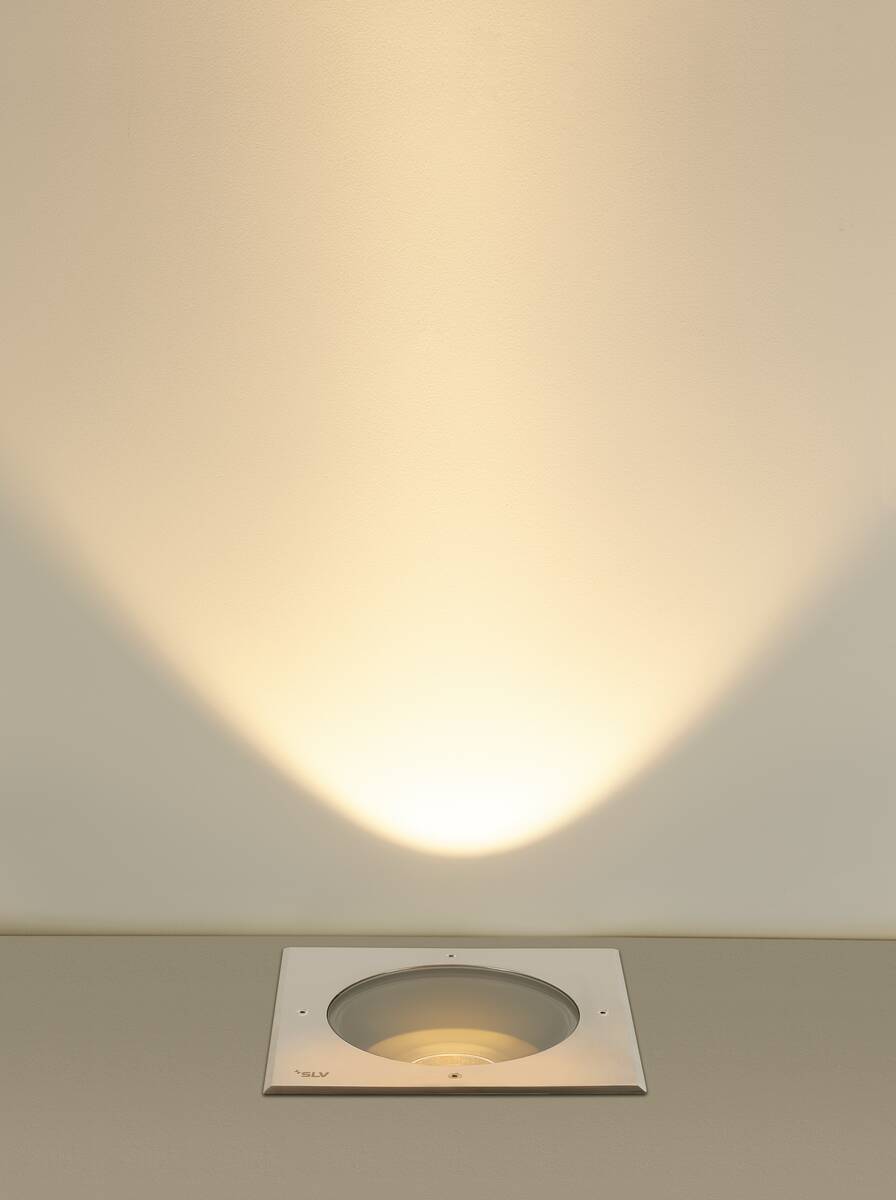

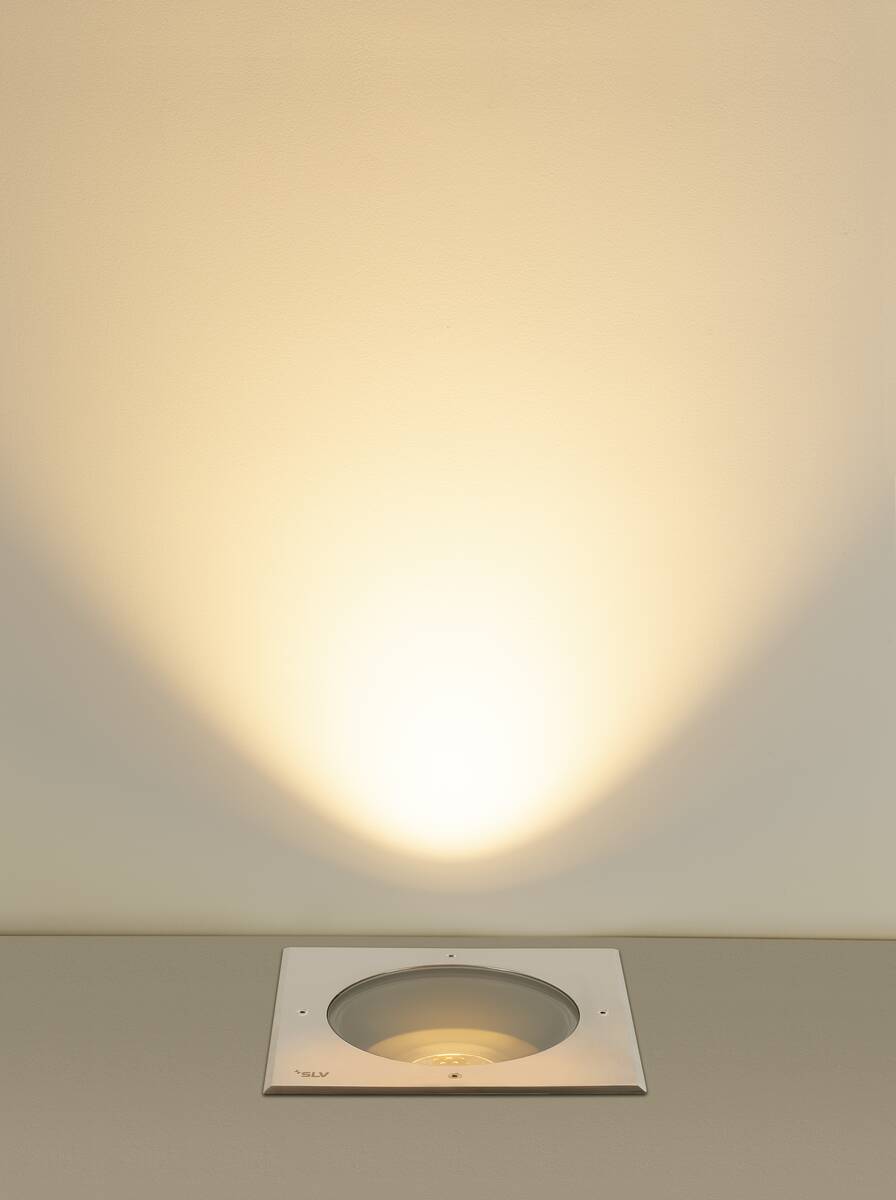

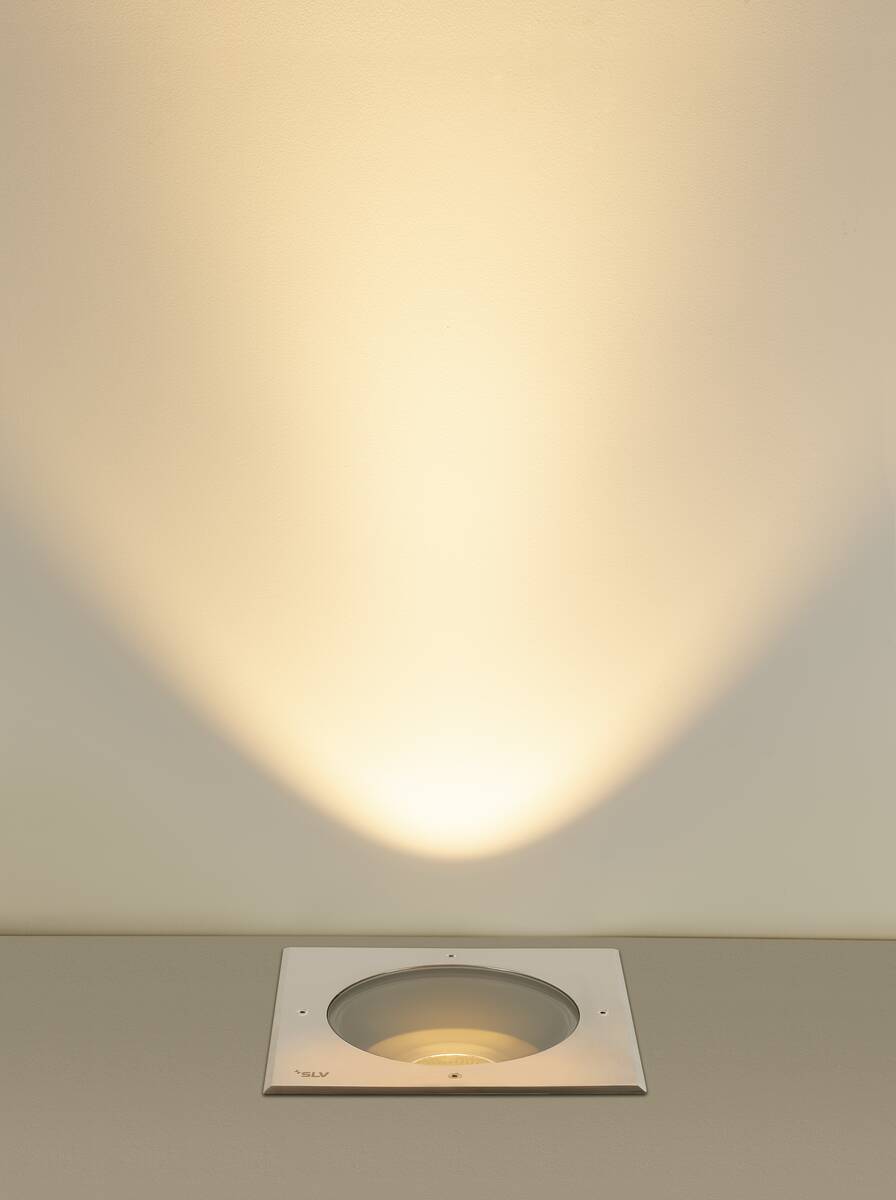

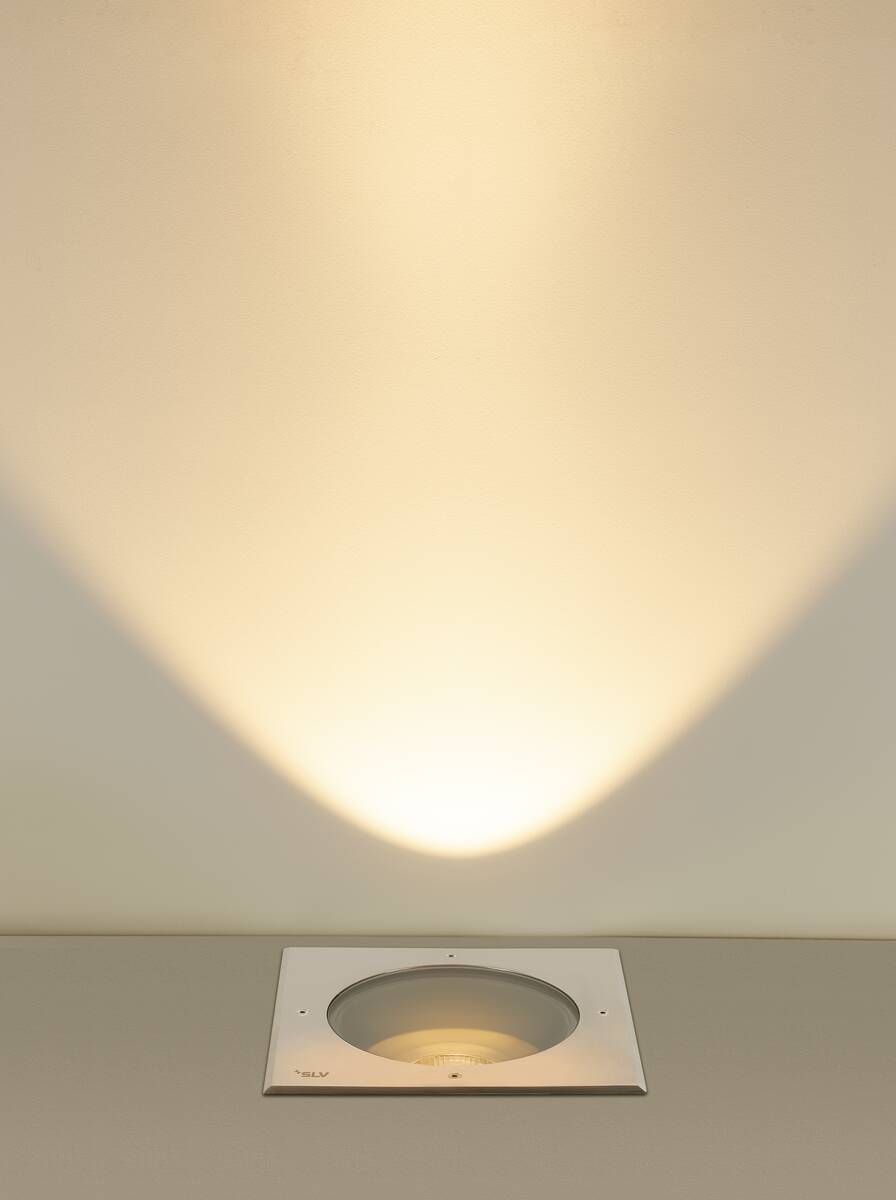

The DASAR® XL recessed floor light with a square RL cover is designed for outdoor use and features a light distribution of 24° at a colour temperature of 3000 K. It is equipped with a DALI driver that allows flexible control, including DALI 2 and touch dimming. The housing is made of aluminium and measures 27 cm in length and width, with a depth of 21 cm. The luminaire provides a luminous flux of 2790 lumens and a declared service life of 50,000 hours. The installation pot is included in the scope of delivery, while the cover is available separately. The light distribution can be conveniently adjusted using interchangeable optics of 15°, 36°, and 60°. The luminaire is dust- and waterproof according to IP65/IP67 and features high impact resistance of IK10 class.

Tehnilised andmed

Half beam angle	24 °
Colour	stainless steel
Colour temperature	3000 Kelvin
Luminous Flux	2790 lm
electrical power	27 W
CRI	80
Net weight	6.231 kg
Installation depth	29.5 cm
Installation diameter	28.5 cm
Shape of cut-out	round
Depth	21 cm
Length	27 cm
Width	27 cm
IP Code	IP65/IP67
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	700 mA
Connection cable length	100 cm
Dimming options	DALI_TOUCH
Glass temperature (light emission)	60 °C
Variant Dimm options	DALI and Touch
Plug type light	IP Connection Box
Number of through-wires	30
Mechanical loading	2 t
Vertical tilting range	60 °
Ambient temperature	-20 °C
Shock resistance category	IK10
Shock resistance	20 joule
Material	aluminum
Product name	DASAR® XL
CCT Switch	No
Dimmable	Yes
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	Floor lights, Outdoor, Recessed
