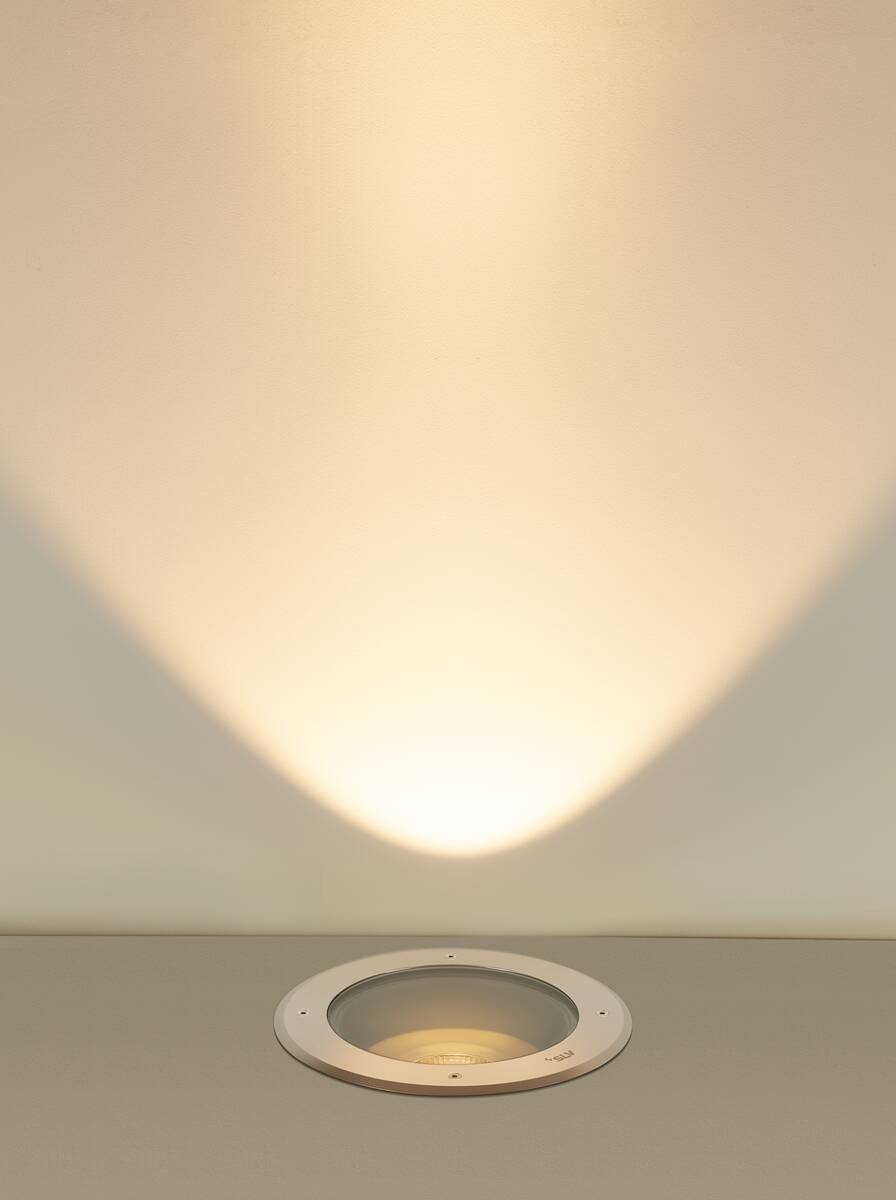

The DASAR® XL recessed floor light with a ROUND cover is designed for use in outdoor and indoor areas where a robust and durable lighting solution is required. It features a colour temperature of 3000 K and a luminous flux of 2790 lumens. The luminaire is equipped with a DALI driver, enabling control via DALI 2 as well as touch dimming. The housing is made of aluminium and has an impact resistance rating of IK10 and an ingress protection rating of IP65/IP67, making it resistant to mechanical impacts and weather conditions. The light distribution can be flexibly adjusted using interchangeable optics with beam angles of 15°, 24°, 36°, and 60°. The installation depth is 21 cm, and the diameter is 27 cm. A mounting pot is included in the scope of delivery, while the cover is available separately. The luminaire has a declared lifetime of 50,000 hours.

Tehnilised andmed

Half beam angle	24 °
Colour	stainless steel
Colour temperature	3000 Kelvin
Luminous Flux	2790 lm
electrical power	27 W
CRI	80
Net weight	5.599 kg
Installation depth	29.5 cm
Installation diameter	28.5 cm
Shape of cut-out	round
Depth	21 cm
Diameter	27 cm
IP Code	IP65/IP67
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	700 mA
Connection cable length	100 cm
Dimming options	DALI_TOUCH
Glass temperature (light emission)	60 °C
Variant Dimm options	DALI and Touch
Plug type light	IP Connection Box
Number of through-wires	30
Mechanical loading	2 t
Vertical tilting range	60 °
Ambient temperature	-20 °C
Shock resistance category	IK10
Shock resistance	20 joule
Material	aluminum
Product name	DASAR® XL
CCT Switch	No
Dimmable	Yes
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	Floor lights, LED lights, Outdoor, Recessed
