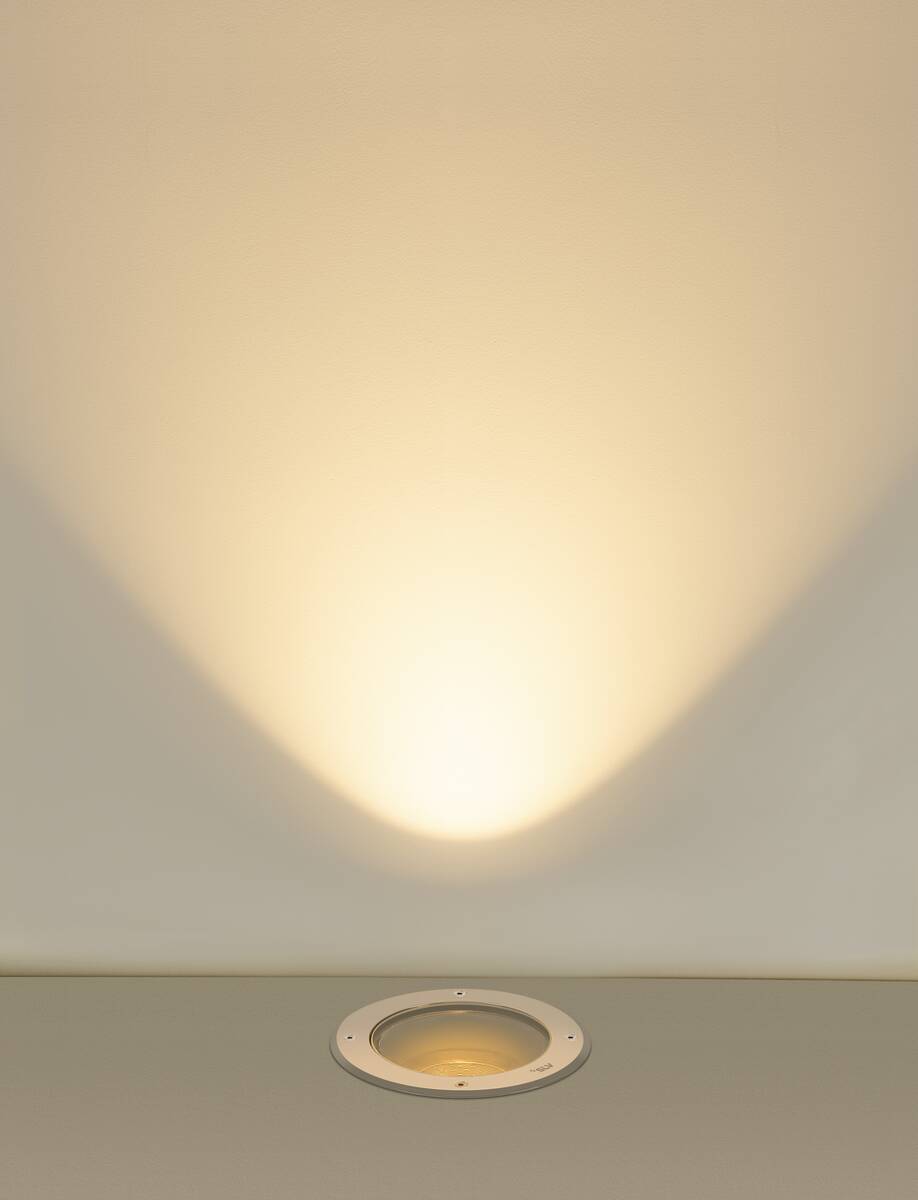

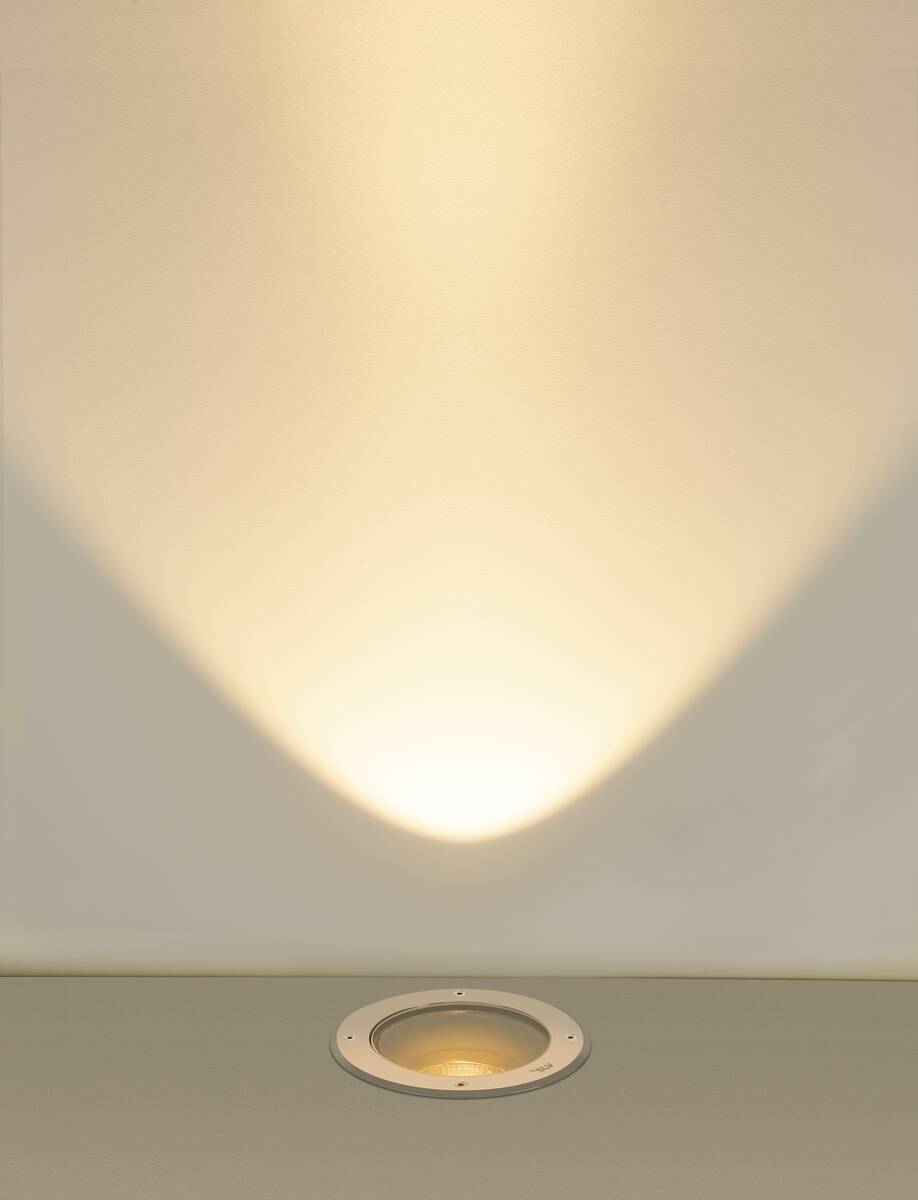

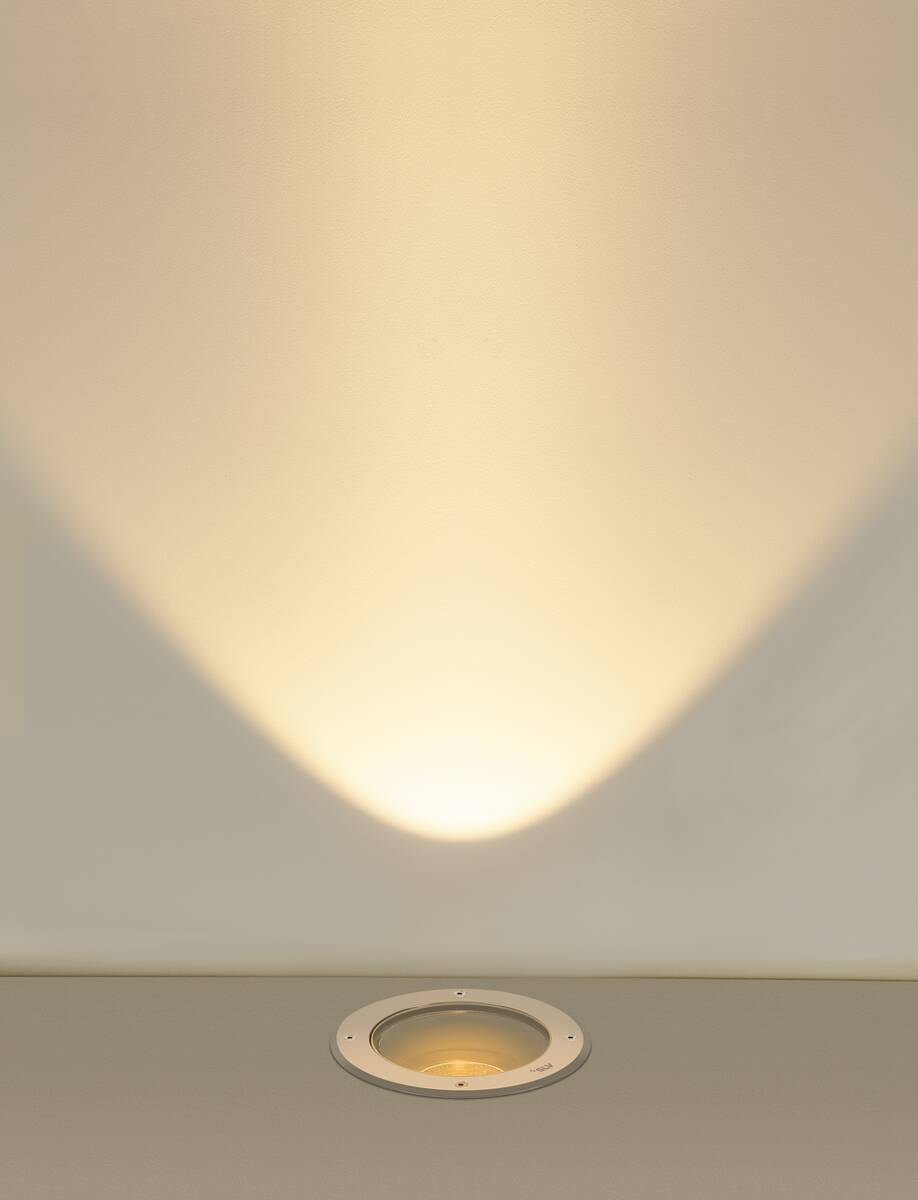

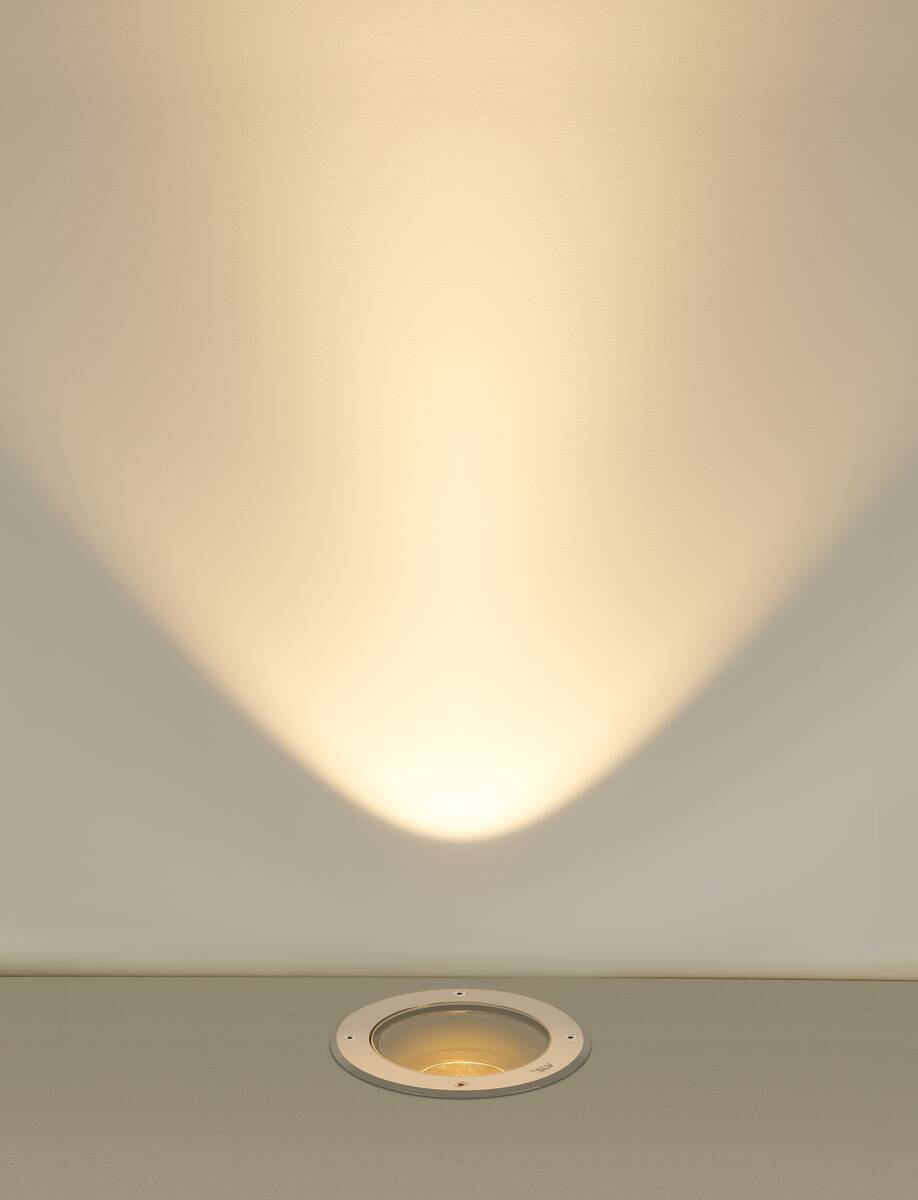

The DASAR® L recessed floor luminaire with a ROUND cover and a beam angle of 24° is designed for outdoor use. It delivers a luminous flux of 1950 lumens at a colour temperature of 3000 K and is equipped with a DALI-2 driver for convenient control. The housing is made of aluminium and measures 20 cm in diameter and 18.9 cm in depth. The luminaire features IK10 impact resistance and an IP65/IP67 rating for dust and water protection. The light distribution can be flexibly adjusted using interchangeable optics. A mounting pot is included in the scope of delivery, while the cover is available separately. This luminaire is suitable for professional applications requiring a robust and precise lighting solution.

Tehnilised andmed

Half beam angle	24 °
Colour	stainless steel
Colour temperature	3000 Kelvin
Luminous Flux	1950 lm
electrical power	19 W
CRI	80
Net weight	3.126 kg
Installation depth	27.4 cm
Installation diameter	28.5 cm
Shape of cut-out	round
Depth	18.9 cm
Diameter	20 cm
IP Code	IP65/IP67
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	500 mA
Connection cable length	100 cm
Dimming options	DALI_TOUCH
Glass temperature (light emission)	60 °C
Variant Dimm options	DALI and Touch
Plug type light	IP Connection Box
Number of through-wires	45
Mechanical loading	2 t
Vertical tilting range	60 °
Ambient temperature	-20 °C
Shock resistance category	IK10
Shock resistance	20 joule
Material	aluminum
Product name	DASAR® L
CCT Switch	No
Dimmable	Yes
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	Floor lights, LED lights, Outdoor, Recessed
