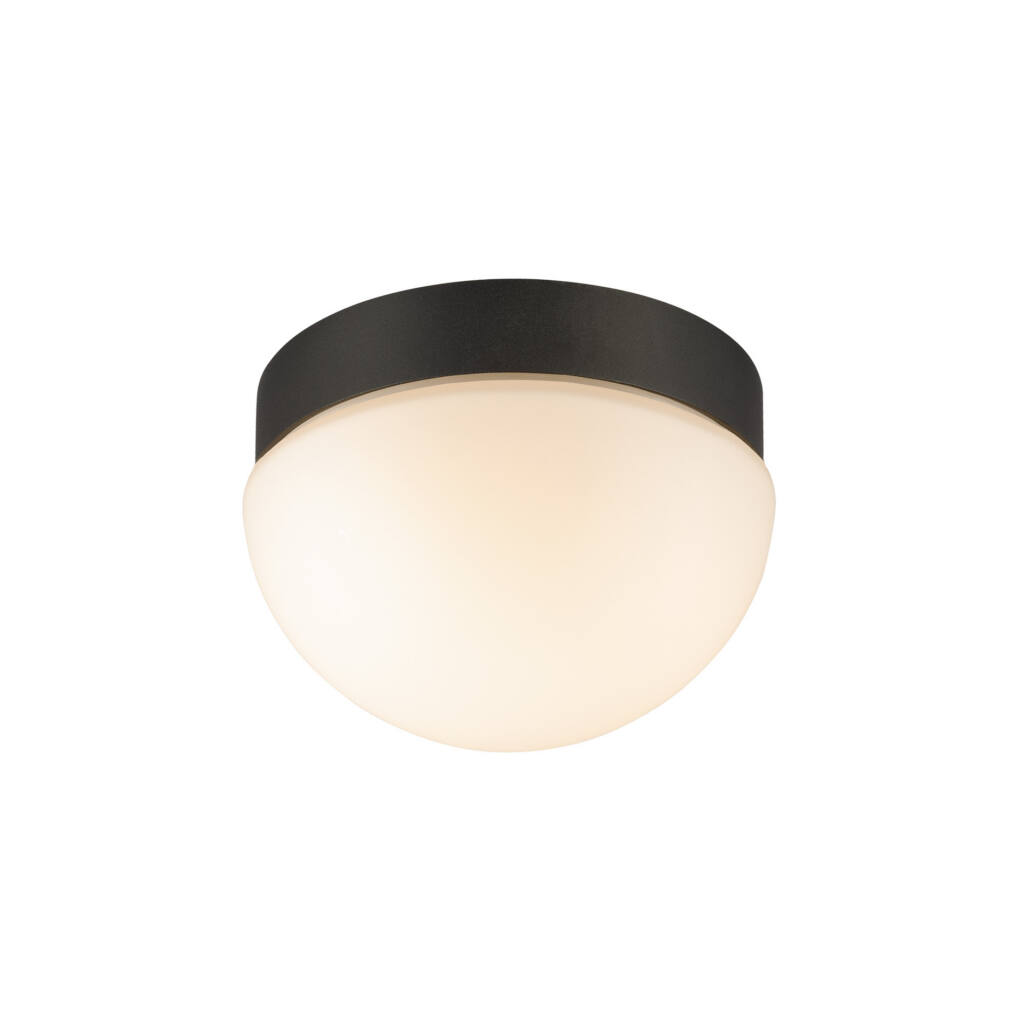

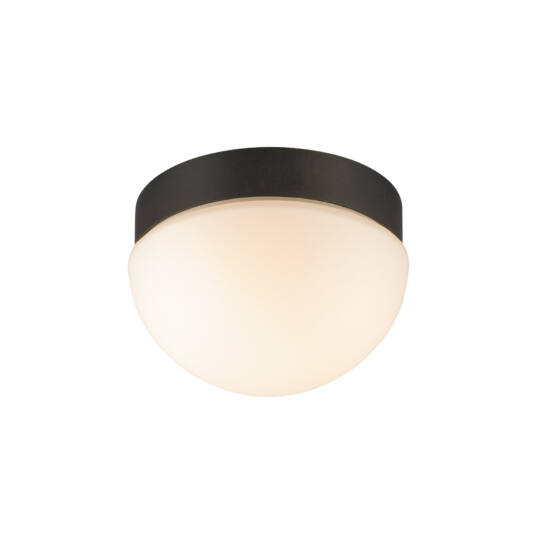

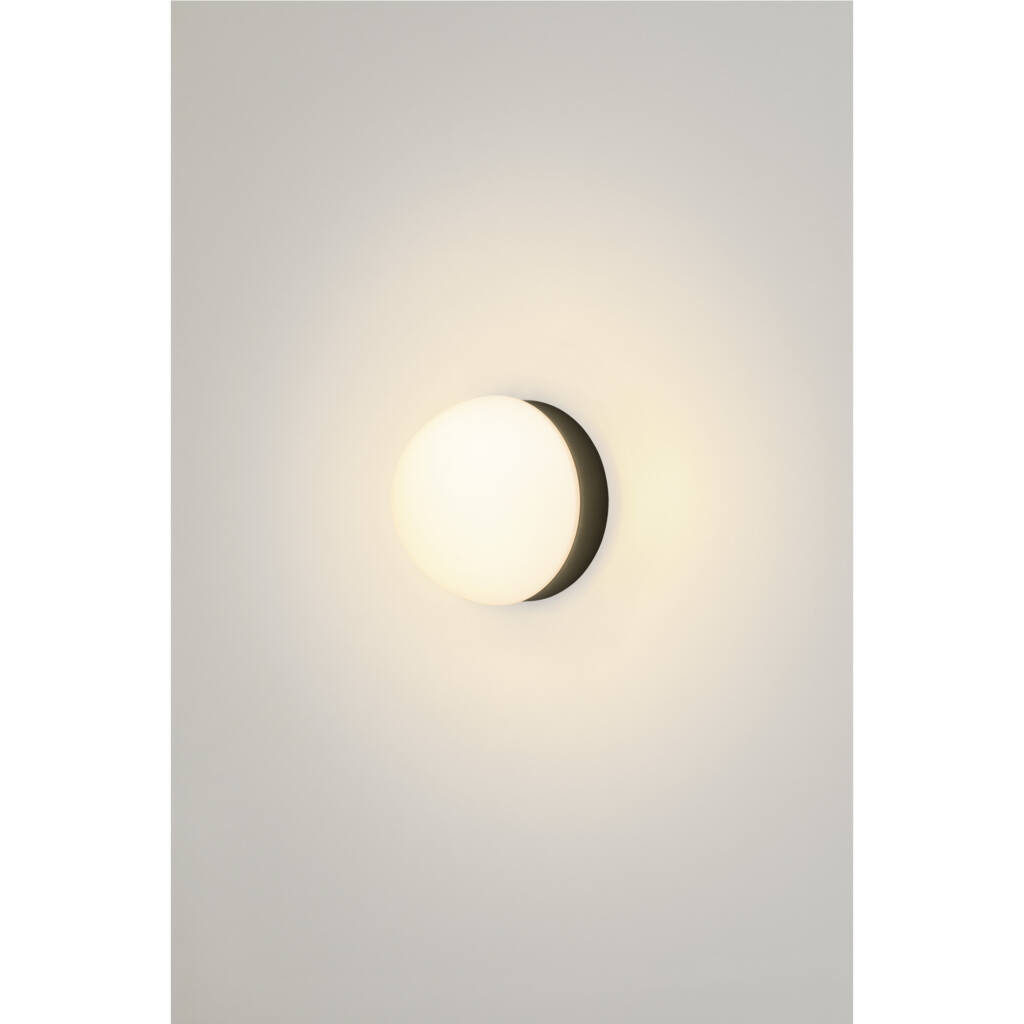

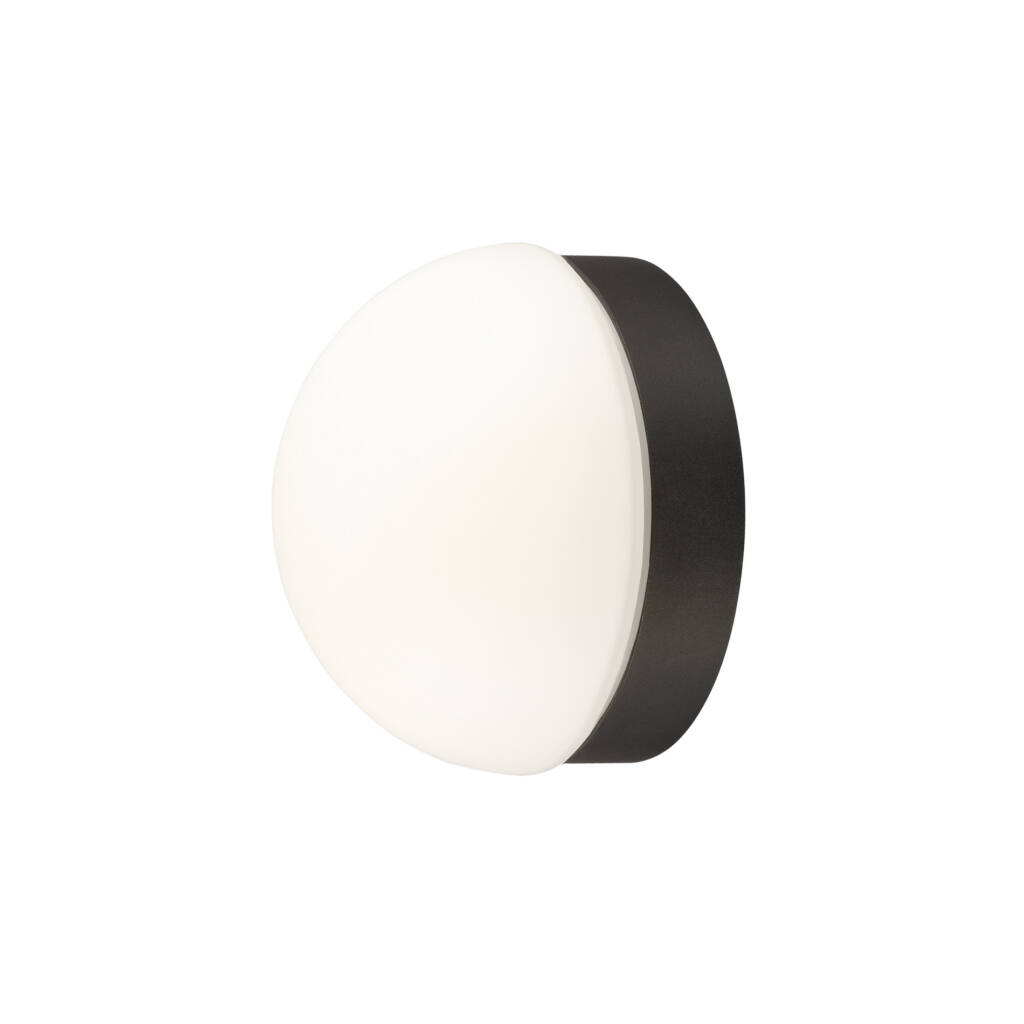

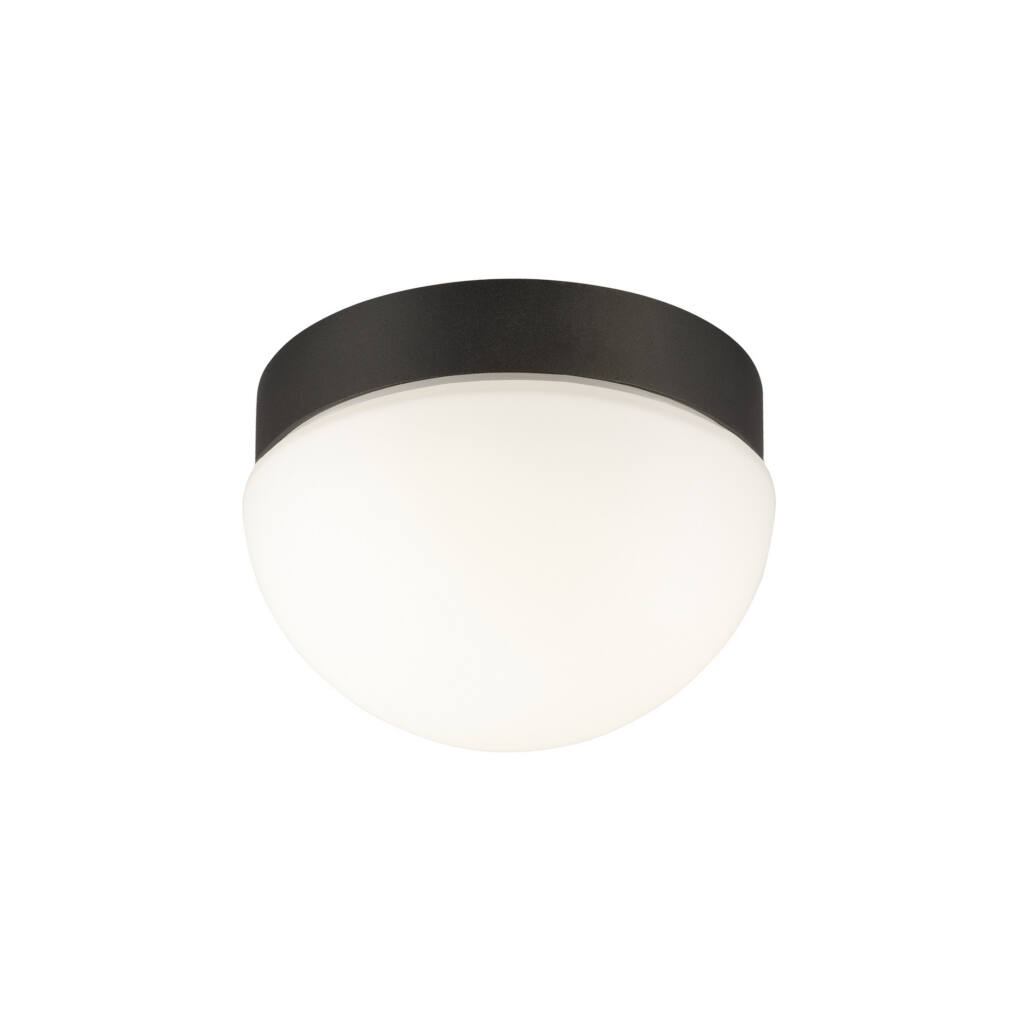

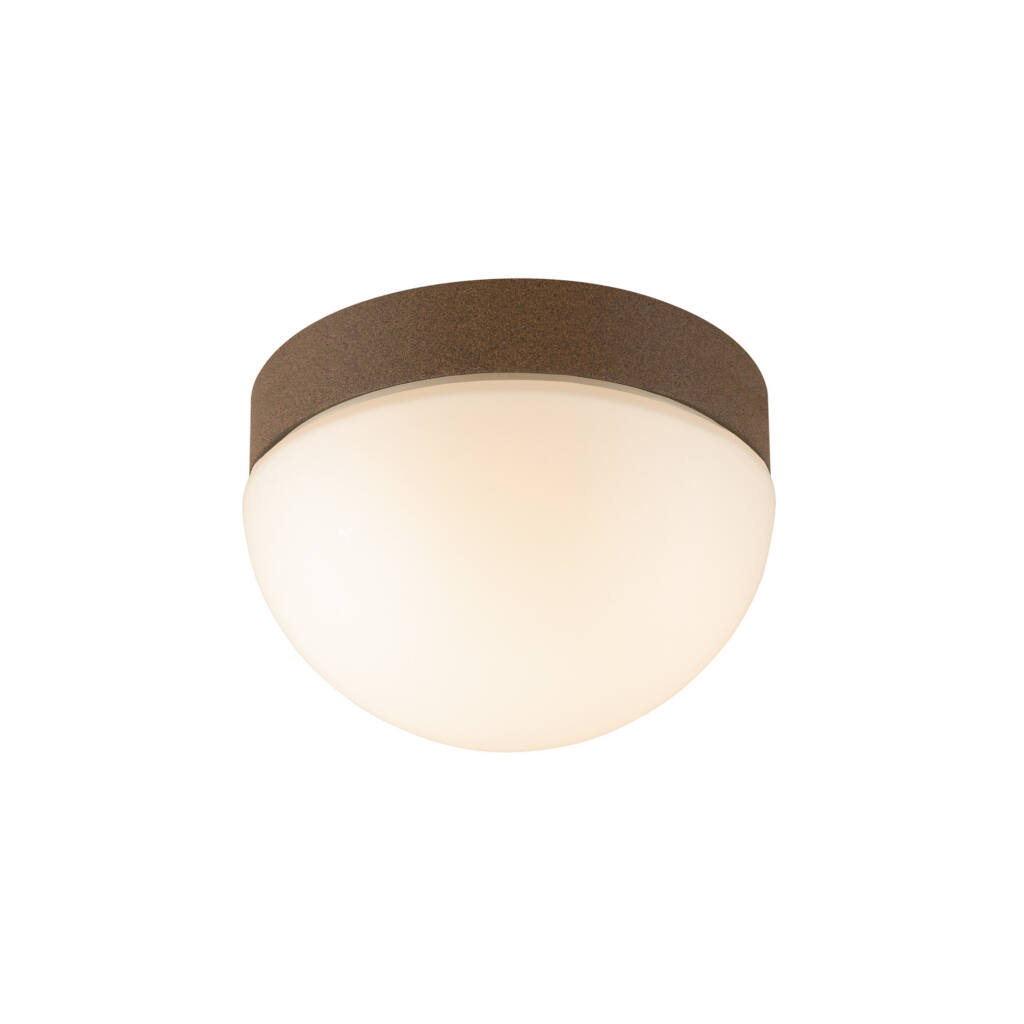

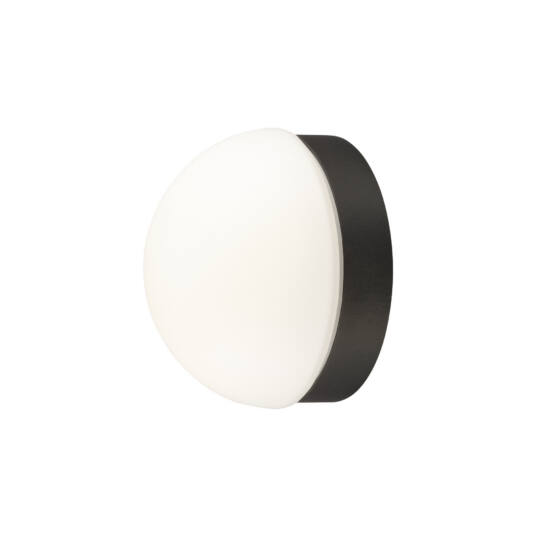

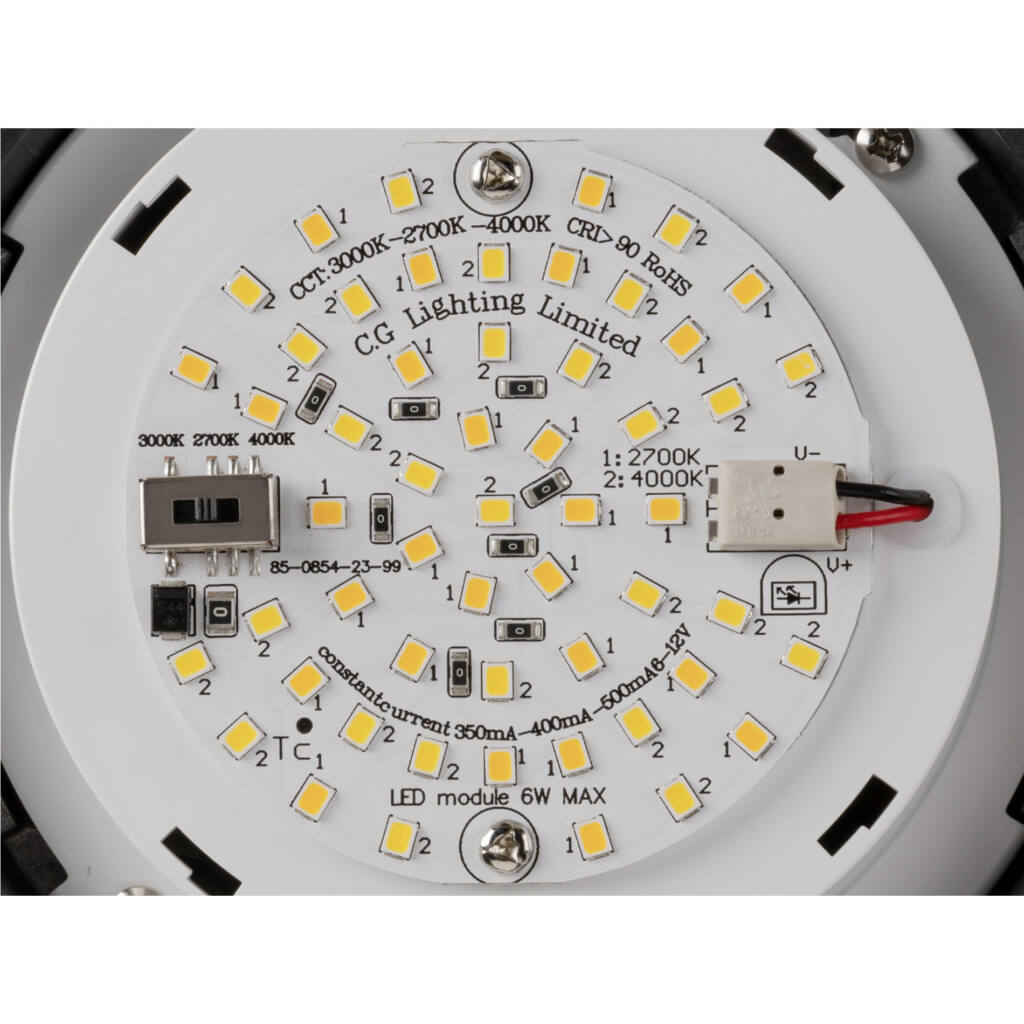

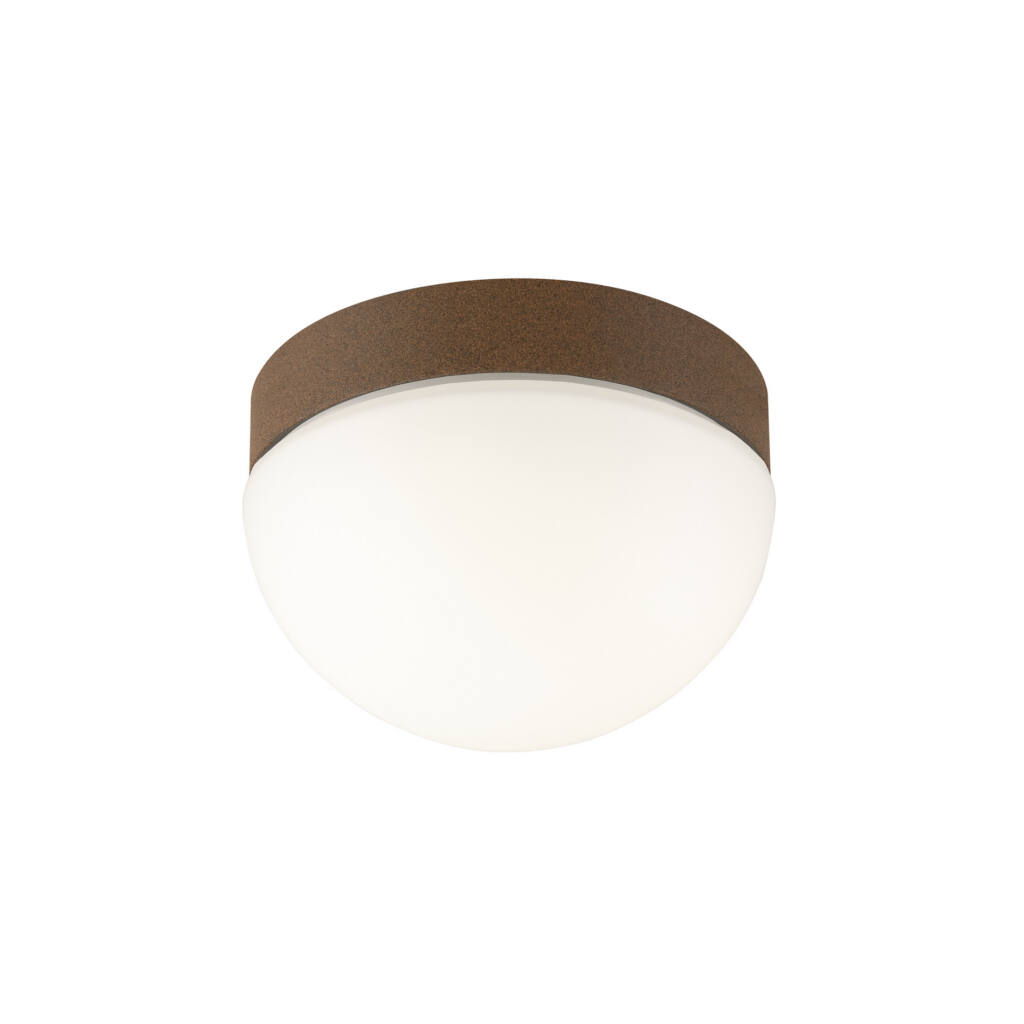

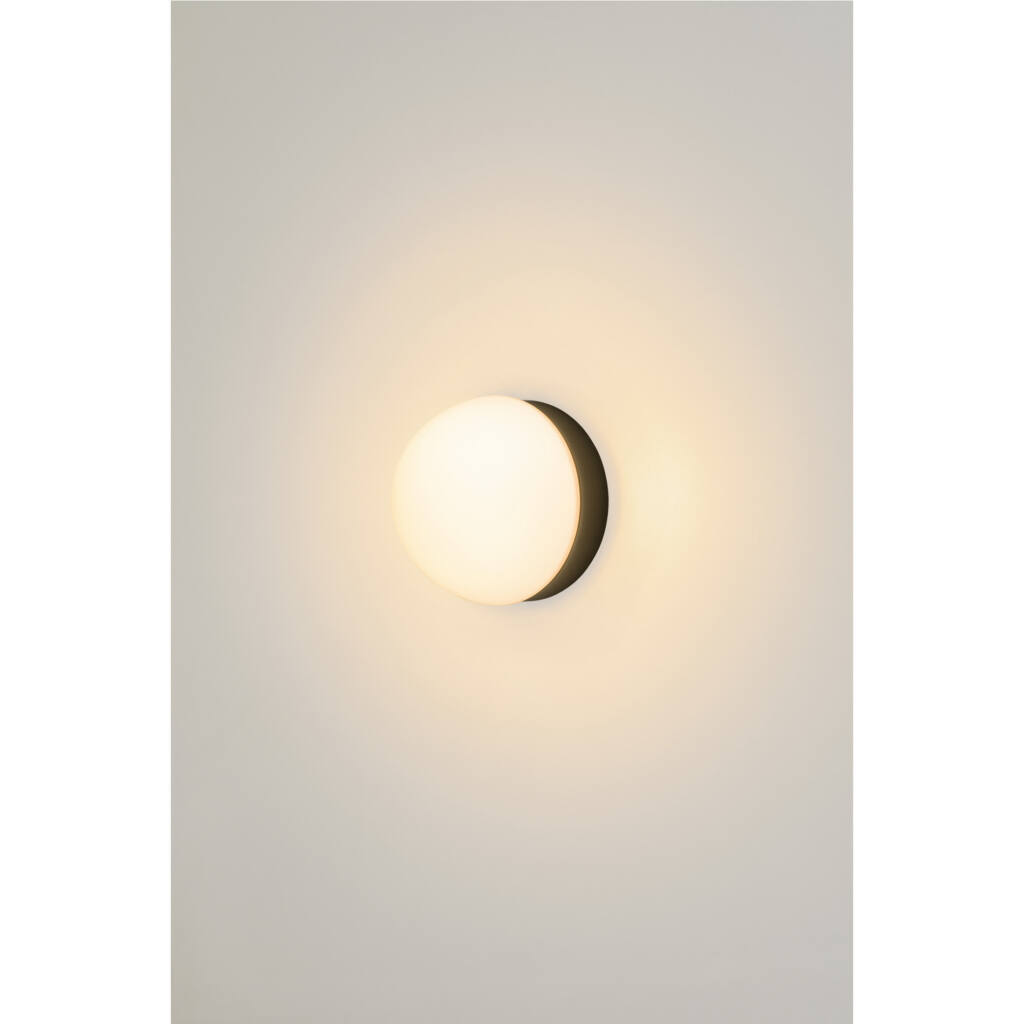

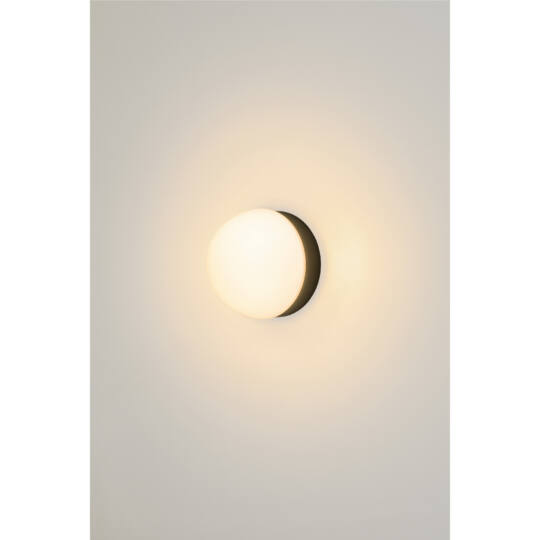

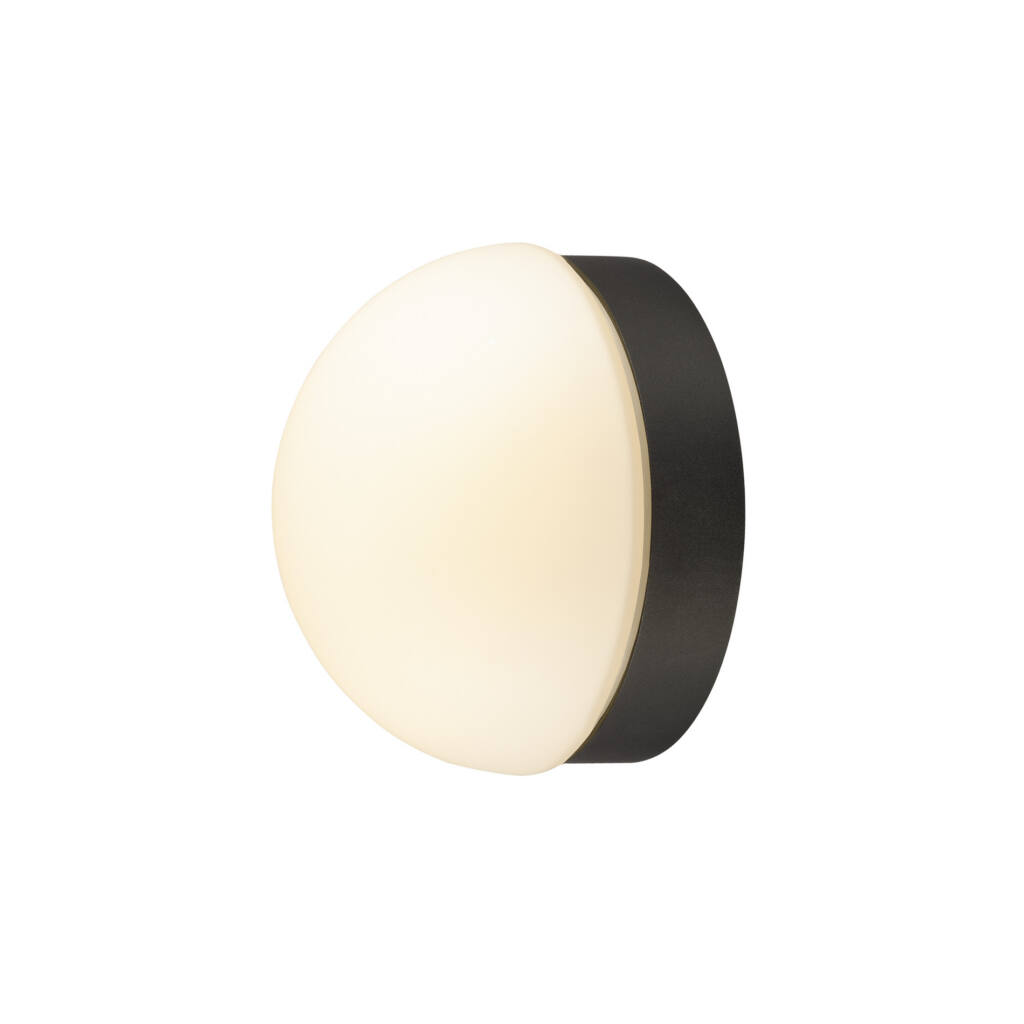

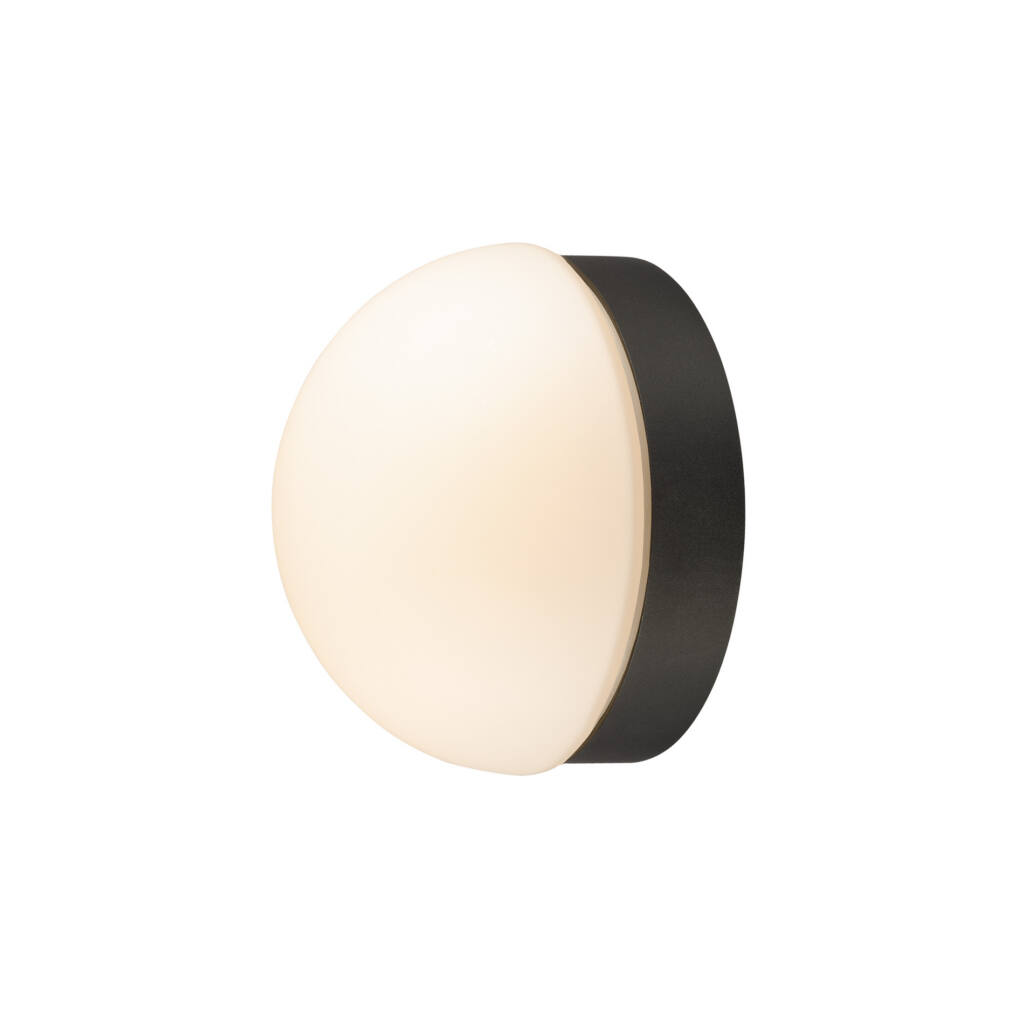

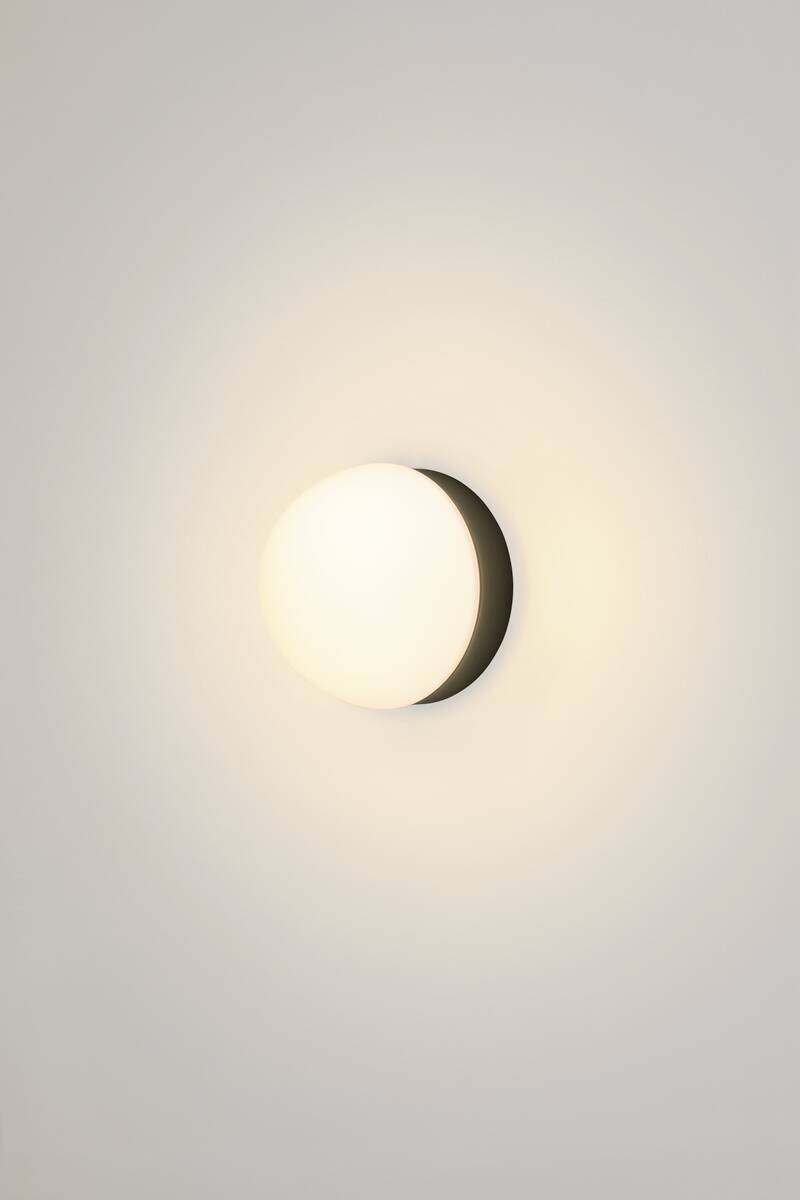

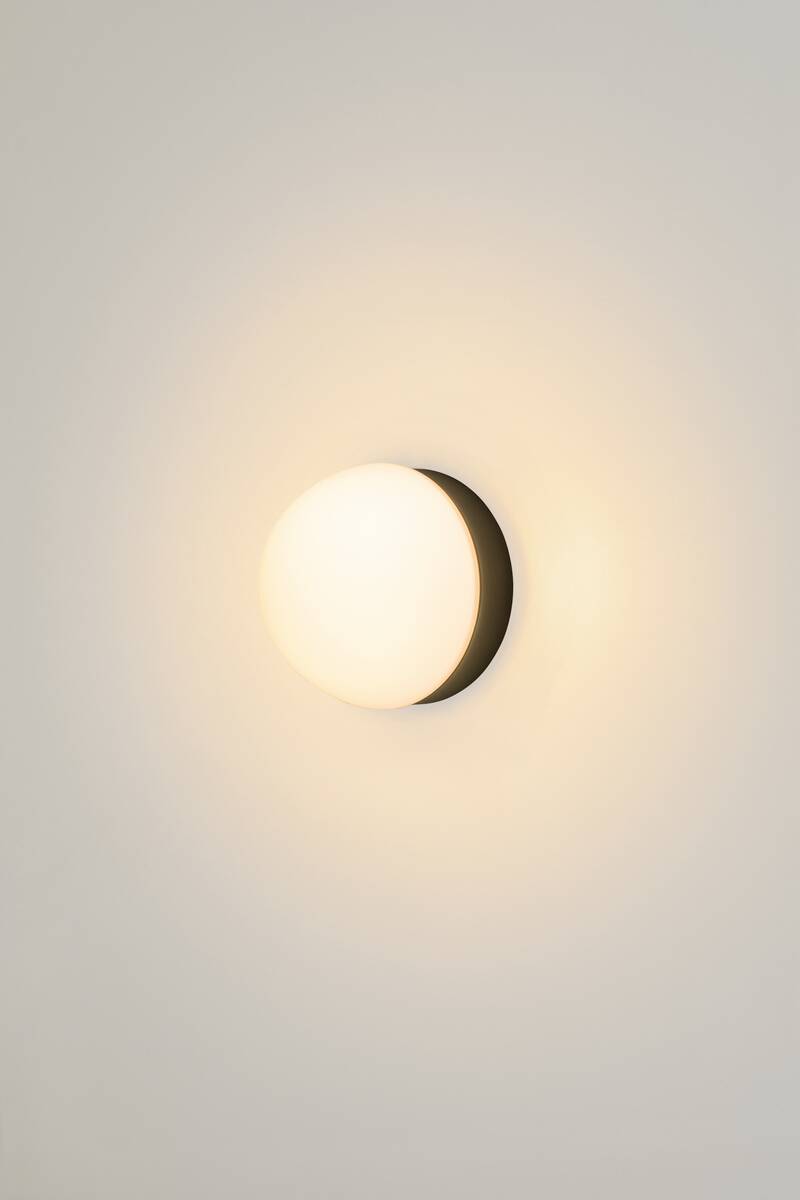

The CYFT DOME is a ROUND-shaped wall and ceiling surface-mounted luminaire suitable for outdoor use. It has a power consumption of 6.5 watts and features PHASE-cut dimming. The luminaire offers selectable colour temperatures of 2700, 3000, and 4000 Kelvin. The housing is made of aluminium, complemented by a glass cover. With a diameter of 13.2 cm and a height of 9.25 cm, it is compactly designed. The luminaire has an IP65 protection rating, making it resistant to jet water and dust, as well as an IK02 impact resistance rating. The CYFT DOME is therefore suitable for a wide range of outdoor applications, providing a robust and flexible lighting solution.

Tehnilised andmed

Colour	black/milky
Variant Color 2	milky
Colour temperature	4000 Kelvin
Luminous Flux	310 lm
electrical power	6,5 W
CRI	90
Net weight	0.64 kg

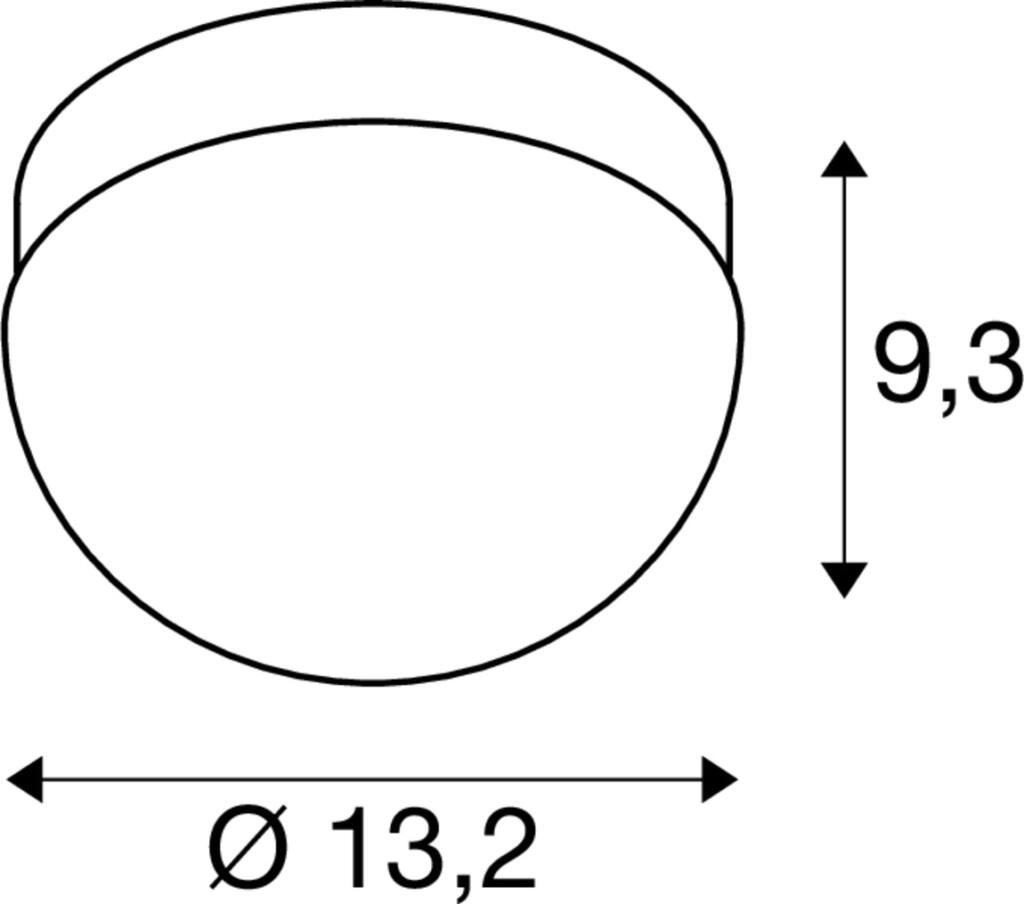

Diameter	13.2 cm
Height	9.25 cm
IP Code	IP65
Service life	50000 h
Luminous flux	290 / 310 / 310 lm
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	500 mA
Dimming options	TRAILING_EDGE
Shape	round
Variant Dimm options	Trailing edge
Number of through-wires	200
Ambient temperature	-20 °C
Berker 2873 Result	Not compatible
Shock resistance category	IK02
Shock resistance	0.2 joule
Material	Aluminium
Product name	CYFT DOME

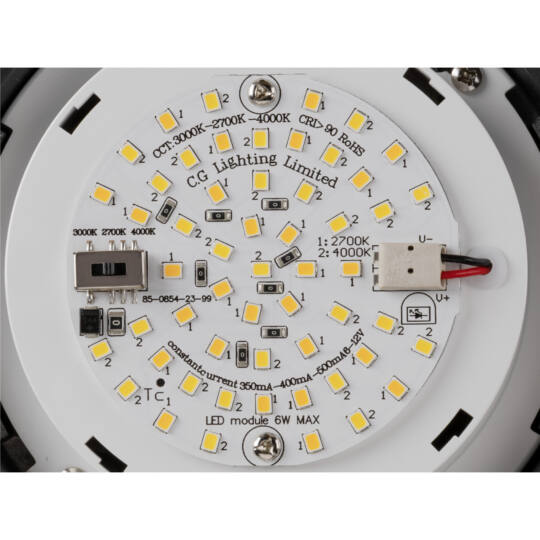

CCT Switch	Yes
Dimmable	Yes
Assembly	Surface
Risk group	0
Tehnilised failid	Manual Datasheet CE declaration Removal instructions Assembly drawings REACh
Kategooriad	Ceiling lights, Indoor, Surface mounted
