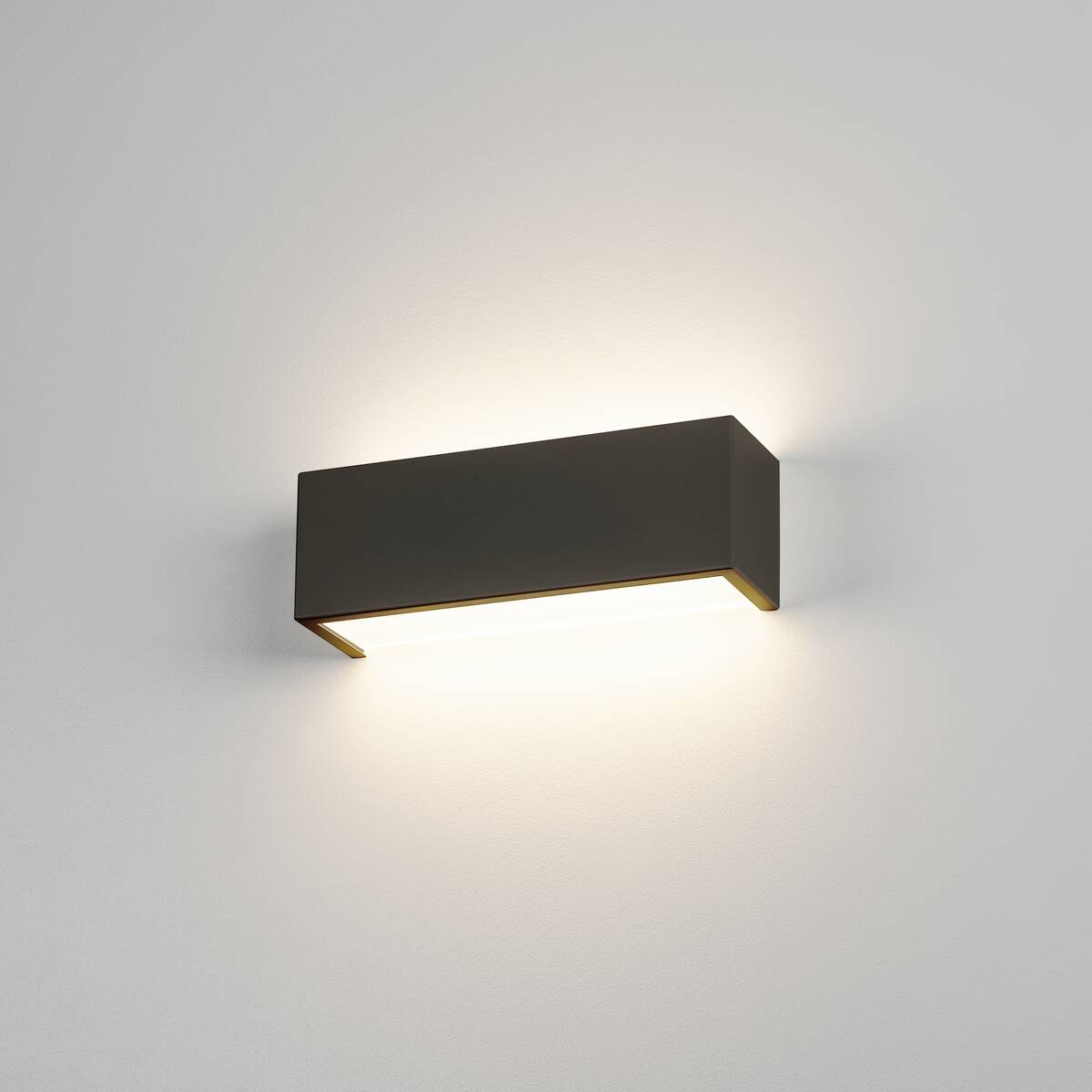

The CHROMBO surface-mounted wall light is designed for installation on walls and is suitable for indoor areas with normal environmental conditions. It features a square shape and a colour temperature of 3000 K, producing warm white light. The luminaire has a power consumption of 8 watts and delivers a luminous flux of 790 lumens with a beam angle of 120°. The housing is made of steel and finished in black. Its dimensions are 30 cm in width, 10 cm in height, and 9 cm in depth. Dimming is achieved via phase-cut (trailing edge). The protection rating is IP20, providing protection against contact and solid foreign objects with a diameter greater than 12.5 mm. The CHROMBO surface-mounted wall light is suitable for use in residential and work areas where functional and well-dimmable lighting is required.

Tehnilised andmed

Half beam angle	120 °
Colour	black
Colour temperature	3000 Kelvin
Luminous Flux	790 lm
electrical power	8 W
CRI	90
Net weight	1.52 kg
Height	10 cm
Width	30 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	200 mA
Variant Dimm options	Trailing edge
Ambient temperature	-20 °C
Material	steel
Product name	CHROMBO
CCT Switch	No
Dimmable	Yes
Berker 2873 Result	Compatible
Busch-Jäger 6523U Result	Compatible
Eltako EUD 61 NPN-UC Result	Compatible
Legrand PRO21 LED Dimmer 775659 Result	Compatible
LK Fuga LED Dimmer 180 Touch Result	Compatible
Merten MEG5134-0000 Result	Compatible
Niko 310-0190X Result	Compatible
Tehnilised failid	Manual Datasheet CE declaration Assembly drawings REACh
Kategooriad	Indoor, Wall lights
