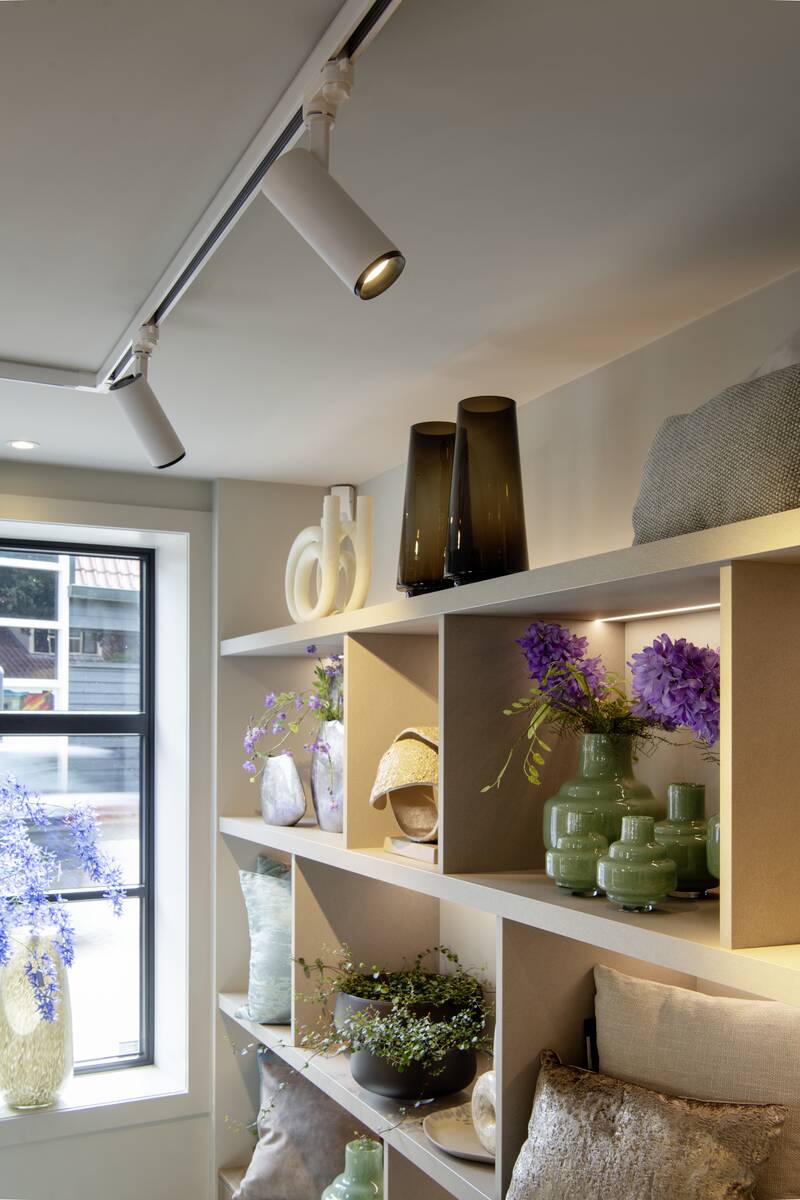

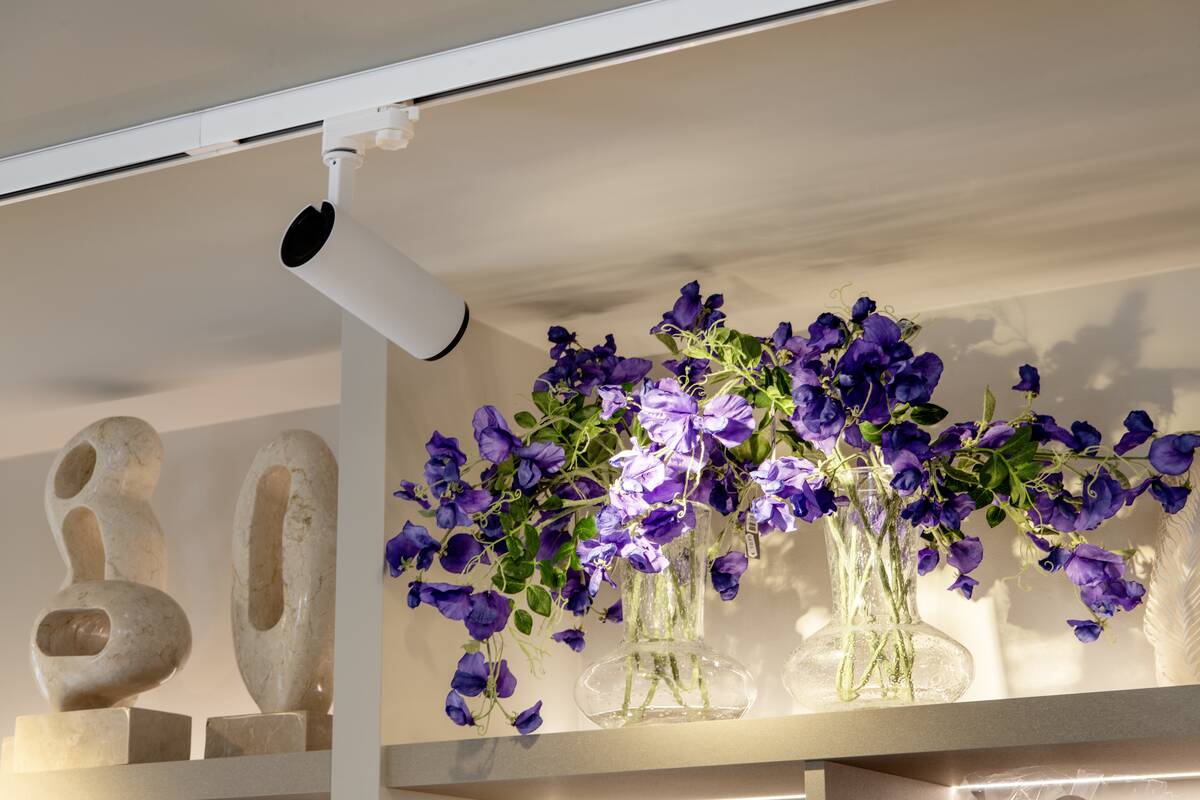

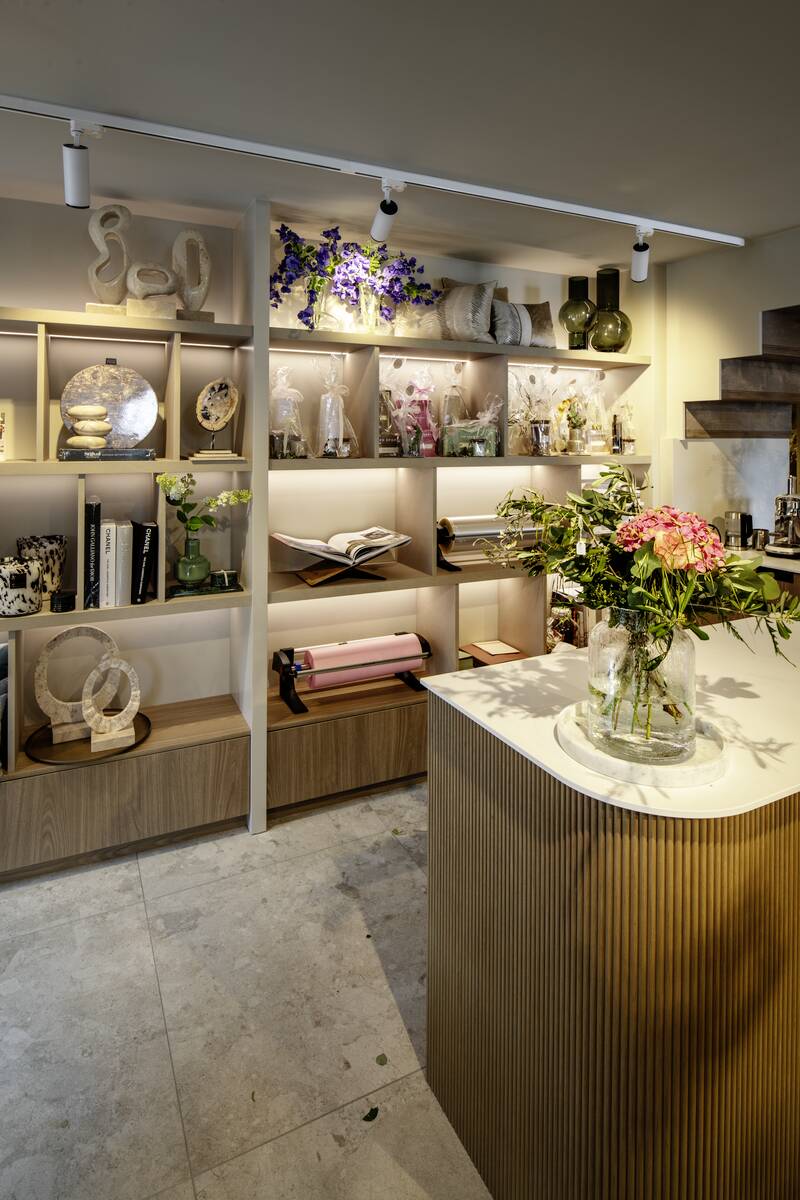

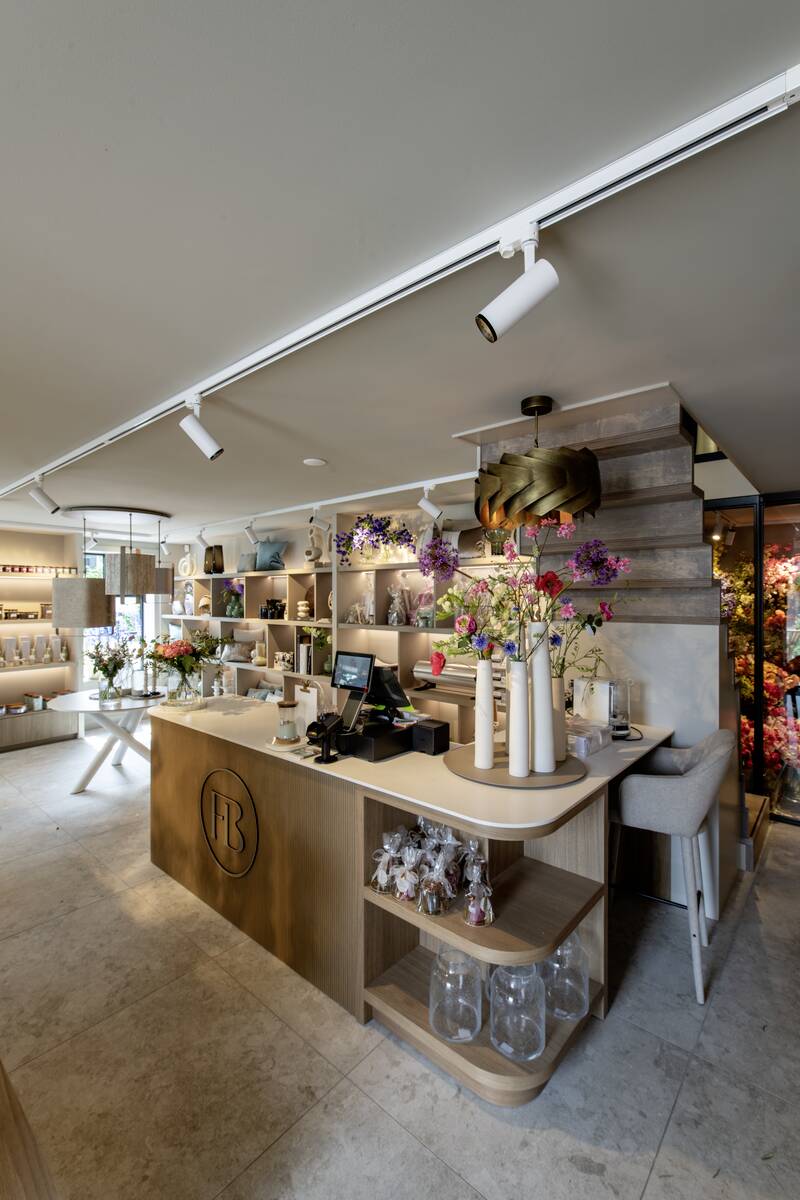

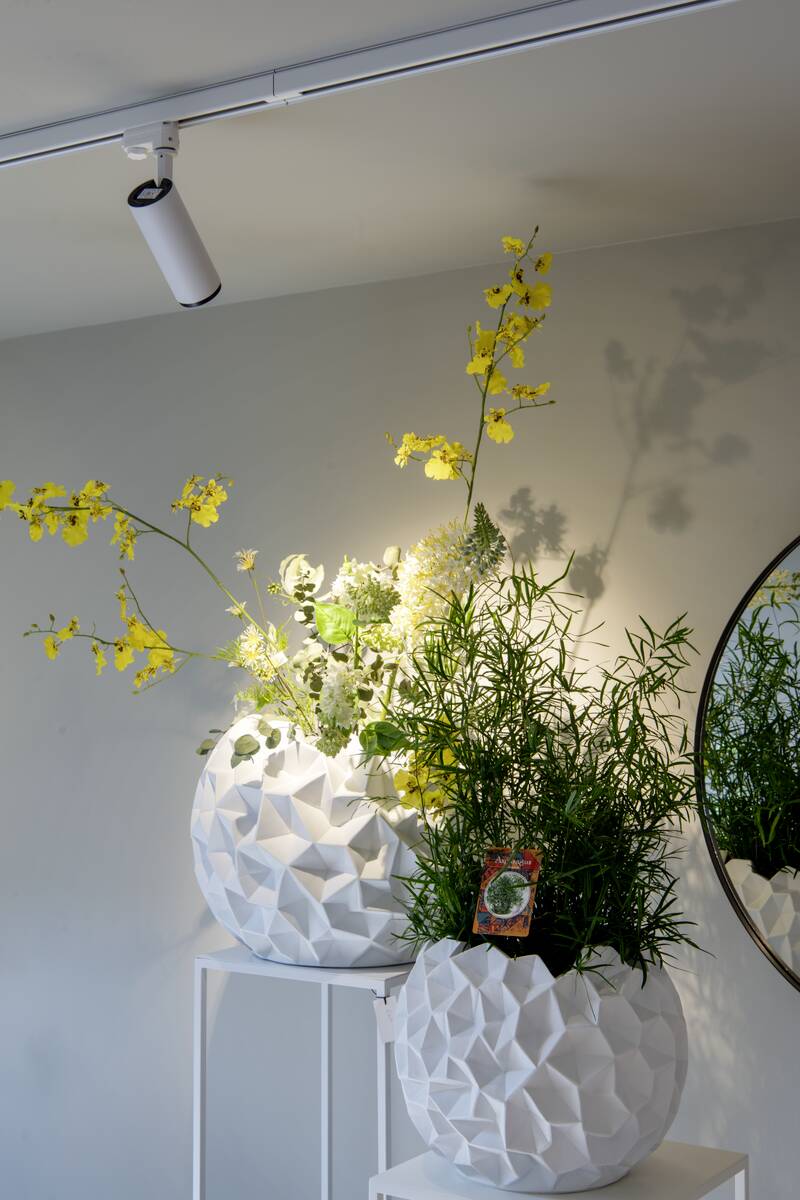

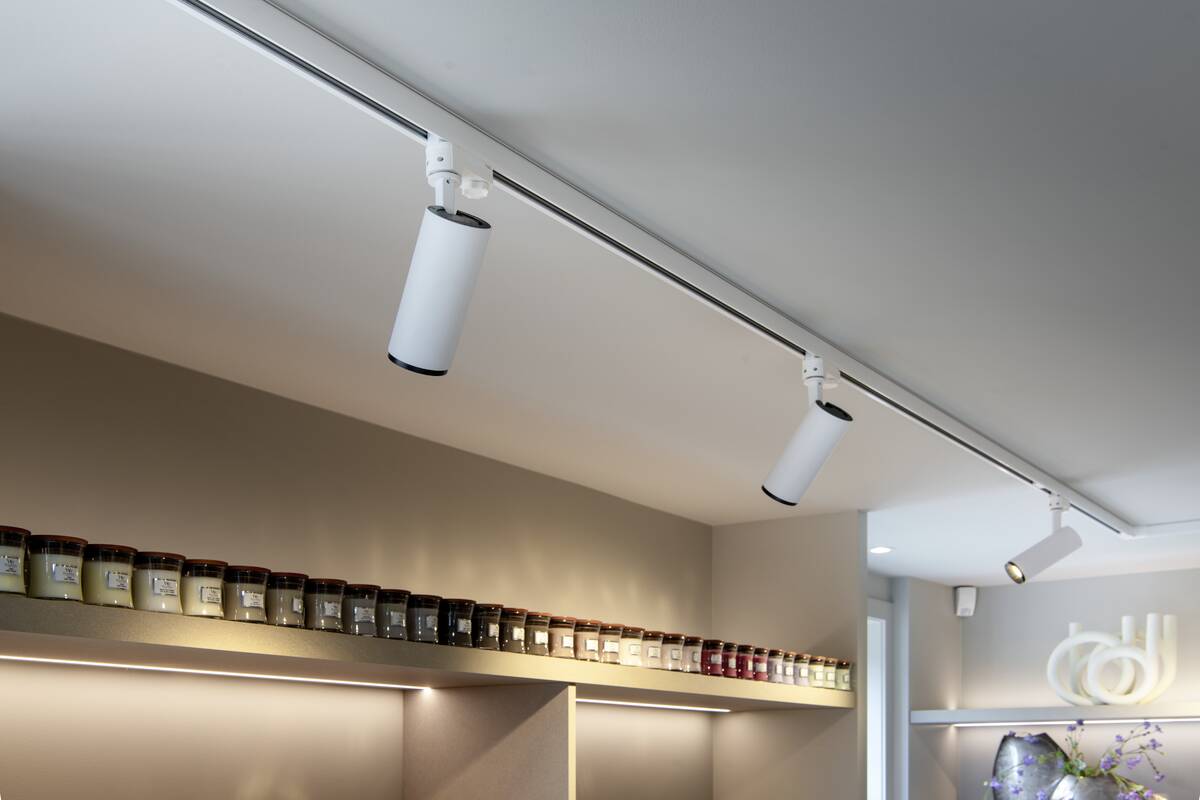

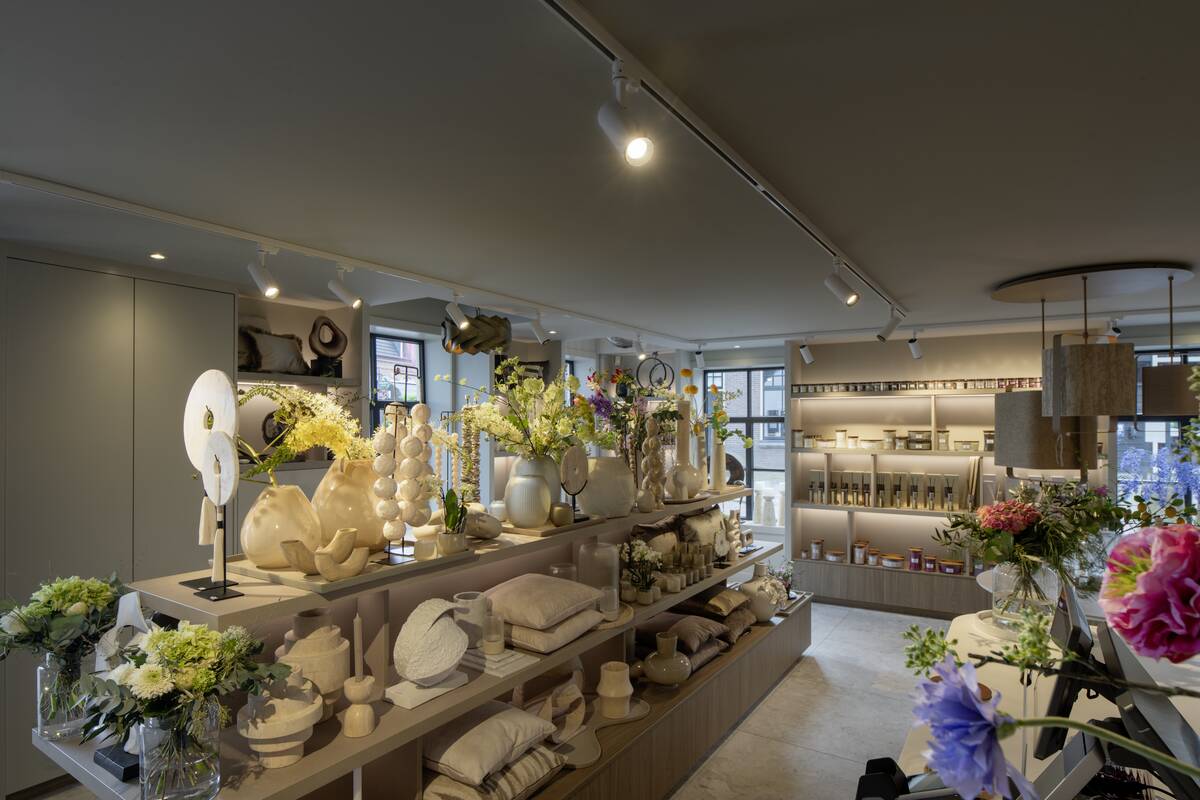

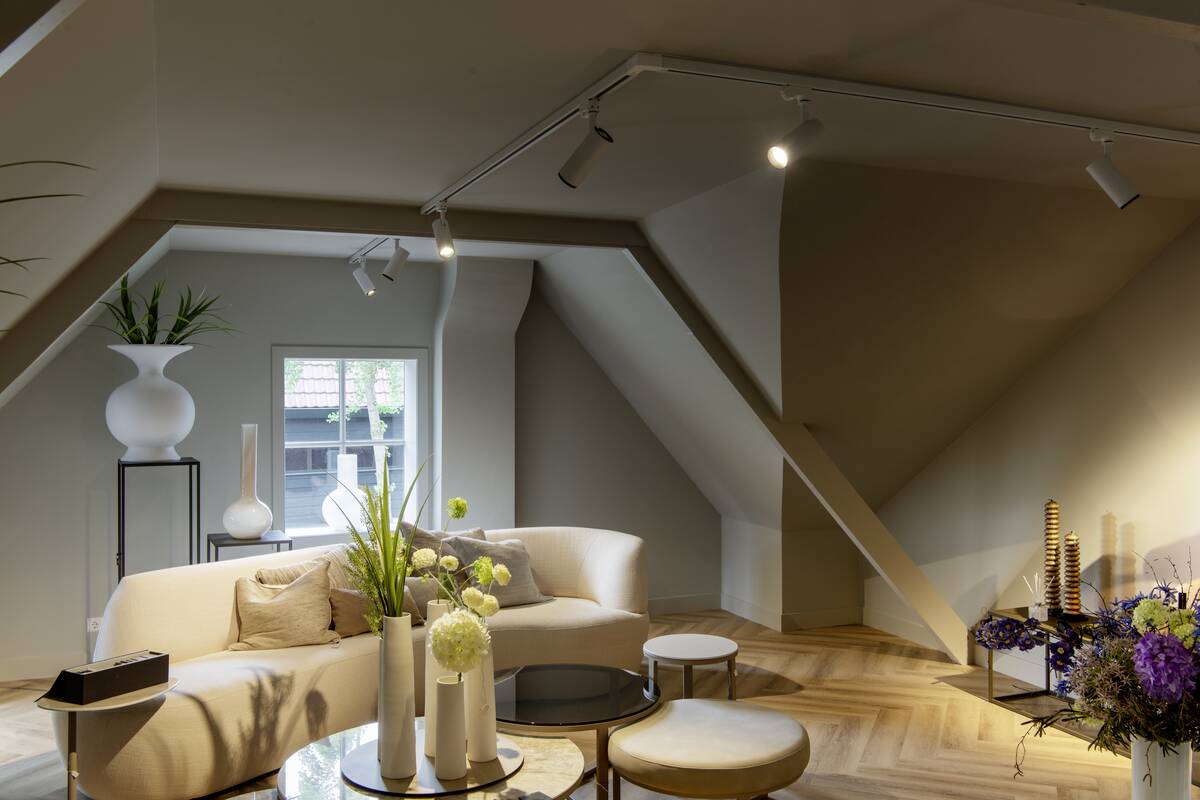

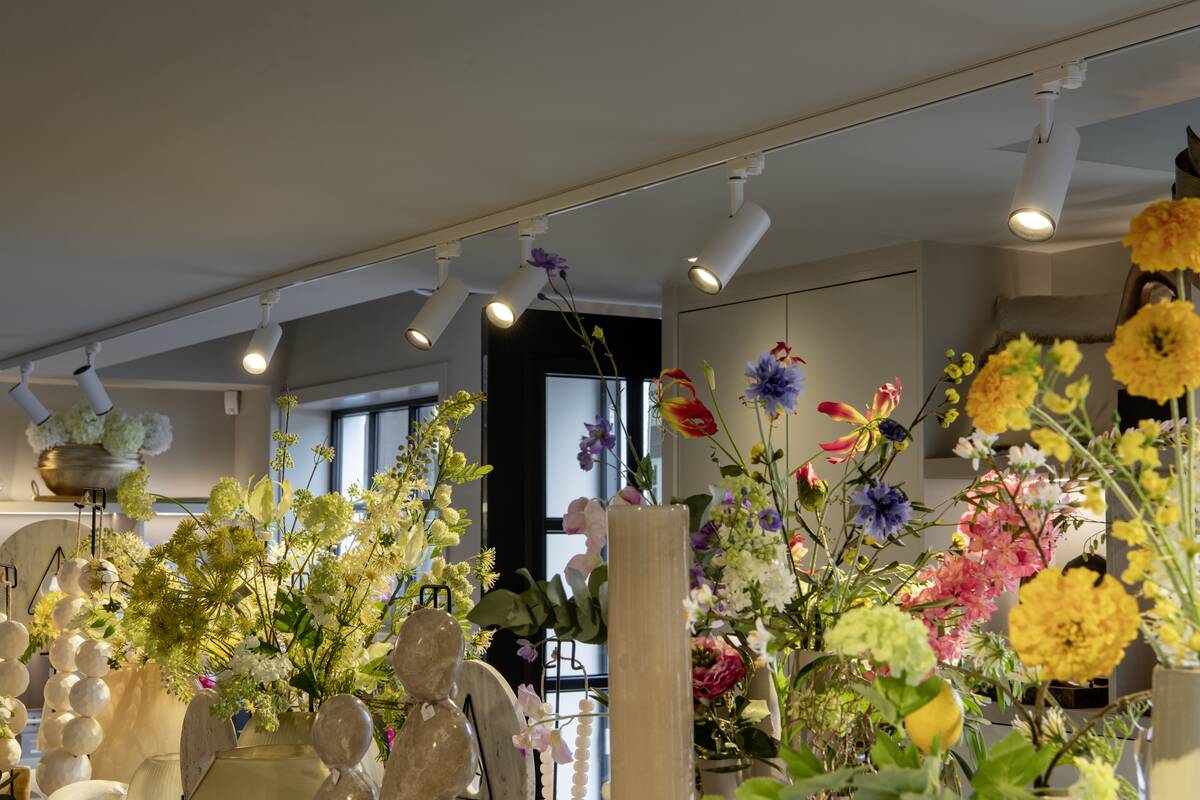

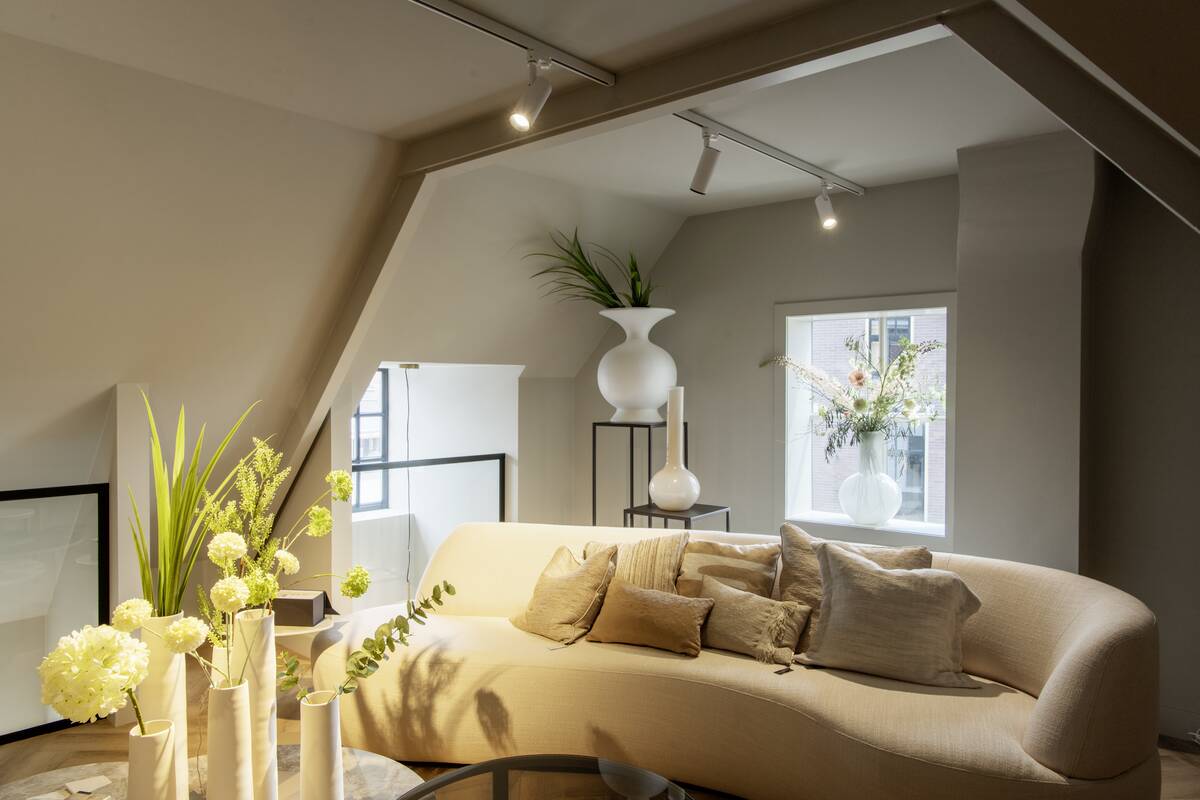

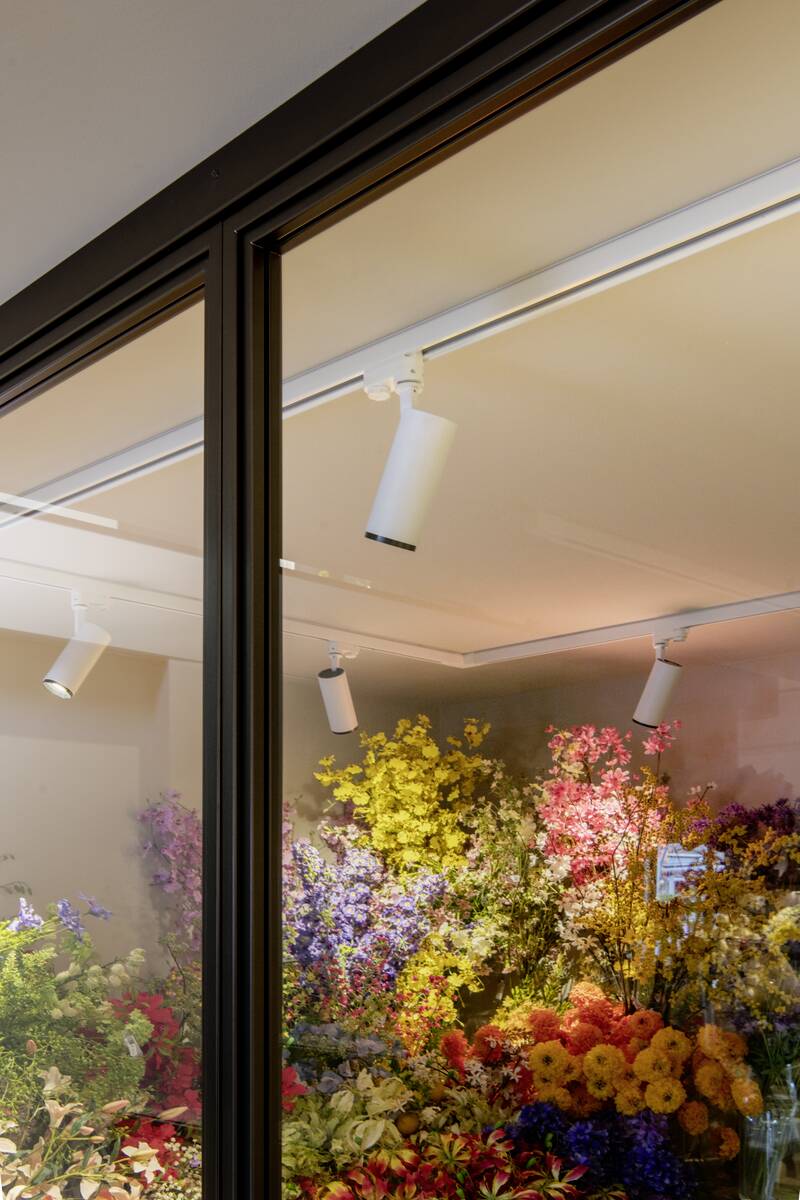

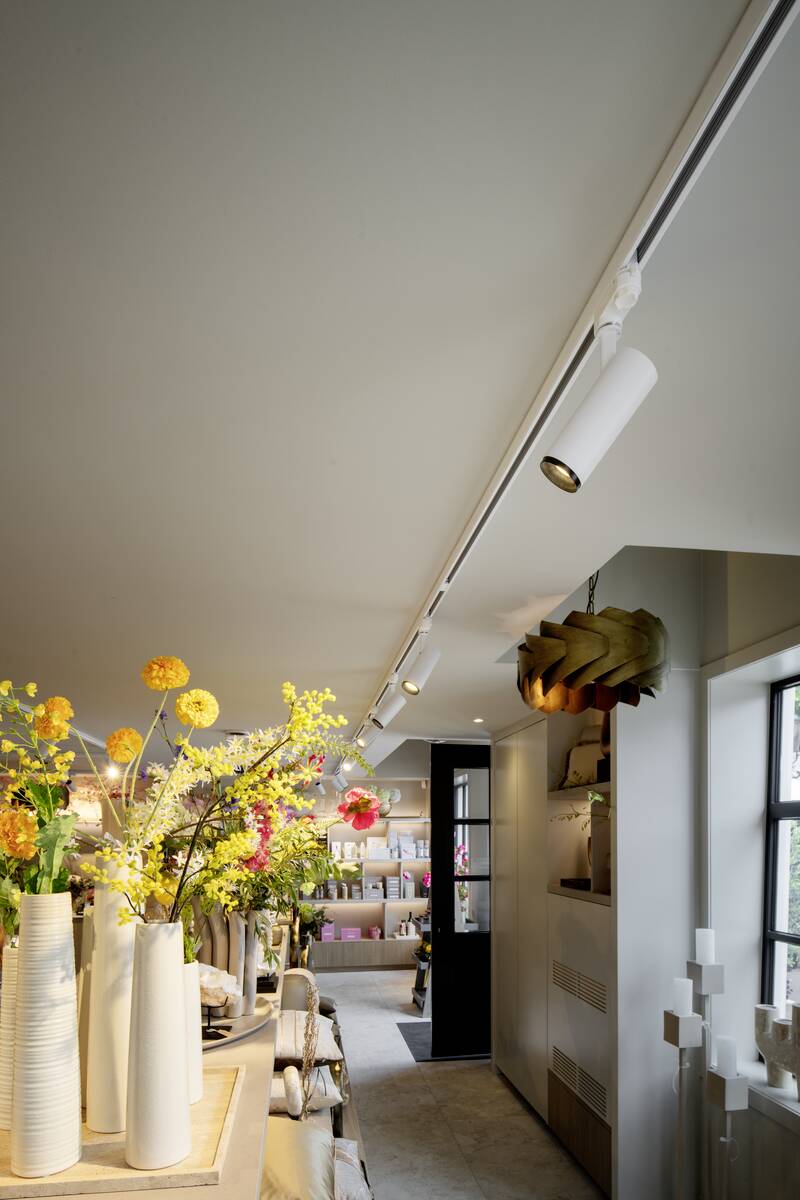

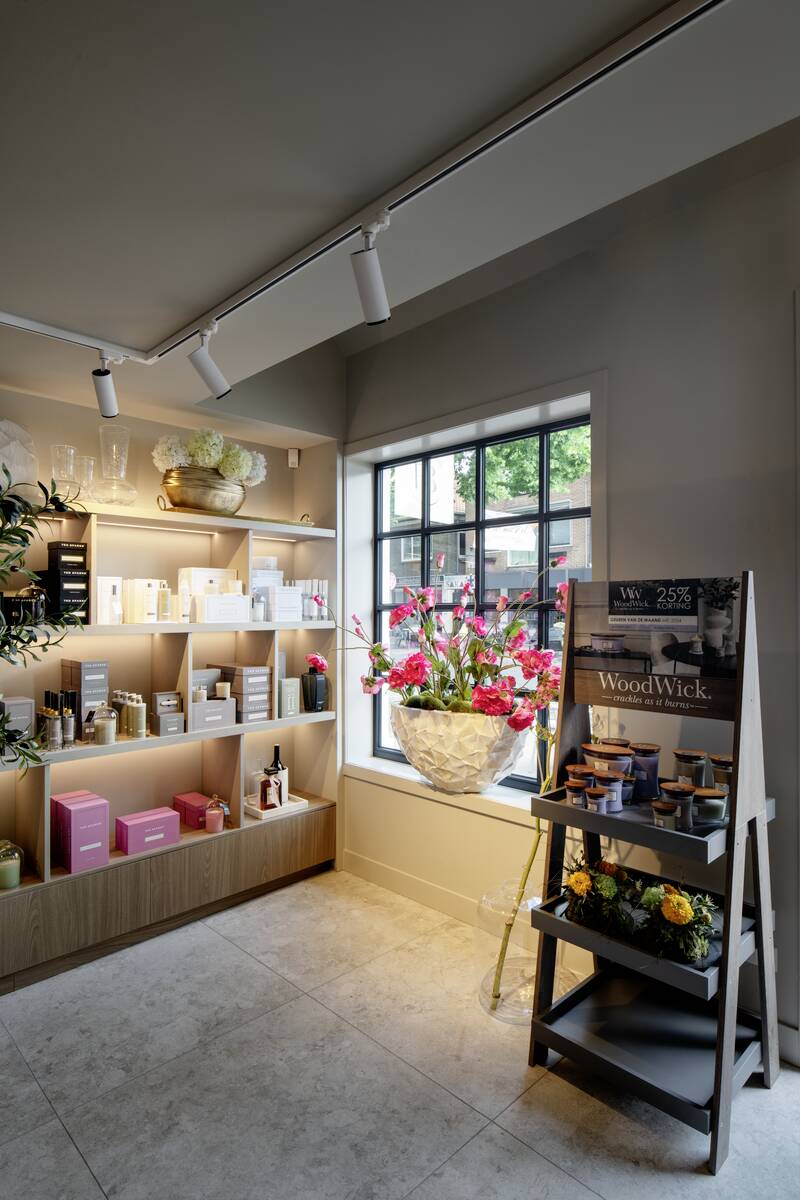

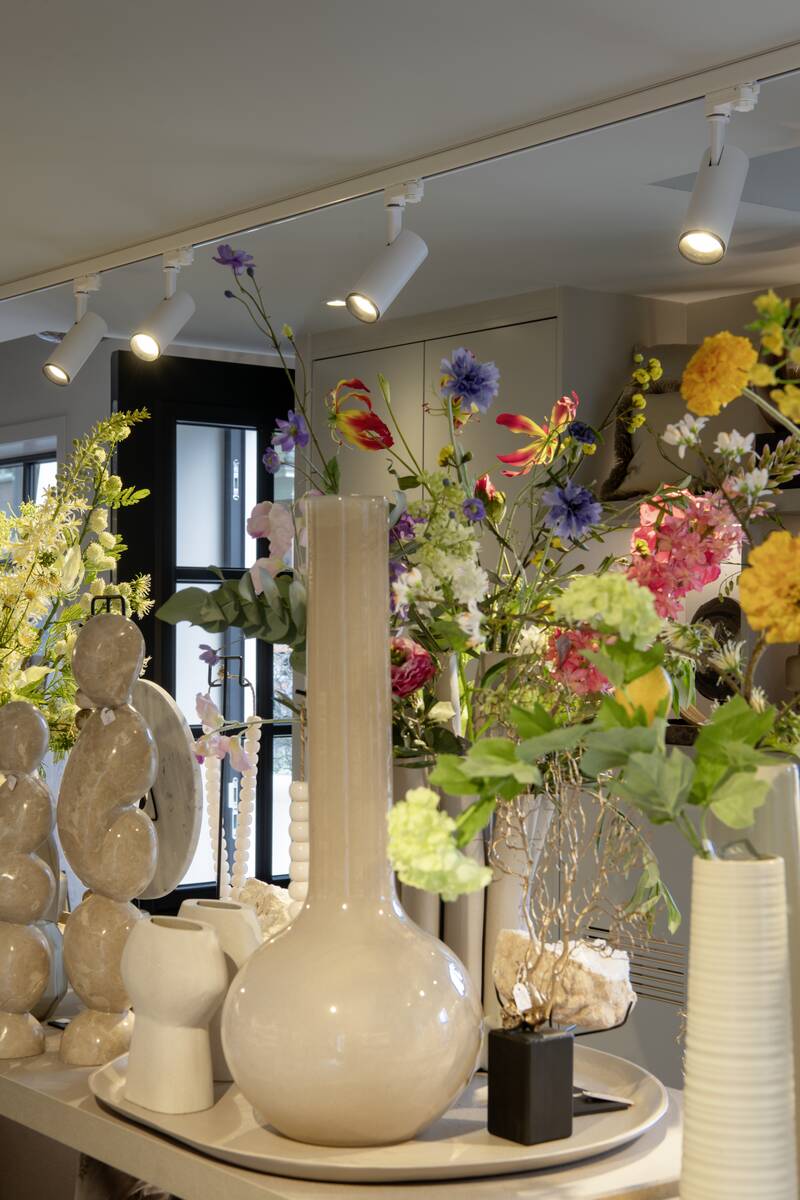

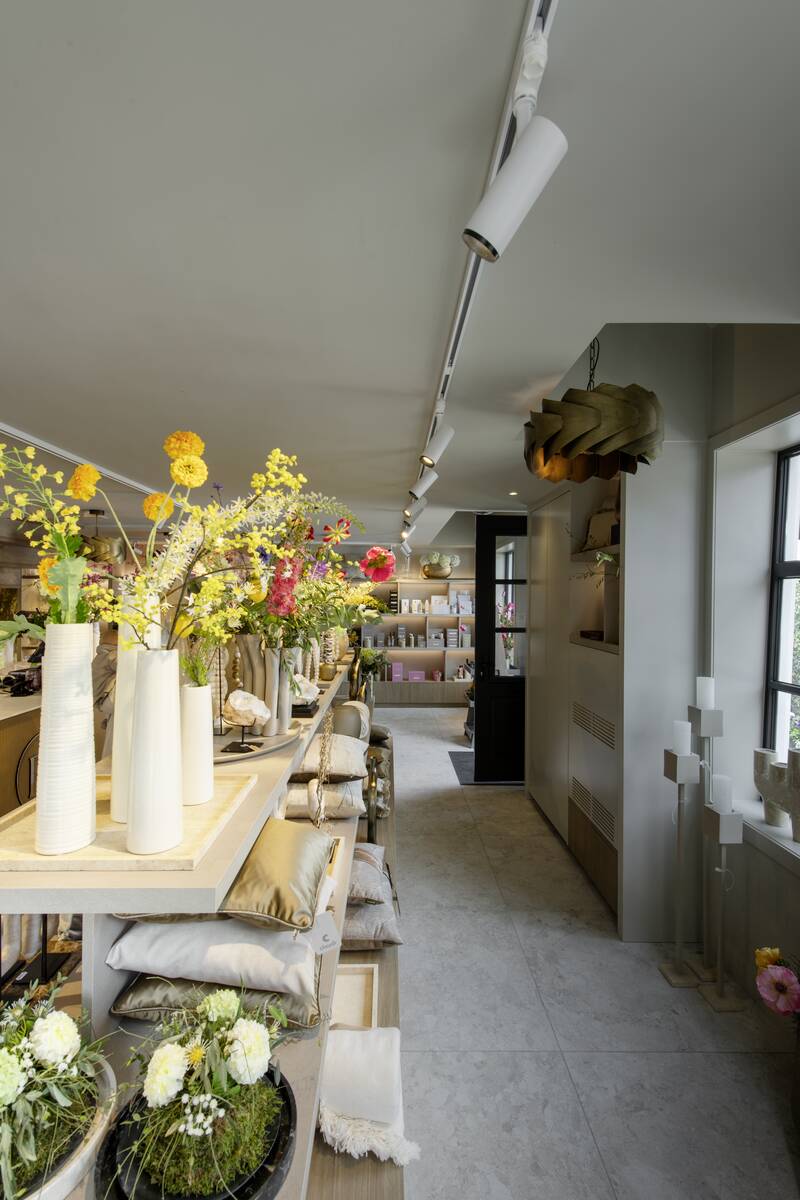

The 3-PHASE spotlight NUMINOS® S is designed for mounting on ceiling and wall track systems and is suitable for indoor use. The cylindrical luminaire housing is made of aluminium and is available in matt white or matt black. With a power consumption of 8 watts, the spotlight produces a luminous flux of 950 lumens at a colour temperature of 2700 Kelvin and a beam angle of 36 degrees, enabling targeted illumination. Dimming is carried out via phase-cut control (Trailing Edge). The luminaire measures 16.2 cm in length, 6.5 cm in diameter, and 14 cm in height. The IP20 protection rating indicates suitability for dry indoor environments. The declared service life is 50,000 hours.

Tehnilised andmed

Half beam angle	36 °
Colour	white
Colour temperature	2700 Kelvin
Luminous Flux	950 lm
electrical power	8 W
CRI	90
Net weight	0.521 kg
Diameter	6.5 cm
Height	14 cm
Length	16.2 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	200 mA
Dimming options	Trailing edge
Shape	cylindrical
Horizontal rotation range	350 °
Variant Dimm options	Trailing edge
Different light outlets	1
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Berker 2873 Result	With restrictions
Material	Aluminium
UGR ≤	16
LED can be changed	Control gear replaceable by a professional
Product name	NUMINOS® S
CCT Switch	No
DALI capable	No
Dimmable	Yes
Assembly	Track
Risk group	1
Busch-Jäger 6523U Result	Compatible
Eltako EUD 61 NPN-UC Result	Compatible
Jung 224 LED UDD Result	Compatible
Legrand PRO21 LED Dimmer 775659 Result	Compatible
LK Fuga LED Dimmer 180 Touch Result	Compatible
Merten MEG5134-0000 Result	Compatible
Niko 310-0190X Result	Compatible
SLV 470807 Result	Compatible
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	3-Phase-System, High voltage track systems, Indoor, LED, Other light source, Track systems
Sildid	LED power track spotlight, Shop lighting, TRIAC
