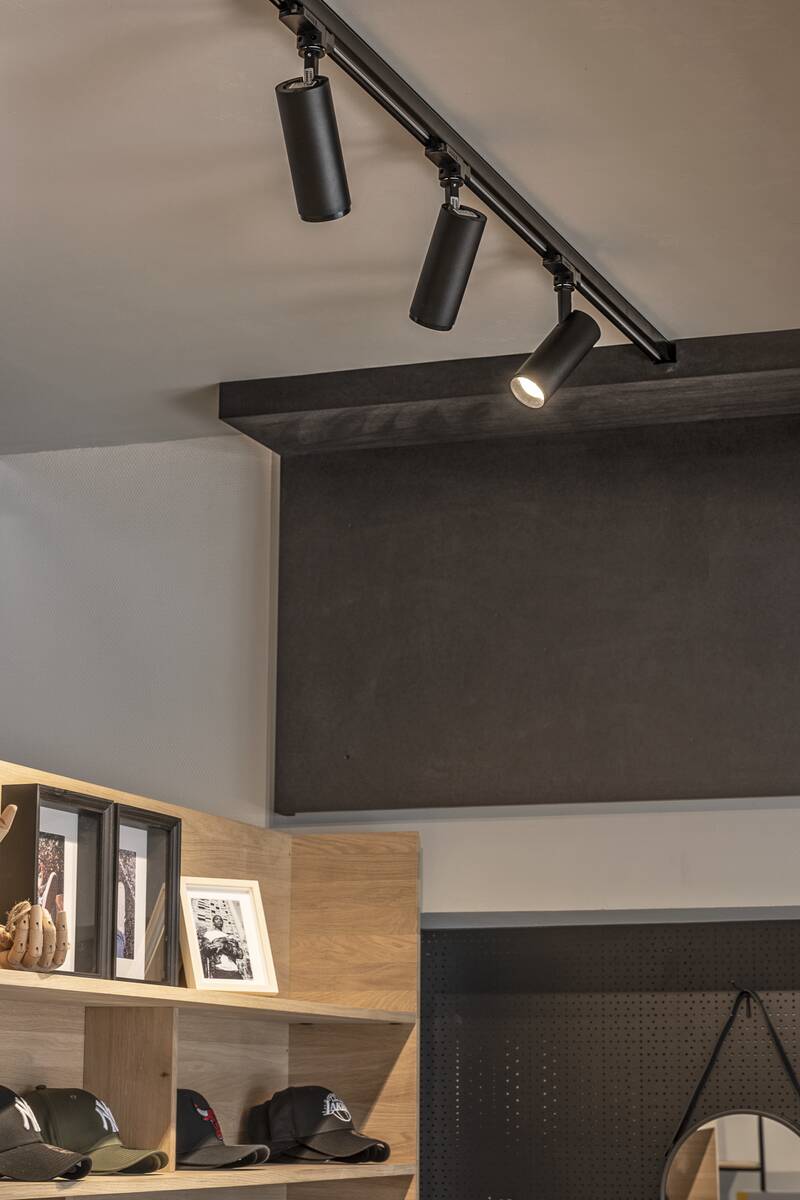

The NUMINOS® S 3Ph. DALI 3~ Spot is a cylindrical spotlight designed for mounting on ceiling or wall track systems. It is particularly suitable for indoor use where targeted lighting is required. With a luminous flux of 1050 lumens at 7.8 watts and a colour temperature of 3000 Kelvin, the spot provides a pleasant, warm white light. The beam angle is 60 degrees, ensuring a well-defined light distribution. The housing is made of aluminium and finished in matte black. The luminaire features DALI 2 and touch dimming functions, allowing flexible light control. The IP20 protection rating makes it suitable for use in protected indoor areas. Dimensions are 16.2 cm in length, 6.5 cm in diameter, and 14.5 cm in height. The declared service life is 50,000 hours.

Tehnilised andmed

Half beam angle	60 °
Colour	black
Colour temperature	3000 Kelvin
Luminous Flux	1050 lm
electrical power	7,8 W
CRI	90
Net weight	0.579 kg
Diameter	6.5 cm
Height	14.5 cm
Length	16.2 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	200 mA
Dimming options	DALI and Touch
Shape	cylindrical
Horizontal rotation range	350 °
Variant Dimm options	DALI and Touch
Different light outlets	1
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Material	Aluminium
UGR ≤	19
LED can be changed	Control gear replaceable by a professional
Product name	NUMINOS® S
CCT Switch	No
DALI capable	Yes
Dimmable	Yes
Assembly	Track
Risk group	1
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	3-Phase-System, High voltage track systems, Indoor, LED, Other light source, Track systems
Sildid	DALI, LED power track spotlight, LED shop lighting, Shop lighting
