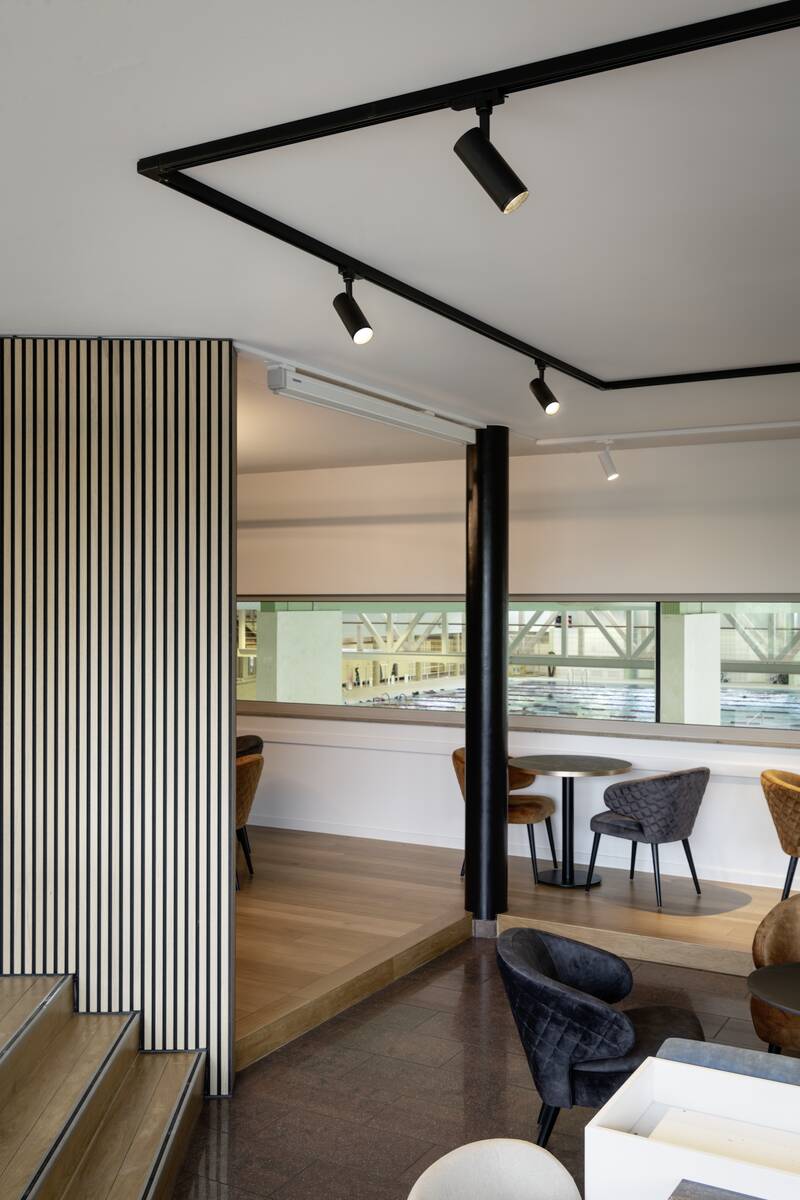

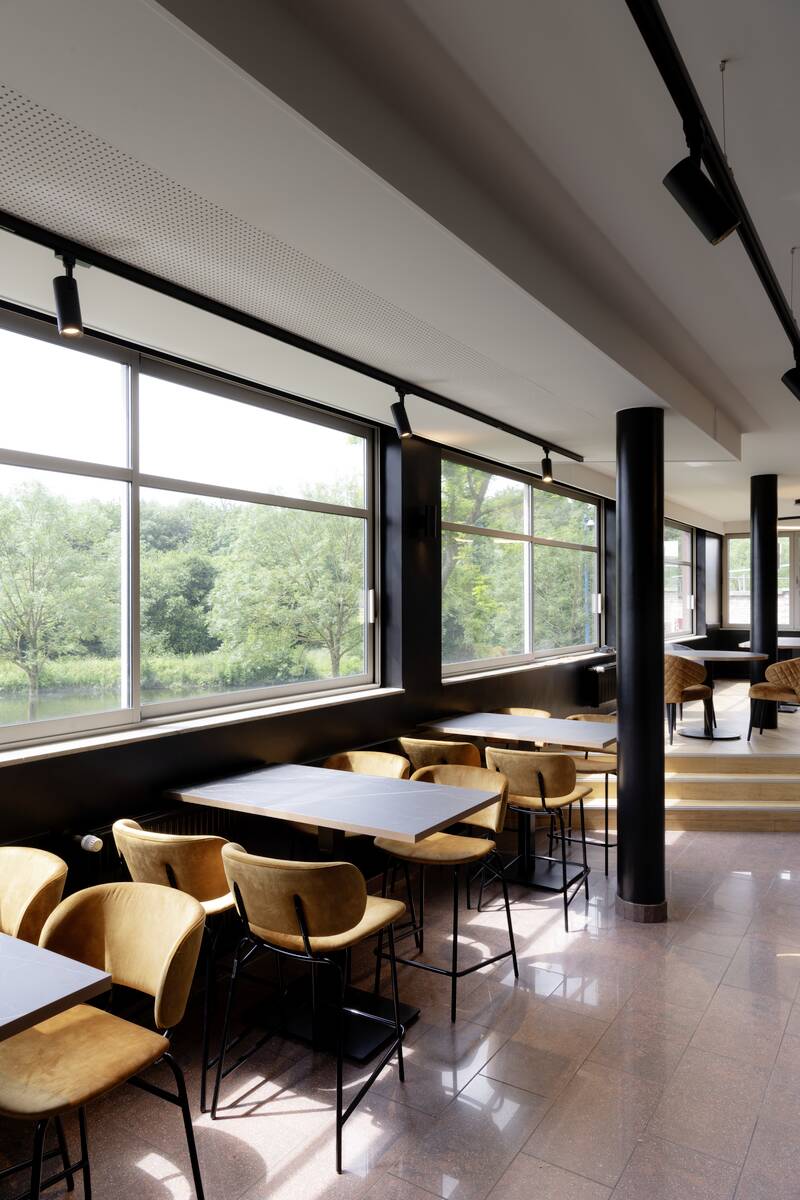

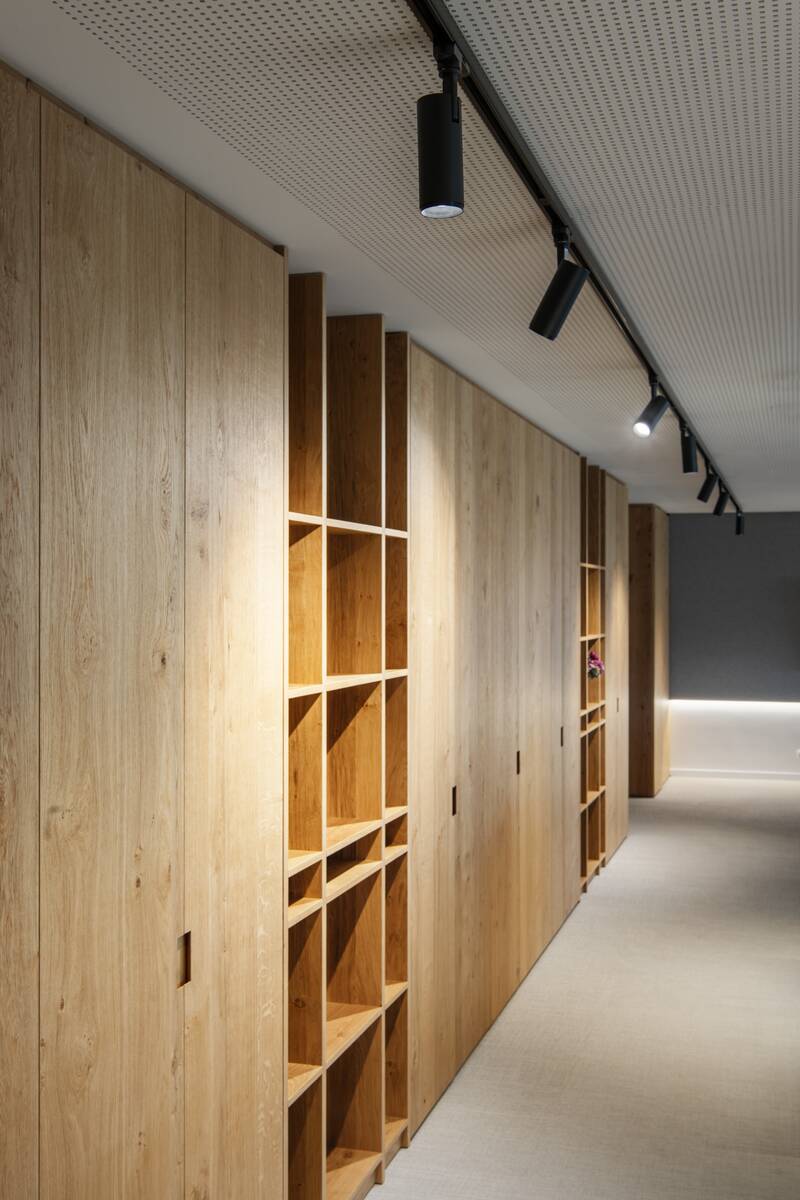

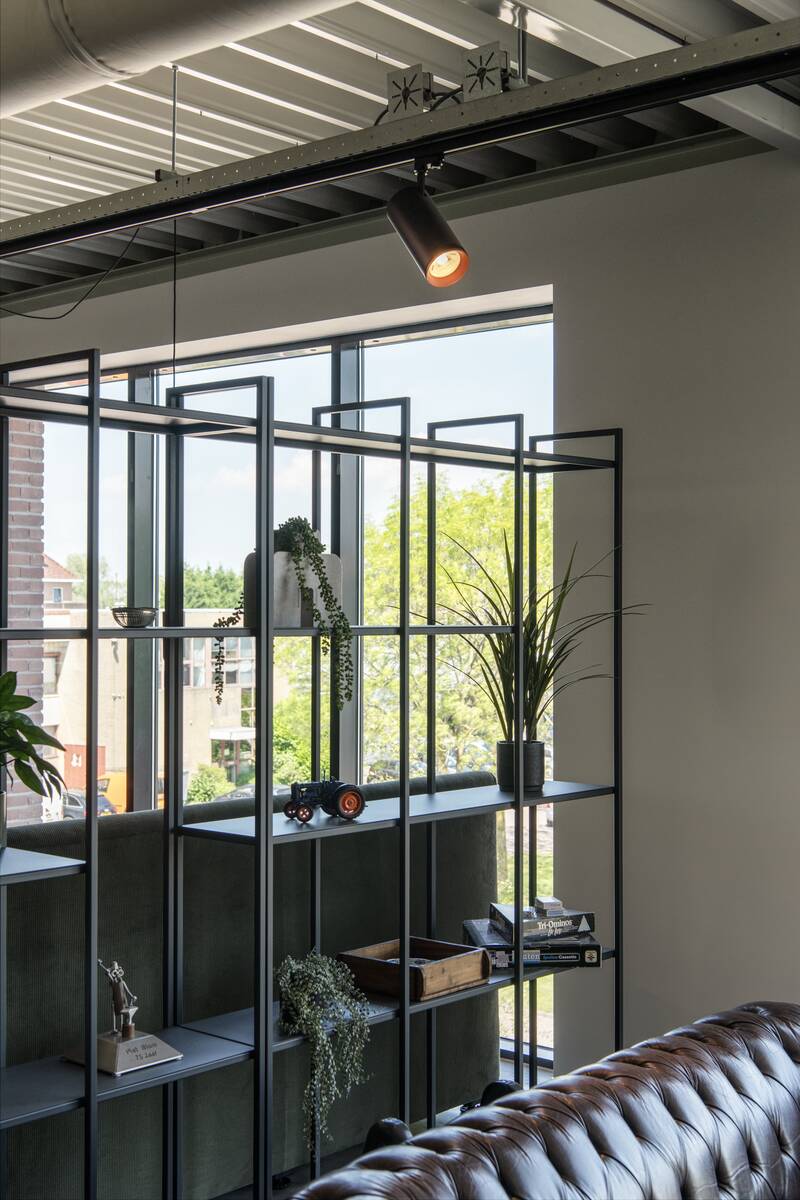

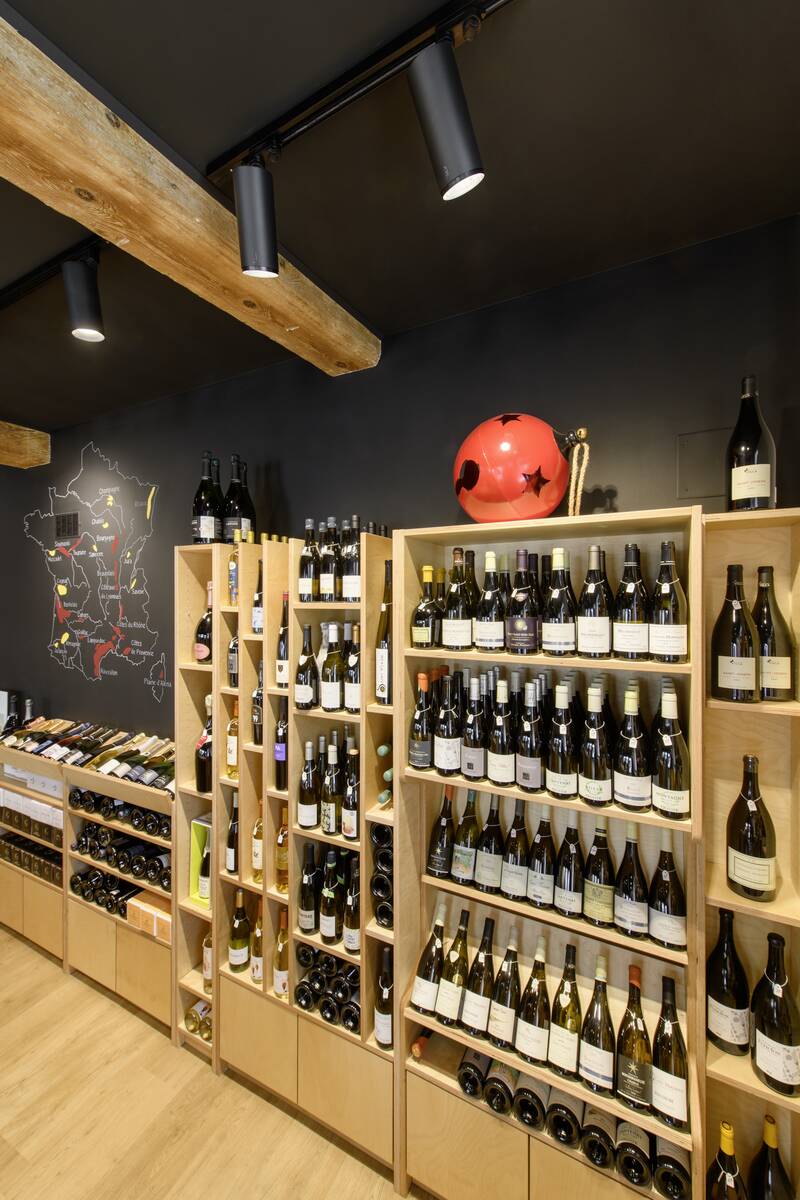

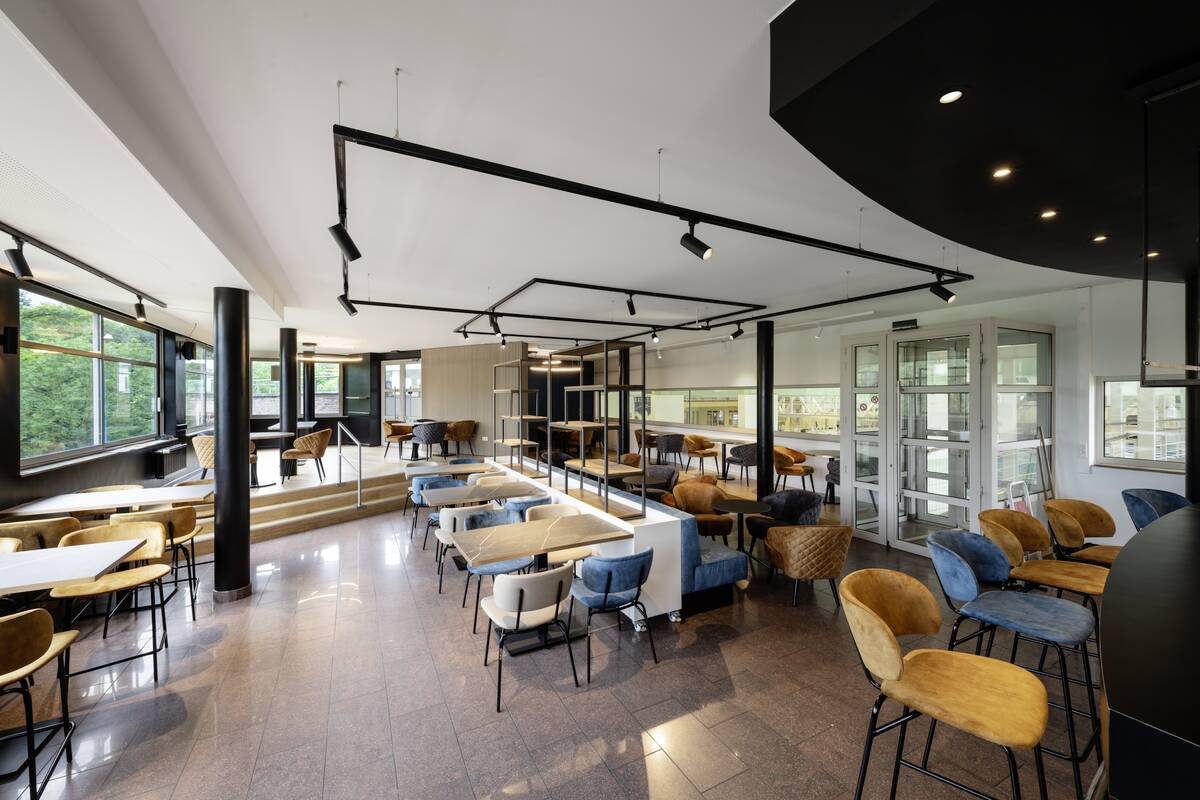

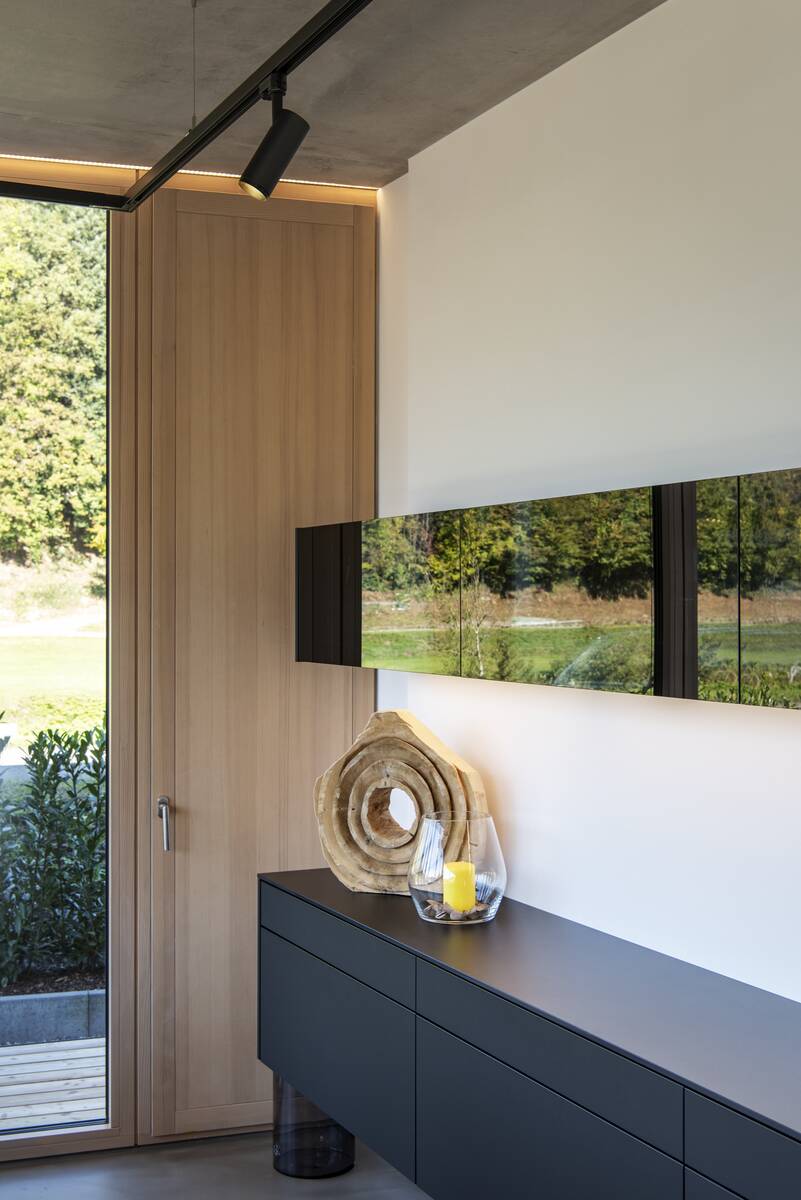

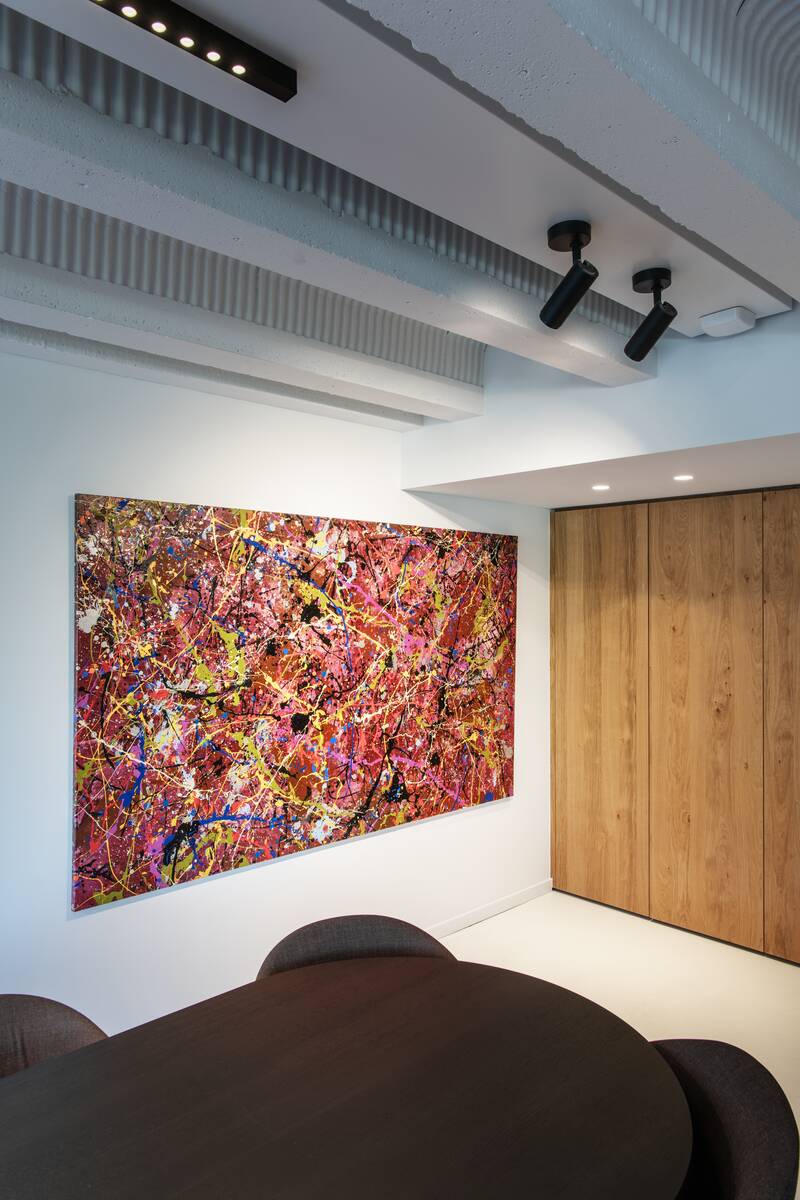

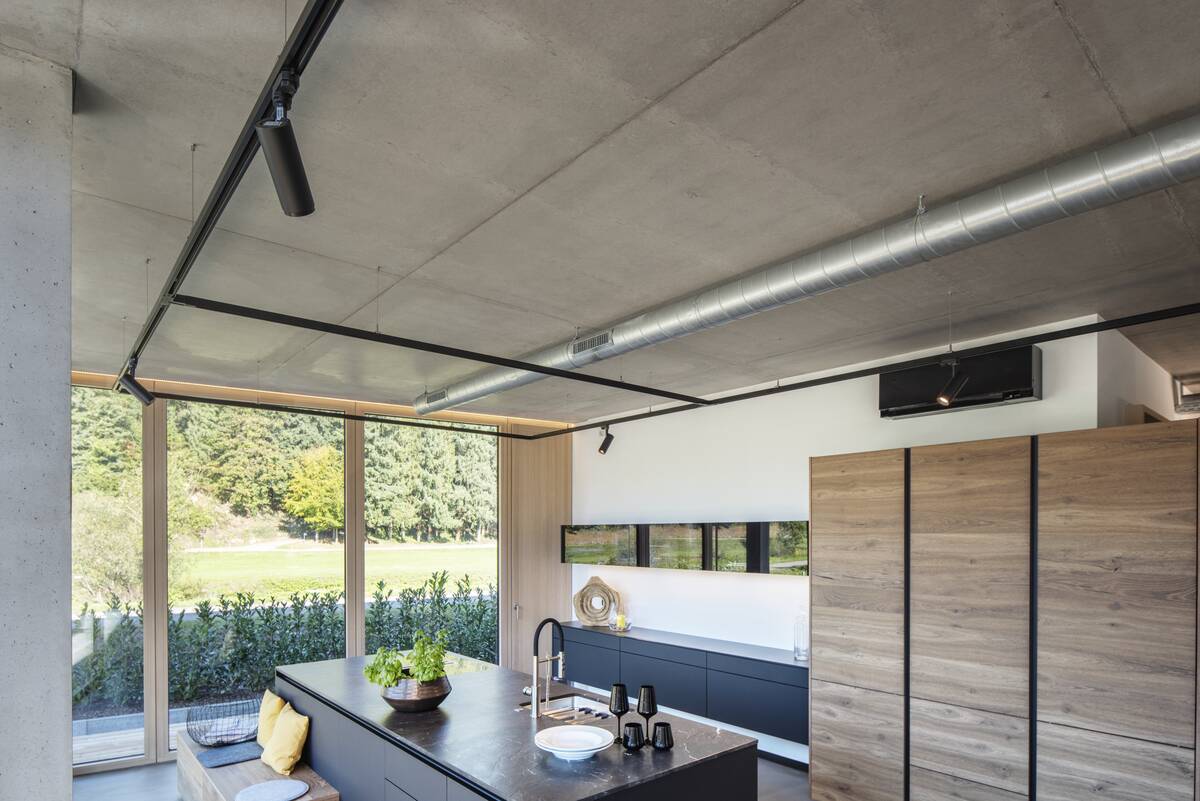

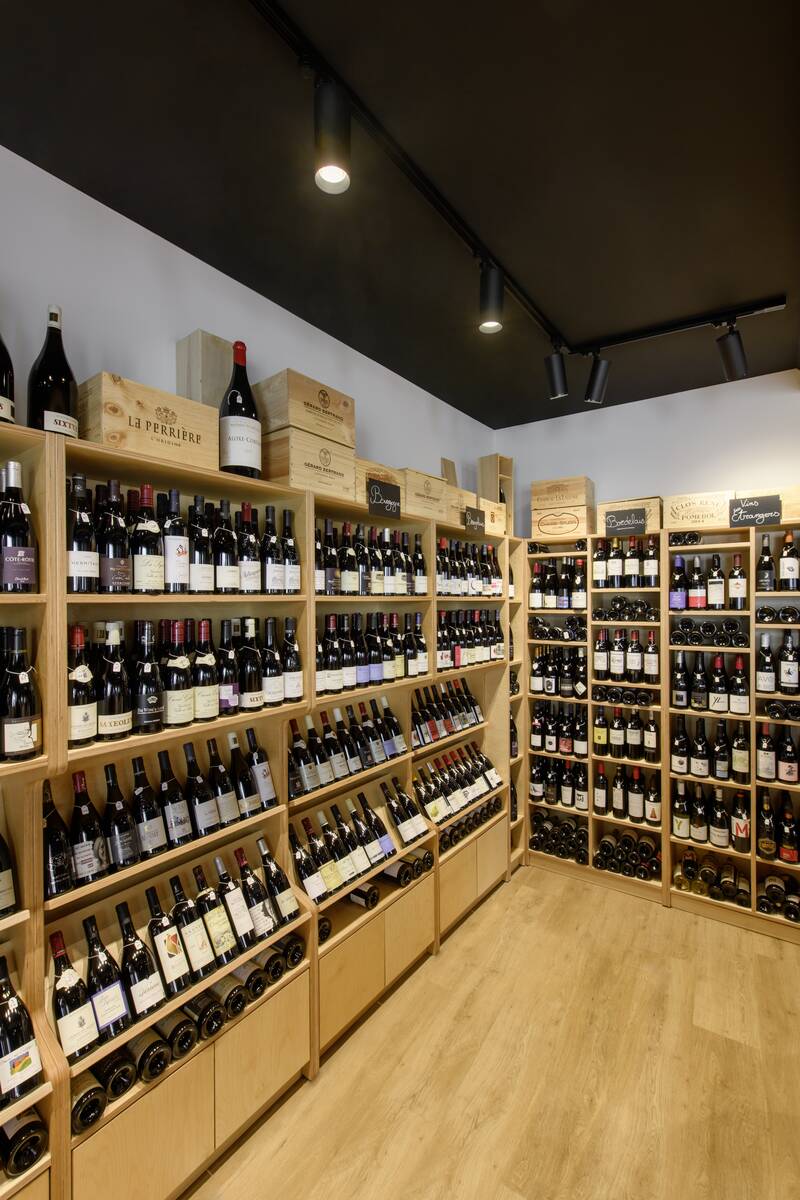

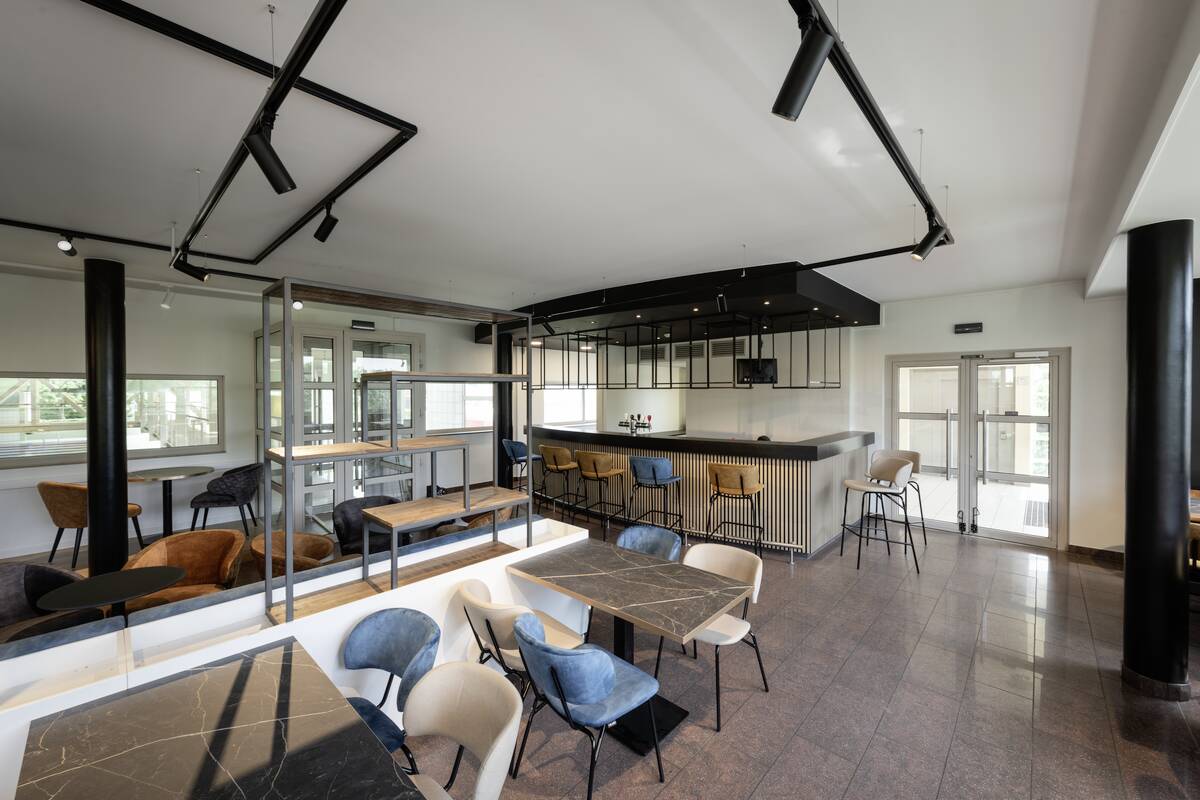

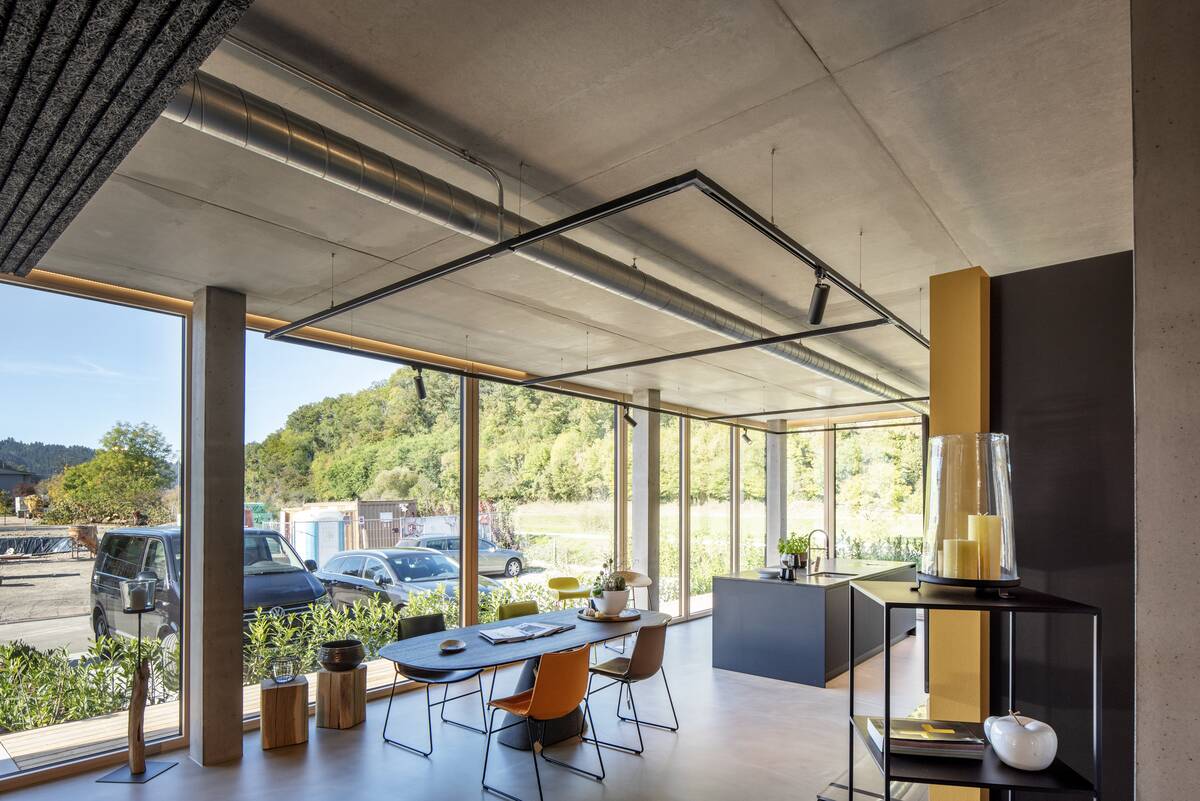

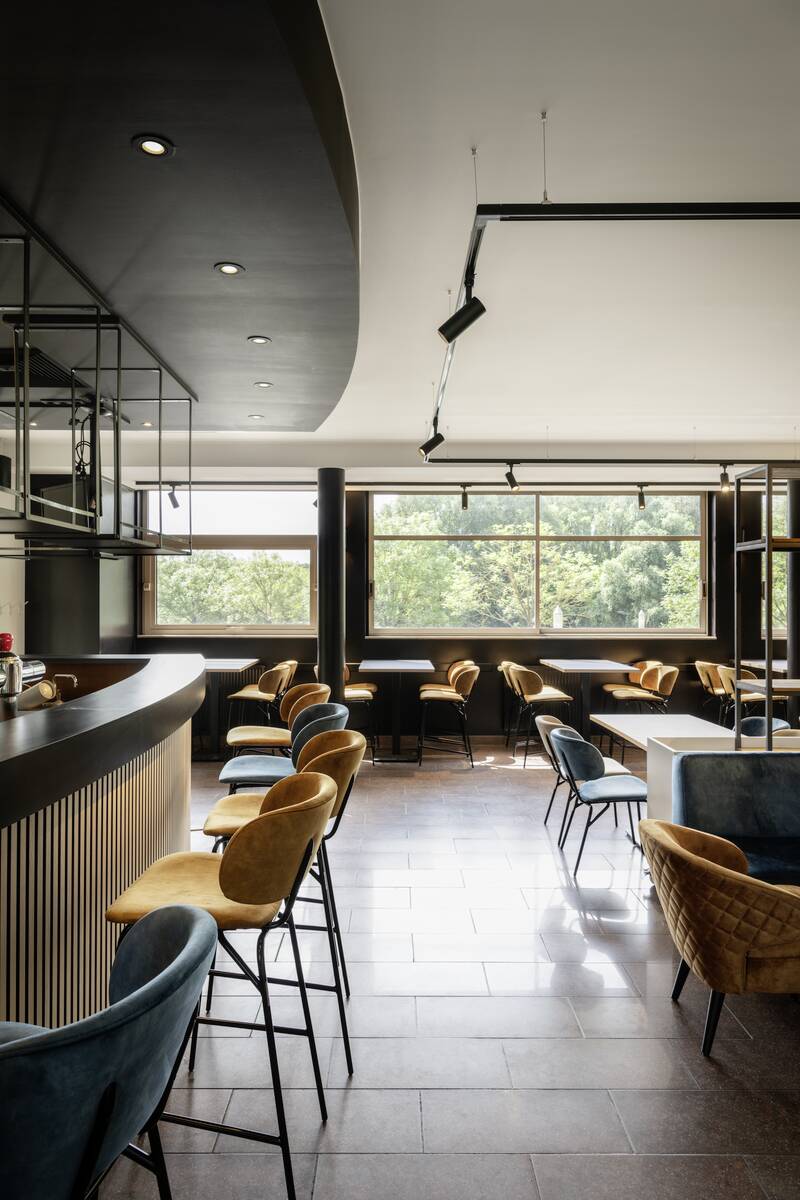

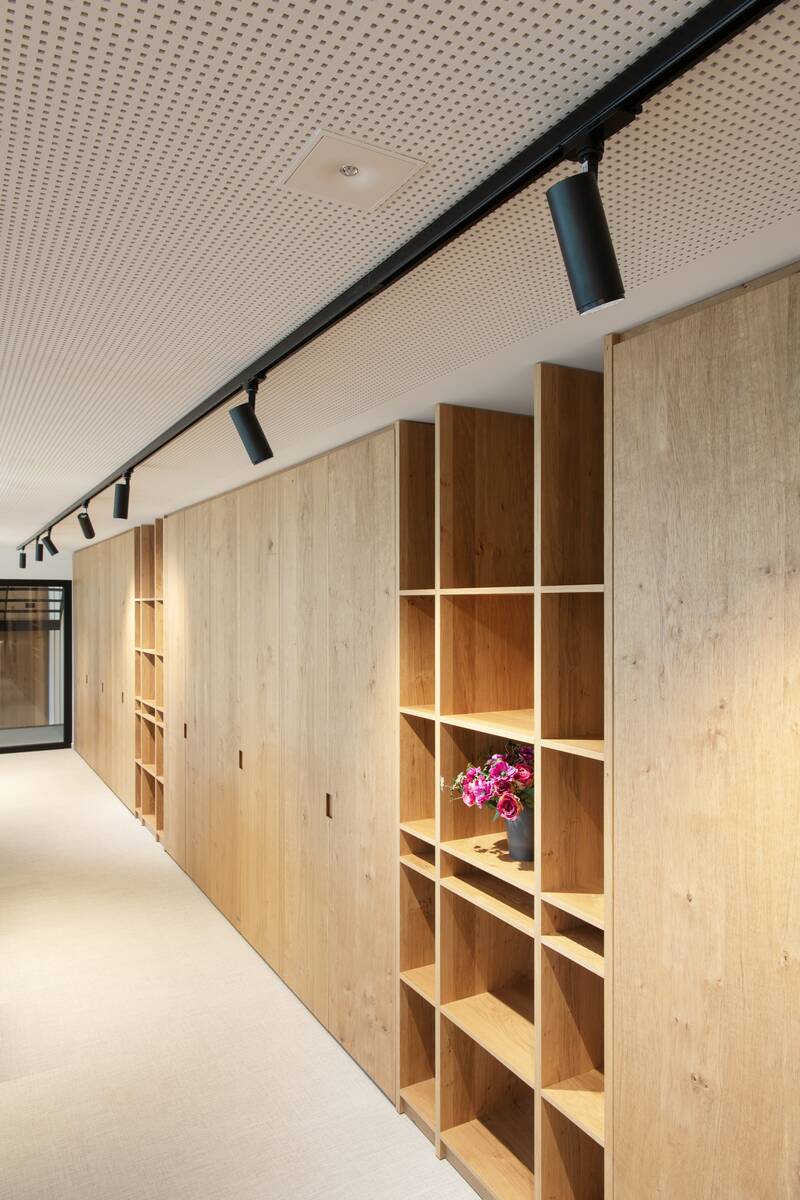

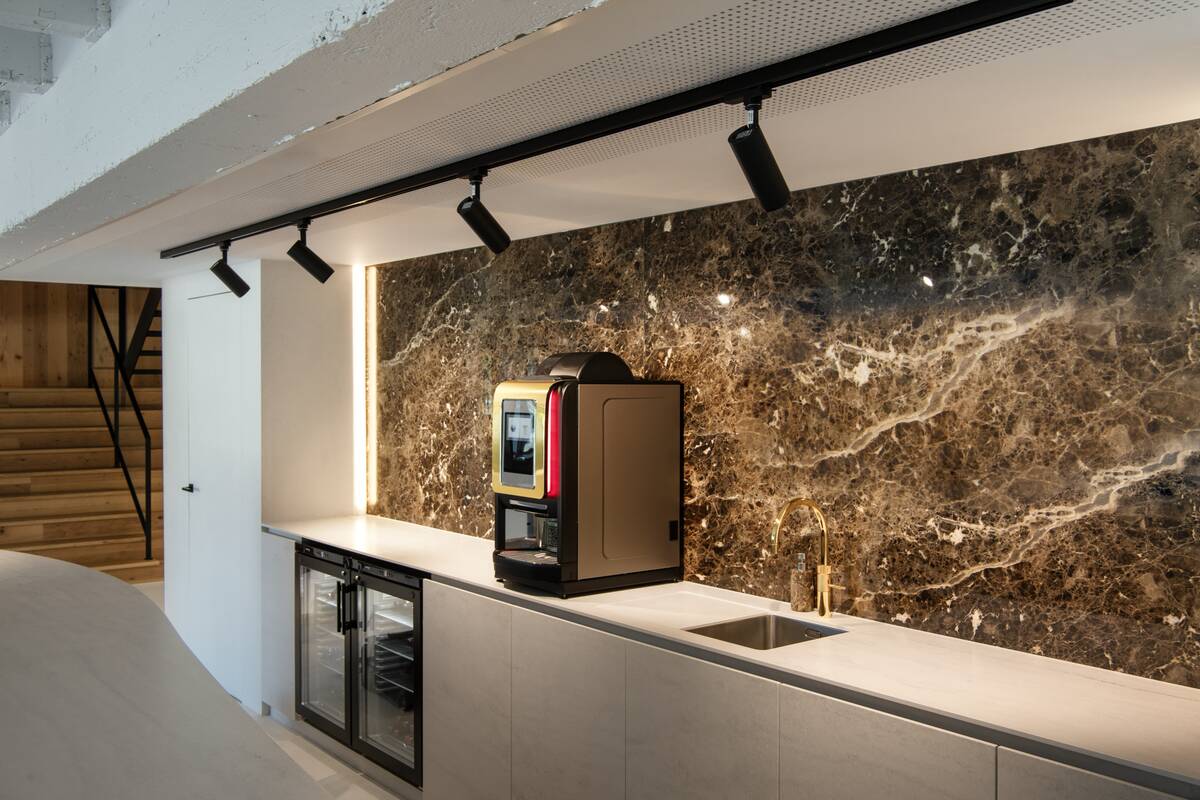

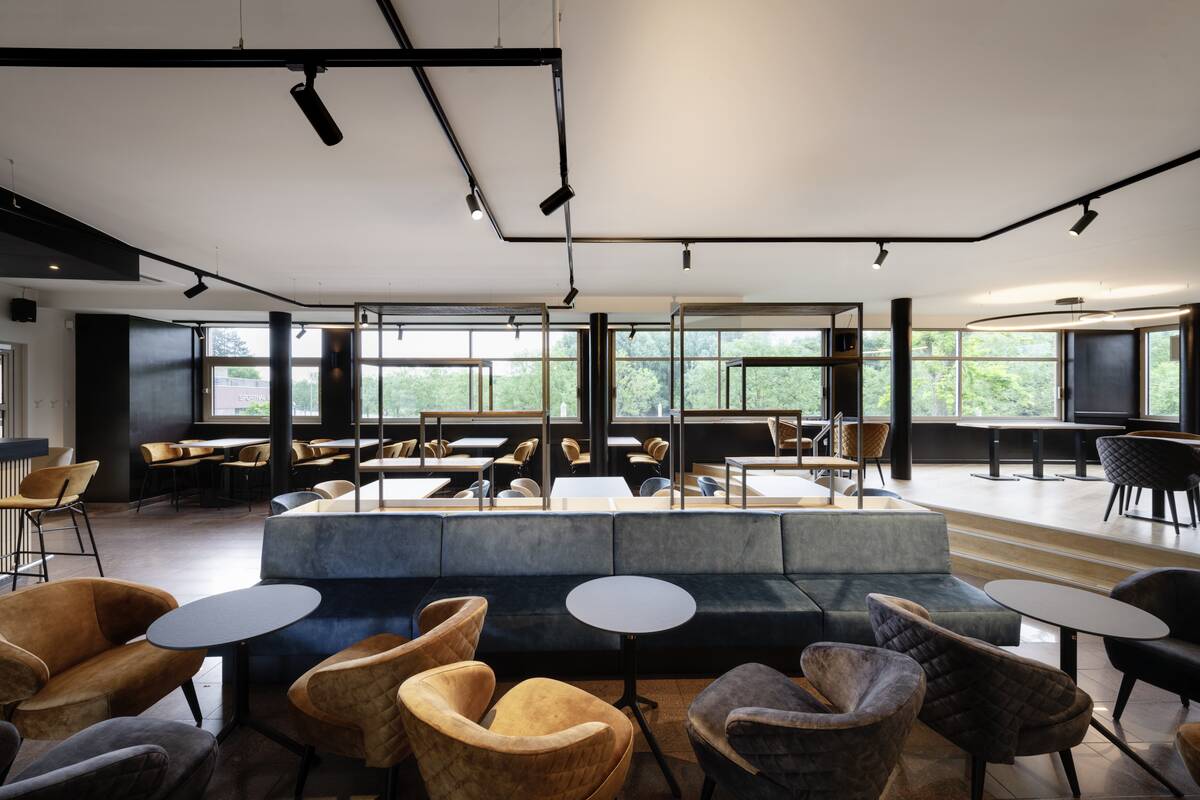

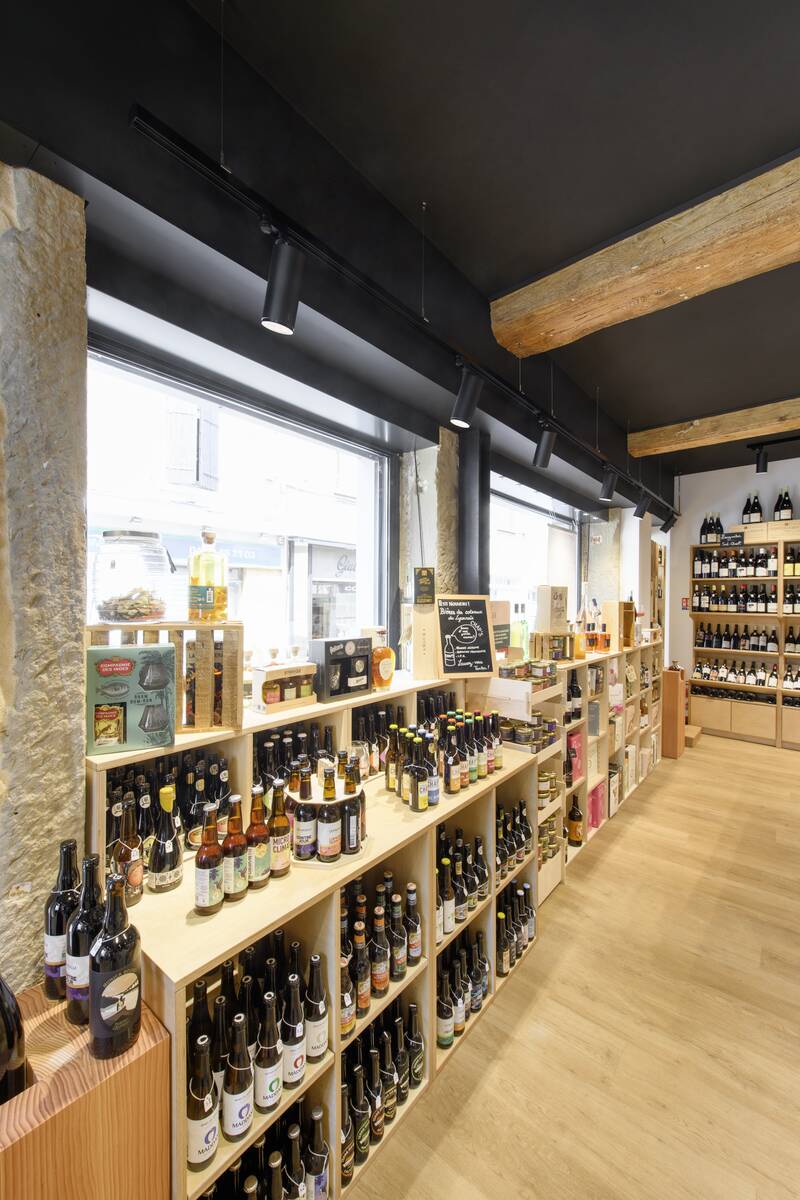

The NUMINOS® S 3Ph. is a cylindrical 3-phase spot designed for mounting on ceiling or wall track systems. It is suitable for indoor use, for example in exhibition spaces or retail areas where directional lighting is required. The spot offers a luminous flux of 1050 lumens at a colour temperature of 3000 K and a beam angle of 36°. The light source has a power consumption of 8 watts and is phase-cut dimmable. The housing is made of aluminium with a matt black finish. With a length of 16.2 cm, a diameter of 6.5 cm, and a height of 14 cm, the luminaire features a compact design. The IP20 protection rating is suitable for indoor applications without direct exposure to moisture.

Tehnilised andmed

Half beam angle	36 °
Colour	black
Colour temperature	3000 Kelvin
Luminous Flux	1050 lm
electrical power	8 W
CRI	90
Net weight	0.523 kg
Diameter	6.5 cm
Height	14 cm
Length	16.2 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	200 mA
Dimming options	Trailing edge
Shape	cylindrical
Horizontal rotation range	350 °
Variant Dimm options	Trailing edge
Different light outlets	1
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Berker 2873 Result	With restrictions
Material	Aluminium
UGR ≤	16
LED can be changed	Control gear replaceable by a professional
Product name	NUMINOS® S
CCT Switch	No
DALI capable	No
Dimmable	Yes
Assembly	Track
Risk group	1
Busch-Jäger 6523U Result	Compatible
Eltako EUD 61 NPN-UC Result	Compatible
Jung 224 LED UDD Result	Compatible
Legrand PRO21 LED Dimmer 775659 Result	Compatible
LK Fuga LED Dimmer 180 Touch Result	Compatible
Merten MEG5134-0000 Result	Compatible
Niko 310-0190X Result	Compatible
SLV 470807 Result	Compatible
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	3-Phase-System, High voltage track systems, Indoor, LED, Other light source, Track systems
Sildid	LED power track spotlight, Shop lighting, TRIAC
