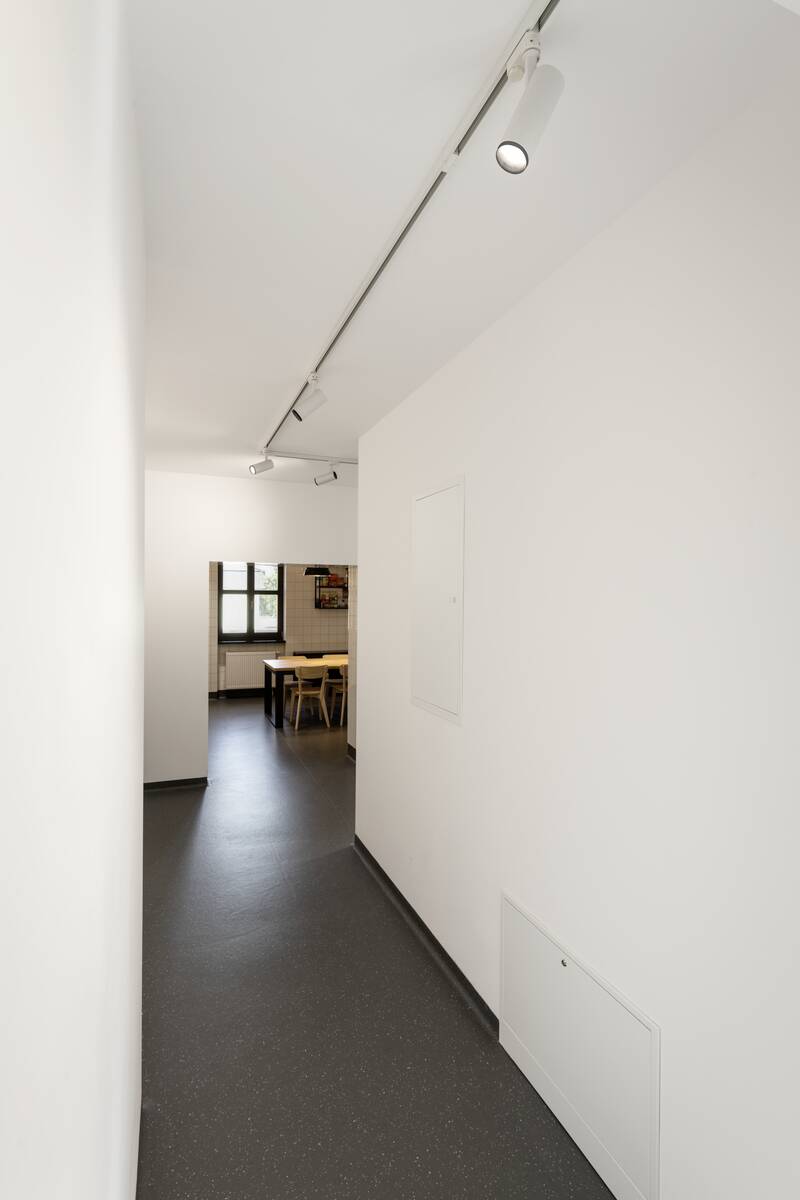

The NUMINOS® M 3Ph. spot is a cylindrical 3-phase spotlight designed for mounting on ceiling track systems. It is suitable for indoor use, for example in retail or exhibition areas where targeted lighting is required. With a power consumption of 14 watts, it produces a luminous flux of 1950 lumens at a colour temperature of 4000 K and a beam angle of 60°. The housing is made of aluminium and is available in matt white or matt black. Dimming is carried out via phase-cut control (trailing edge). The light source is housed in a compact format measuring 18.5 cm in length, 8.5 cm in diameter, and 15.5 cm in height. The spotlight has a protection rating of IP20, protecting it against contact and solid foreign objects.

Tehnilised andmed

Half beam angle	60 °
Colour	white
Colour temperature	4000 Kelvin
Luminous Flux	1950 lm
electrical power	14 W
CRI	90
Net weight	0.797 kg
Diameter	8.5 cm
Height	15.5 cm
Length	18.5 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	350 mA
Dimming options	Trailing edge
Shape	cylindrical
Horizontal rotation range	350 °
Variant Dimm options	Trailing edge
Different light outlets	1
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Berker 2873 Result	With restrictions
Material	Aluminium
UGR ≤	22
LED can be changed	Control gear replaceable by a professional
Product name	NUMINOS® M
CCT Switch	No
DALI capable	No
Dimmable	Yes
Assembly	Track
Risk group	1
Busch-Jäger 6523U Result	Compatible
Eltako EUD 61 NPN-UC Result	Compatible
Jung 224 LED UDD Result	Compatible
Legrand PRO21 LED Dimmer 775659 Result	Compatible
LK Fuga LED Dimmer 180 Touch Result	Compatible
Merten MEG5134-0000 Result	Compatible
Niko 310-0190X Result	Compatible
SLV 470807 Result	Compatible
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	3-Phase-System, High voltage track systems, Indoor, LED, Other light source, Track systems
Sildid	LED power track spotlight, LED shop lighting, Shop lighting, TRIAC
