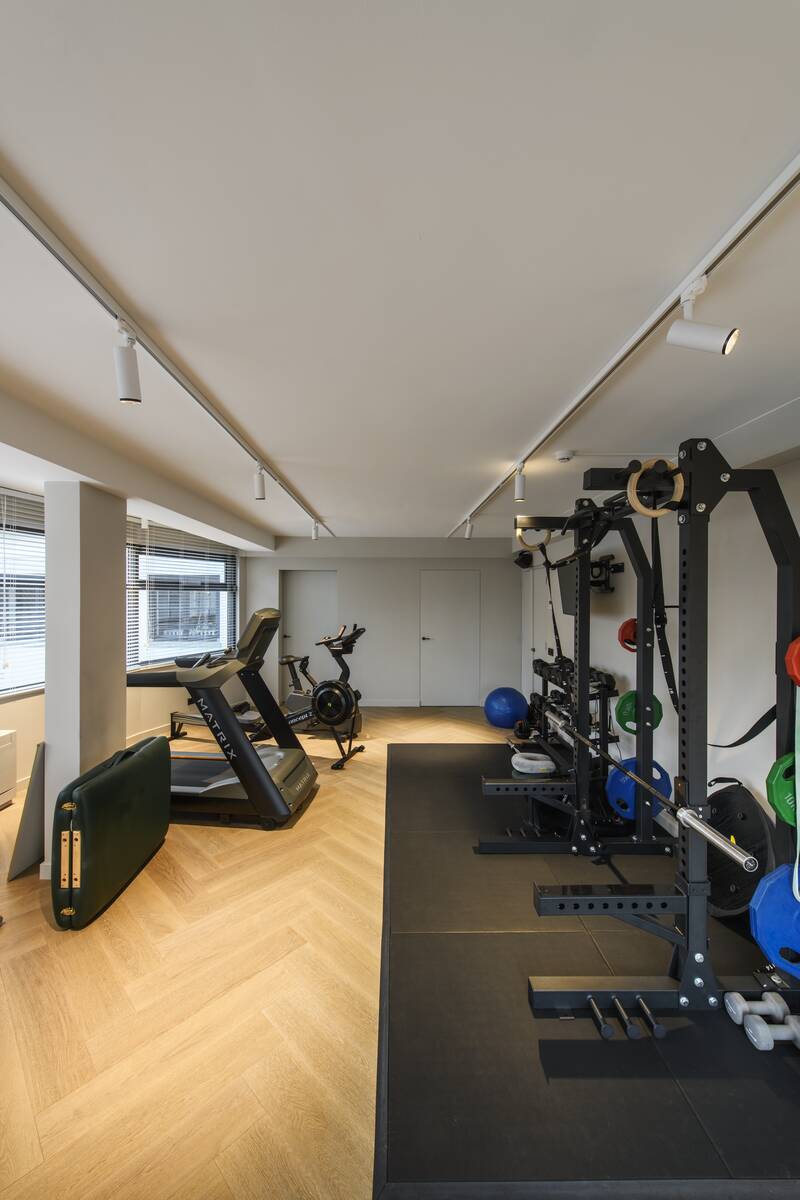

The NUMINOS® M 3Ph. spot is a cylindrical, three-phase spotlight designed for mounting on ceiling track systems. It is particularly suitable for indoor use where targeted lighting is required. The spotlight delivers a luminous flux of 1750 lumens with a power consumption of 14 watts and a colour temperature of 2700 Kelvin. The beam angle is 60 degrees, allowing precise light direction. The housing is made of aluminium and is available in matte white or matte black. Dimming is carried out via phase-cut (trailing edge). The spotlight has an IP20 protection rating and a declared service life of 50,000 hours. With a length of 18.5 cm, a diameter of 8.5 cm, and a height of 15.5 cm, it is designed to be compact.

Tehnilised andmed

Half beam angle	60 °
Colour	white
Colour temperature	2700 Kelvin
Luminous Flux	1750 lm
electrical power	14 W
CRI	90
Net weight	0.797 kg
Diameter	8.5 cm
Height	15.5 cm
Length	18.5 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	350 mA
Dimming options	Trailing edge
Shape	cylindrical
Horizontal rotation range	350 °
Variant Dimm options	Trailing edge
Different light outlets	1
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Berker 2873 Result	With restrictions
Material	Aluminium
UGR ≤	22
LED can be changed	Control gear replaceable by a professional
Product name	NUMINOS® M
CCT Switch	No
DALI capable	No
Dimmable	Yes
Assembly	Track
Risk group	1
Busch-Jäger 6523U Result	Compatible
Eltako EUD 61 NPN-UC Result	Compatible
Jung 224 LED UDD Result	Compatible
Legrand PRO21 LED Dimmer 775659 Result	Compatible
LK Fuga LED Dimmer 180 Touch Result	Compatible
Merten MEG5134-0000 Result	Compatible
Niko 310-0190X Result	Compatible
SLV 470807 Result	Compatible
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	3-Phase-System, High voltage track systems, Indoor, LED, Other light source, Track systems
Sildid	LED power track spotlight, LED shop lighting, Shop lighting, TRIAC
