The NUMINOS® L 3Ph. spot is a three-phase cylindrical spotlight designed for mounting on ceiling track systems. It is suitable for indoor use, for example in exhibition or retail areas where directional lighting is required. With a power consumption of 20 watts, it produces a luminous flux of 2300 lumens at a warm white colour temperature of 2700 Kelvin and a beam angle of 60 degrees. The housing is made of aluminium and is available in matt white or matt black. Dimming is achieved via trailing edge phase-cut control. The spotlight has a length of 21.3 cm, a diameter of 10 cm, and a height of 17 cm. The IP20 protection rating provides protection against contact and solid foreign objects larger than 12.5 mm.

Tehnilised andmed

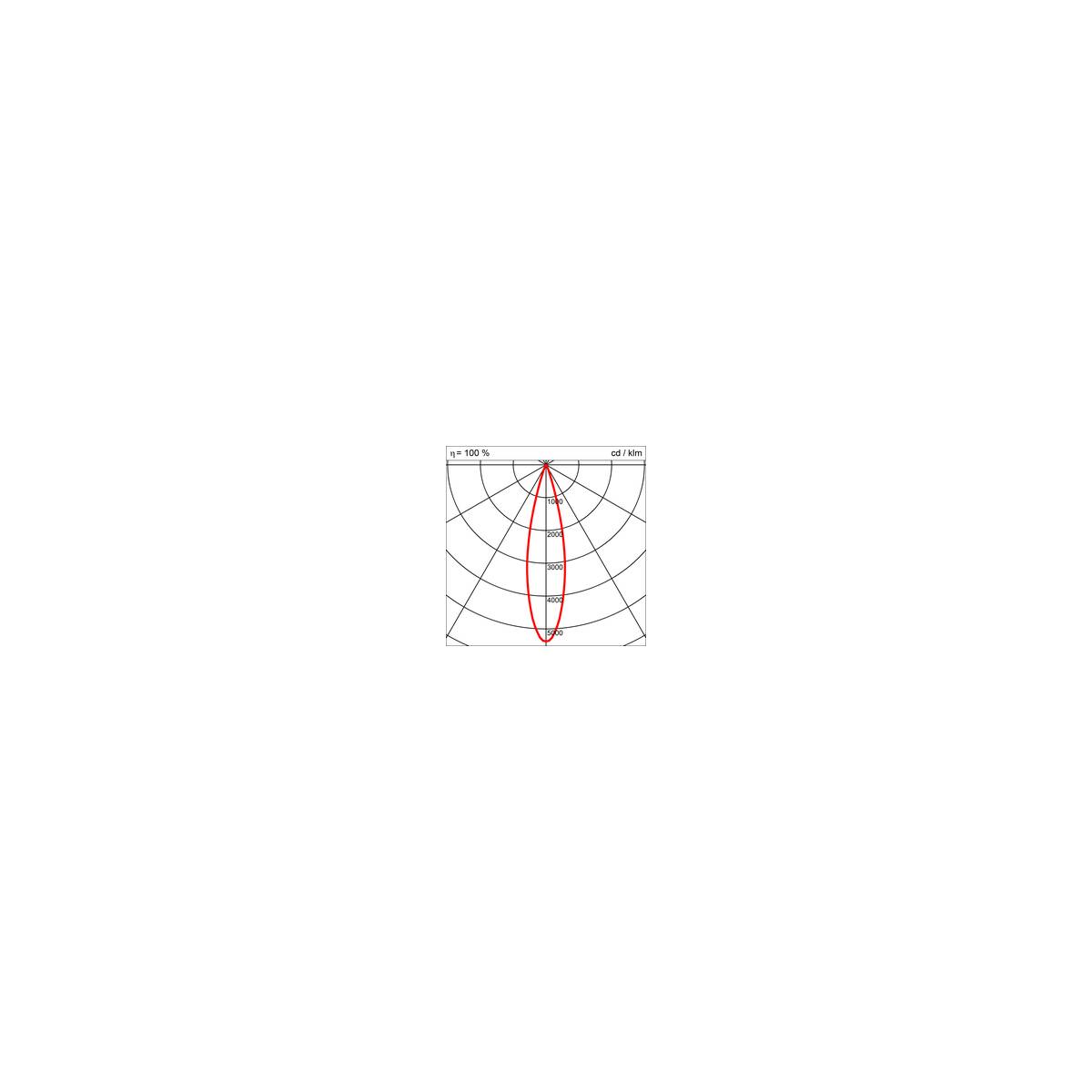

Half beam angle	60 °
Colour	white
Colour temperature	2700 Kelvin
Luminous Flux	2300 lm
electrical power	20 W
CRI	90
Net weight	1.093 kg
Diameter	10 cm
Height	17 cm
Length	21.3 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	500 mA
Dimming options	Trailing edge
Shape	cylindrical
Horizontal rotation range	350 °
Variant Dimm options	Trailing edge
Different light outlets	1
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Berker 2873 Result	With restrictions
Material	Aluminium
UGR ≤	19
LED can be changed	Control gear replaceable by a professional
Product name	NUMINOS® L
CCT Switch	No
DALI capable	No
Dimmable	Yes
Assembly	Track
Risk group	1
Busch-Jäger 6523U Result	Compatible
Eltako EUD 61 NPN-UC Result	Compatible
Jung 224 LED UDD Result	Compatible
Legrand PRO21 LED Dimmer 775659 Result	Compatible
LK Fuga LED Dimmer 180 Touch Result	Compatible
Merten MEG5134-0000 Result	Compatible
Niko 310-0190X Result	Compatible
SLV 470807 Result	Compatible
Tehnilised failid	Manual Datasheet CE declaration Removal instructions REACh
Kategooriad	3-Phase-System, High voltage track systems, Indoor, LED, Other light source, Track systems
Sildid	LED power track spotlight, LED shop lighting, Shop lighting, TRIAC
