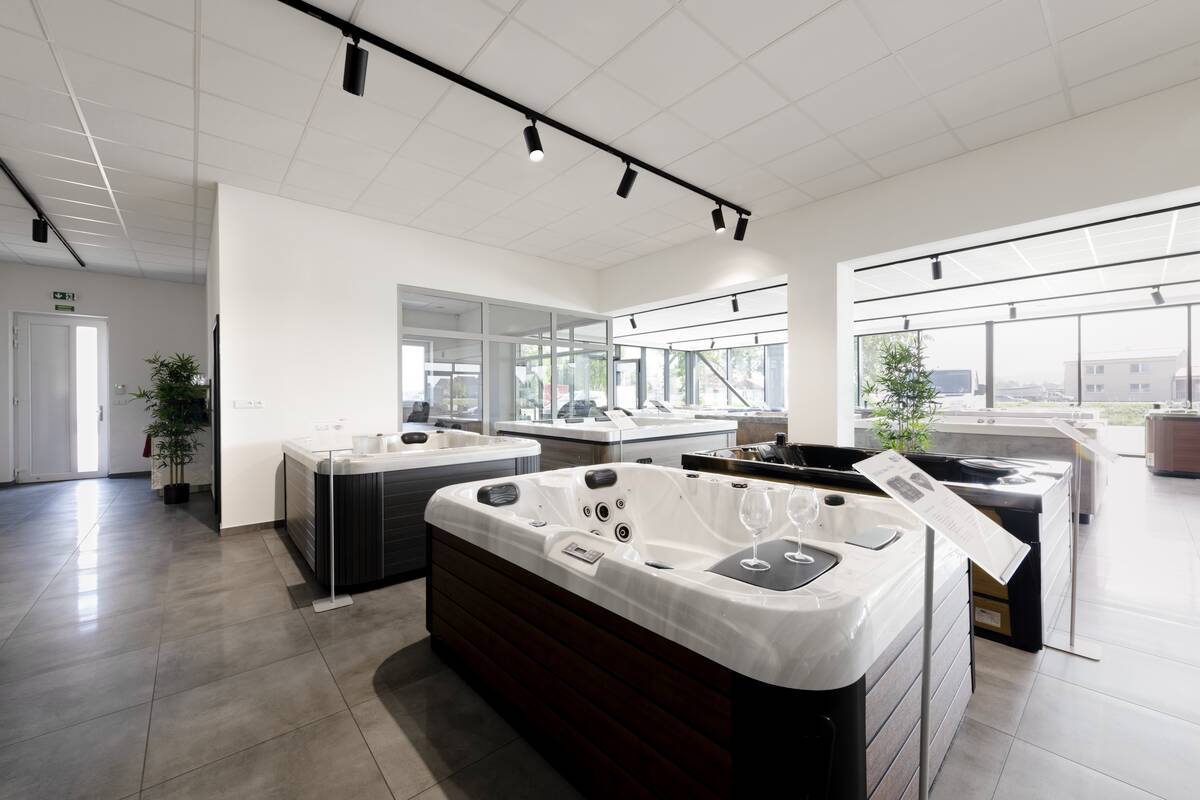

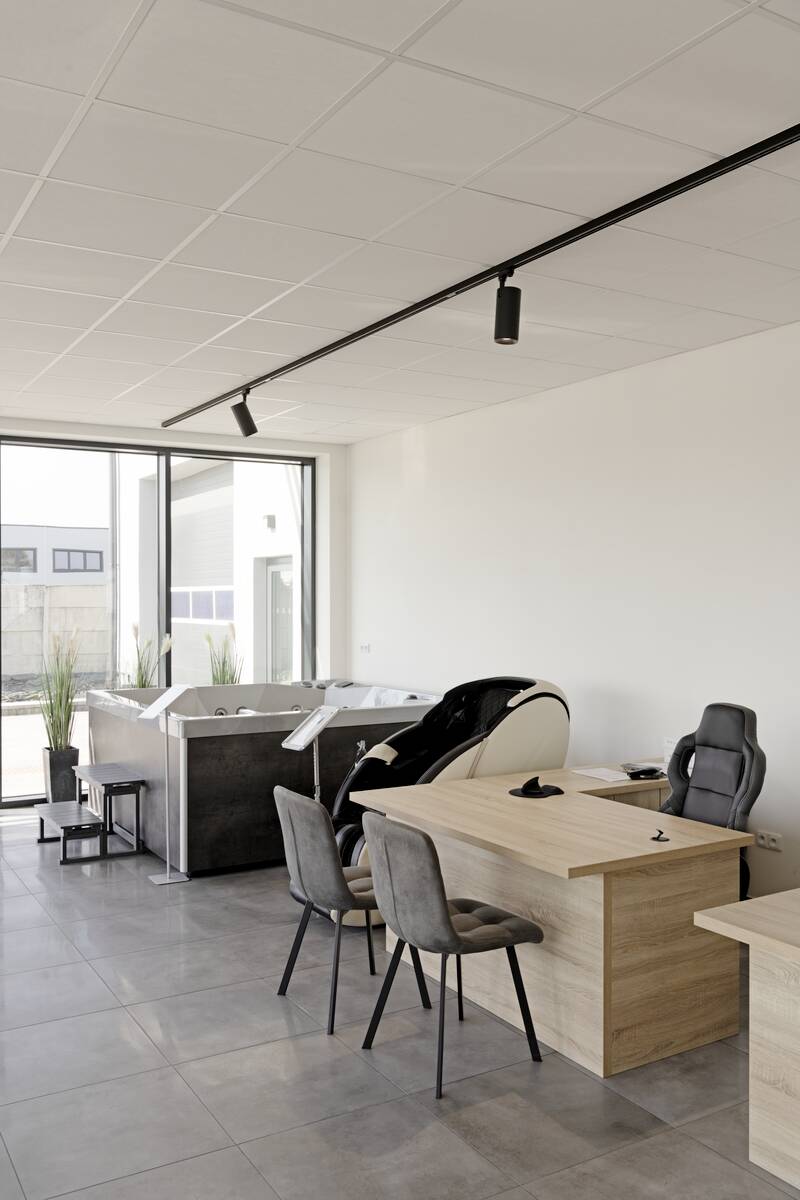

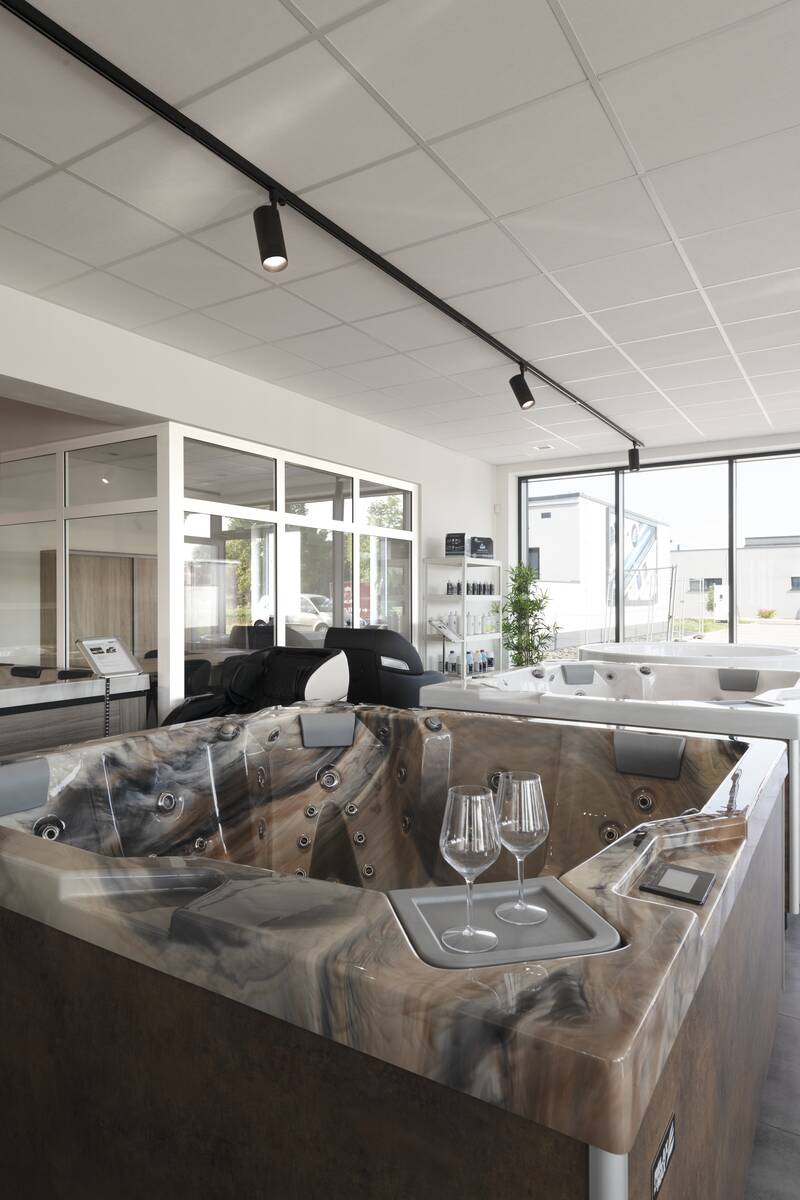

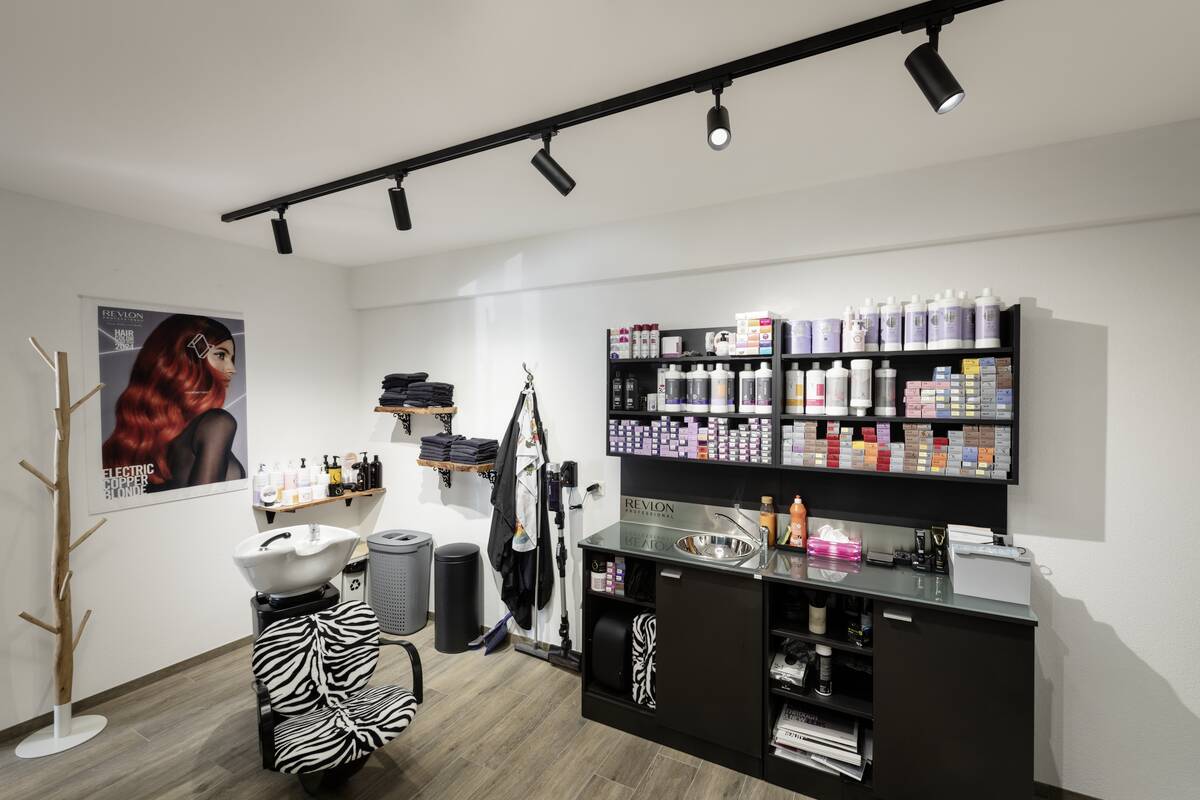

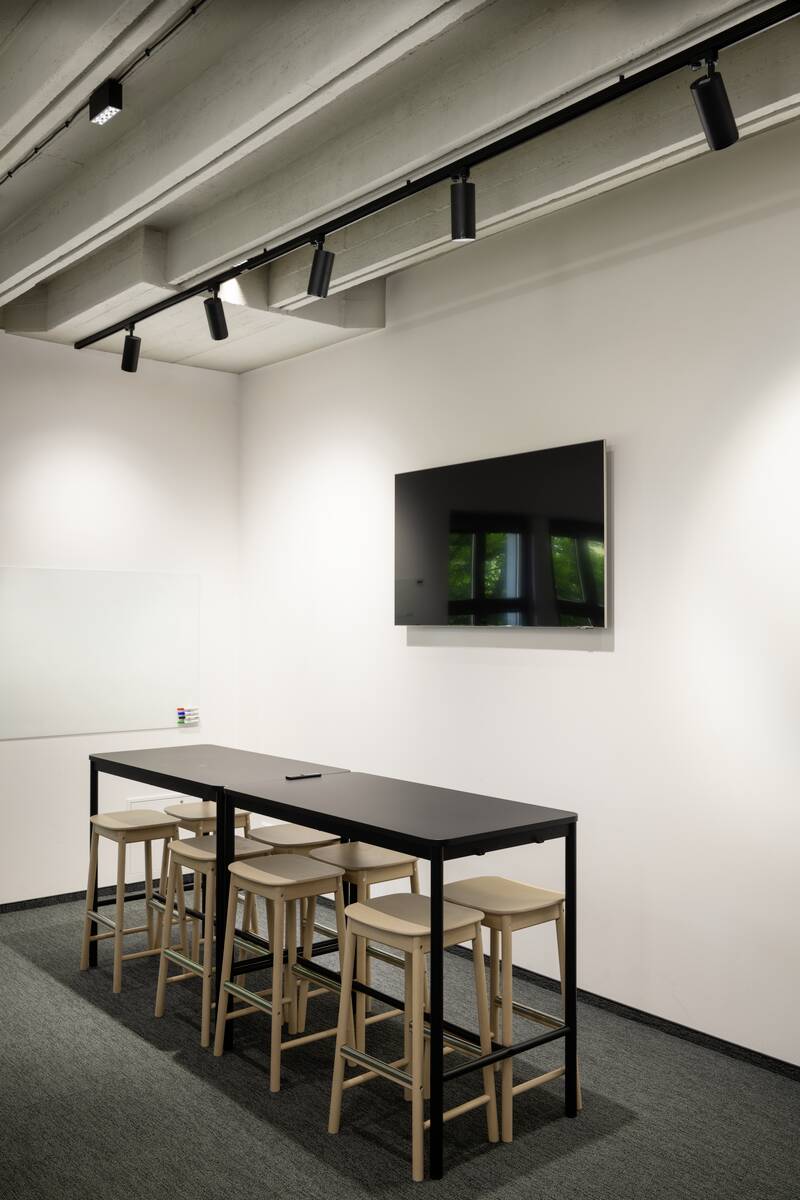

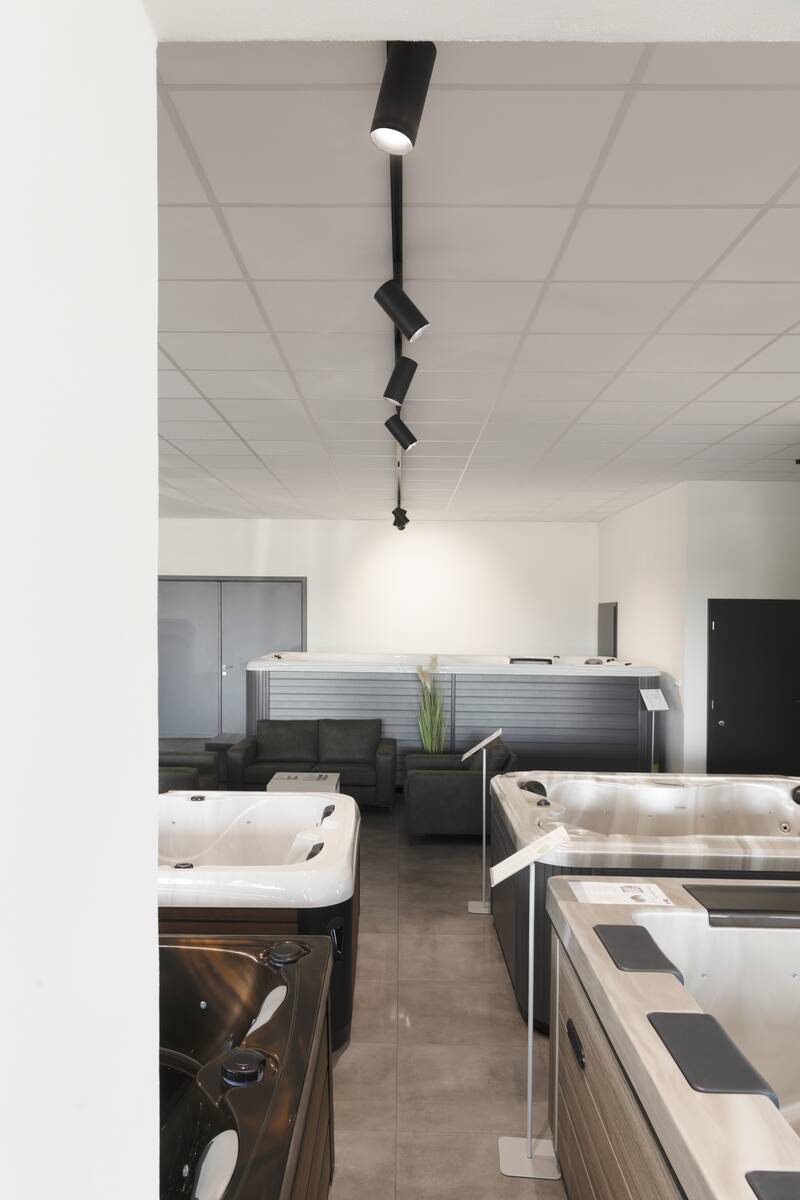

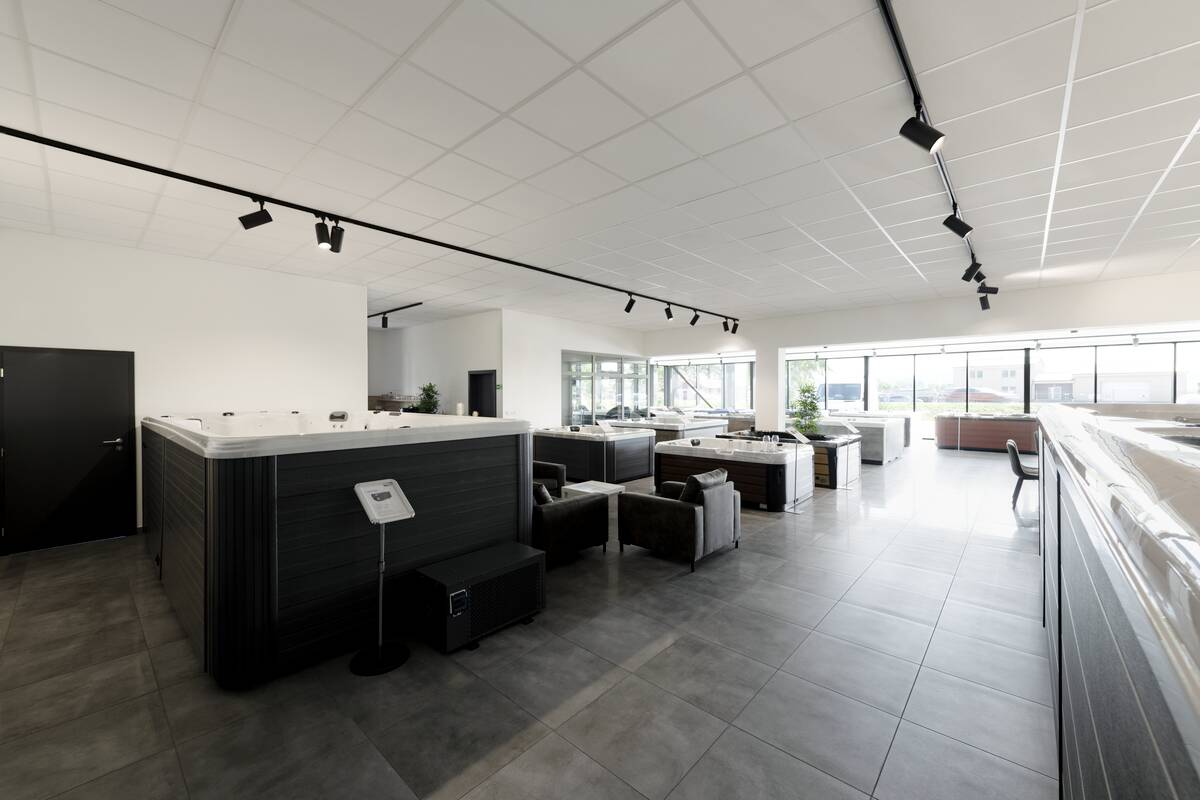

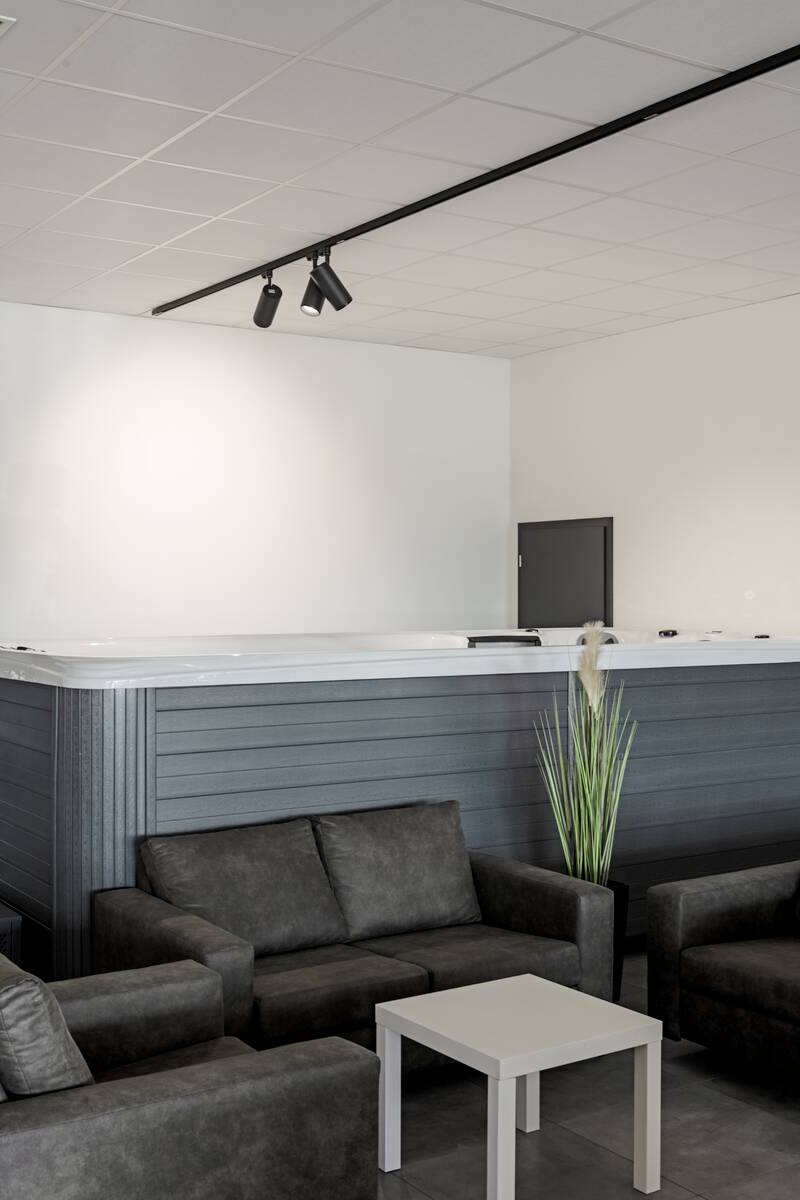

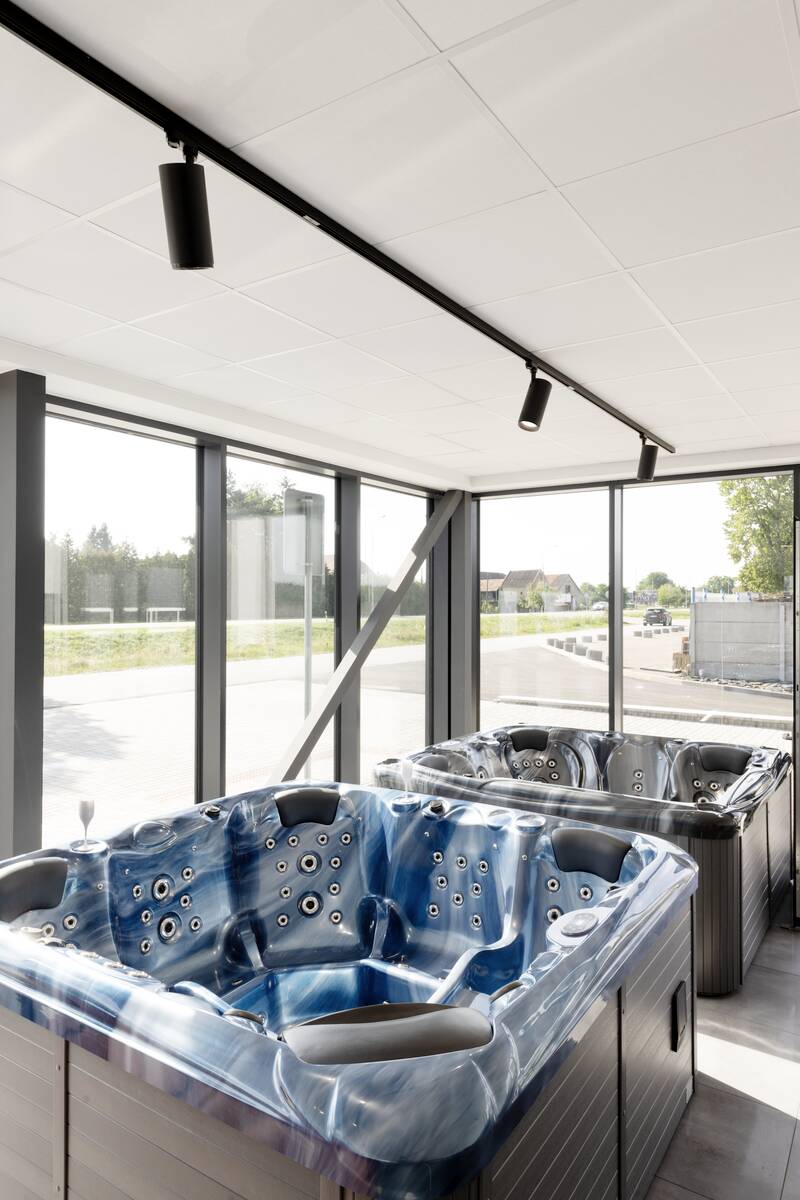

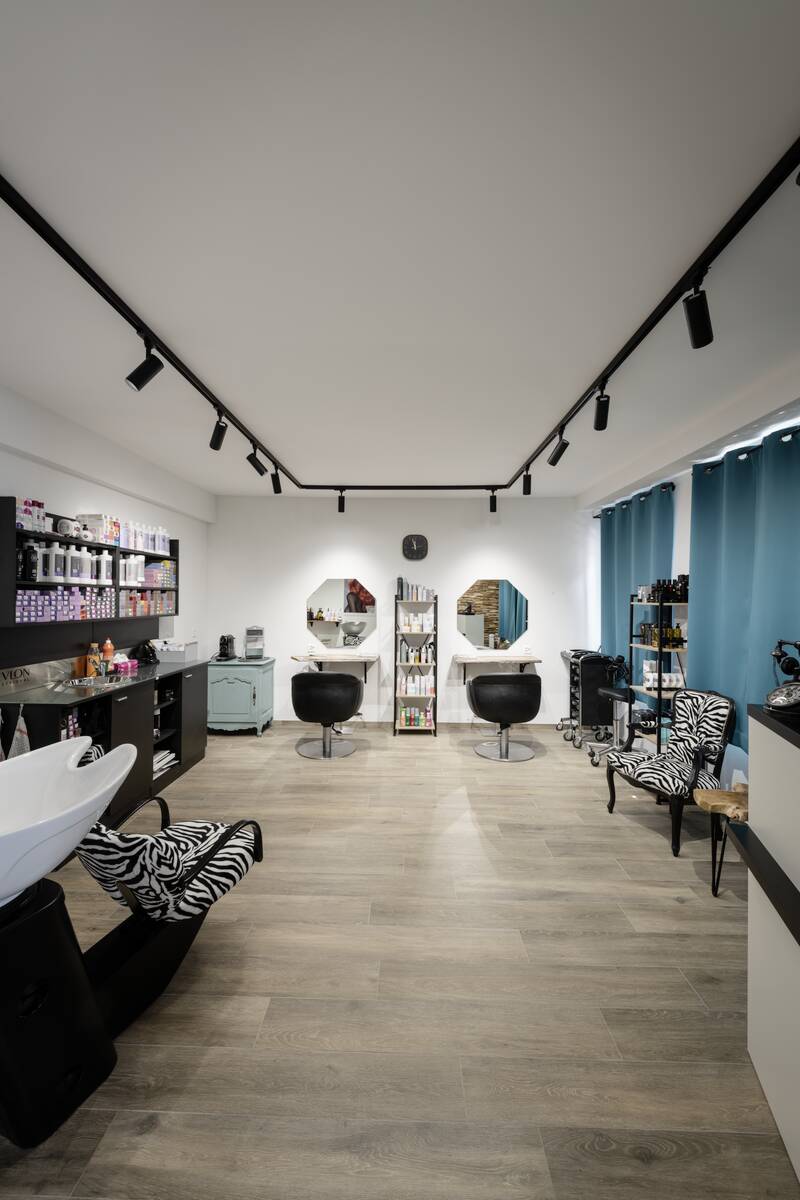

The NUMINOS® L 3Ph. is a cylindrical 3-phase spot designed for ceiling track system installation, particularly suitable for use in commercial and public indoor spaces. With a power consumption of 20 watts, it produces a luminous flux of 2600 lumens at a neutral white colour temperature of 4000 Kelvin and a beam angle of 60 degrees. The housing is made of aluminium with a matt black finish. Dimming is achieved via phase-cut control (Trailing Edge). The spot measures 21.3 cm in length, has a diameter of 10 cm, and a height of 17 cm. The protection rating is IP20, making it suitable for use in dry indoor areas. The declared lifespan is 50,000 hours.

Tehnilised andmed

Half beam angle	60 °
Colour	black
Colour temperature	4000 Kelvin
Luminous Flux	2600 lm
electrical power	20 W
CRI	90
Net weight	1.102 kg
Diameter	10 cm
Height	17 cm
Length	21.3 cm
IP Code	IP20
Service life	50000 h
Primary nominal voltage	220-240V ~ 50/60Hz
Secondary power / secondary voltage	500 mA
Dimming options	Trailing edge
Shape	cylindrical
Horizontal rotation range	350 °
Variant Dimm options	Trailing edge
Different light outlets	1
Seperate beams	Yes
Vertical tilting range	90 °
Ambient temperature	-20 °C
Berker 2873 Result	With restrictions
Material	Aluminium
UGR ≤	19
LED can be changed	Control gear replaceable by a professional
Product name	NUMINOS® L
CCT Switch	No
DALI capable	No
Dimmable	Yes
Assembly	Track
Risk group	1
Busch-Jäger 6523U Result	Compatible
Eltako EUD 61 NPN-UC Result	Compatible
Jung 224 LED UDD Result	Compatible
Legrand PRO21 LED Dimmer 775659 Result	Compatible
LK Fuga LED Dimmer 180 Touch Result	Compatible
Merten MEG5134-0000 Result	Compatible
Niko 310-0190X Result	Compatible
SLV 470807 Result	Compatible
